Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#153559) — 15 parça
◀

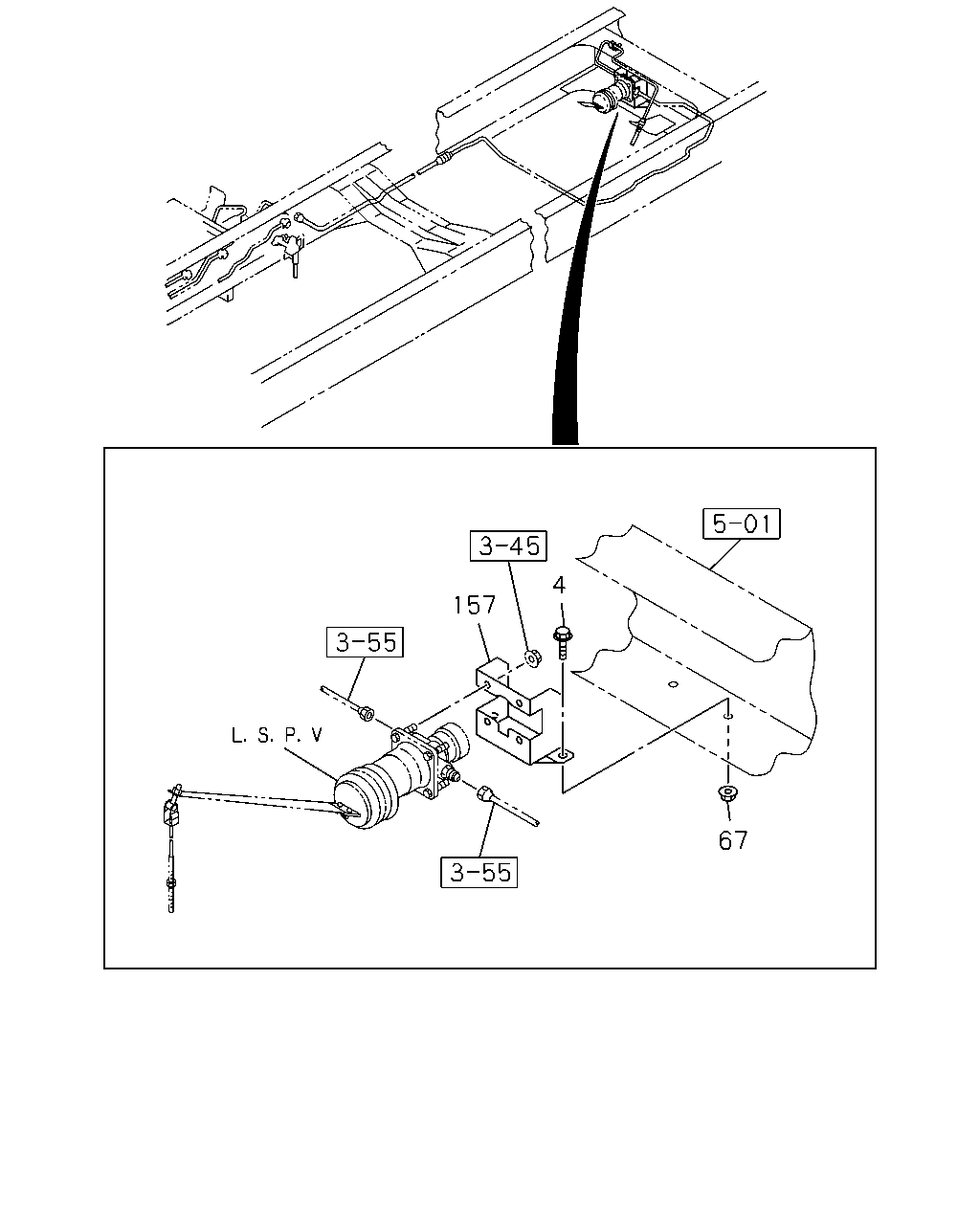

[358A] NO.3 (3 parça)

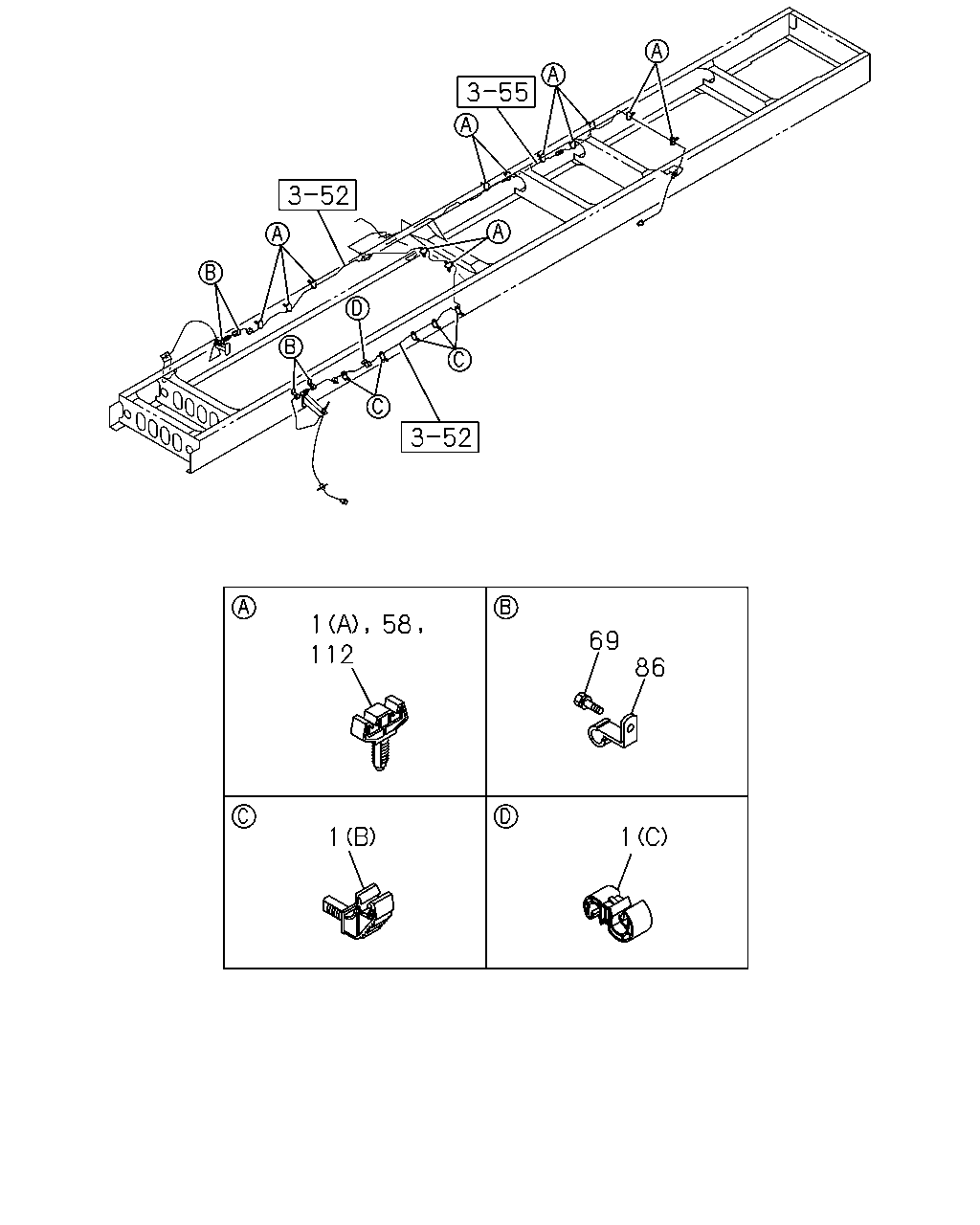

[358A] NO.1 (8 parça)
[358A] NO.2 (4 parça)
▶
4
157
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1412-
67
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1412-
157
BRACKET; BRK
1-47477-787-0
01
1
1412-
86
69
58
1
112
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(B) ID=6.35
1-09701-247-1
05
1
1412-
1
CLIP; OIL PIPE TO BODY
(C) ID=6.35 & 6.35
1-09709-273-1
01
1
1412-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
02
1
1412-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1412-
58
CLIP; OIL PIPE
8-98012-254-1
02
1
1412-
69
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
1412-
86
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
04
1
1412-
112
CLIP; OIL PIPE
8-98012-254-1
05
1
1412-
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
05
1
1412-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
05
1
1412-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
05
1
1412-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
05
1
1412-
