◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#15355) — 48 parça

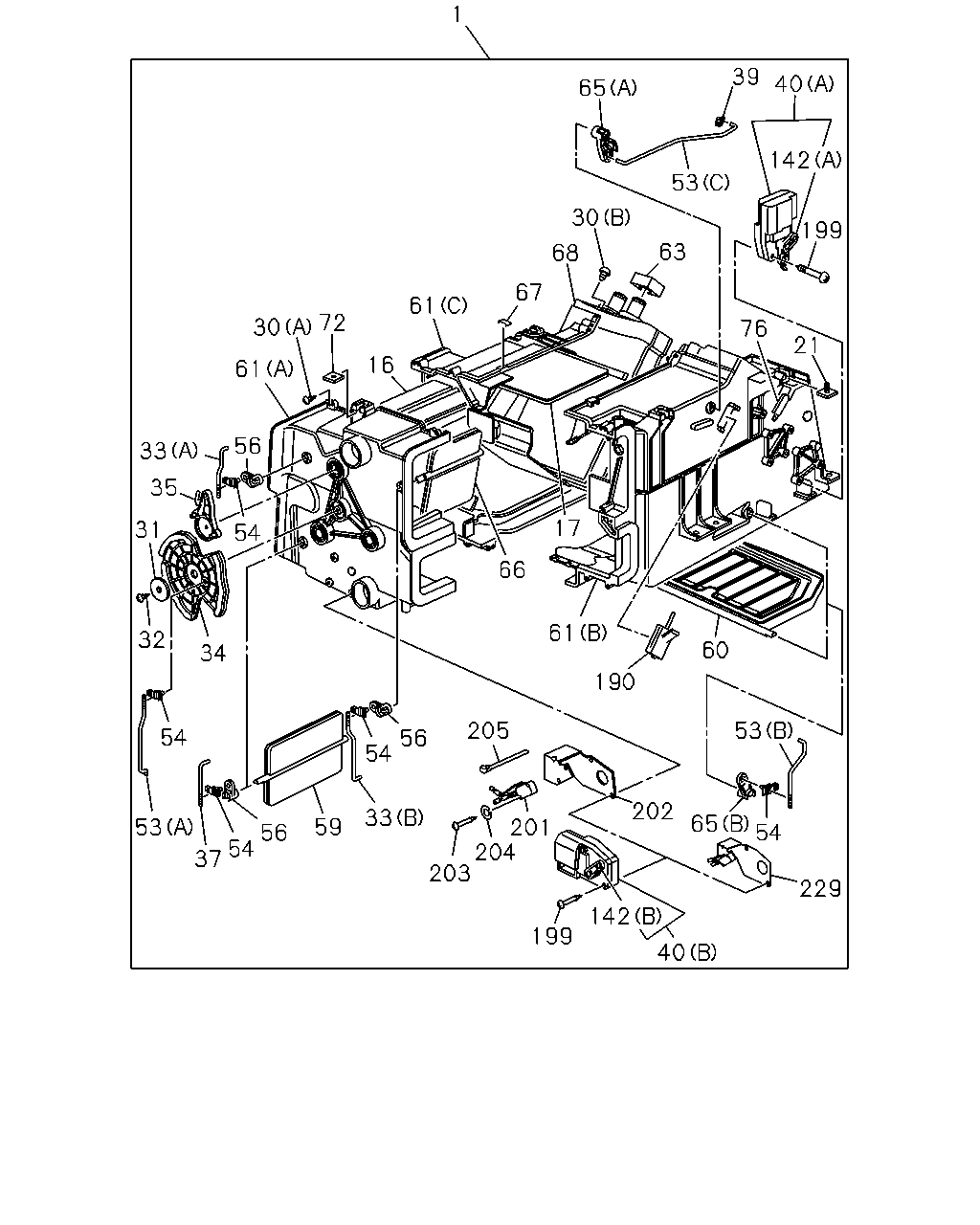

çizim 106889
1 65 30 63 53 39 40 142 199 68 67 76 21 61 16 61 30 72 56 33 35 54 31 32 34 54 53 37 54 56 59 33 54 56 205 201 204 203 199 142 40 229 65 54 202 53 60 190 61 66 17
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-182-1 01 1 0710-1409
1 HEATER UNIT 8-98238-480-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0710-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0710-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0710-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0710-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0710-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0710-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0710-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0710-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0710-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0710-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0710-
37 ROD; LEVER 1-83579-620-1 01 1 0710-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0710-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0710-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-676-2 01 1 0710-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0710-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0710-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0710-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0710-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0710-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0710-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0710-
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 0710-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0710-
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 0710-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0710-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0710-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0710-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0710-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0710-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0710-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0710-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0710-
142 LEVER; ACTUATOR
(B) 		1-83564-409-0 01 1 0710-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0710-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0710-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0710-
201 SWITCH; MICRO,HEATER UNIT 1-83579-679-1 01 1 1410-
202 BRACKET; MICRO SWITCH 1-83571-907-1 01 1 1410-
203 SCREW; MICRO SWITCH 5-83569-141-0 02 1 1410-
204 WASHER; LK,MICRO SWITCH
ID=3.1 		9-09150-503-0 02 1 1410-
205 CLIP; HARNESS
L=92 		1-83574-159-0 01 1 1410-
229 SWITCH ASM; MICRO,HEATER UNIT 1-83579-688-2 01 1 0710-1409
