Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#153549) — 72 parça

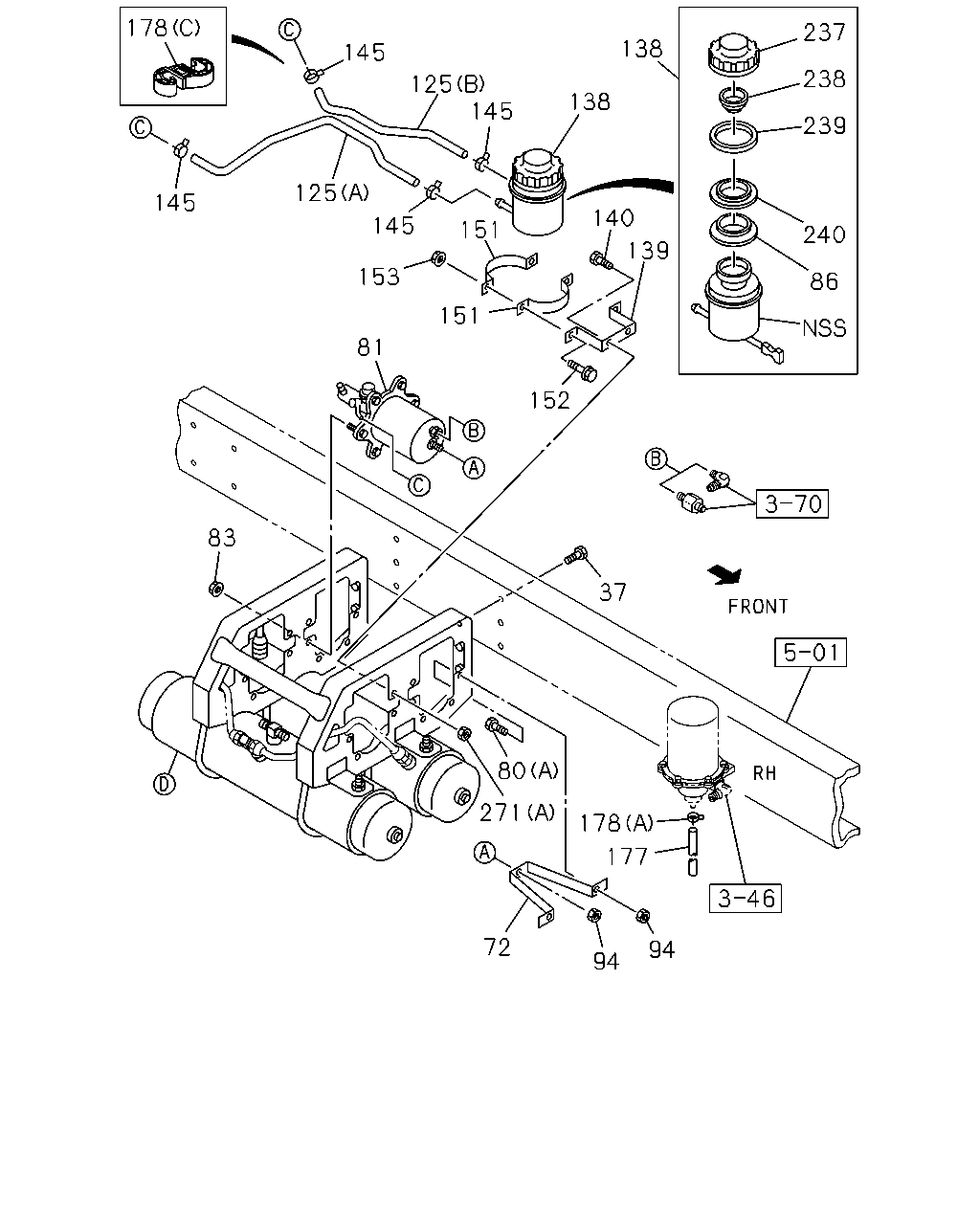

94 94 72 177 178 271 80 37 152 139 140 138 138 237 238 239 240 86 145 125 145 178 145 125 145 151 151 153 81 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	1412-
72	BRACKET; AIR MASTER	8-98120-254-0	02	1	1412-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1412-
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (B) M8X16 FLANGE	0-28050-816-0	02	1	1412-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-663-1	02	1	1412-
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	1412-
86	SEAL; DUST	1-47529-019-0	01	1	1412-
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	1412-
125	HOSE; OIL TANK TO AIR MASTER (B) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1412-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98197-596-0	01	1	1412-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1412-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	1412-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	1412-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1412-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1412-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1412-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1412-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1412-
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1412-
178	CLIP; HOSE (B) DIN15X2	9-09917-171-0	01	1	1412-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1412-
237	CAP; OIL TANK	1-47525-030-0	01	1	1412-
238	PLATE; BAFFLE	1-47529-022-0	01	1	1412-
239	FILTER; DUST	1-47529-017-0	01	1	1412-
240	HOLDER; FILTER	1-47529-018-0	01	1	1412-
271	NUT; BRKT,HOSE (B) M8 FLANGE	0-91180-108-0	01	1	1412-
271	NUT; BRKT,HOSE (A) M10 FLANGE	0-91180-210-0	02	1	1412-

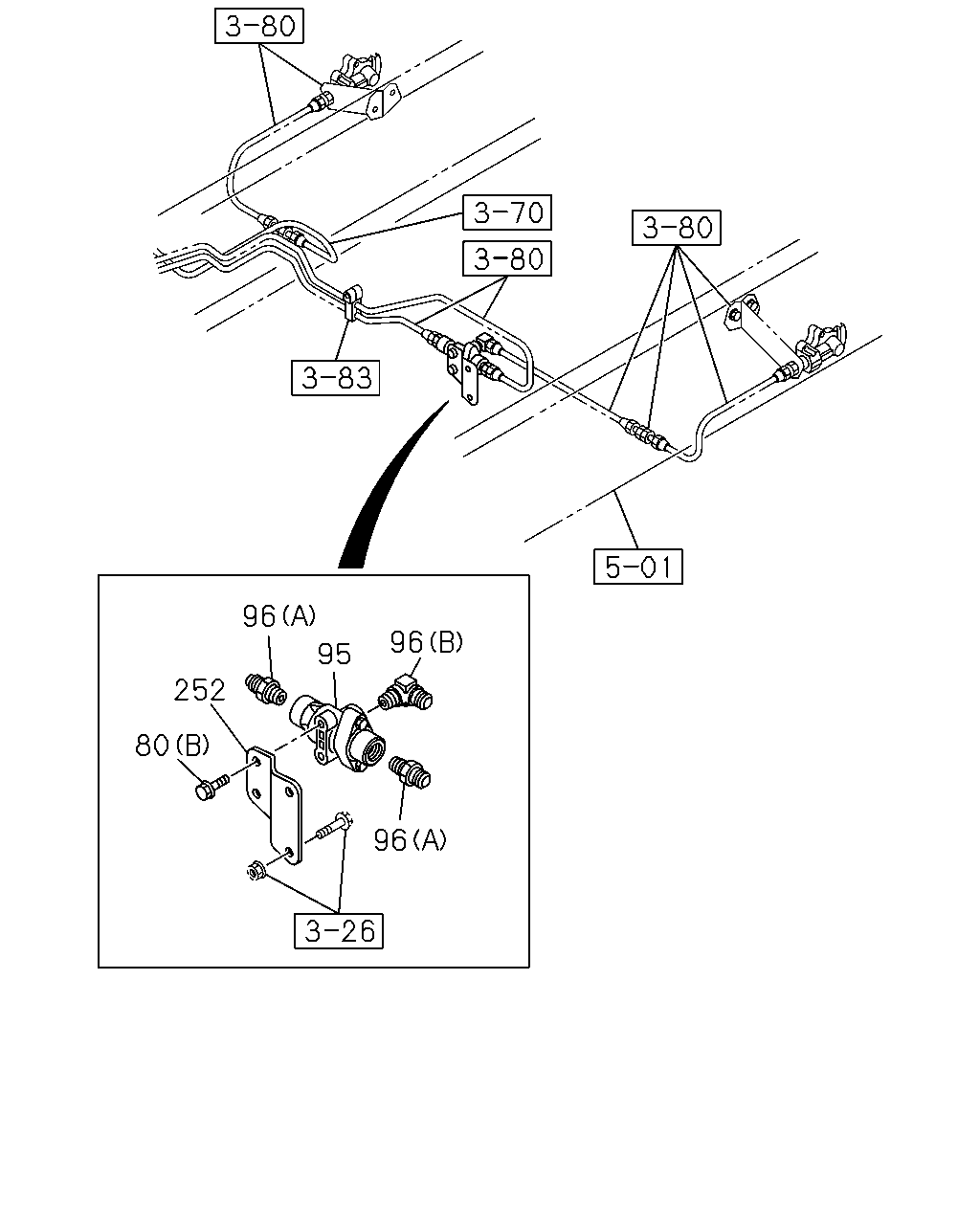

96 95 96 252 80 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1412-
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (B) M8X16 FLANGE	0-28050-816-0	02	1	1412-
95	VALVE; DOUBLE CHECK TRAILER BRAKE CONTROL<J91>	1-48410-531-1	01	1	1412-
96	CONNECTOR; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	1412-
96	CONNECTOR; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1412-
252	BRACKET; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91>	8-98141-870-0	01	1	1412-

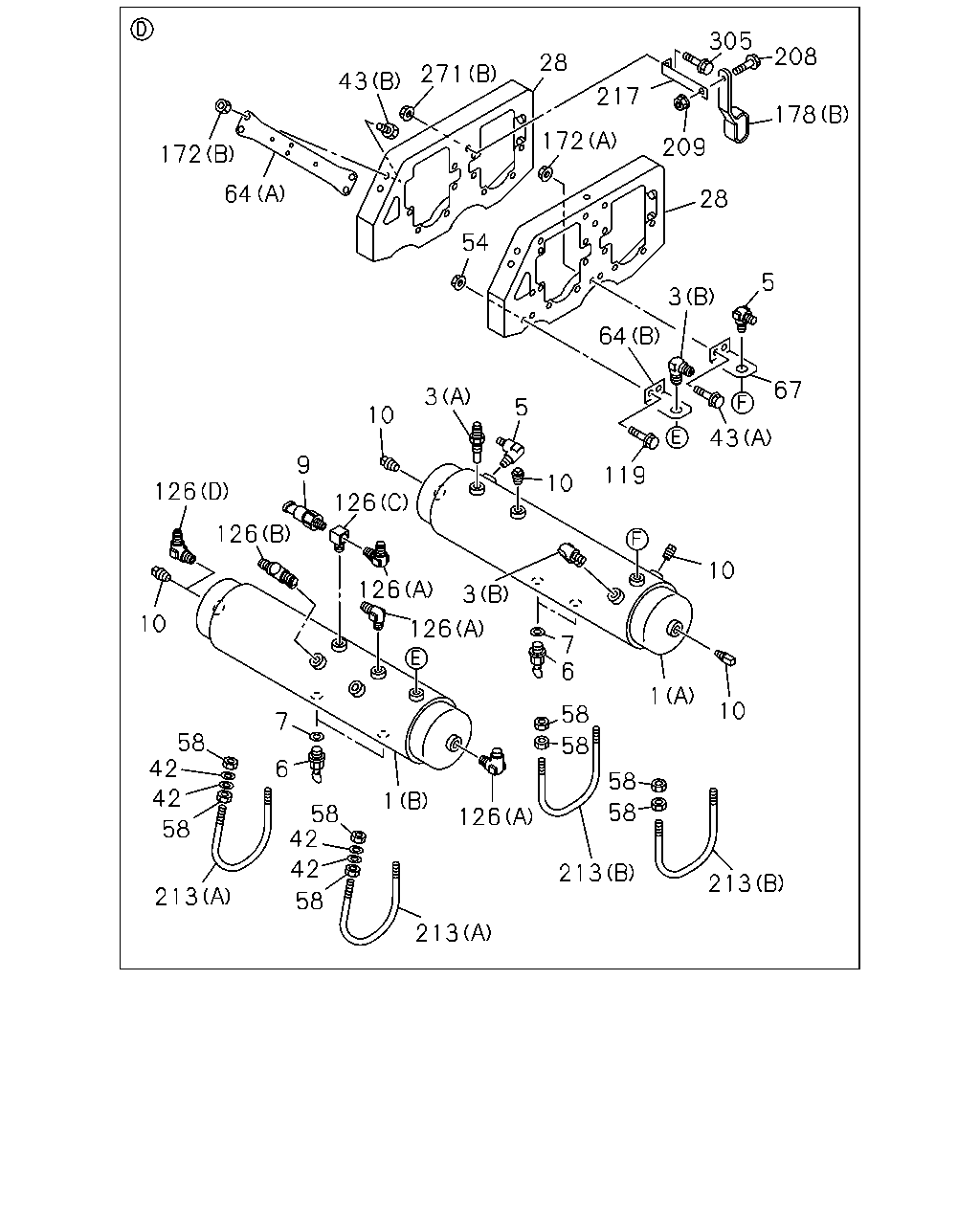

172 43 64 271 28 305 208 217 178 209 172 28 54 3 5 64 67 43 119 5 10 3 10 9 126 126 10 58 42 42 58 213 126 126 126 3 7 6 58 42 42 58 1 213 126 7 6 58 58 58 58 213 213 1 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1412-
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1412-
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 STRAIGHT	1-48410-182-3	01	1	1412-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	1412-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1412-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1412-
5	UNION; AIR TANK M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1412-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1412-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1412-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	01	1	1412-
10	PLUG; AIR TANK TRAILER BRAKE CONTROL<J91> PT1/4	9-99204-513-0	04	1	1412-
10	PLUG; AIR TANK EXC. TRAILER BRAKE CONTROL<J91> PT1/4	9-99204-513-0	05	1	1412-
28	BRACKET; AIR TANK	1-53318-338-6	02	1	1412-
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1412-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	1412-
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1412-
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1412-
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1412-
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	1412-
67	STAY; SUB TANK	8-97614-753-0	01	1	1412-
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	1412-
126	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1412-
126	CONNECTOR; ELBOW (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1412-
126	CONNECTOR; ELBOW (C) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1412-
126	CONNECTOR; ELBOW TRAILER BRAKE CONTROL<J91> (D) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1412-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	1412-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	1412-
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1412-
178	CLIP; HOSE (B) DIN15X2	9-09917-171-0	01	1	1412-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1412-
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1412-
209	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1412-
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1412-
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1412-
217	BRACKET; RUBBER HOSE L=112	1-47475-694-1	01	1	1412-
271	NUT; BRKT,HOSE (B) M8 FLANGE	0-91180-108-0	01	1	1412-
271	NUT; BRKT,HOSE (A) M10 FLANGE	0-91180-210-0	02	1	1412-
305	BOLT; BRKT,HOSE M8X20 FLANGE	0-28650-820-0	01	1	1412-
