Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#153548) — 36 parça
◀

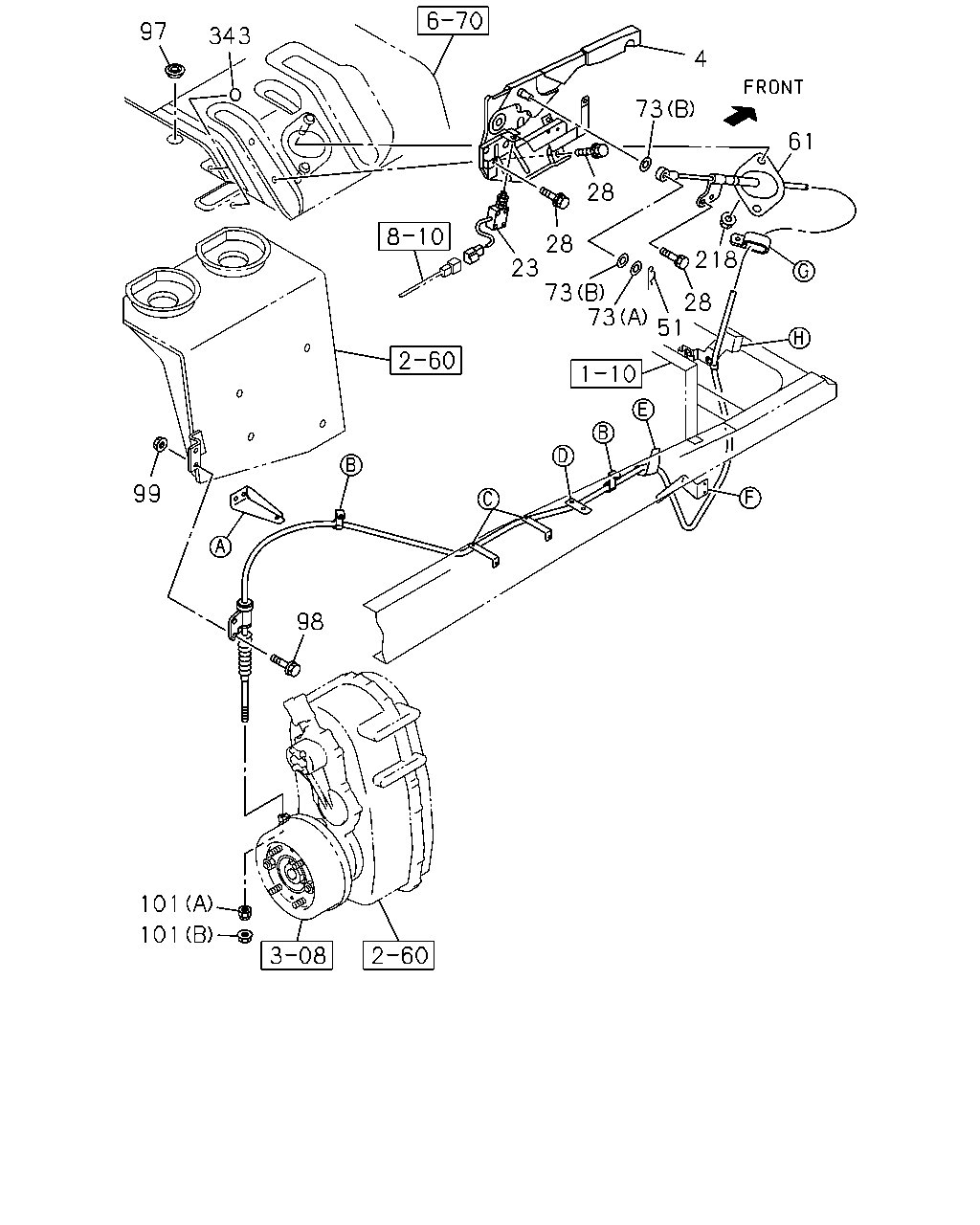

[311A] NO.1 (15 parça)

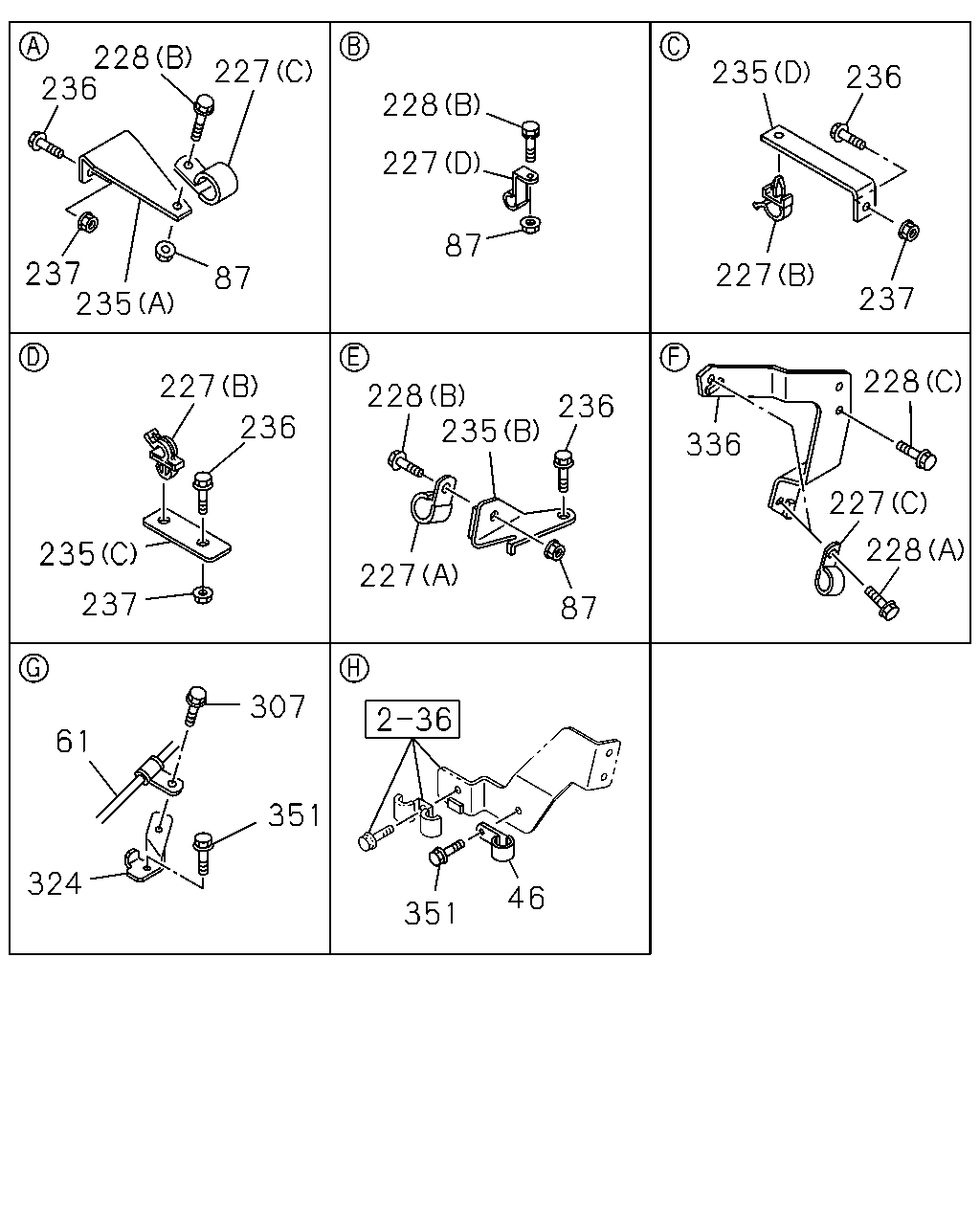

[311A] NO.2 (21 parça)
▶
101
101
98
99
51
28
218
73
73
23
28
28
73
4
61
343
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-549-0
01
1
1412-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1412-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1412-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1412-
61
CABLE; PARKING BRK
L=6032
8-98102-334-5
01
1
1412-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1412-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1412-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
1412-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
1412-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
1412-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
1412-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
1412-
101
NUT; CABLE TO LEVER
(A) M8
1-46259-007-0
01
1
1412-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
02
1
1412-
343
SEAL
OD=25 BLACK
1-76798-019-0
04
1
1412-
46
351
87
227
236
235
228
87
227
228
227
228
236
237
87
235
227
236
235
237
61
307
351
324
228
227
336
228
237
227
236
235
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1412-
61
CABLE; PARKING BRK
L=6032
8-98102-334-5
01
1
1412-
87
NUT
M8 FLANGE
0-91180-108-0
04
1
1412-
227
CLIP; RAD
(C) ID=13 L=20
0-95235-235-0
03
1
1412-
227
CLIP; RAD
(A) ID=12 L=70
1-09700-097-1
01
1
1412-
227
CLIP; RAD
(D) ID=13 H=50 L=25
1-09700-529-0
02
1
1412-
227
CLIP; RAD
(D) ID=16 H=30 L=30
1-09701-080-0
01
1
1412-
227
CLIP; RAD
(B) ID=9.5
5-09709-020-0
04
1
1412-
228
BOLT; CLIP RAD MTG
(A) M8X16 FLANGE
0-28050-816-0
02
1
1412-
228
BOLT; CLIP RAD MTG
(B) M8X25 FLANGE
0-28650-825-0
05
1
1412-
228
BOLT; CLIP RAD MTG
(C) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(C)
8-98099-142-0
01
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(D)
8-98105-194-0
02
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98123-954-1
01
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98138-447-0
01
1
1412-
236
BOLT; BRKT TO FRAME
M8X25 FLANGE
0-28650-825-0
06
1
1412-
237
NUT; BRKT TO FRAME
M8 FLANGE
0-91180-108-0
05
1
1412-
307
BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER
0-51640-825-0
01
1
1412-
324
BRACKET
8-98067-482-1
01
1
1412-
336
BRACKET; RADIATOR
8-98123-953-2
01
1
1412-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1412-
