Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶
2-60 — TRANSFER
(#153537) — 19 parça
◀

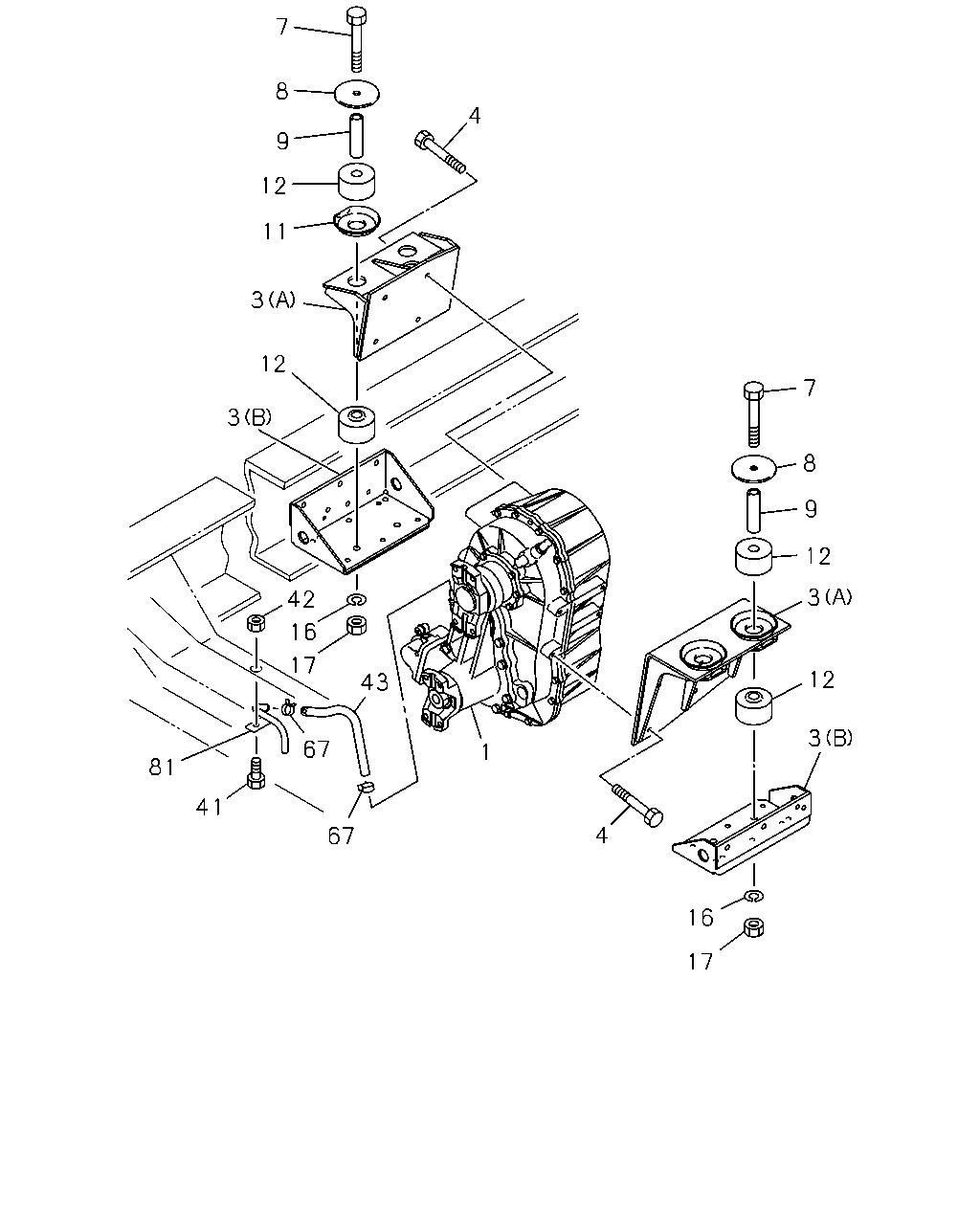

[260A] TRANSFER FIXING (18 parça)
[260A] REPAIR KIT (1 parça)
▶
7
8
9
12
11
3
12
3
4
7
8
9
12
3
12
3
16
4
17
1
43
42
16
17
81
41
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSFER ASM
1-36000-737-0
01
1
1412-
3
BRACKET; TRANSFER
(B)
8-97615-988-3
01
1
1412-
3
BRACKET; TRANSFER
(B)
8-97628-322-0
01
1
1412-
3
BRACKET; TRANSFER
(A)
8-98094-081-1
01
1
1412-
3
BRACKET; TRANSFER
(A)
8-98164-977-0
01
1
1412-
4
BOLT; BRKT TO TRANSFER
M12X25 FLANGE
0-28151-225-0
08
1
1412-
7
BOLT; CUSHION RUBBER
1-09000-239-1
04
1
1412-
8
PLATE; CUSHION RUBBER
1-09503-134-0
04
1
1412-
9
PIECE; DIST,CUSHION RUBBER
1-36181-002-0
04
1
1412-
11
SEAT; CUSHION RUBBER
1-36189-070-0
02
1
1412-
12
RUBBER; CUSHION,LWR,TRANSFER
1-36189-040-1
08
1
1412-
16
WASHER; LK,CUSHION RUBBER
ID=16.2
0-91510-616-0
04
1
1412-
17
NUT; CUSHION RUBBER
M16
0-91110-516-0
04
1
1412-
41
BOLT; BRKT,BREATHER
M8X25 FLANGE
0-28650-825-0
01
1
1412-
42
NUT; BRKT,BREATHER
M8 FLANGE
0-91180-108-0
02
1
1412-
43
HOSE; RUBBER,BREATHER
L=325 SERVICED BY L=1800
1-09360-320-0
01
1
1412-
67
CLIP; BAND
ID=14
1-09704-102-0
02
1
1412-
81
PIPE; BREATHER
1-49115-033-0
01
1
1412-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; TRANSFER OVERHAUL
1-87831-462-0
01
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
