Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#153523) — 45 parça
◀

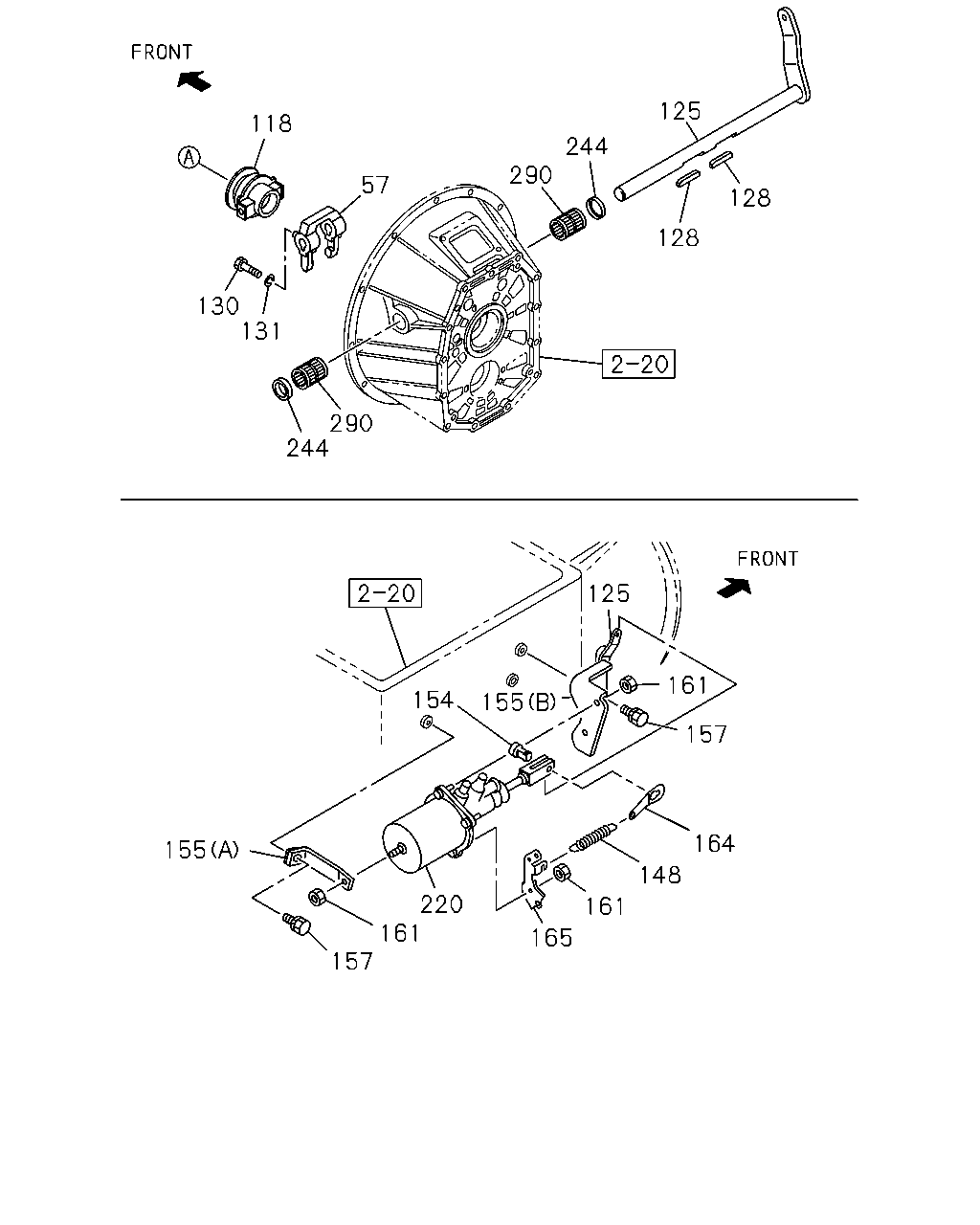

[201A] CLUTCH SHAFT AND CLUTCH BOOSTER (19 parça)

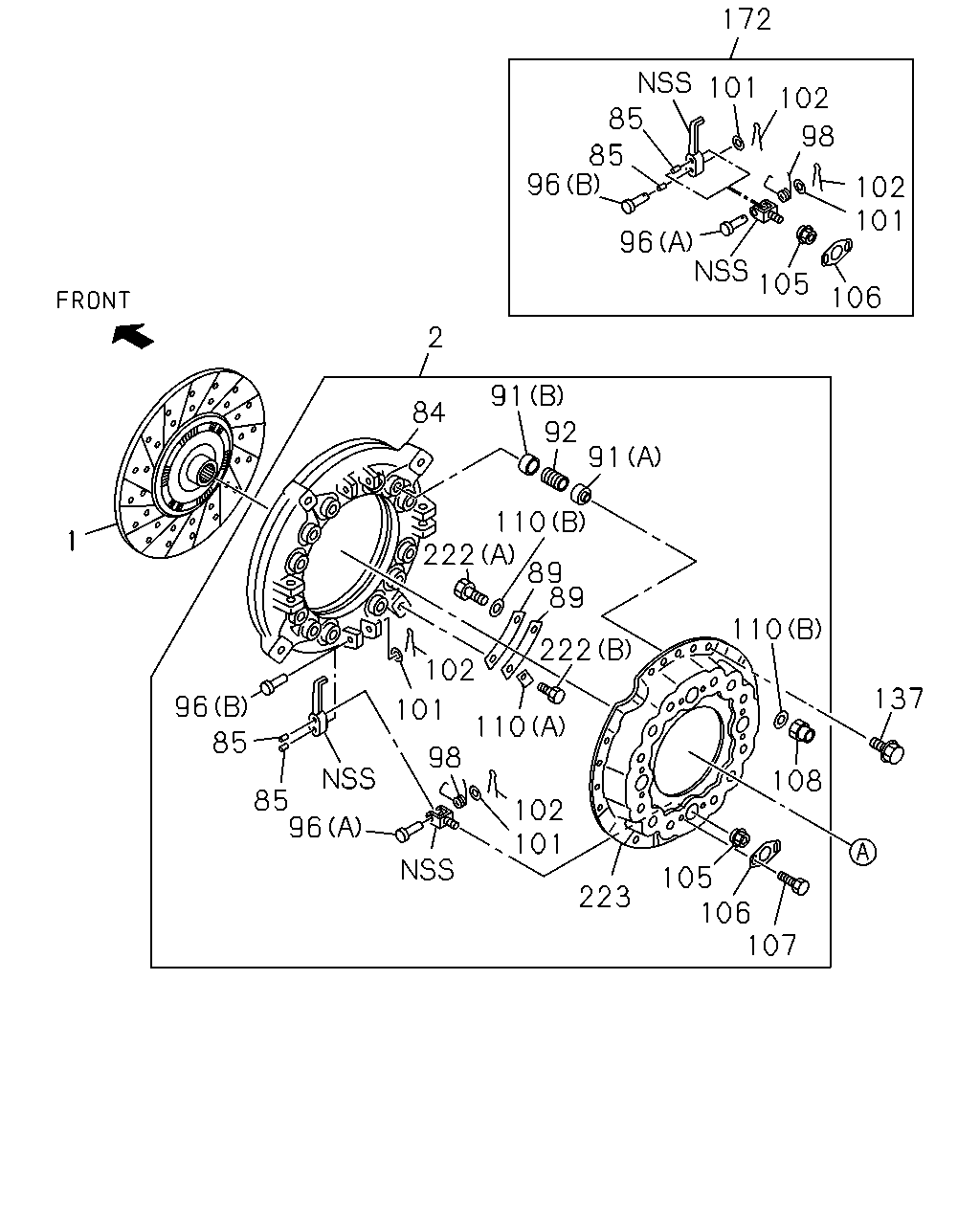

[201A] CLUTCH DISC AND PLATE (26 parça)
▶
125
161
157
164
148
154
155
220
161
157
155
244
290
131
130
57
118
290
244
125
128
128
161
165
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-048-2
01
1
1412-
118
BEARING; CLU RELEASE
1-31310-026-0
01
1
1412-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-109-0
01
1
1412-
125
SHAFT; CLU
1-31342-335-0
01
1
1412-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1412-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1412-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1412-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1412-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1412-
155
BRACKET; MINIPACK
(A)
1-31429-475-1
01
1
1412-
155
BRACKET; MINIPACK
(B)
1-31429-478-0
01
1
1412-
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
03
1
1412-
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
05
1
1412-
164
EYE; SPRING
1-31426-041-0
01
1
1412-
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
1-47477-789-0
01
1
1412-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-511-2
01
1
1412-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
1412-
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
1412-
290
BEARING; NEEDLE
NTN
1-09811-002-1
02
1
1412-
110
137
108
105
106
107
223
102
101
98
110
101
96
85
85
96
102
89
89
222
222
110
91
92
91
84
2
1
172
85
85
96
96
101
102
98
102
106
105
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15"
1-31240-851-2
01
1
1412-
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-119-0
01
1
1412-
2
PLATE ASM; PRESSURE,CLU
1-31220-374-2
01
1
1412-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-120-0
01
1
1412-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
1412-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1412-
89
PLATE; STRAP
1-31229-050-0
16
1
1412-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
1412-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
1412-
92
SPRING; CLU
1-31214-086-0
12
1
1412-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1412-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1412-
98
SPRING; RETURN
1-31233-003-0
04
1
1412-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
1412-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
1412-
105
NUT; SUPPORT
1-31235-014-0
04
1
1412-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1412-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1412-
108
NUT; STRAP
1-09449-036-0
04
1
1412-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
1412-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
1412-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1412-
172
LEVER KIT; RELEASE,CLU
1-87831-170-1
01
1
1412-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
1412-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
1412-
223
COVER; CLU
1-31211-019-1
01
1
1412-
