Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#153515) — 39 parça
◀

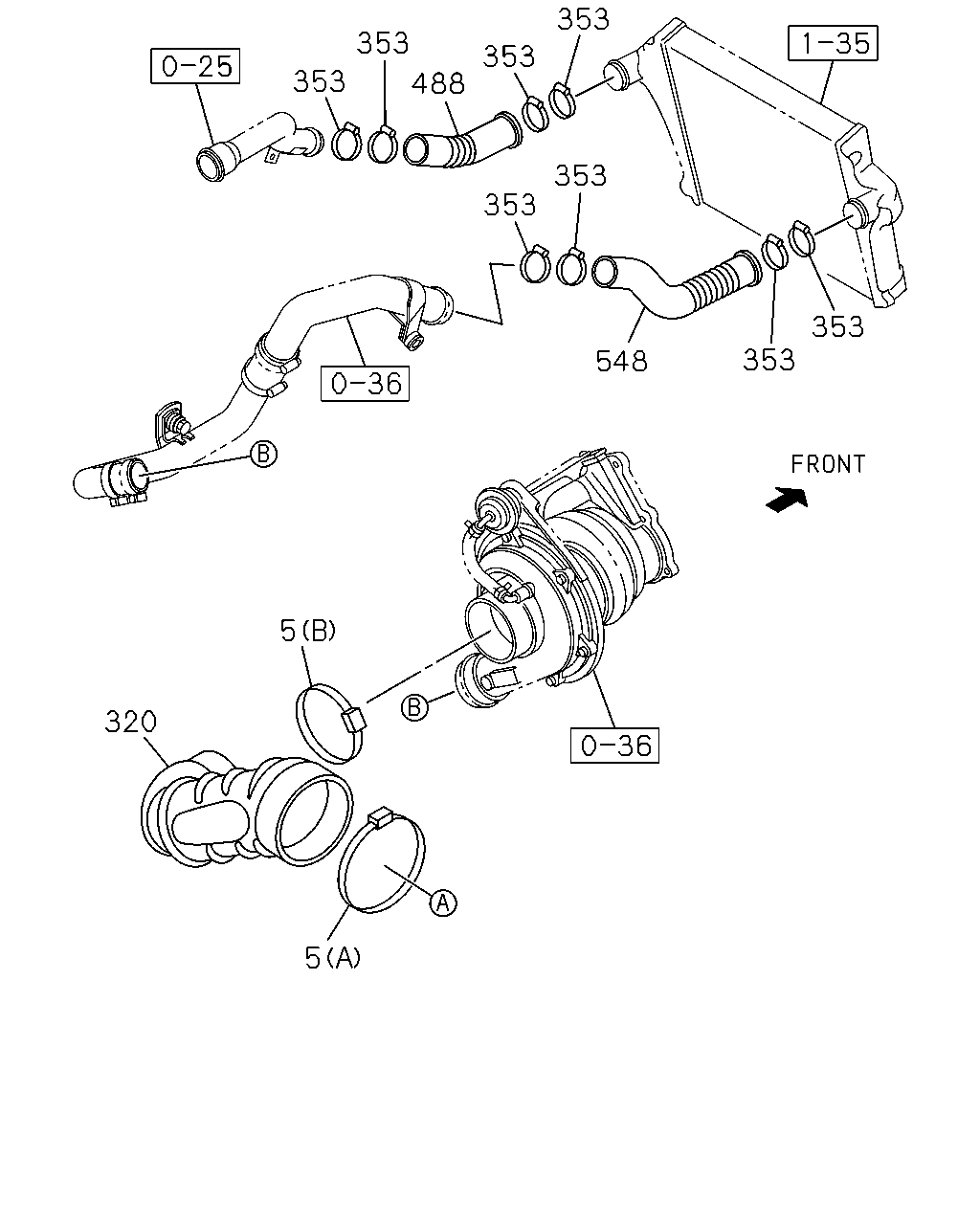

[131A] PIPING (6 parça)
[131A] DUCT FIXING (33 parça)
▶
353
353
353
353
488
353
353
353
353
548
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
1412-
5
CLIP; AIR DUCT
(B) ID=90-110
8-98133-365-0
01
1
1412-
320
HOSE; CONN,ACL
8-98073-260-0
01
1
1412-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
1412-
488
HOSE; RUBBER,PIPE
8-98050-686-0
01
1
1412-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98181-975-1
01
1
1412-
379
210
357
209
296
357
159
225
424
564
368
543
252
71
543
316
26
58
560
450
61
48
58
245
58
56
56
242
242
49
242
58
49
56
56
49
480
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1412-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1412-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-122-0
01
1
1412-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-126-0
01
1
1412-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1412-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1412-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1412-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1412-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1412-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1412-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1412-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
1412-
209
BRACKET; ACL
8-98021-995-1
01
1
1412-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1412-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1412-
242
BRACKET; AIR DUCT
(A)
8-98019-301-3
01
1
1412-
242
BRACKET; AIR DUCT
(B)
8-98019-302-1
01
1
1412-
242
BRACKET; AIR DUCT
(C)
8-98019-304-1
01
1
1412-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1412-
252
DUCT; AIR INT
8-98012-861-1
01
1
1412-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1412-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1412-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1412-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1412-
368
SENSOR; TEMP
8-98065-377-0
01
1
1412-
379
HOSE; RUBBER
8-97619-196-0
01
1
1412-
424
PIPE; AIR,INL
8-98081-834-0
01
1
1412-
450
CLAMP; HOSE
9-09915-504-1
01
1
1412-
480
ADAPTER
8-98086-417-0
01
1
1412-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1412-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1412-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1412-
