8-40 — HEATER SYSTEM (#15351) — 80 parça

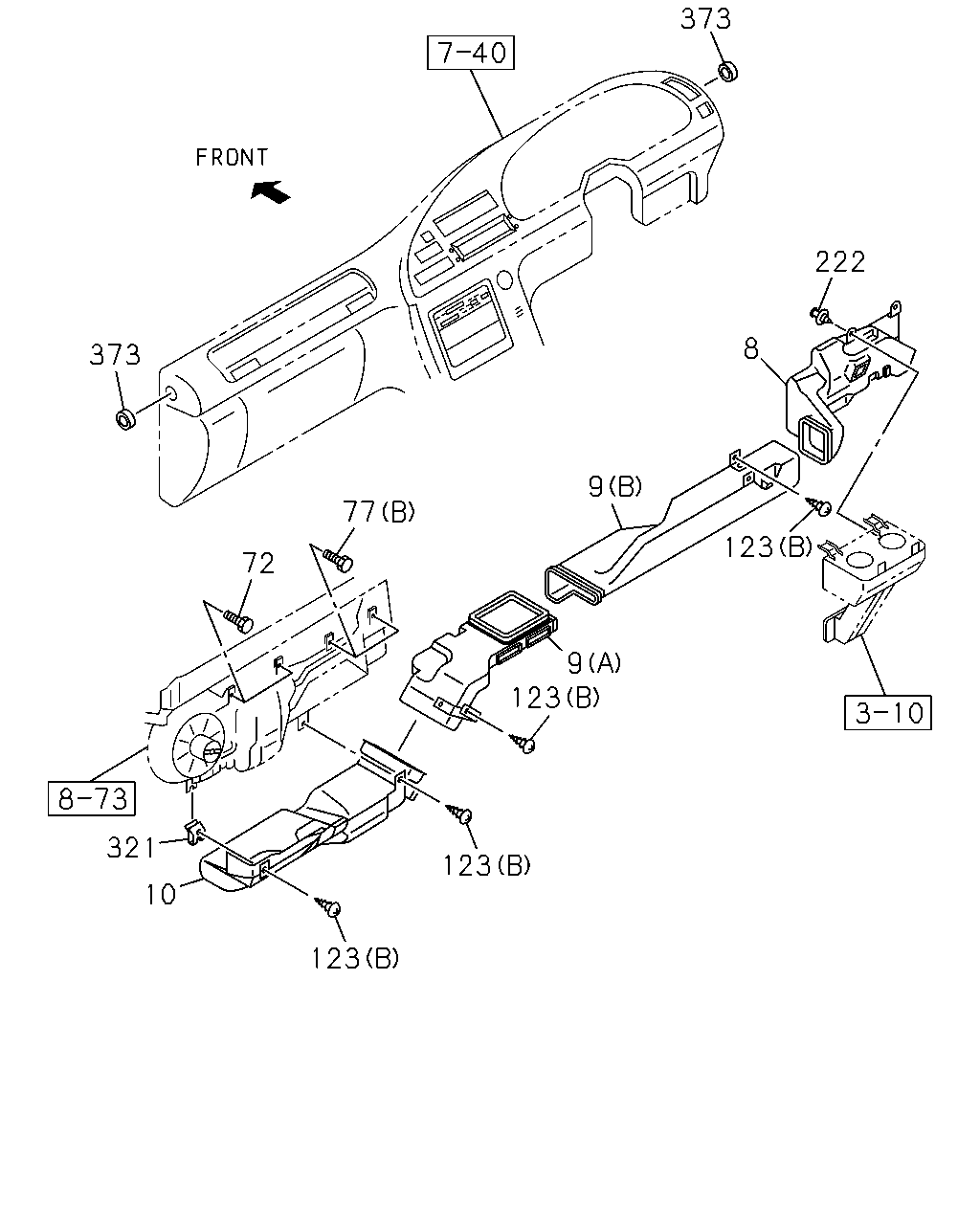

çizim 96045
373 222 8 373 77 9 123 72 9 123 321 10 123 123
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0710-
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 0710-
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-227-2 01 1 0710-
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 0710-
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 0710-
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0710-
373 RUBBER; JOINT 1-76378-291-0 02 1 0710-

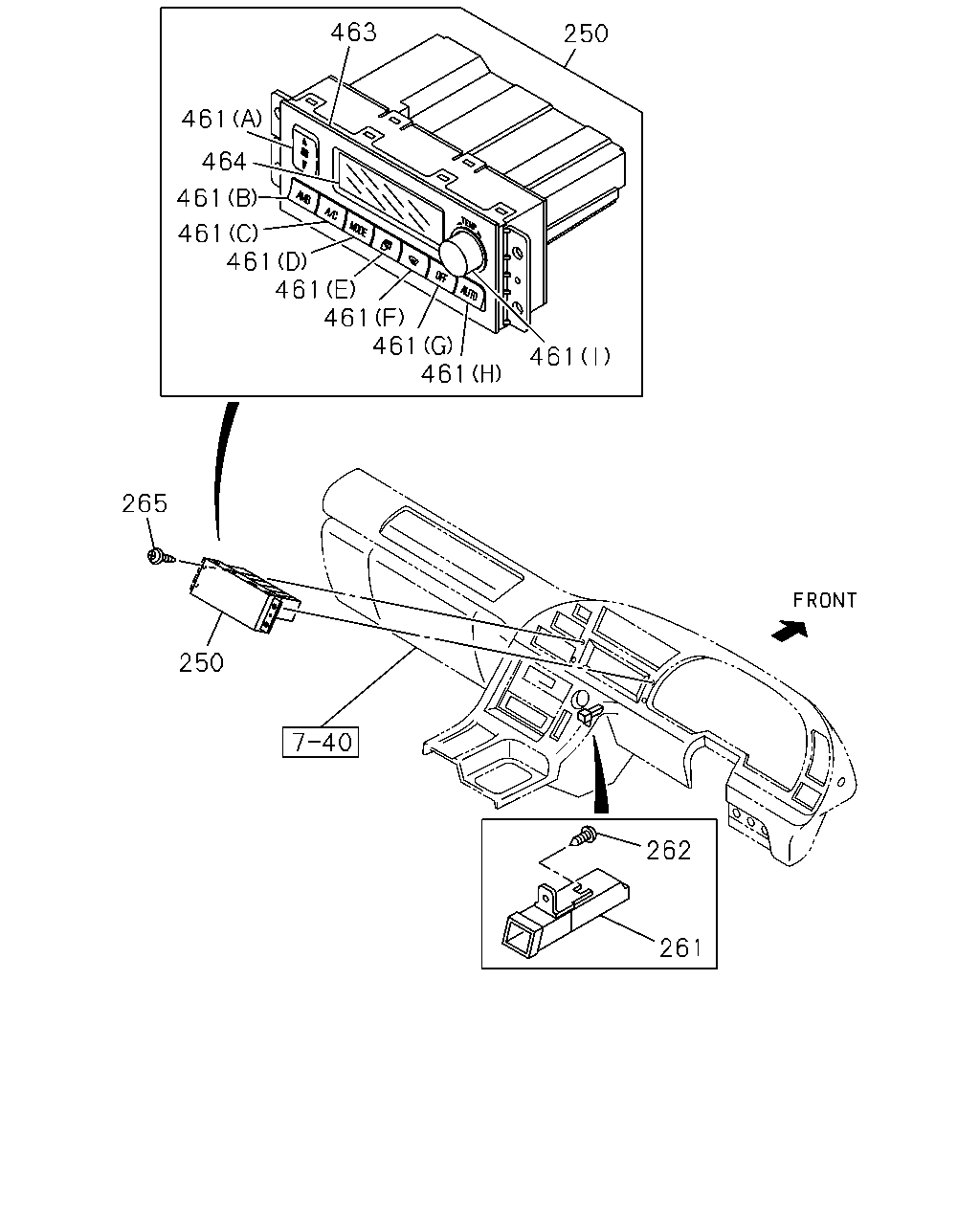

çizim 96174
250 463 461 464 461 461 461 461 461 461 461 461 265 250 262 261
BalonParca AdiParca NoAdetTipApplied Date
250 CONTROL ASM; A/C 1-83543-038-1 01 1 0710-
261 SENSOR; IN CAR 1-83544-023-1 01 1 0710-
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0710-
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 0710-
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0710-
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0710-

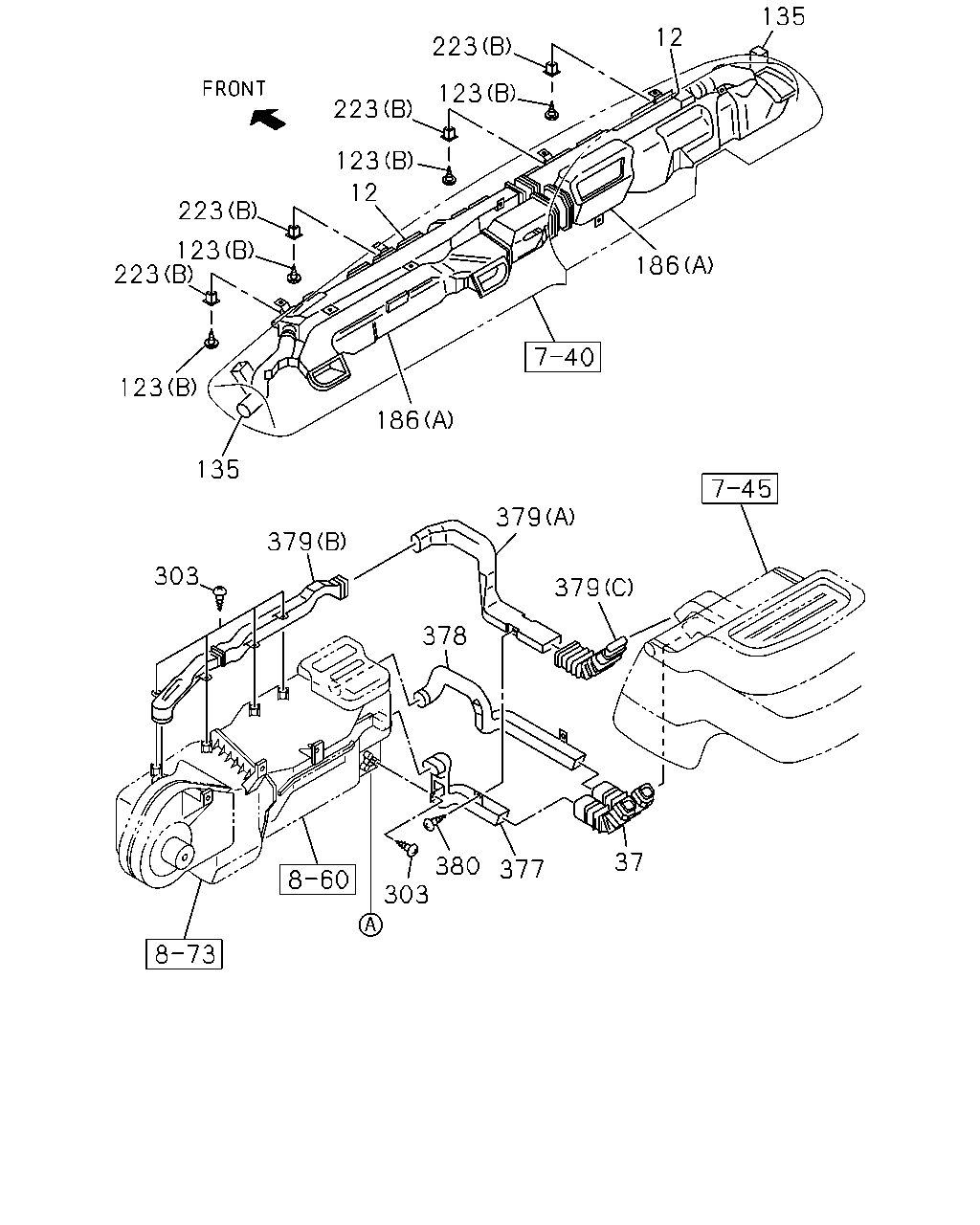

çizim 96202
135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 379 303 378 37 377 380 303
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0710-
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 0710-
37 HOSE; AIR,HTR 1-76377-193-3 01 1 0710-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0710-
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0710-
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0710-
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710-
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-
303 SCREW; HOSE
M5X14 		8-94279-325-0 05 1 0710-
377 HOSE; BOX,INLET,COOL 1-76377-159-5 01 1 0710-
378 HOSE; BOX,INLET,HOT 1-76377-161-6 01 1 0710-
379 HOSE; BOX,OUTLET
(A) 		1-76377-163-5 01 1 0710-
379 HOSE; BOX,OUTLET
(B) 		1-76377-164-3 01 1 0710-
379 HOSE; BOX,OUTLET
(C) 		1-76377-192-4 01 1 0710-
380 FASTENER; HOSE
D4.6X14.7 BLACK 		1-09983-104-0 03 1 0710-

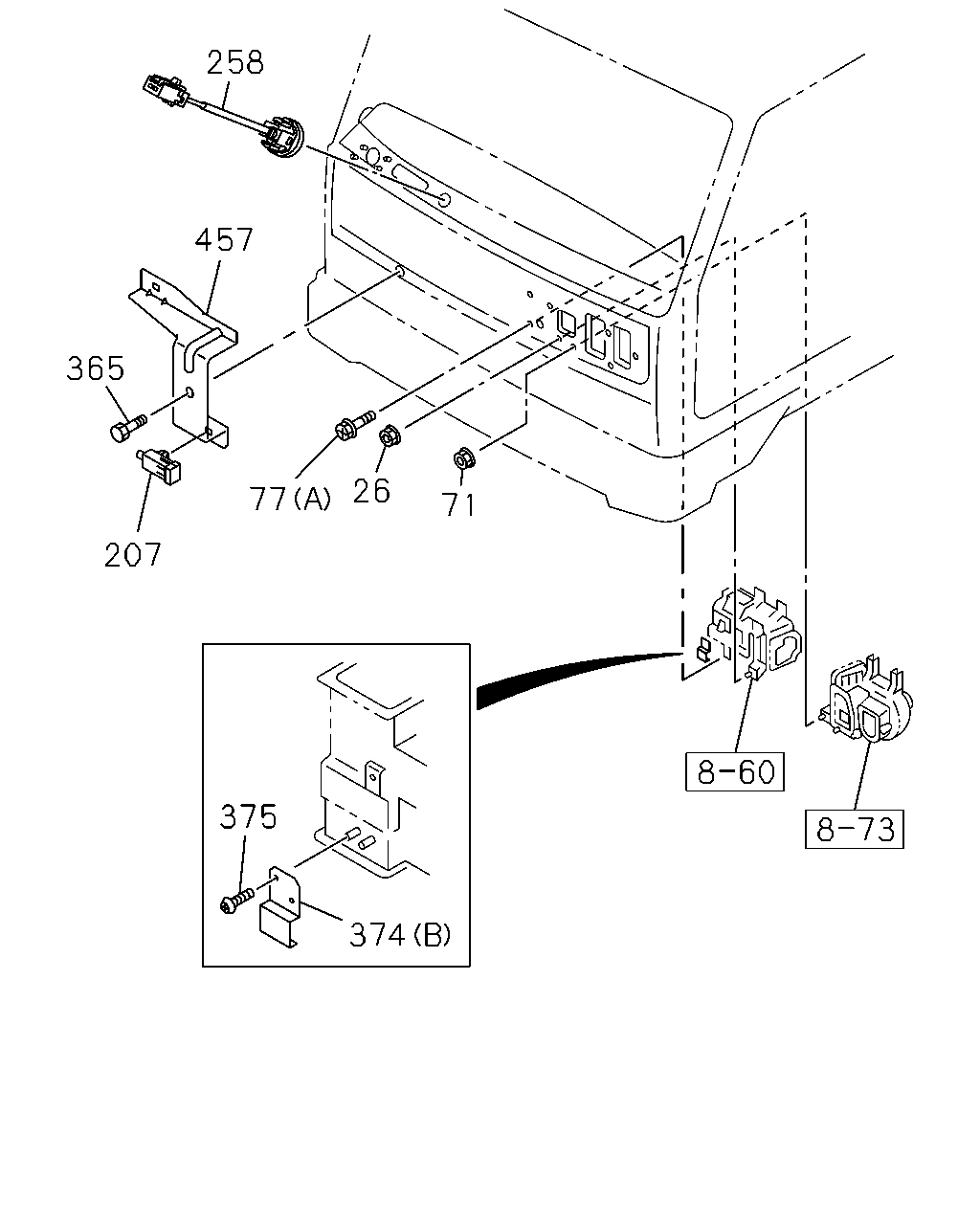

çizim 96329
258 457 365 77 26 71 207 375 374
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0710-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0710-1204
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1205-
258 SENSOR; SUN 8-94472-043-2 01 1 0710-
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0710-
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710-
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0710-
457 BRACKET; SENSOR 1-71907-603-1 01 1 0710-

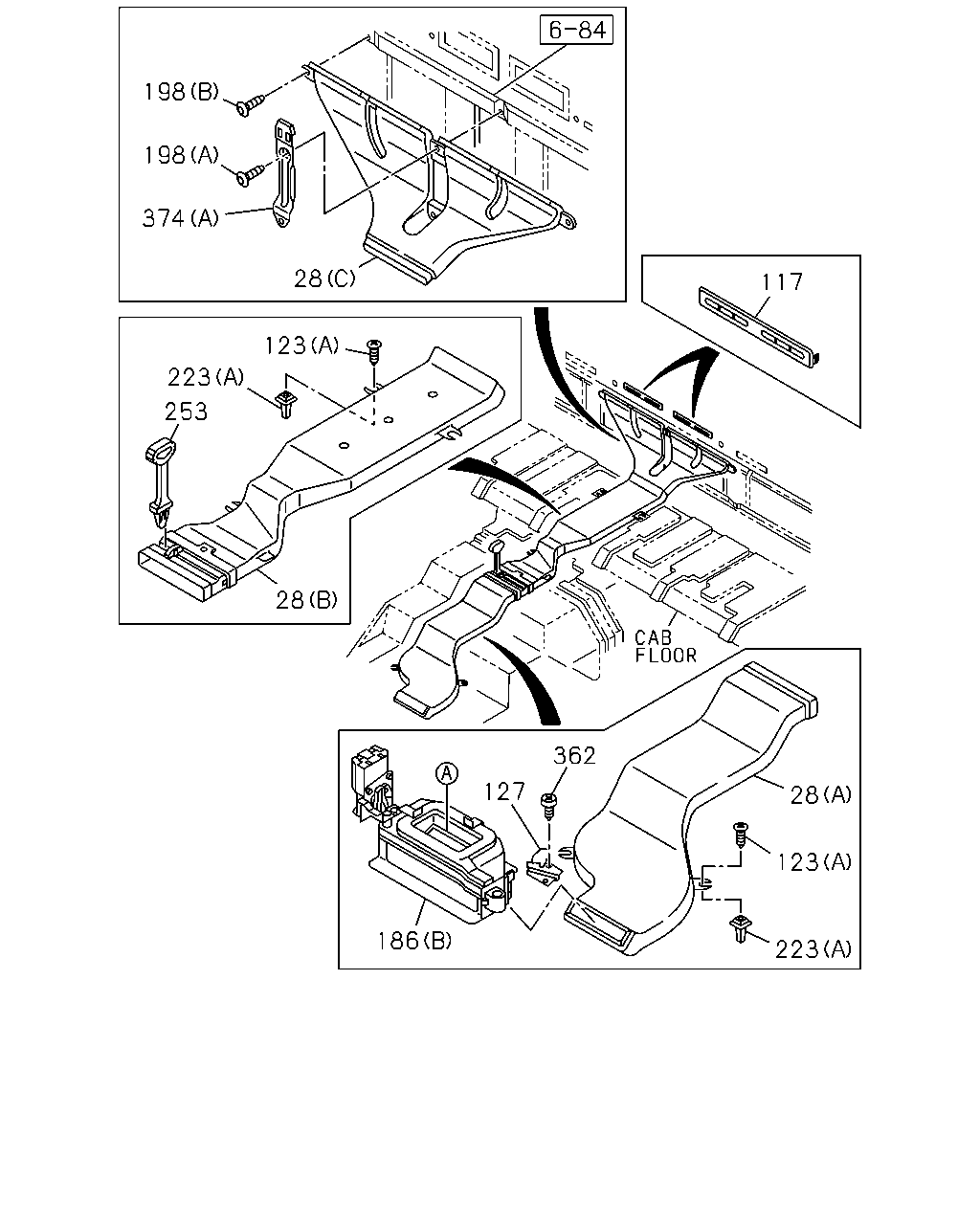

çizim 96364
198 198 374 28 117 123 223 253 28 362 127 28 123 186 223
BalonParca AdiParca NoAdetTipApplied Date
28 DUCT; AIR,VENTILATOR
(B) 		1-76377-180-2 01 1 0710-
28 DUCT; AIR,VENTILATOR
(C) 		1-76377-186-1 01 1 0710-
28 DUCT; AIR,VENTILATOR
(A) 		1-76377-203-0 01 1 0710-
117 GRILLE; VENTILATOR 1-76377-188-5 01 1 0710-
117 GRILLE; VENTILATOR 1-76377-187-5 01 1 0710-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
127 BRACKET; VENT DUCT 1-76397-019-0 01 1 0710-
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0710-
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710-
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-
198 CLIP; DUCT
(A) D6X23 BLACK 		1-09987-114-0 02 1 0710-1204
198 CLIP; DUCT
(A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205-
198 CLIP; DUCT
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0710-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-
253 KNOB; CONT LEVER 1-76377-185-1 01 1 0710-
362 SCREW; DUCT
M5X14 		8-94279-325-0 02 1 0710-
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0710-
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710-
