Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#15350) — 356 parça

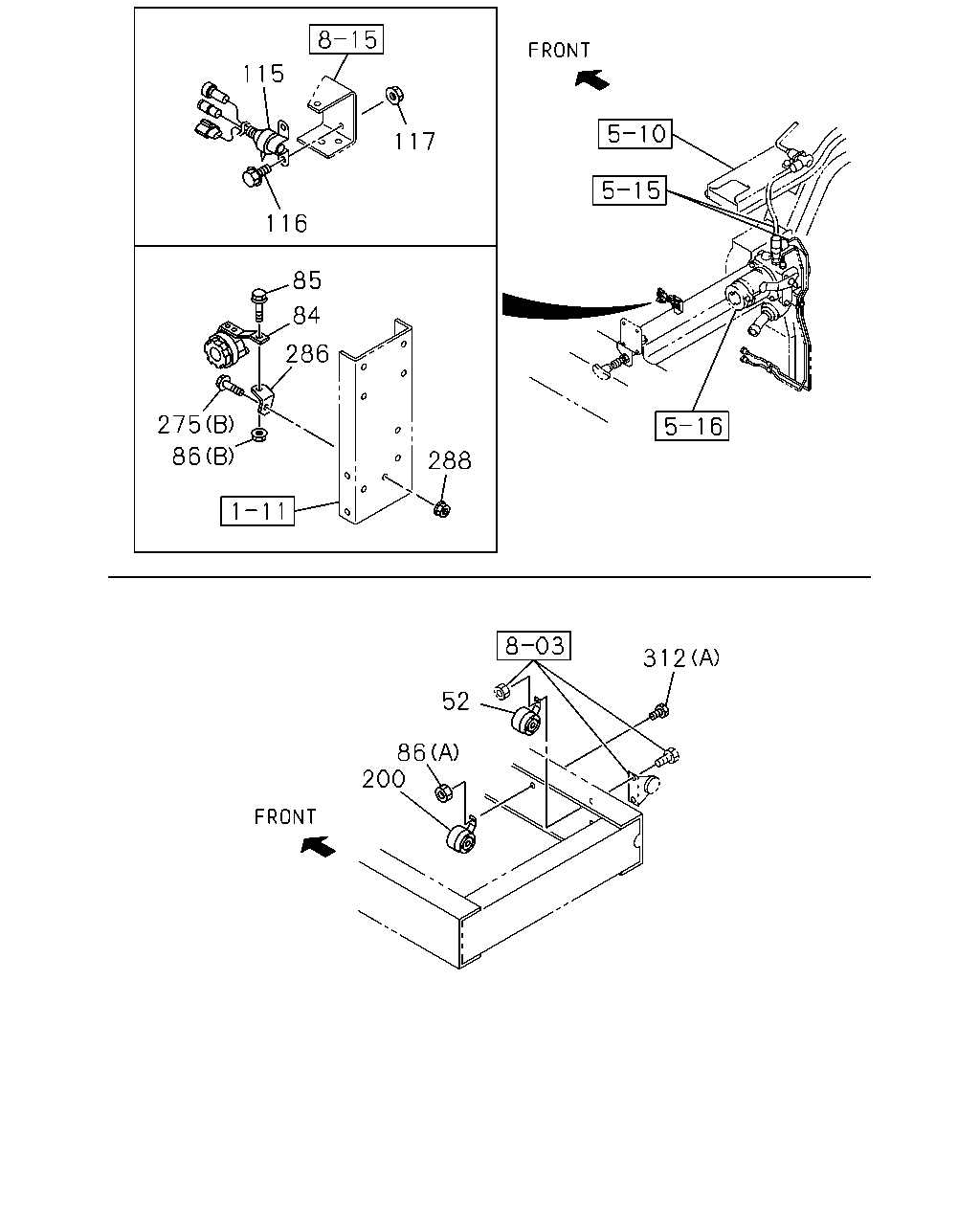

115 117 116 85 84 286 275 86 288 312 52 86 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK METRO DENSO	8-98069-861-0	01	1	0710-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0710-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0710-
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0710-
86	NUT; BUZZER (A) M10 FLANGE	0-91180-210-0	01	1	0710-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0710-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0710-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0710-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0710-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-
286	BRACKET	1-82699-199-0	01	1	0710-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0710-
312	BOLT; BUZZER (A) M10X35 FLANGE	0-28651-035-0	01	1	0710-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-

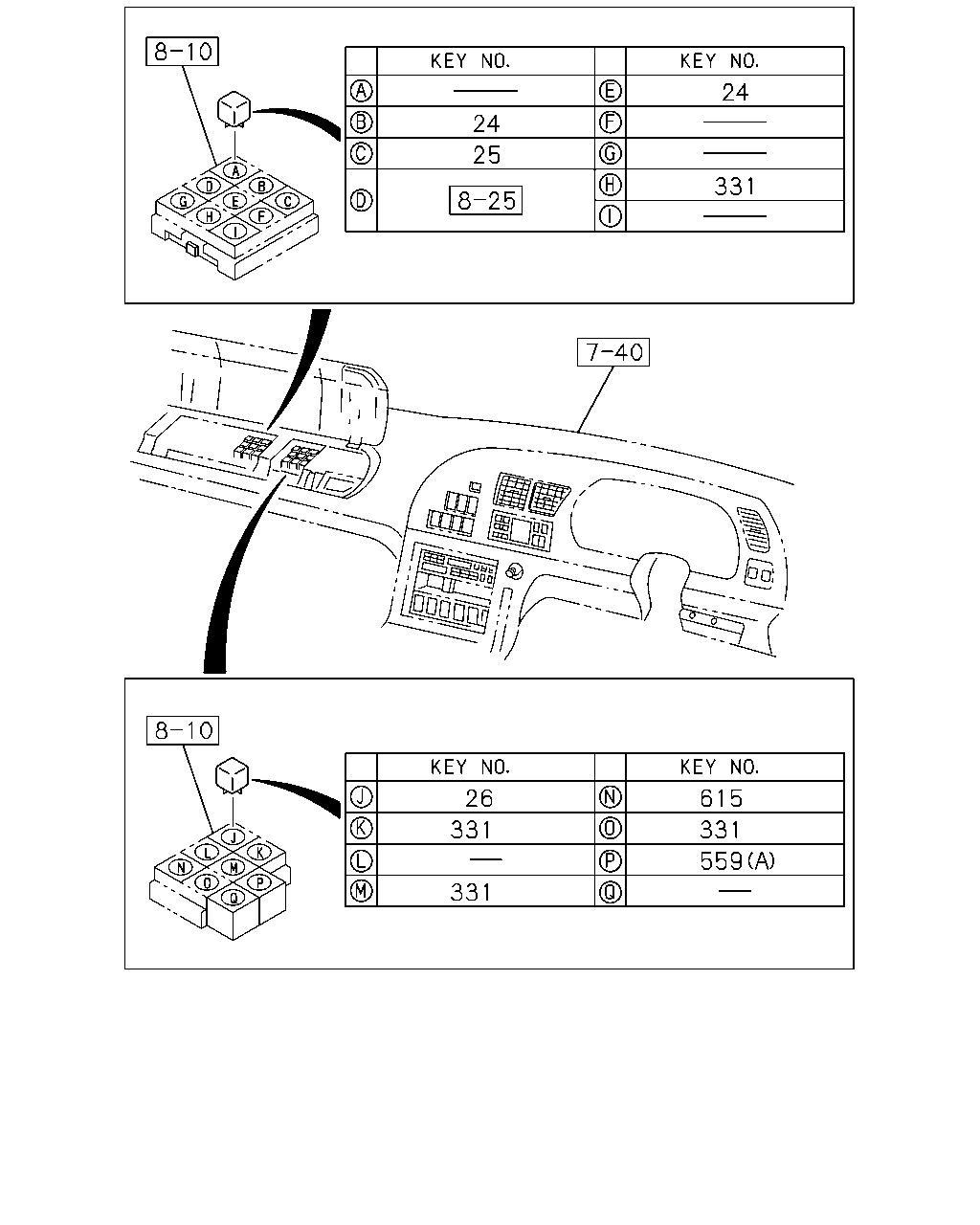

24 331 24 25 26 331 331 615 331 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
559	RELAY; MAG VLV (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
559	RELAY; MAG VLV (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-

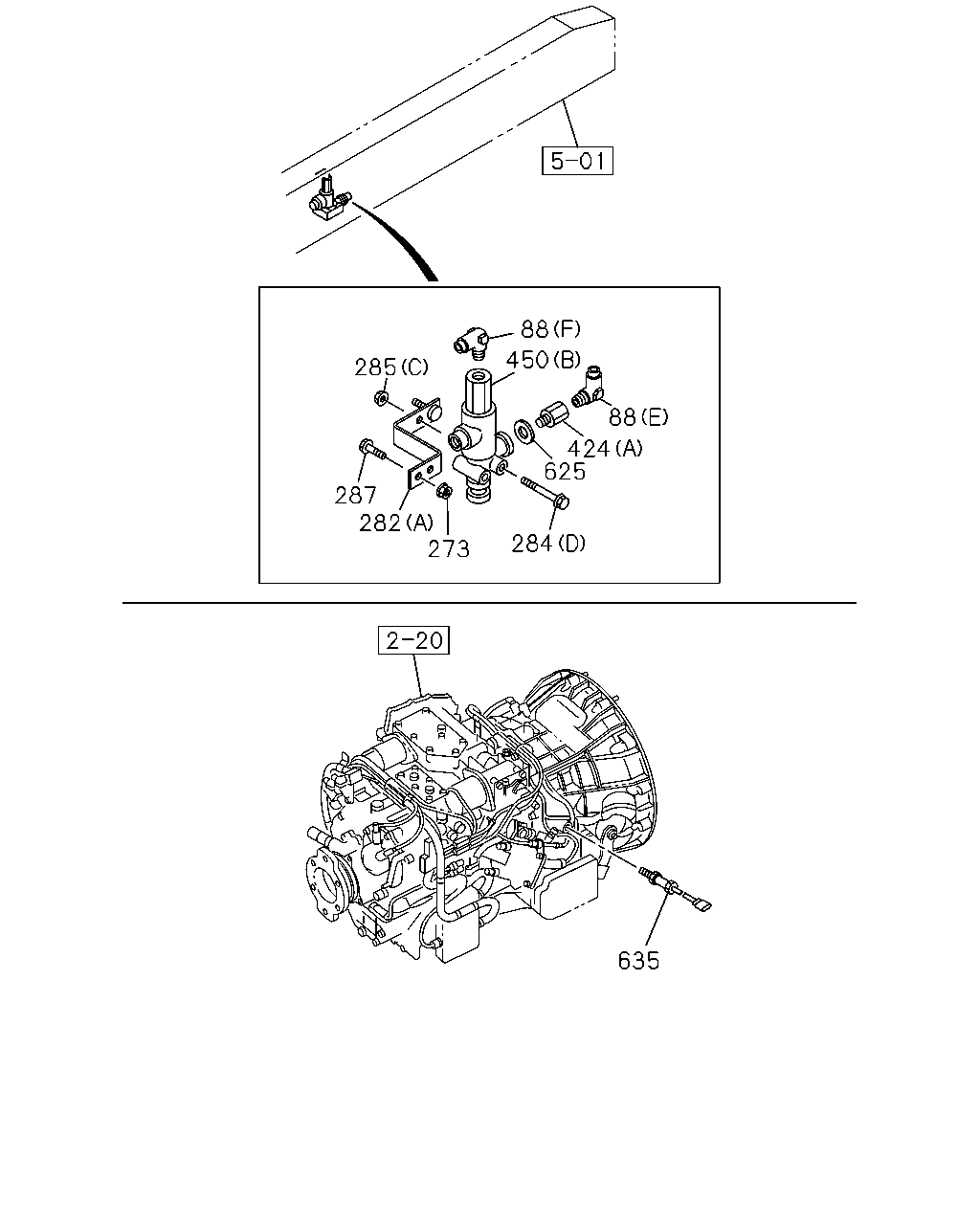

88 450 285 88 424 625 287 282 284 273 635

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
88	CONNECTOR; MAG VLV (F) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0710-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-
88	CONNECTOR; MAG VLV (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
88	CONNECTOR; MAG VLV (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0710-
282	BRACKET; MAG VLV (A)	8-97609-722-0	01	1	0710-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-
282	BRACKET; MAG VLV (D)	1-82569-298-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-82569-358-0	01	1	0710-
284	BOLT; MAG VLV (D) M8X60 FLANGE	0-28050-860-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-
284	BOLT; MAG VLV (E) M6X60 FLANGE	0-28050-660-0	02	1	0710-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-
287	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0710-
424	ADAPTER (A) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0710-
424	ADAPTER (B) PT3/8	1-09664-210-0	02	1	0710-
450	VALVE; MAG (B)	1-48240-345-0	01	1	0710-
450	VALVE; MAG (A)	1-53458-378-2	01	1	0710-
625	GASKET; CONNECTOR ID=16.2 OD=24	9-09571-416-0	01	1	0710-
635	SENSOR; PICK UP,INPUT SHAFT	1-81510-736-1	01	1	0710-

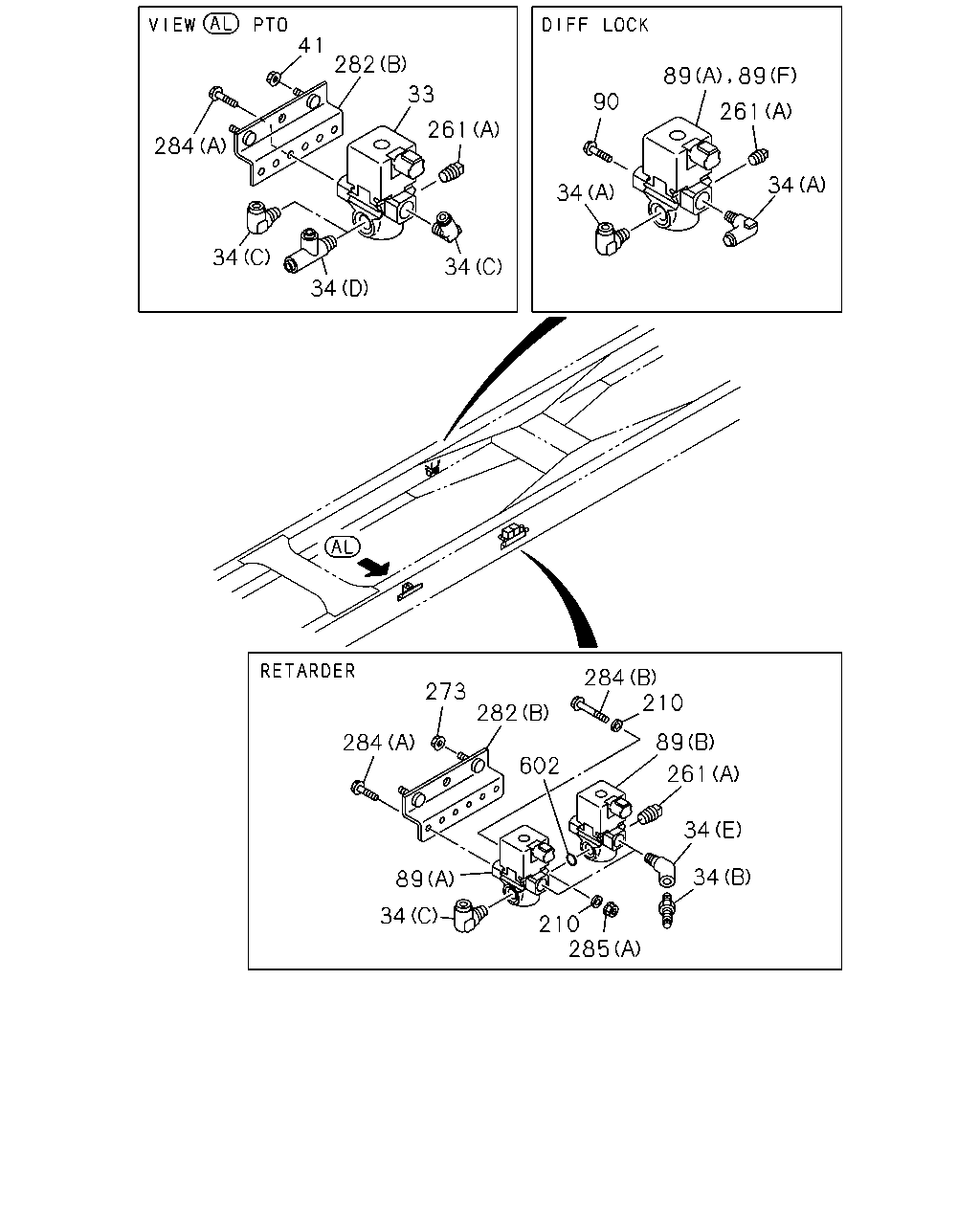

285 210 34 34 261 89 210 284 282 273 284 89 34 602 34 261 89 89 90 34 34 34 34 261 33 282 41 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN6X2 & R1/4 3WAY	1-09661-070-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0710-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0710-
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-094-2	01	1	0710-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0710-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0710-
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0710-
90	BOLT; MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-
261	PLUG; MAG VLV (B) PT3/8	9-09204-517-0	01	1	0710-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	0710-
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0710-
282	BRACKET; MAG VLV (A)	8-97609-722-0	01	1	0710-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-
282	BRACKET; MAG VLV (D)	1-82569-298-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-82569-358-0	01	1	0710-
284	BOLT; MAG VLV (D) M8X60 FLANGE	0-28050-860-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-
284	BOLT; MAG VLV (E) M6X60 FLANGE	0-28050-660-0	02	1	0710-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-

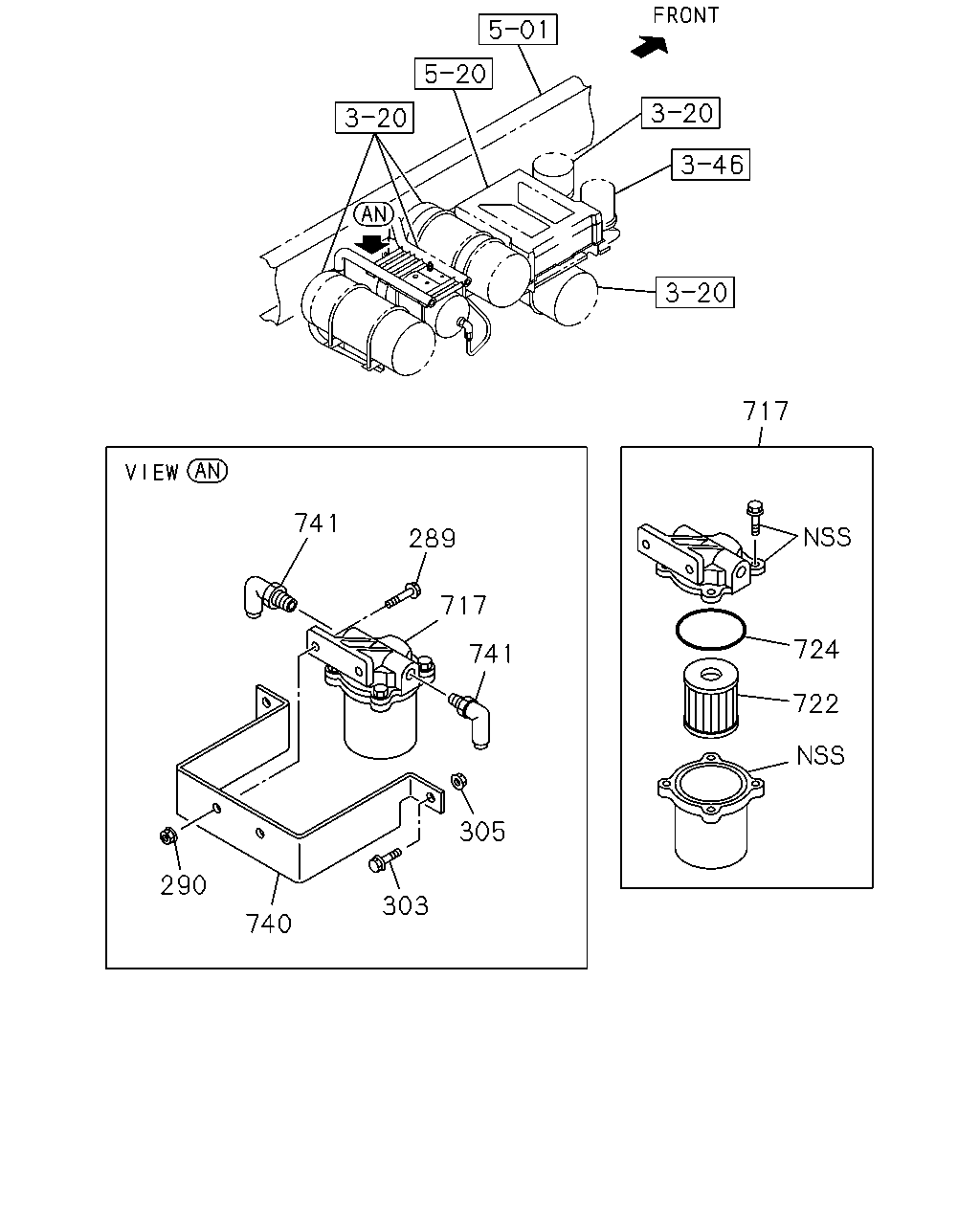

741 289 717 741 305 717 724 722 303 740 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0710-
290	NUT M8 FLANGE	0-91180-108-0	02	1	0710-
303	BOLT; FILTER M8X35 FLANGE	0-28650-835-0	03	1	0710-
305	NUT; FILTER M8 FLANGE	0-91180-108-0	03	1	0710-
717	FILTER; MAG VLV	8-98092-703-0	01	1	0710-
722	ELEMENT; AIR FILTER	1-33779-040-0	01	1	0710-
724	GASKET; AIR FILTER	5-09623-075-0	01	1	0710-
740	BRACKET; FILTER	1-33779-036-0	01	1	0710-
741	CONNECTOR; NYLON TUBE DIN8 & M16 ELBOW	1-09661-531-0	02	1	0710-

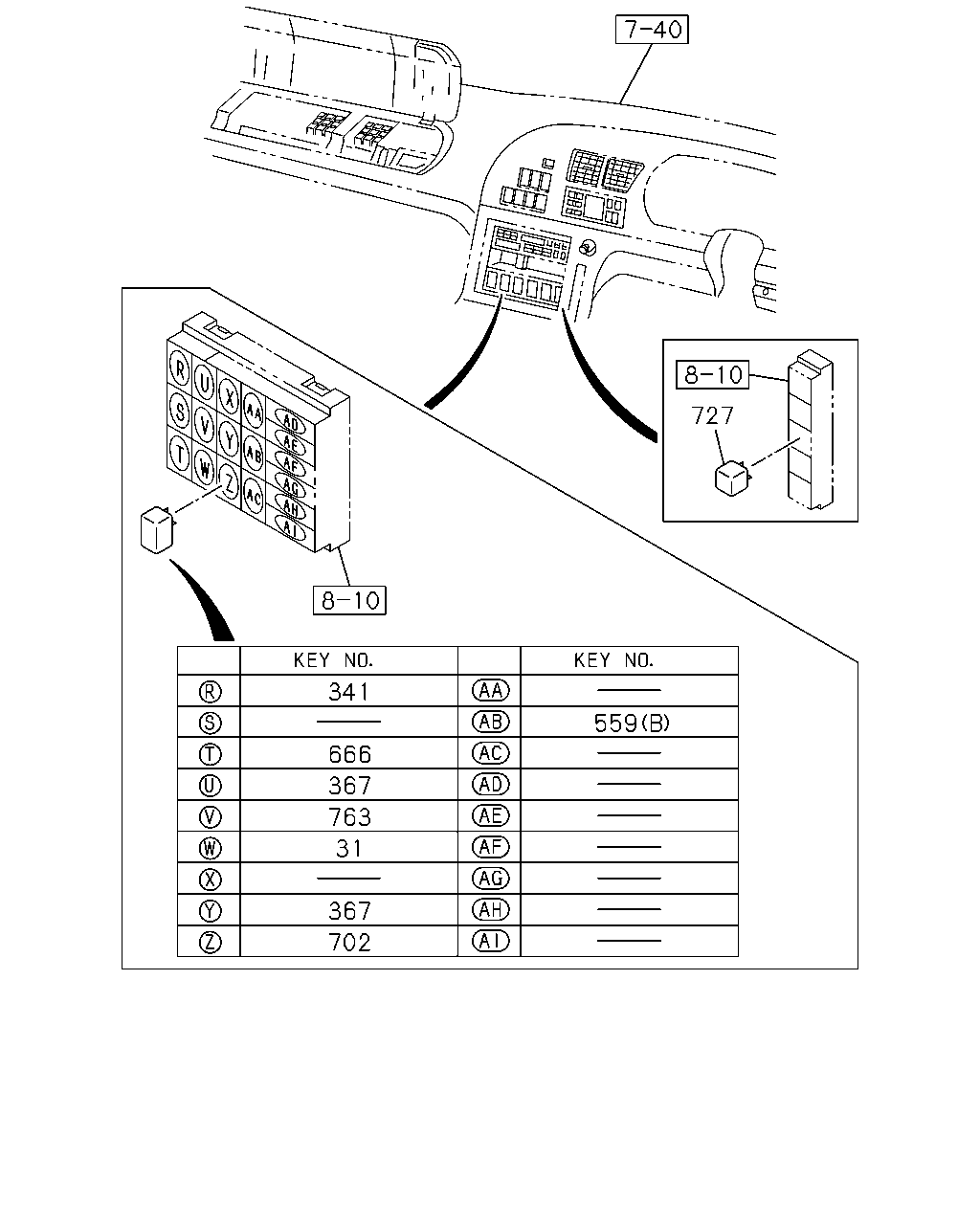

341 559 666 367 763 31 367 702 727

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
559	RELAY; MAG VLV (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
559	RELAY; MAG VLV (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
702	RELAY; EBS 24V 10A PANASONIC	8-98167-173-0	01	1	1307-
702	RELAY; EBS 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1306
702	RELAY; EBS 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1306
702	RELAY; EBS 24V 10A PANASONIC	8-97173-035-1	01	1	1307-
727	RELAY; START CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
763	RELAY; EGRTTERY 24V 10A PANASONIC	8-97173-035-1	01	1	0710-

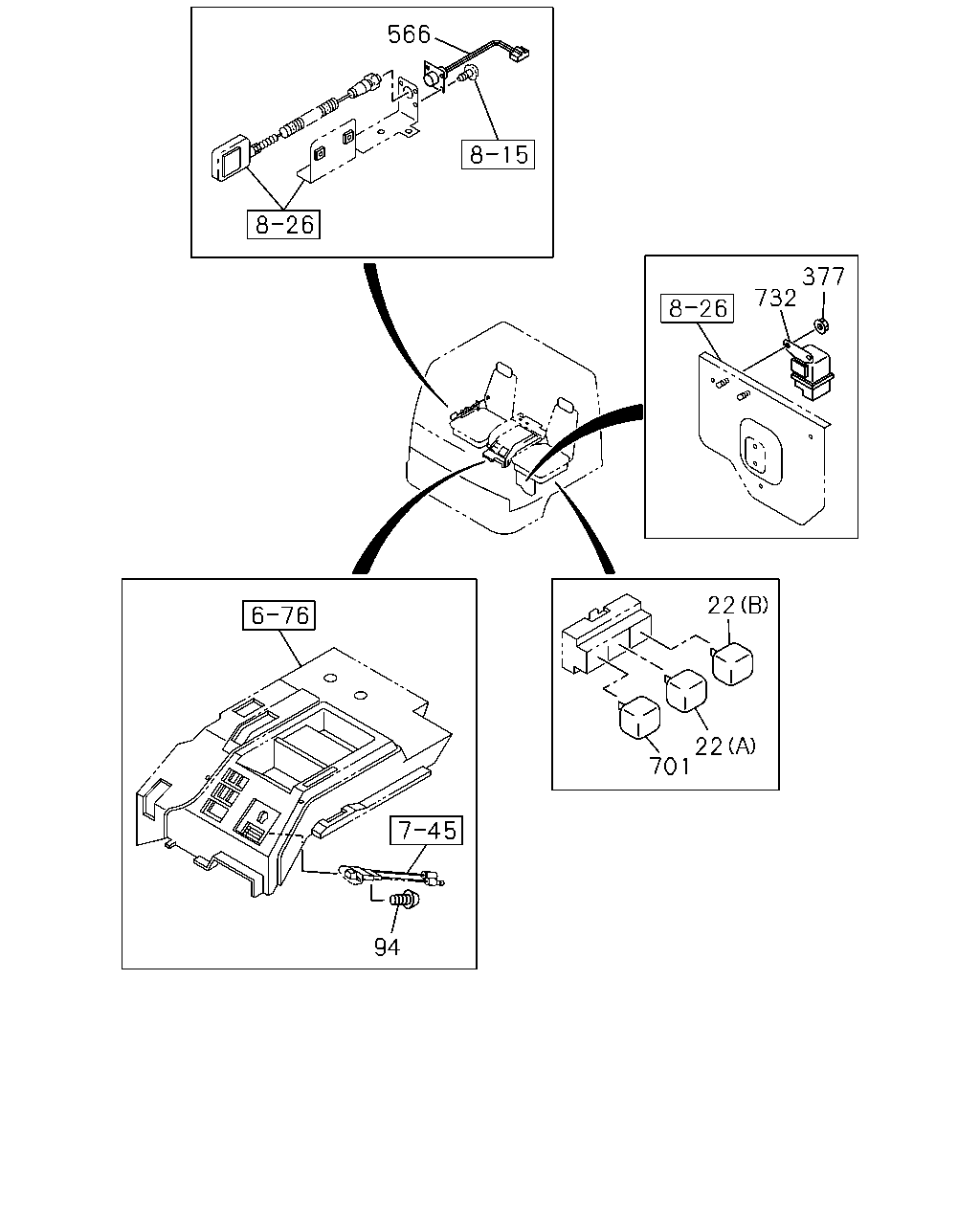

566 377 732 22 22 701 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
22	RELAY; STOP LAMP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0710-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0710-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0710-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0710-
701	RELAY; BRK,EBS 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
732	RELAY; EDS	1-82550-337-1	01	1	0710-

507 386 174 133 40 77 80 78 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV (C)	1-82569-425-0	01	1	0710-
40	BRACKET; MAG VLV (D)	1-82698-604-0	02	1	0710-
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-
77	HORN ASM	1-83430-041-2	01	1	0710-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0710-
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0710-
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0710-
174	COVER L=800	1-83129-031-1	01	1	0710-
386	CLIP; HARNESS ID=9.5	5-09709-020-0	01	1	0710-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0710-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-

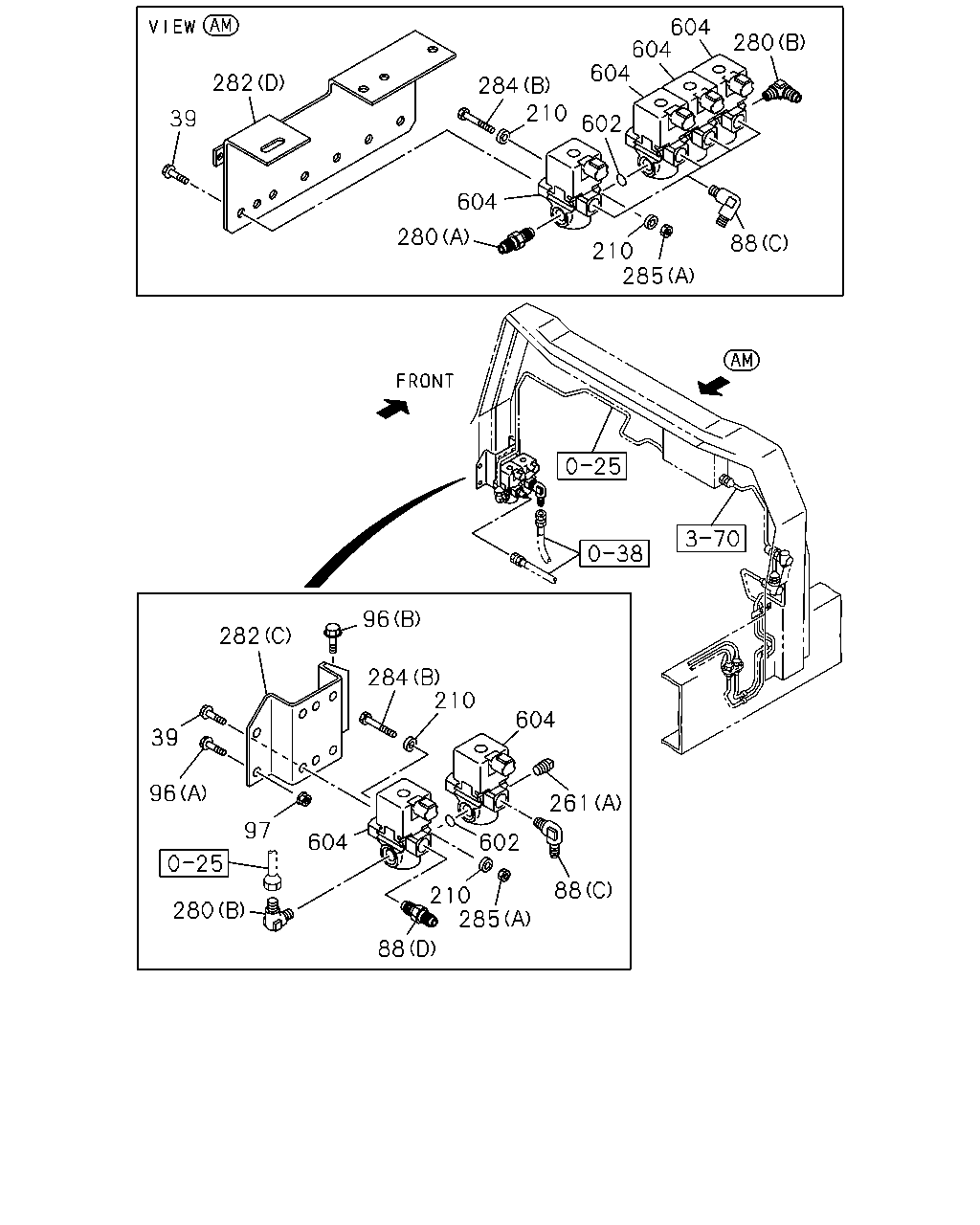

604 280 604 604 284 210 602 282 39 604 280 210 88 285 96 282 284 210 604 261 88 602 210 285 88 604 280 97 96 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0710-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	04	1	0710-
88	CONNECTOR; MAG VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
88	CONNECTOR; MAG VLV (F) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0710-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-
88	CONNECTOR; MAG VLV (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
88	CONNECTOR; MAG VLV (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	05	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-
261	PLUG; MAG VLV (B) PT3/8	9-09204-517-0	01	1	0710-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	0710-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
282	BRACKET; MAG VLV (A)	8-97609-722-0	01	1	0710-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-
282	BRACKET; MAG VLV (D)	1-82569-298-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-82569-358-0	01	1	0710-
284	BOLT; MAG VLV (D) M8X60 FLANGE	0-28050-860-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-
284	BOLT; MAG VLV (E) M6X60 FLANGE	0-28050-660-0	02	1	0710-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0710-
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0710-

661 468 440 312 731 734 180 1 8 377 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0710-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0710-
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	0710-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0710-
312	BOLT; BUZZER (A) M10X35 FLANGE	0-28651-035-0	01	1	0710-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0710-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0710-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0710-
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0710-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0710-
731	ALARM; INFORMATION	1-83460-051-1	01	1	0710-
734	ALARM; MULTI	1-83460-106-0	01	1	0710-

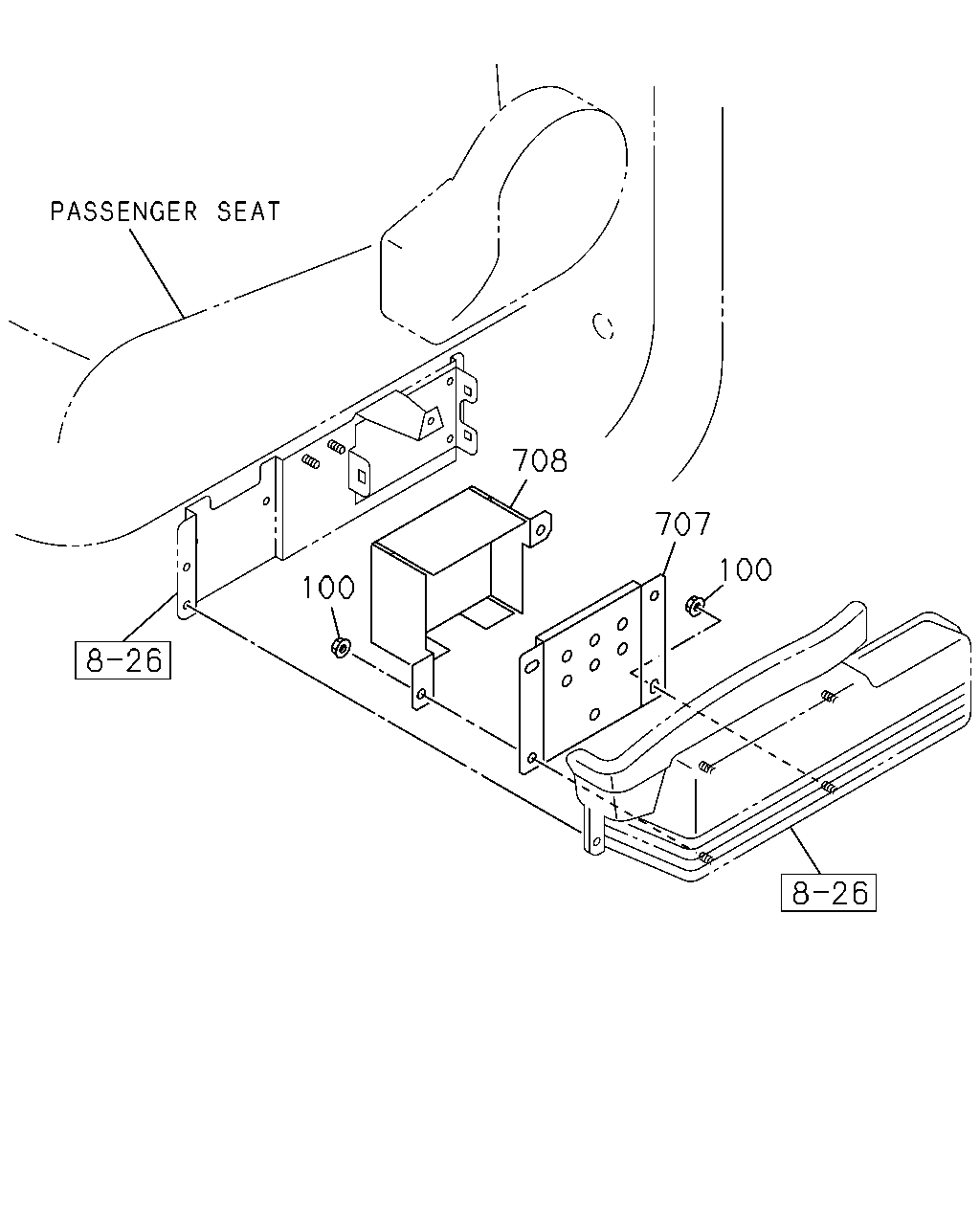

708 707 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	NUT; RELAY BOX COVER M6 FLANGE	0-91180-106-0	04	1	0710-
707	BOX; BASE BRKT	1-82510-603-1	01	1	0710-
708	COVER; BRKT	1-82510-604-1	01	1	0710-0902

275 88 88 40 450 272 88 64 65 299 66 65 64 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV (C)	1-82569-425-0	01	1	0710-
40	BRACKET; MAG VLV (D)	1-82698-604-0	02	1	0710-
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-
64	SOCKET; TRAILER (B)	1-82698-364-0	01	1	0710-
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	0710-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-
65	BOLT; SOCKET FIX (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-
65	BOLT; SOCKET FIX (C) M8X25 FLANGE	0-28650-825-0	04	1	0710-
65	BOLT; SOCKET FIX (B) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0710-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	01	1	0710-
88	CONNECTOR; MAG VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
88	CONNECTOR; MAG VLV (F) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0710-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-
88	CONNECTOR; MAG VLV (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
88	CONNECTOR; MAG VLV (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
272	BOLT; MAG VLV M10X20 FLANGE	0-28651-020-0	02	1	0710-1208
272	BOLT; MAG VLV M10X25 FLANGE	0-28651-025-0	02	1	1209-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-
299	SOCKET; PARKING	1-82699-396-2	01	1	0710-
450	VALVE; MAG (B)	1-48240-345-0	01	1	0710-
450	VALVE; MAG (A)	1-53458-378-2	01	1	0710-

88 88 510 86 89 507 88 132 132 284 132 89 88 86 424 86 721 89 667 284 210 210 507 602 424 261 88 285 88 89 34 298 284 284 40 285 88 40 88 528 285 88 507 387 507 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN6X2 & R1/4 3WAY	1-09661-070-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0710-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV (C)	1-82569-425-0	01	1	0710-
40	BRACKET; MAG VLV (D)	1-82698-604-0	02	1	0710-
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0710-
86	NUT; BUZZER (A) M10 FLANGE	0-91180-210-0	01	1	0710-
88	CONNECTOR; MAG VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
88	CONNECTOR; MAG VLV (F) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0710-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-
88	CONNECTOR; MAG VLV (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
88	CONNECTOR; MAG VLV (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-094-2	01	1	0710-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0710-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0710-
132	CONNECTOR; OUTLET,MAG VLV DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-
261	PLUG; MAG VLV (B) PT3/8	9-09204-517-0	01	1	0710-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	0710-
284	BOLT; MAG VLV (D) M8X60 FLANGE	0-28050-860-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-
284	BOLT; MAG VLV (E) M6X60 FLANGE	0-28050-660-0	02	1	0710-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
285	NUT; MAG VLV (C) M8 FLANGE	0-91180-108-0	02	1	0710-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0710-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-
298	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-
387	CLIP; BAND L=350	1-09707-183-0	01	1	0710-
424	ADAPTER (A) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0710-
424	ADAPTER (B) PT3/8	1-09664-210-0	02	1	0710-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-
510	VALVE; CHECK	1-48410-531-1	01	1	0710-
528	VALVE; PRESSURE REDUCING	1-48410-744-0	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-
667	LUBRICATION	8-98063-001-0	01	1	0710-
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
