Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

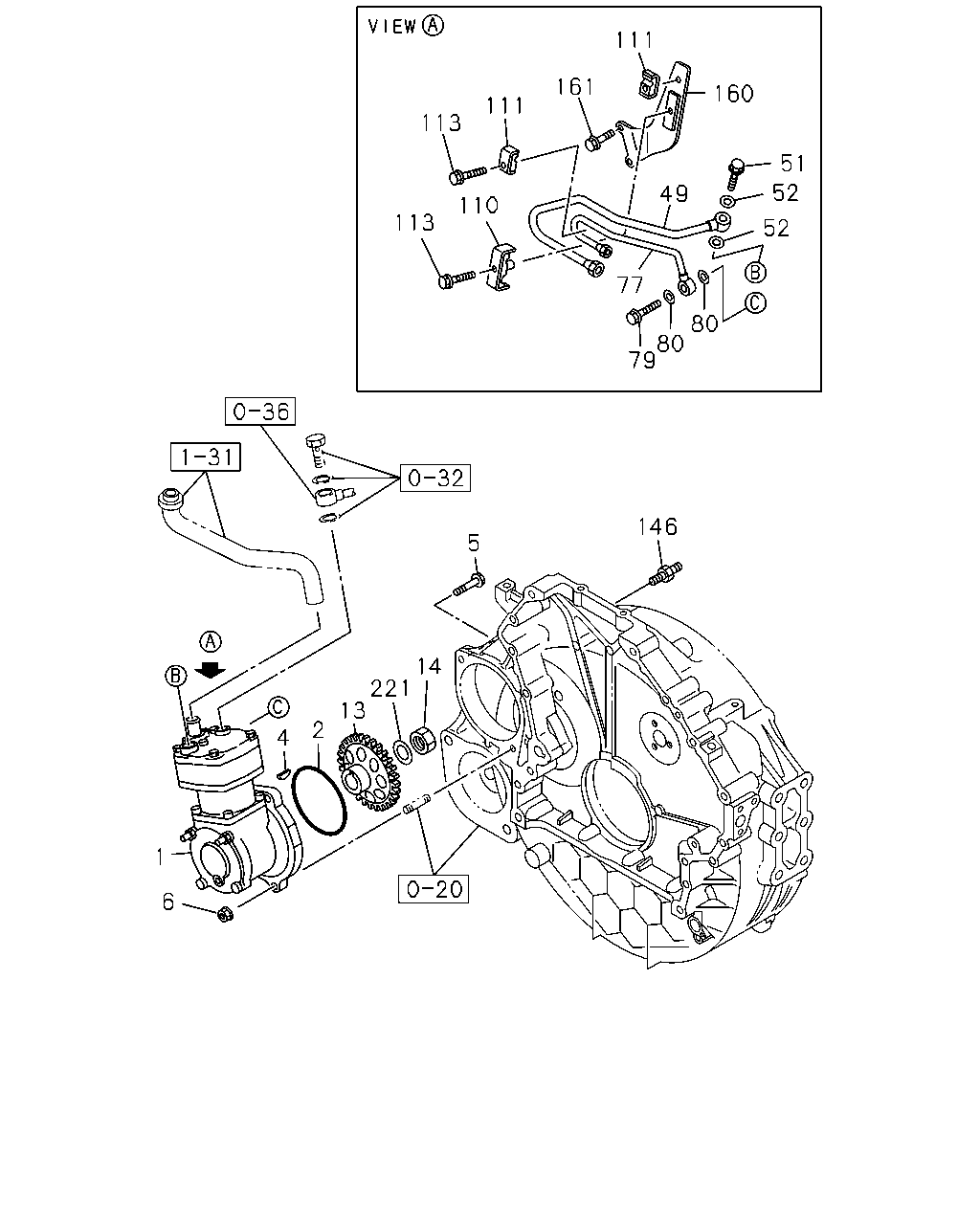

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#153499) — 20 parça
111
161
111
113
113
110
77
79
80
80
52
52
51
49
160
146
5
14
221
13
2
4
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98187-299-0
01
1
1412-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162
1-09623-570-0
01
1
1412-
4
KEY; INJ PUMP GEAR
9-08055-516-0
01
1
1412-
5
BOLT; AIR CMPR FIX
M12X70 FLANGE
0-28151-270-0
02
1
1412-
6
NUT; AIR CMPR
M12 FLANGE
0-91180-212-0
01
1
1412-
13
GEAR; AIR CMPR DRIVE
Z=49
8-94394-511-4
01
1
1412-
14
NUT; GEAR
M20
0-91110-520-0
01
1
1412-
49
PIPE; AIR,CHARGE
8-97618-722-0
01
1
1412-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1412-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1412-
77
PIPE; AIR,GOV
8-97618-724-0
01
1
1412-
79
BOLT; EYE,AIR PIPE TO CMPR
M10X23
8-98037-824-0
01
1
1412-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2
1-09630-083-0
02
1
1412-
110
CLIP; AIR PIPE
8-94393-037-0
01
1
1412-
111
CLIP; AIR PIPE
ID=5.5 L=10.5
8-98029-953-1
02
1
1412-
113
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
0-28650-640-0
02
1
1412-
146
STUD; AIR CMPR
M10X16,M12X70 L=97.7
1-09049-038-1
01
1
1412-
160
BRACKET; AIR PIPE
8-98074-255-0
01
1
1412-
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1412-
221
WASHER; PL,GEAR
ID=21
0-91610-520-0
01
1
1412-
