Isuzu WW
▶
TRUCKS
▶
FVW
▶
11624 - FVW RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

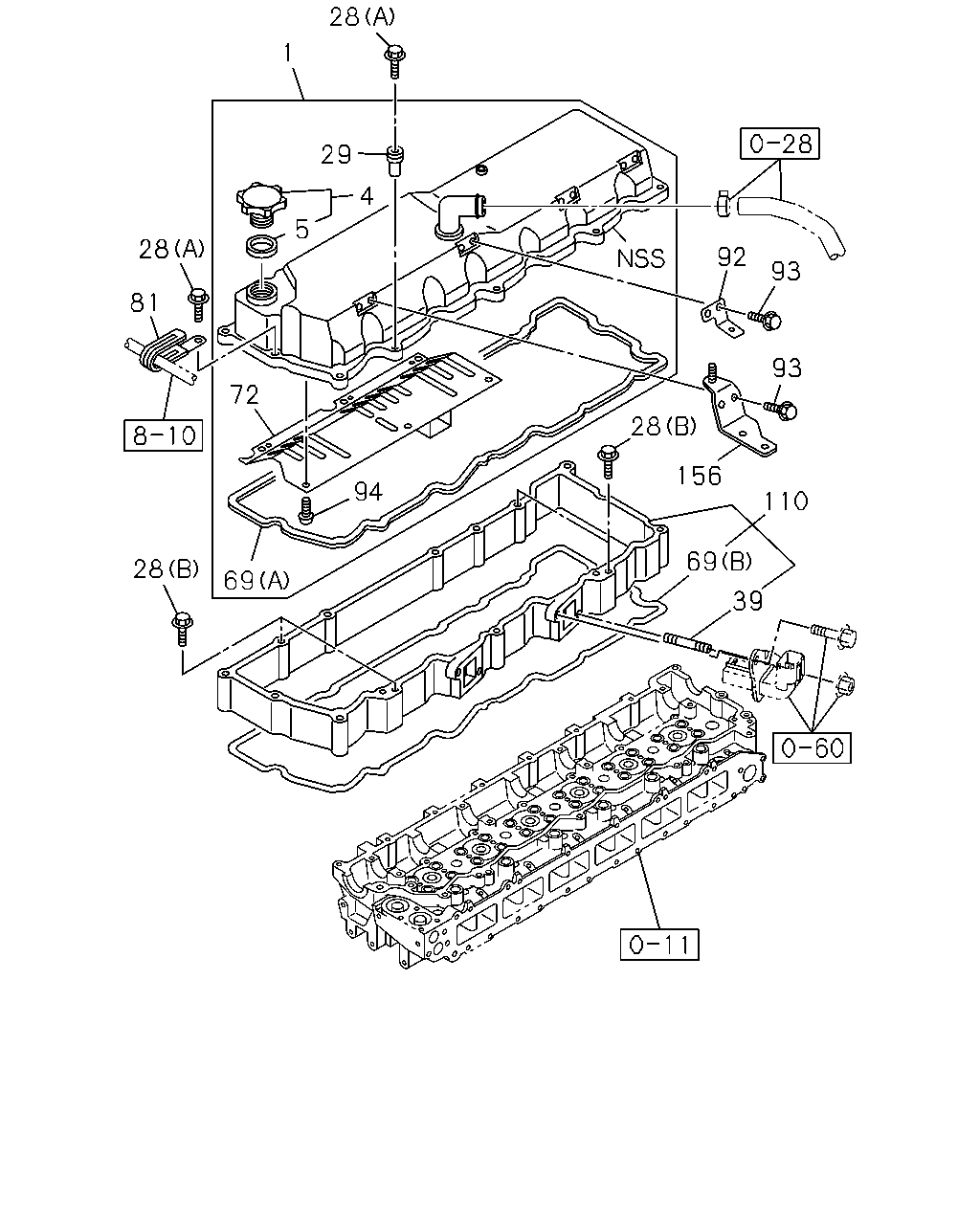

0-10 — CYLINDER HEAD COVER
(#153481) — 16 parça
39
69
110
156
28
93
93
92
28
1
29
4
5
28
81
72
94
69
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-98208-874-0
01
1
1412-
4
CAP; OIL FILLER
8-94399-723-0
01
1
1412-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
1412-
28
BOLT; HD COVER
(B) M8X45 FLANGE
0-28050-845-0
04
1
1412-
28
BOLT; HD COVER
(A) M8X70 FLANGE
0-28050-870-0
11
1
1412-
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
1412-
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
02
1
1412-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
1412-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-94391-380-0
01
1
1412-
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
1412-
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
02
1
1412-
92
BRACKET; CLIP
8-98271-674-0
01
1
1412-
93
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
04
1
1412-
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
0-35050-408-0
06
1
1412-
110
COVER; CYL HEAD LWR
8-94390-862-3
01
1
1412-
156
BRACKET; ENGINE COVER
8-97616-751-0
01
1
1412-
