◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#15348) — 99 parça
çizim 96025
380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
380 SEAL
450X350 		1-76770-008-0 01 1 0710-
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0710-
657 CONTROL UNIT; MIMAMORI 1-80190-179-0 01 1 0710-

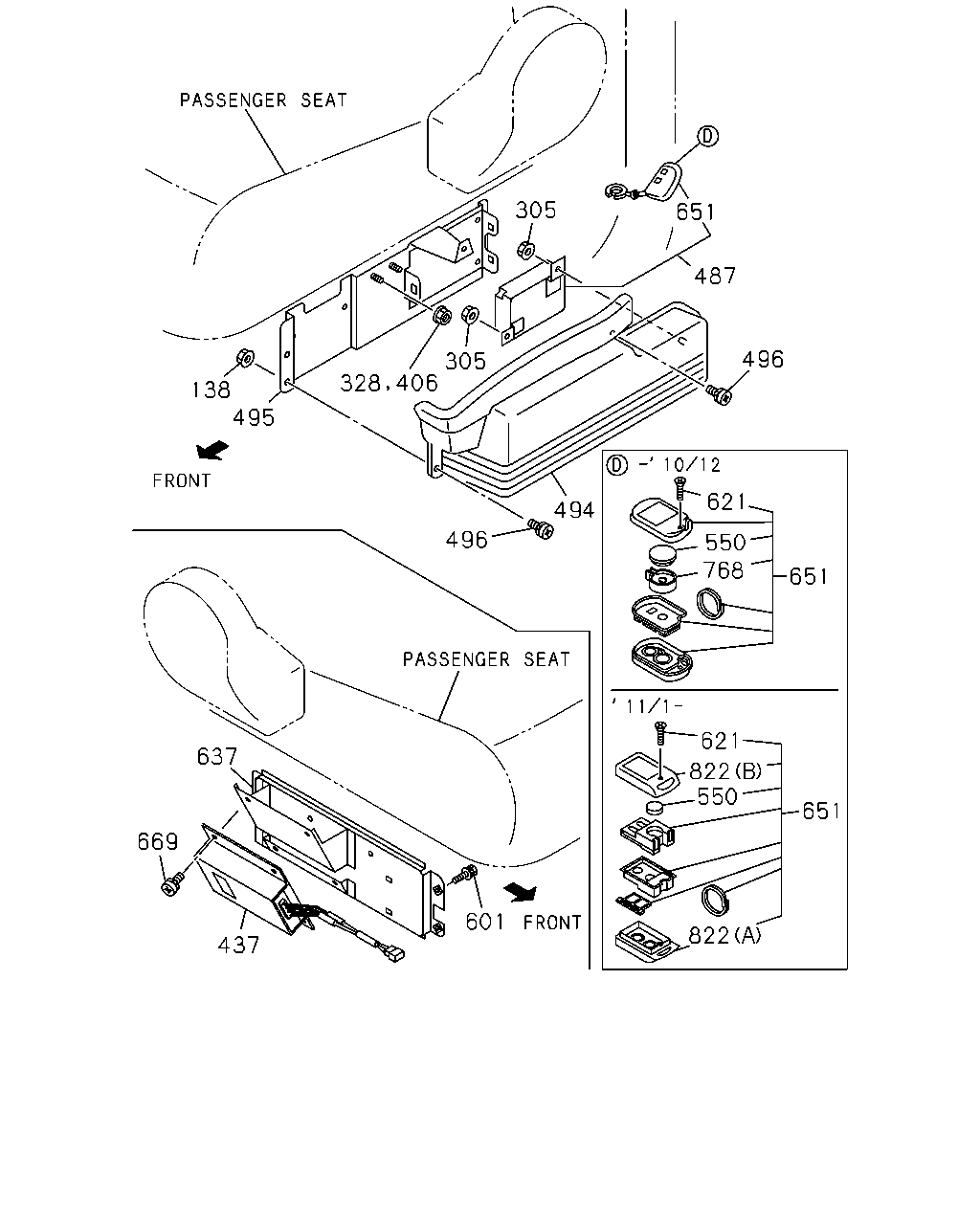

çizim 96027
305 651 487 496 328 406 305 138 496 494 637 669 621 550 768 651 621 822 550 651 822 601 437 495
BalonParca AdiParca NoAdetTipApplied Date
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0710-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-
328 NUT
M6 FLANGE 		0-91180-106-0 02 1 0710-
406 NUT; COVER
M6 FLANGE 		0-91180-106-0 02 1 0710-
437 CONVERTER; DC
METRO DENSO 		8-98046-423-0 01 1 0710-
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98050-457-1 01 1 0710-1012
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98181-808-0 01 1 1101-1205
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98218-230-0 01 1 1206-
494 COVER; ELEC BOX 8-97589-725-0 01 1 0710-
495 BRACKET; ELEC BOX 8-97589-728-0 01 1 0710-
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0710-
550 BATTERY; TRANSMITTER 8-98078-061-0 01 1 0710-
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0710-
621 SCREW
M2X5 		8-98078-067-0 01 1 0710-1205
621 SCREW
M2X5 		8-98218-239-0 01 1 1206-
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0710-
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98048-459-1 01 1 0710-1012
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98180-751-0 01 1 1101-1205
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98218-236-0 01 1 1206-
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0710-
768 HOLDER; BATTERY 8-98078-063-0 01 1 0710-1012
822 COVER; TRANSMITTER 8-98218-240-0 01 1 1206-
822 COVER; TRANSMITTER 8-98218-243-0 01 1 1206-

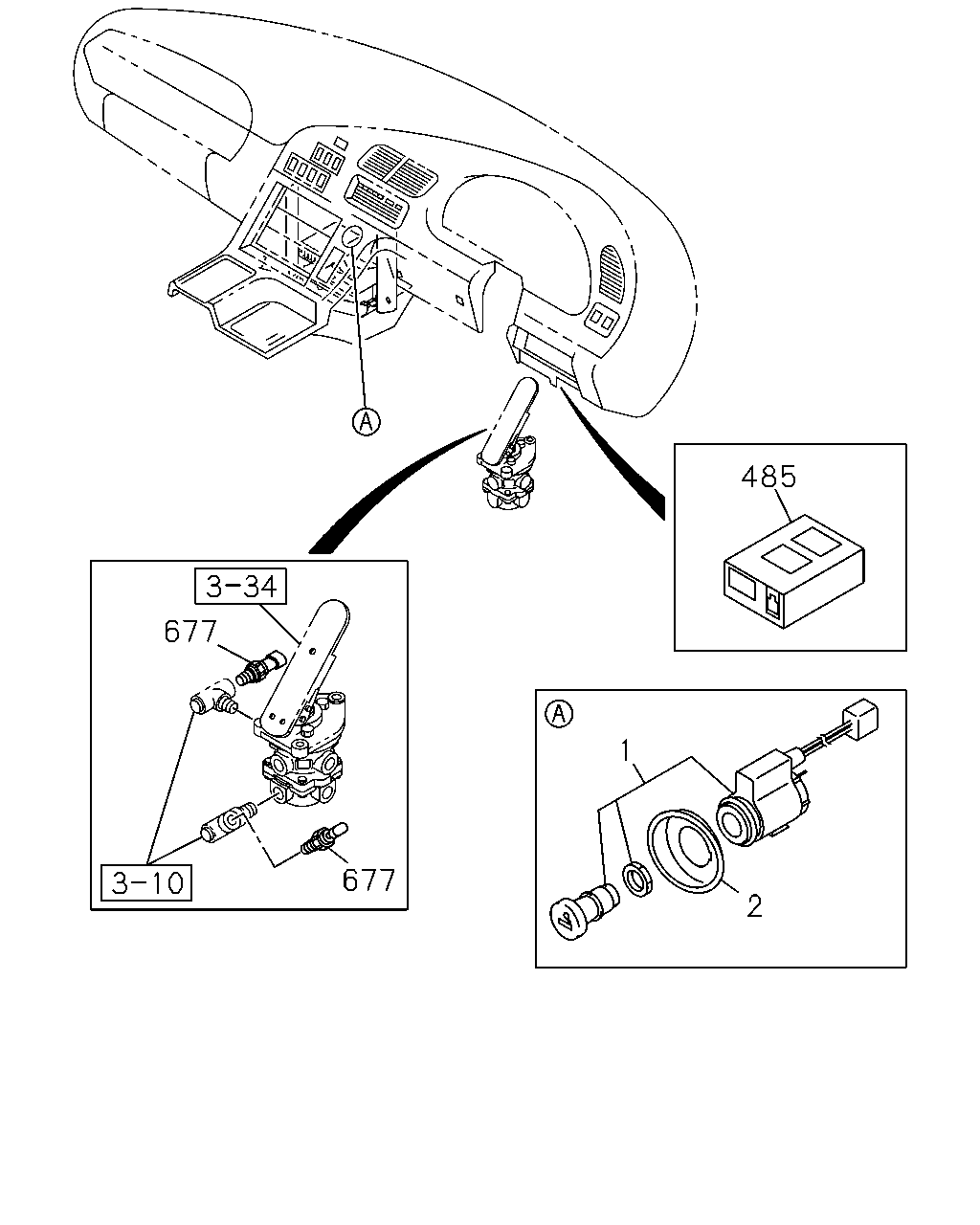

çizim 96229
485 1 2 677 677
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0710-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0710-
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0710-0906
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0907-1008
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 0710-

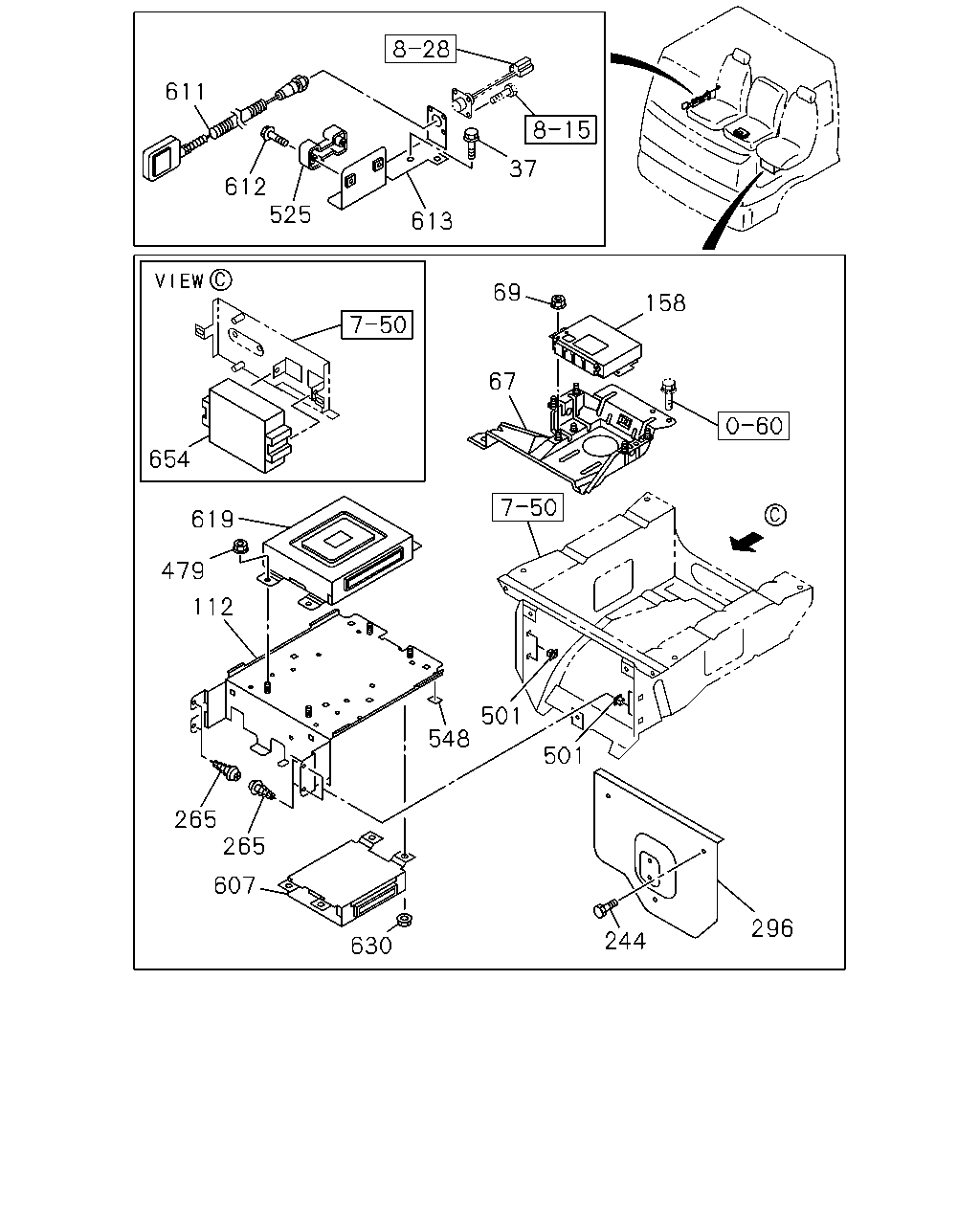

çizim 96230
611 612 525 613 37 69 158 67 654 619 479 112 501 548 501 265 265 607 630 244 296
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; BRKT FIX
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0710-
67 BRACKET; CONT UNIT 1-72537-234-1 01 1 0710-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0710-
112 BRACKET; CONT UNIT 8-97589-714-2 01 1 0710-
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		1-80119-258-0 01 1 0710-0811
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		1-80119-908-0 01 1 0812-
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		1-80119-259-0 01 1 0710-0811
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		1-80119-909-0 01 1 0812-
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0710-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0710-
296 COVER; CONT UNIT 8-97388-687-0 01 1 0710-
479 NUT; CONTROLLER
M6 FLANGE 		0-91180-106-0 04 1 0710-
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710-
525 HOLDER; SW 1-82389-018-0 01 1 0710-
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0710-0908
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306-
607 CONTROL UNIT; AIR SUSPENSION 8-98064-564-0 01 1 0710-
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 0710-
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 0710-
613 BRACKET; HOLDER,SW 1-79907-125-1 01 1 0710-
619 CONTROL UNIT; T/M 8-98078-919-0 01 1 0710-0804
619 CONTROL UNIT; T/M 8-98109-799-0 01 1 0805-
630 NUT; CONT UNIT,AIR SUSP
M6 FLANGE 		0-91180-106-0 02 1 0710-
654 CONTROL UNIT; EXH & RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0710-
654 CONTROL UNIT; EXH & RETARDER
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0710-
çizim 96501
554 466 273 264 452 263 452 554 453 452 273 264 263
BalonParca AdiParca NoAdetTipApplied Date
263 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0710-
264 BRACKET; CONT UNIT 1-82547-035-2 01 1 0710-
264 BRACKET; CONT UNIT 1-82547-034-3 01 1 0710-
273 CLIP; HARNESS
L=140 		5-09707-031-1 01 1 0710-
452 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-
452 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904
452 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
453 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
466 NUT; CLIP
M6 FLANGE 		1-09984-141-0 01 1 0710-
554 CONTROL UNIT; HEAD LAMP 1-80150-156-0 01 1 0710-
554 CONTROL UNIT; HEAD LAMP 1-80150-155-0 01 1 0710-

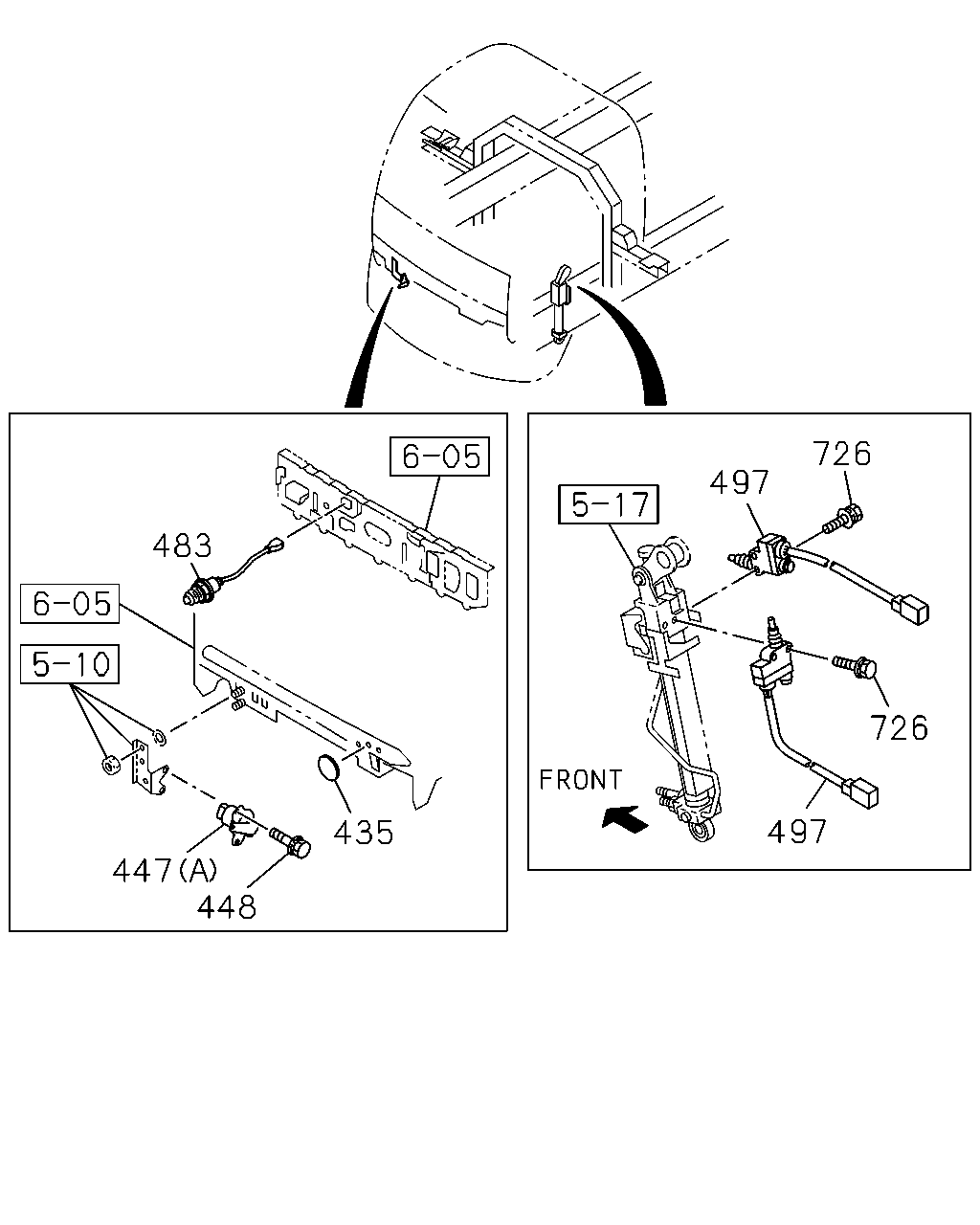

çizim 106846
726 497 726 497 435 448 447 483
BalonParca AdiParca NoAdetTipApplied Date
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0710-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
483 SWITCH 1-82440-118-0 01 1 0710-
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0710-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0710-

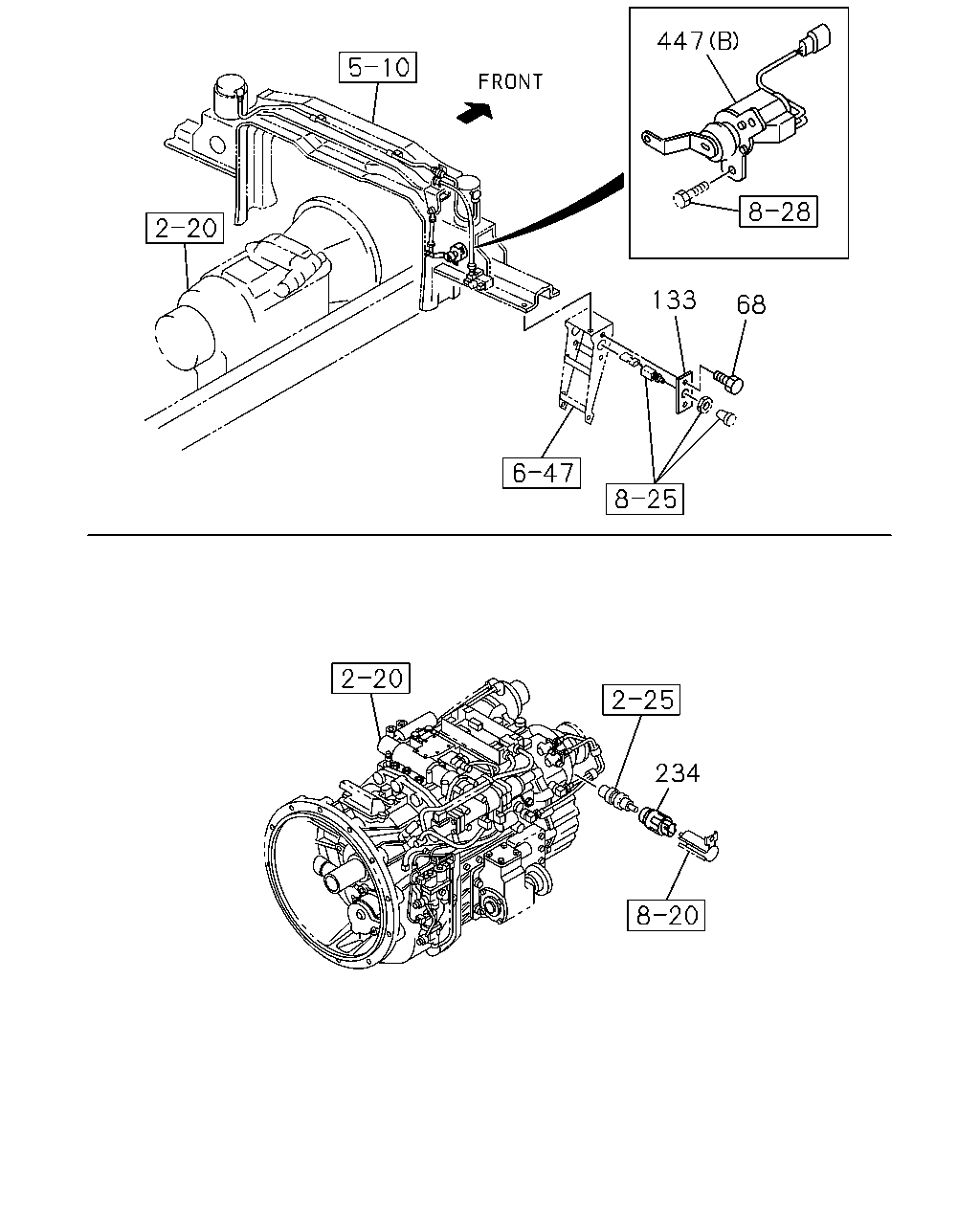

çizim 106847
447 133 68 234
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
133 BRACKET; SWITCH 1-82699-815-0 01 1 0710-
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0710-1301
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-
çizim 106867
491
BalonParca AdiParca NoAdetTipApplied Date
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0710-
