Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#153470) — 133 parça

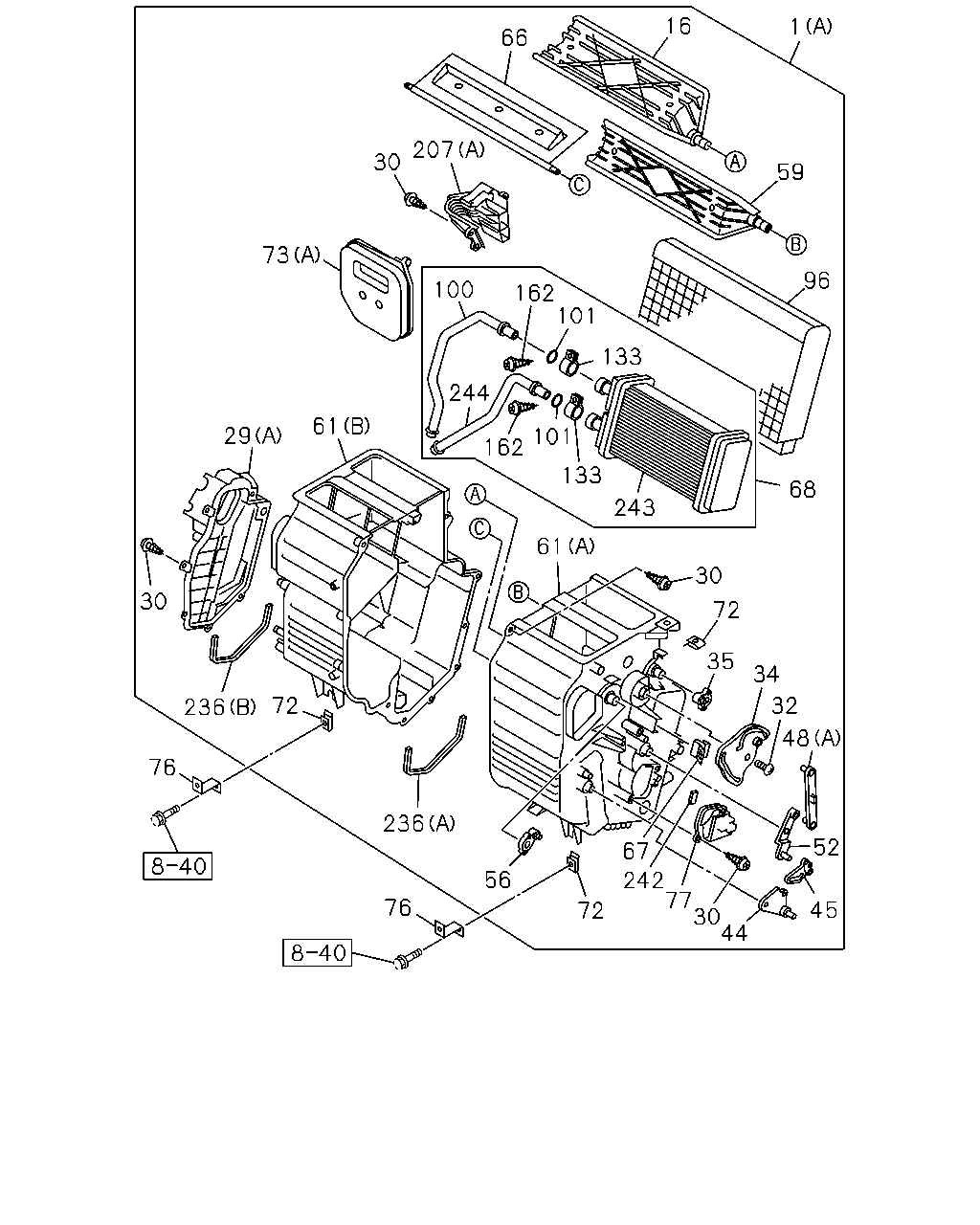

1 16 66 59 96 207 30 73 100 162 133 101 68 101 133 243 162 244 61 29 61 30 72 35 34 32 48 52 45 44 30 77 242 67 72 56 76 236 72 30 236 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1412-
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1412-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1412-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1412-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-480-0	01	1	1412-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98231-368-0	01	1	1412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1412-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1412-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1412-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	1412-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1412-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1412-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1412-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-502-0	01	1	1412-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-503-0	01	1	1412-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1412-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1412-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1412-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1412-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1412-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1412-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1412-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-385-0	01	1	1412-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1412-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1412-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-122-0	01	1	1412-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1412-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98048-817-0	01	1	1412-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-491-0	01	1	1412-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1412-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1412-
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1412-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-532-0	01	1	1412-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-531-0	02	1	1412-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-530-0	02	1	1412-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-529-0	02	1	1412-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-493-0	01	1	1412-
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-413-0	01	1	1412-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1412-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1412-
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	1412-1412
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1412-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-508-0	01	1	1412-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-511-0	01	1	1412-

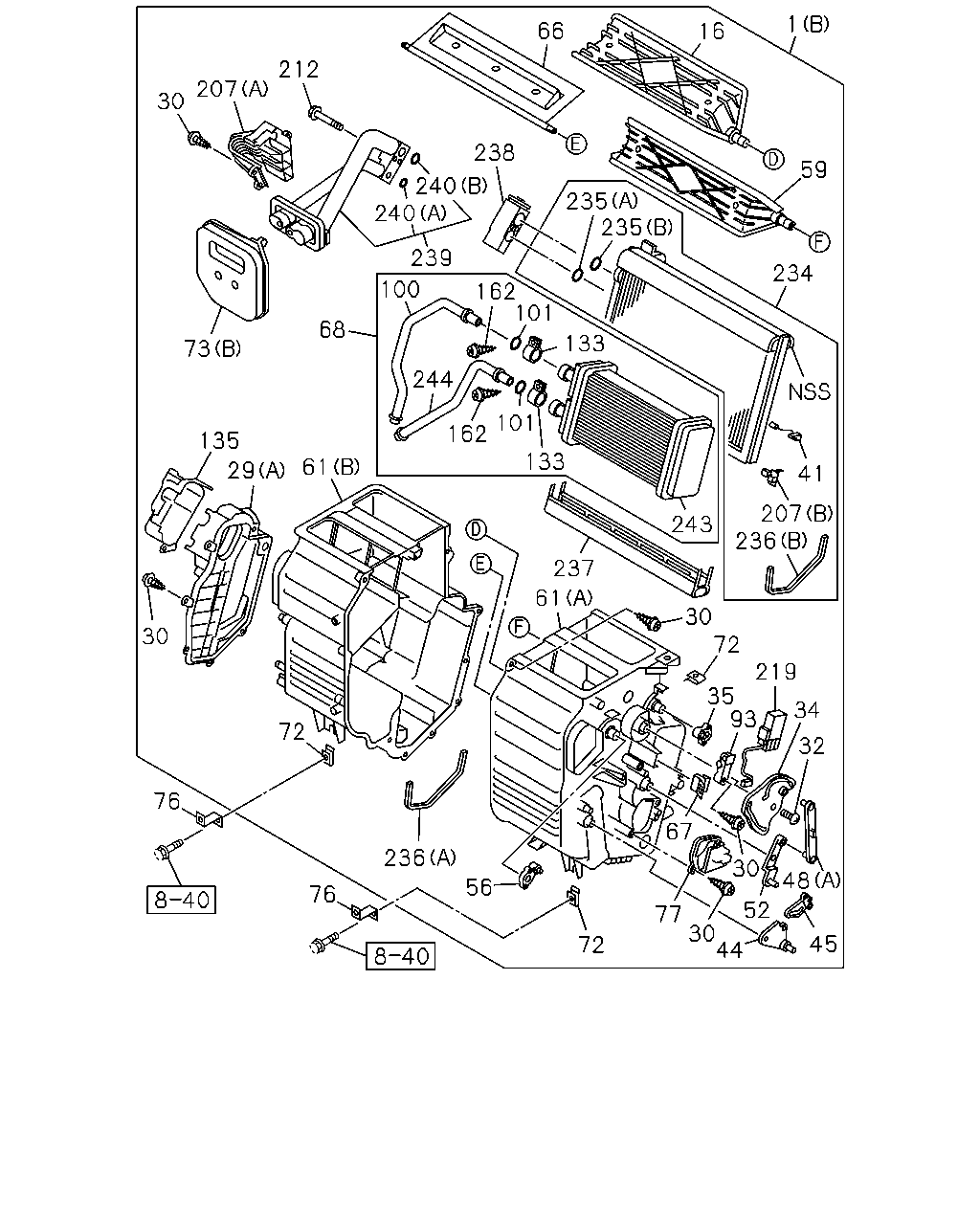

235 238 240 240 239 100 68 244 162 101 133 101 162 133 61 29 135 73 30 207 212 66 16 1 59 234 41 207 236 243 30 72 219 34 32 93 35 77 67 30 52 48 45 30 44 72 56 236 76 76 72 30 237 61 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1412-
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1412-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1412-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1412-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-480-0	01	1	1412-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98231-368-0	01	1	1412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1412-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1412-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1412-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	1412-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1412-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1412-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1412-
41	THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-412-0	01	1	1412-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-502-0	01	1	1412-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-503-0	01	1	1412-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1412-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1412-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1412-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1412-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1412-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1412-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1412-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-385-0	01	1	1412-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1412-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1412-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-122-0	01	1	1412-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1412-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98048-817-0	01	1	1412-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-491-0	01	1	1412-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1412-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1412-
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	1412-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-532-0	01	1	1412-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-531-0	02	1	1412-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-530-0	02	1	1412-
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-481-0	01	1	1412-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-529-0	02	1	1412-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-493-0	01	1	1412-
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-413-0	01	1	1412-
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M5X61	8-98047-415-0	02	1	1412-
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	1412-
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-120-1	01	1	1412-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	01	1	1412-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	01	1	1412-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1412-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1412-
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-382-0	01	1	1412-
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-383-0	01	1	1412-
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-504-0	01	1	1412-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	01	1	1412-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	01	1	1412-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-508-0	01	1	1412-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-511-0	01	1	1412-

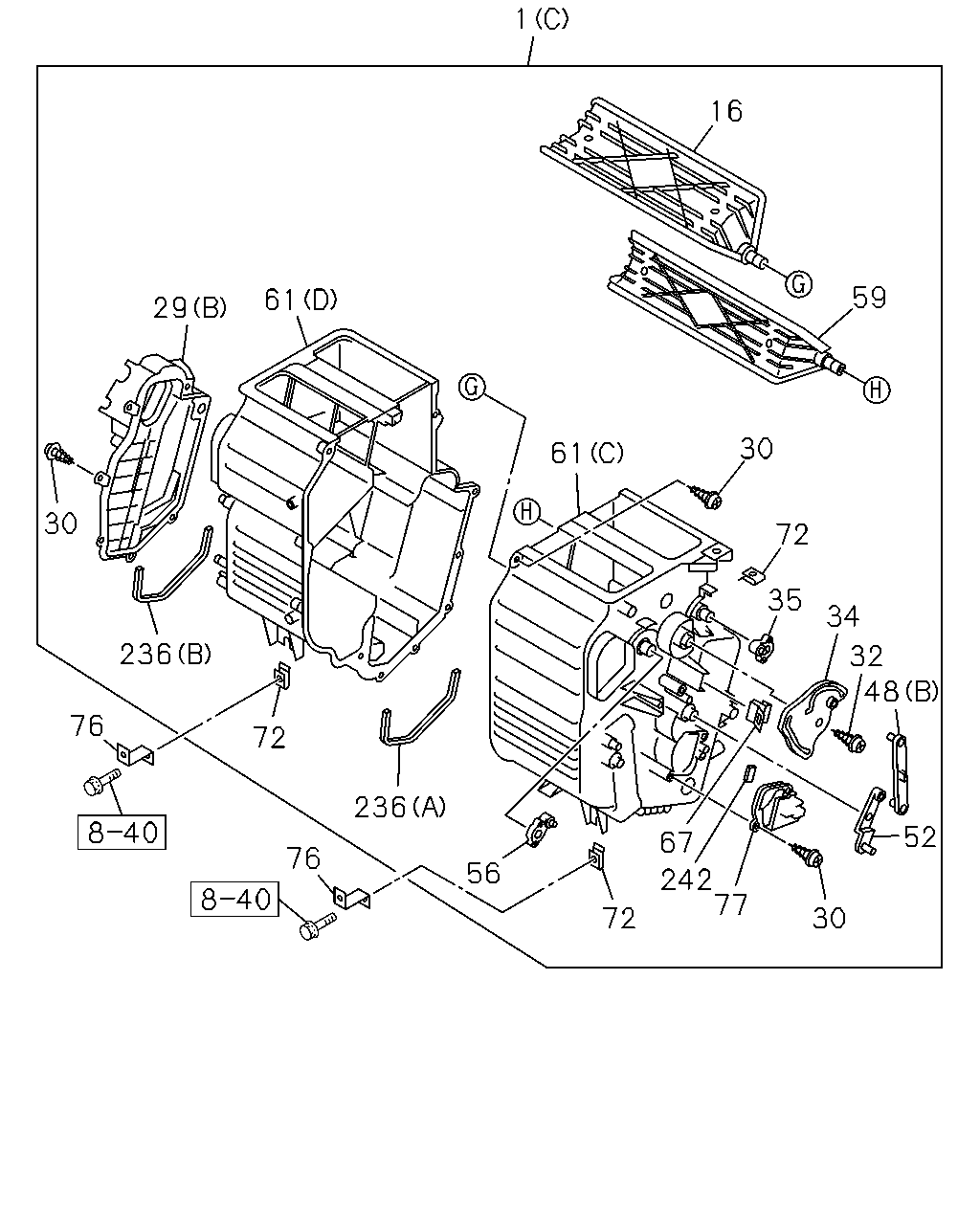

59 16 1 61 30 72 35 34 32 48 52 30 77 242 67 72 56 236 72 76 76 236 30 61 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1412-
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1412-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1412-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1412-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-480-0	01	1	1412-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98231-368-0	01	1	1412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1412-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1412-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1412-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	1412-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1412-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1412-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1412-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1412-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1412-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1412-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1412-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1412-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1412-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1412-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1412-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1412-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1412-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1412-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1412-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1412-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1412-
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	1412-1412
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
