Isuzu WW
▶
TRUCKS
▶
FVR
▶
11660 - FVR MIDDLE EAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#153467) — 40 parça
◀

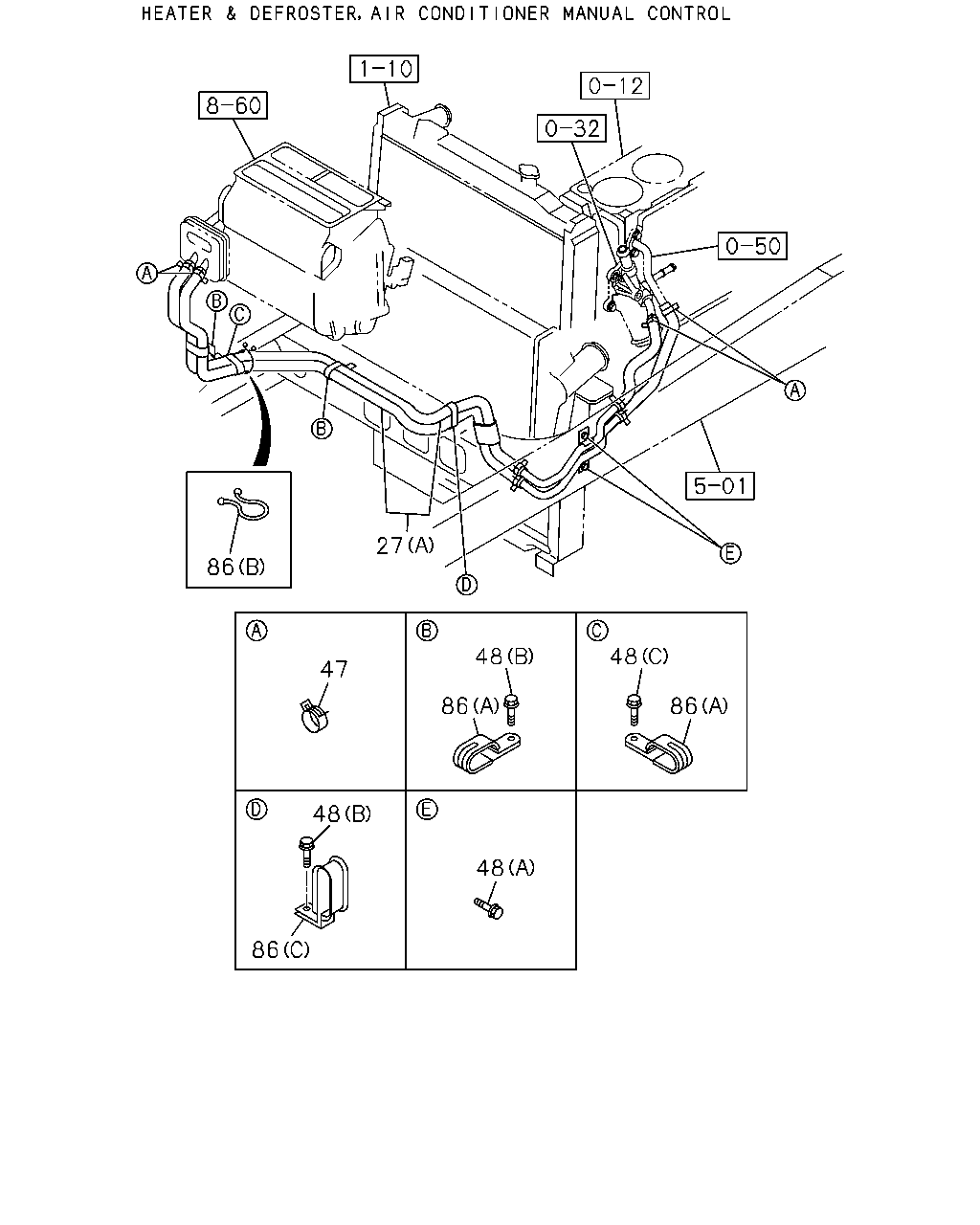

[845A] 4HK1 NO.2 (12 parça)

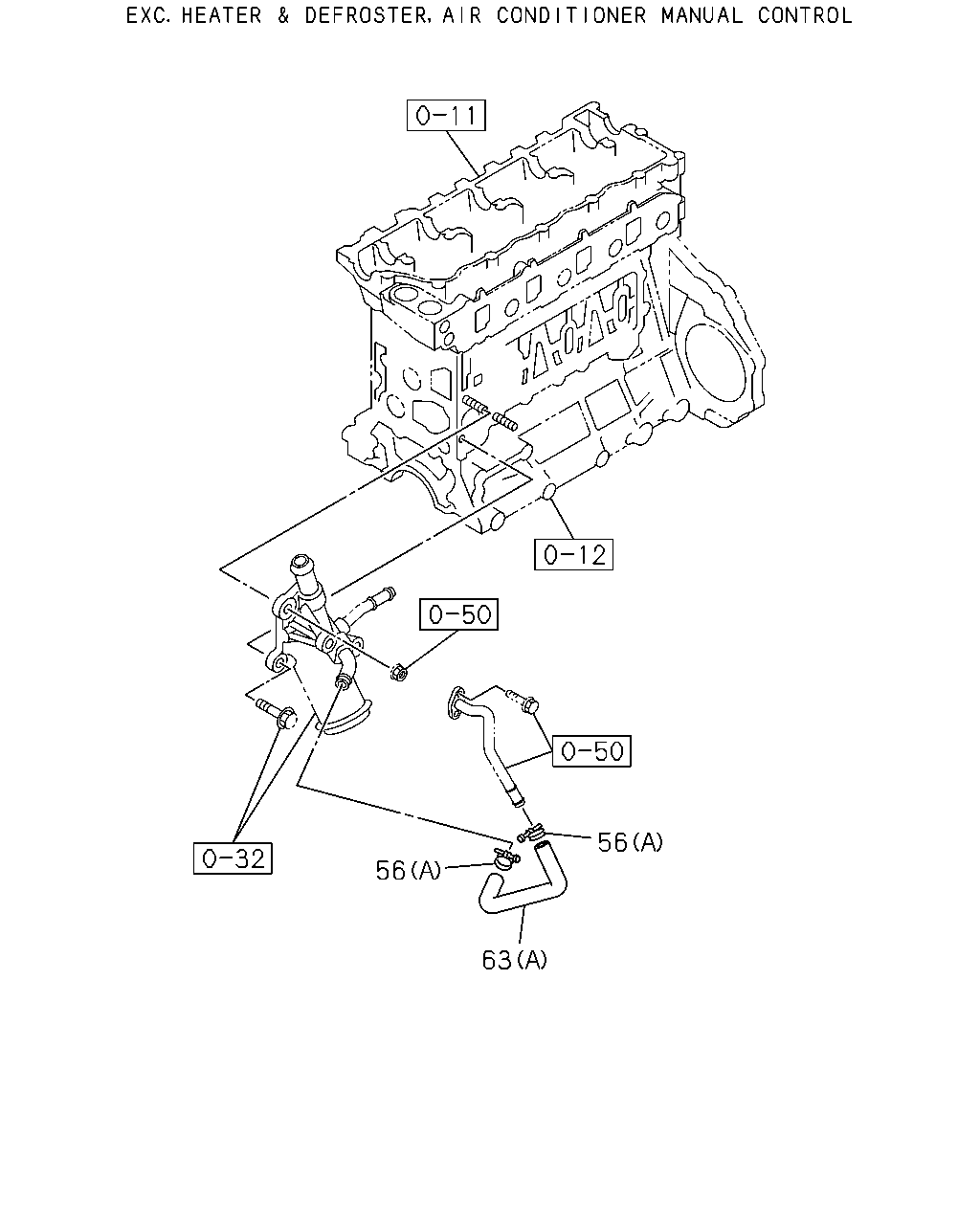

[845A] 4HK1 NO.1 (6 parça)
[845A] 6HK1 NO.1 (13 parça)

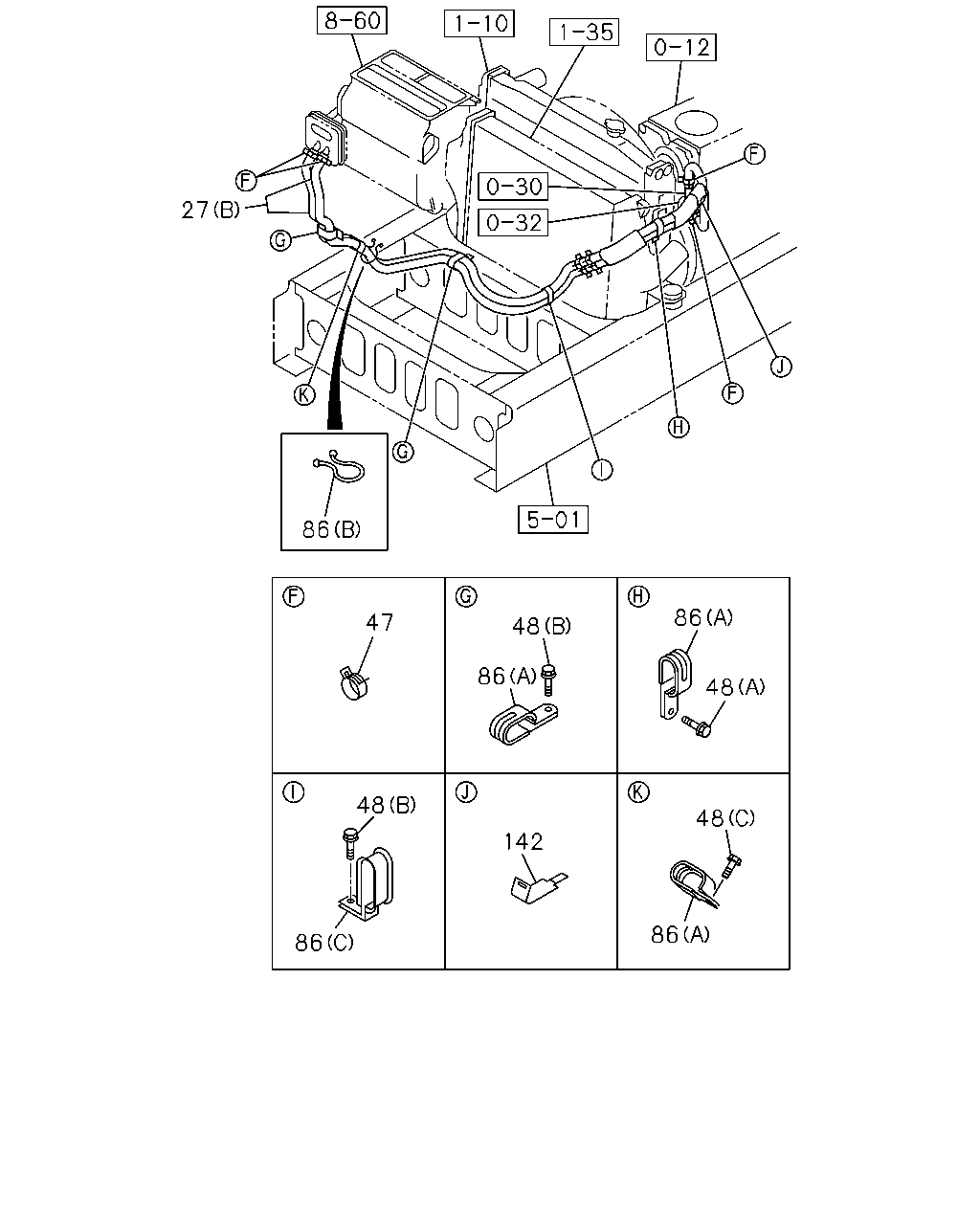

[845A] 6HK1 NO.2 (9 parça)
▶
86
27
48
86
47
48
86
48
48
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98202-970-1
01
1
1412-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98085-572-2
01
1
1412-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1412-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE
0-28050-816-0
01
1
1412-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28650-825-0
03
1
1412-
48
BOLT; CLIP FIX
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1412-
48
BOLT; CLIP FIX
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1412-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
02
1
1412-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) B=14
8-98029-678-0
01
1
1412-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
01
1
1412-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
01
1
1412-
86
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44
8-94463-508-0
01
1
1412-
56
63
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
56
CLAMP; HTR HOSE
4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=25
8-94233-115-0
02
1
1412-
56
CLAMP; HTR HOSE
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22
8-97359-141-0
04
1
1412-
63
HOSE; WATER
4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)
8-94134-250-1
01
1
1412-
63
HOSE; WATER
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98113-087-0
01
1
1412-
63
HOSE; WATER
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98113-088-0
01
1
1412-
63
HOSE; WATER
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)
8-98113-089-0
01
1
1412-
27
86
47
86
48
86
48
48
86
142
48
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98202-970-1
01
1
1412-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98085-572-2
01
1
1412-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1412-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE
0-28050-816-0
01
1
1412-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28650-825-0
03
1
1412-
48
BOLT; CLIP FIX
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1412-
48
BOLT; CLIP FIX
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1412-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
02
1
1412-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) B=14
8-98029-678-0
01
1
1412-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
01
1
1412-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
01
1
1412-
86
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44
8-94463-508-0
01
1
1412-
142
CLIP; BAND
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170
8-98166-021-0
01
1
1412-
103
56
56
63
63
56
56
103
63
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98202-970-1
01
1
1412-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98085-572-2
01
1
1412-
56
CLAMP; HTR HOSE
4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=25
8-94233-115-0
02
1
1412-
56
CLAMP; HTR HOSE
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22
8-97359-141-0
04
1
1412-
63
HOSE; WATER
4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)
8-94134-250-1
01
1
1412-
63
HOSE; WATER
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98113-087-0
01
1
1412-
63
HOSE; WATER
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98113-088-0
01
1
1412-
63
HOSE; WATER
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)
8-98113-089-0
01
1
1412-
103
CONNECTOR; HOSE
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
9-09703-048-0
02
1
1412-
