Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#153460) — 333 parça

334 334 334 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	1412-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	1412-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	1412-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1412-
428	BRACKET 4HK1-TCS ENG(RJS) (B)	8-98203-354-2	01	1	1412-
428	BRACKET 6HK1-TCN ENG(82L) (A)	8-98212-082-1	01	1	1412-

184 524 219 294 525 294 524 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1412-
184	WASHER; PL,STARTER EARTH 4HK1-TCS ENG(RJS) ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1412-
184	WASHER; PL,STARTER EARTH 6HK1-TCN ENG(82L) ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1412-
219	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1412-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1412-
219	NUT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1412-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1412-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	04	1	1412-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1412-
294	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1412-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1412-
294	NUT FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE	0-91180-210-0	01	1	1412-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1412-
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1412-
294	NUT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	1412-
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1412-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1412-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	1412-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1412-
525	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1412-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1412-

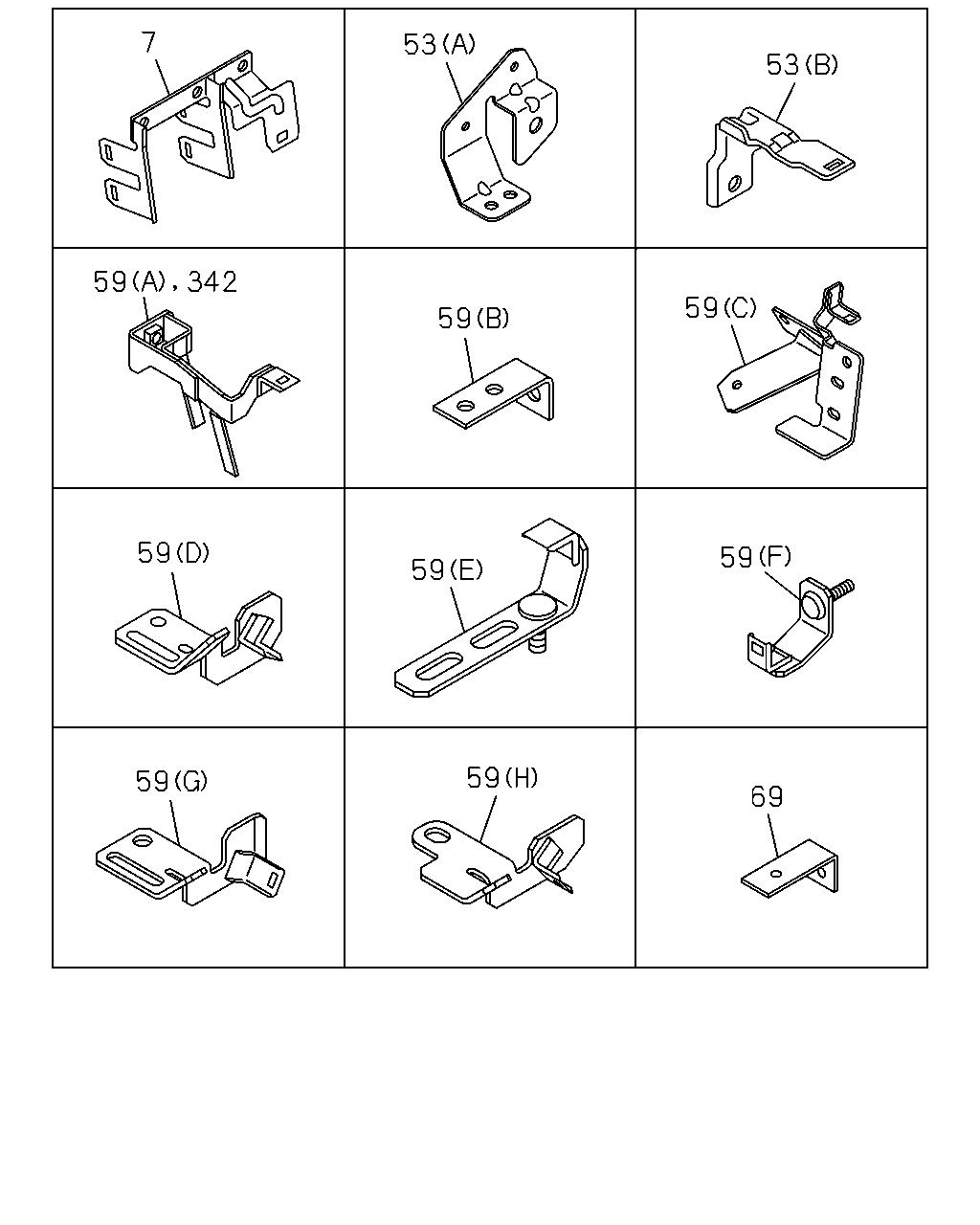

7 53 53 59 59 342 59 59 59 59 69 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1412-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1412-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1412-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (F)	8-97612-957-1	02	1	1412-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (G)	8-98211-162-0	01	1	1412-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (A)	8-98099-963-0	01	1	1412-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (A)	8-97609-264-2	01	1	1412-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (E)	8-98047-730-0	02	1	1412-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-98107-611-0	01	1	1412-
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=62	1-21464-170-2	01	1	1412-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1412-1502
59	BRACKET; FRAME HARNESS (H)	8-98254-592-0	01	1	1503-
69	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=55	1-47475-304-0	01	1	1412-
342	BRACKET; HARNESS CAB MTG 4HK1-TCS ENG(RJS)	8-98099-963-0	01	1	1412-

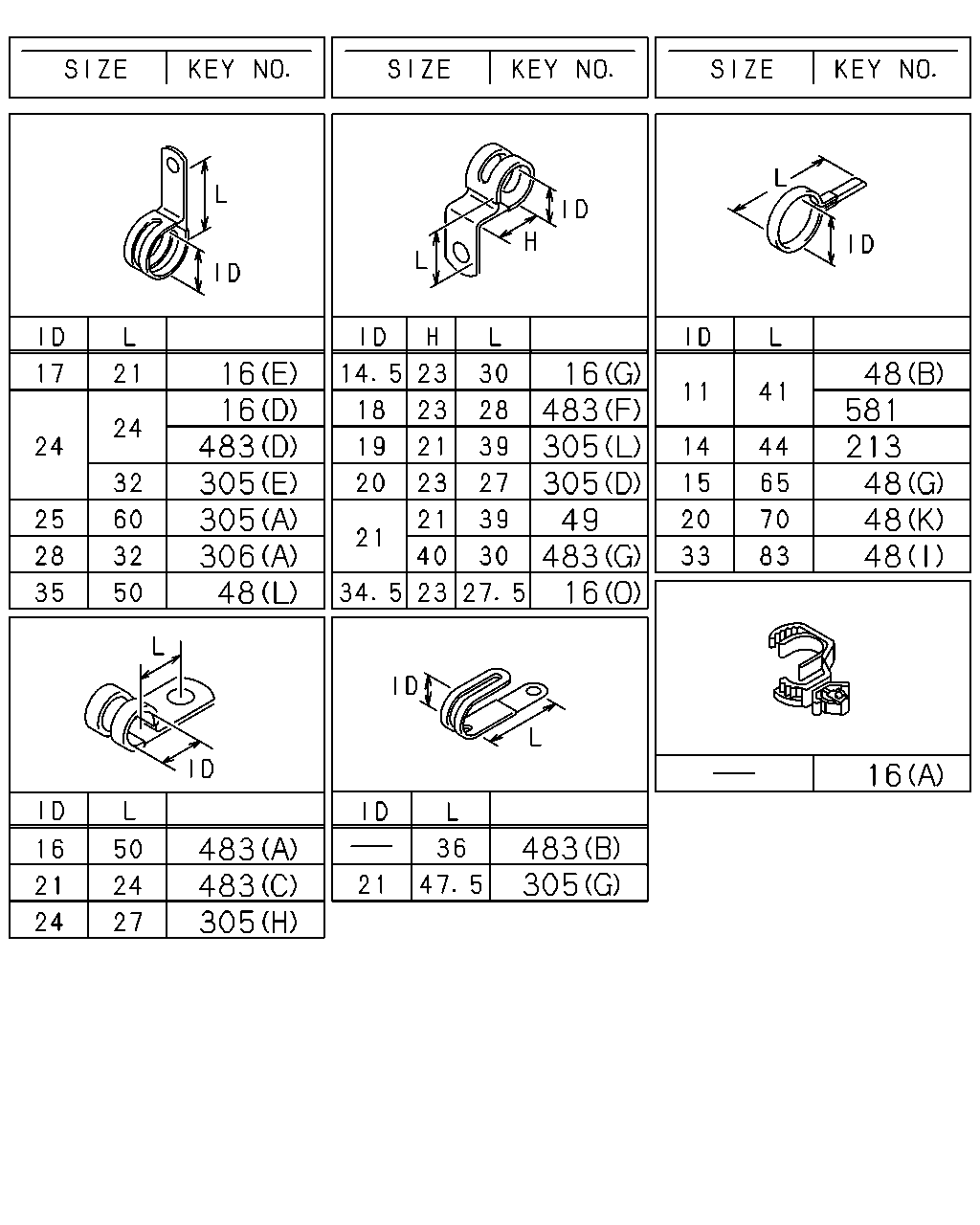

16 483 16 305 306 305 48 483 483 305 16 305 483 305 483 49 16 483 305 48 213 581 48 48 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 L=16	0-95235-025-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16	0-95325-025-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) L=140	5-09707-031-1	01	1	1412-
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (N) L=600	1-09707-107-1	01	1	1412-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (D) ID=24 L=24	1-09701-001-1	01	1	1412-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1412-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1412-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1412-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS (I) ID=15 H=30 L=30	1-09700-832-0	02	1	1412-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1412-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1412-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1412-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1412-
16	CLIP; HARNESS (J) L=40.6	8-97229-357-0	02	1	1412-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	02	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (G) ID=15 L=65	1-09700-466-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1412-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1412-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (G) ID=15 L=65	1-09700-466-0	05	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (G) ID=15 L=65	1-09700-466-0	06	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (G) ID=15 L=65	1-09700-466-0	02	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (G) ID=15 L=65	1-09700-466-0	07	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (I) ID=33 L=83	1-09701-291-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1412-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1412-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1412-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5	1-09709-179-0	01	1	1412-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=21 H=21 L=39	8-98230-579-0	01	1	1412-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1412-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	01	1	1412-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=300	1-09707-001-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=24 L=27	1-09700-809-0	03	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1412-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1412-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) ID=18 H=23 L=28	1-09700-860-0	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=30 H=40	1-09700-991-1	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=24 L=24	1-09701-001-1	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=16 L=50	1-09701-158-0	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=36	8-94224-891-1	02	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=21 L=24	8-98019-191-0	01	1	1412-
581	CLIP; HARNESS,REAR SUSP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 L=41	1-09700-403-0	01	1	1412-

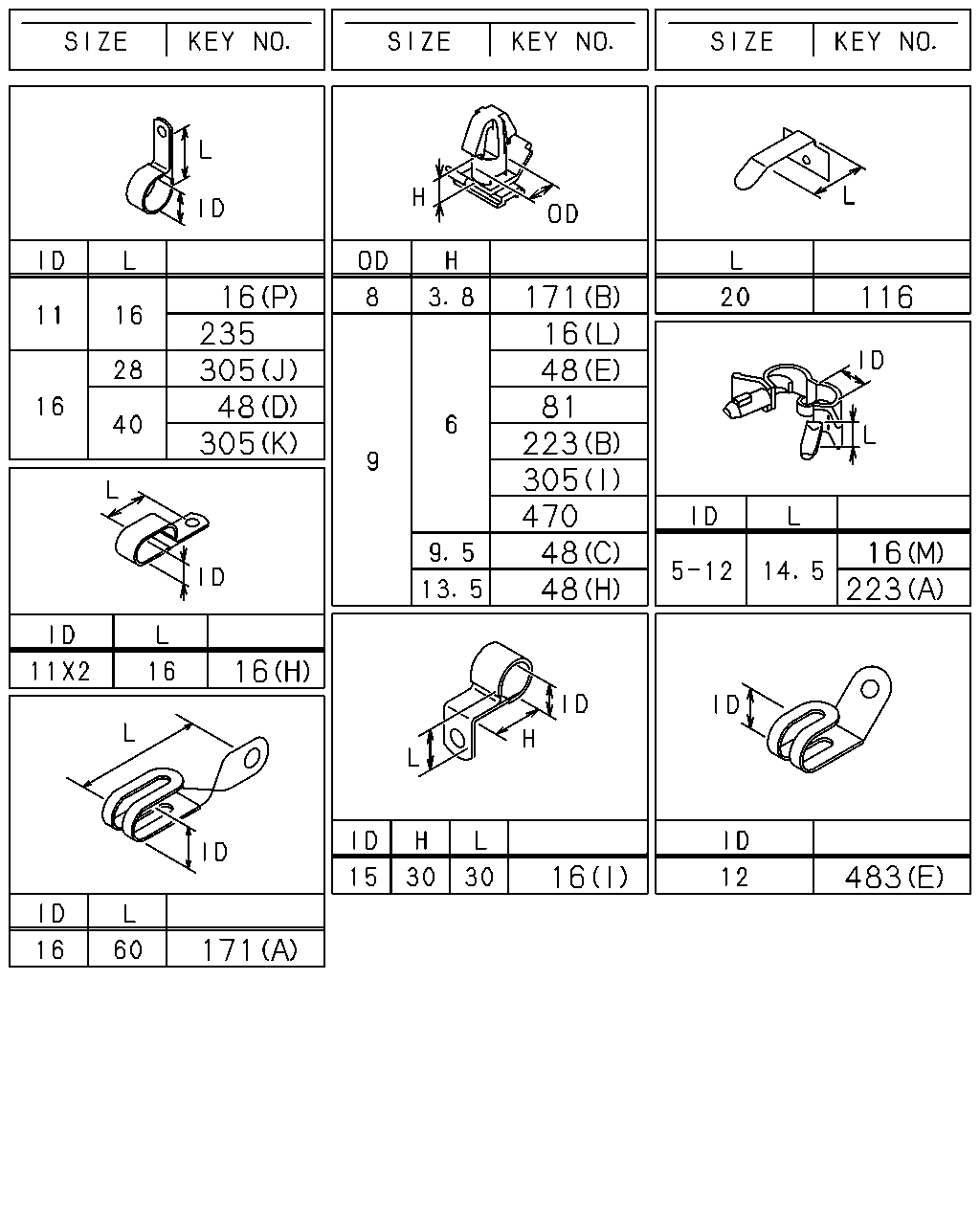

16 16 305 306 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 L=16	0-95235-025-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16	0-95325-025-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) L=140	5-09707-031-1	01	1	1412-
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (N) L=600	1-09707-107-1	01	1	1412-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (D) ID=24 L=24	1-09701-001-1	01	1	1412-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1412-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1412-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1412-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS (I) ID=15 H=30 L=30	1-09700-832-0	02	1	1412-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1412-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1412-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1412-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1412-
16	CLIP; HARNESS (J) L=40.6	8-97229-357-0	02	1	1412-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1412-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	01	1	1412-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=300	1-09707-001-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=24 L=27	1-09700-809-0	03	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1412-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1412-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1412-

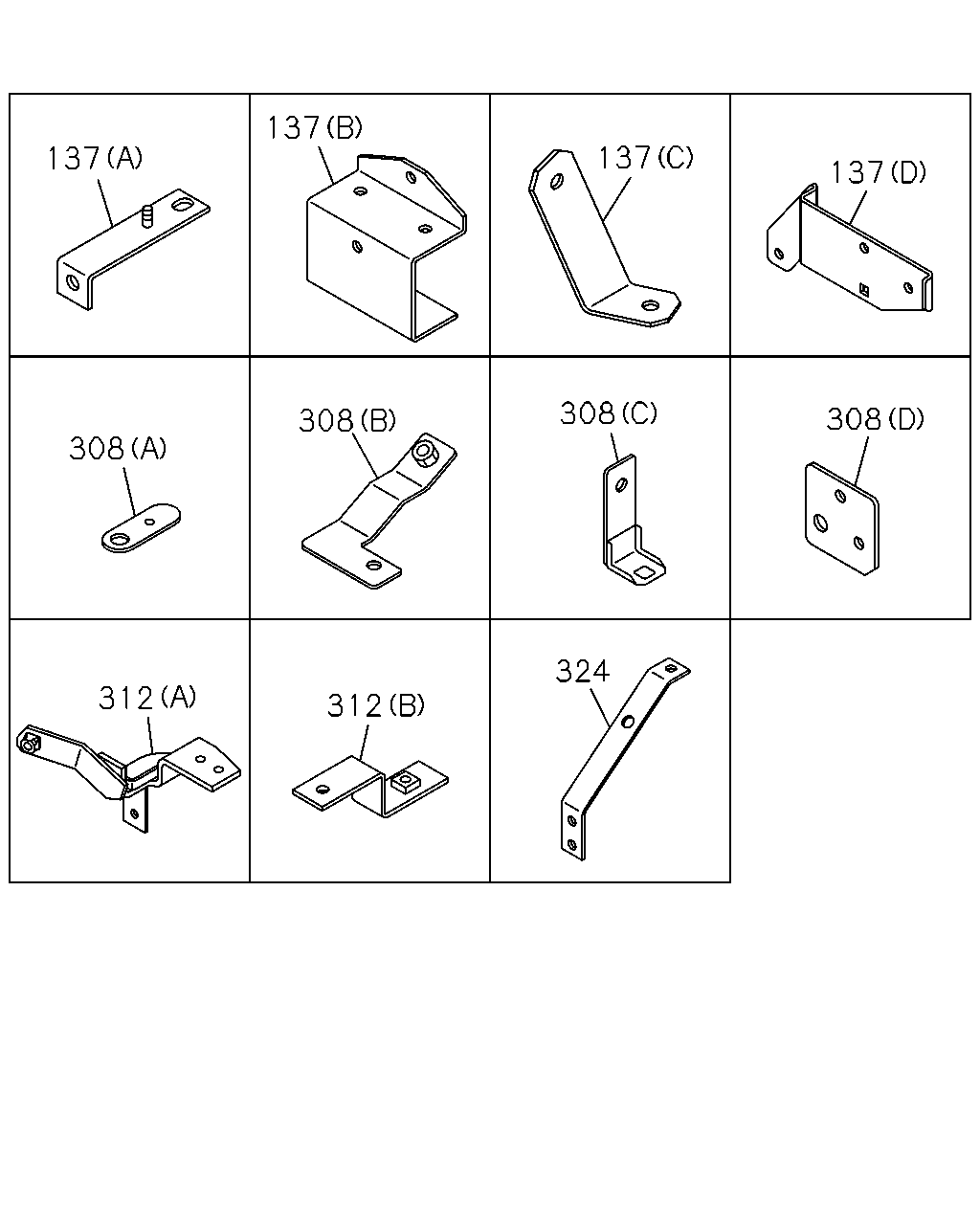

137 137 137 137 308 308 308 308 312 312 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (D)	8-98193-417-0	01	1	1412-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (C)	8-97614-728-1	01	1	1412-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (A)	8-97624-013-0	01	1	1412-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (B)	8-97609-797-1	02	1	1412-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1412-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1412-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-98032-178-0	01	1	1412-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98075-824-0	01	1	1412-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) (B)	8-97609-110-1	01	1	1412-
312	BRACKET; CLIP HARNESS 6HK1-TCN ENG(82L) (A)	8-98230-458-1	01	1	1412-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-921-1	01	1	1412-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-922-1	01	1	1412-

16 305 235 48 305 16 171 171 48 16 81 305 223 470 48 48 16 116 16 223 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 L=16	0-95235-025-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16	0-95325-025-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) L=140	5-09707-031-1	01	1	1412-
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (N) L=600	1-09707-107-1	01	1	1412-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (D) ID=24 L=24	1-09701-001-1	01	1	1412-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1412-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1412-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1412-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS (I) ID=15 H=30 L=30	1-09700-832-0	02	1	1412-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1412-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1412-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1412-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1412-
16	CLIP; HARNESS (J) L=40.6	8-97229-357-0	02	1	1412-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	02	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (G) ID=15 L=65	1-09700-466-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1412-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1412-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (G) ID=15 L=65	1-09700-466-0	05	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (G) ID=15 L=65	1-09700-466-0	06	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (G) ID=15 L=65	1-09700-466-0	02	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (G) ID=15 L=65	1-09700-466-0	07	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (I) ID=33 L=83	1-09701-291-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1412-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1412-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1412-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5	1-09709-179-0	01	1	1412-
81	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=9 H=6	1-09709-178-0	01	1	1412-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1412-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A)	8-97101-436-0	01	1	1412-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (B) OD=8 H=3.8	1-09709-309-0	01	1	1412-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1412-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1412-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1412-
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> ID=11 L=16	0-95235-025-0	02	1	1412-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	01	1	1412-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=300	1-09707-001-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=24 L=27	1-09700-809-0	03	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1412-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) ID=18 H=23 L=28	1-09700-860-0	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=30 H=40	1-09700-991-1	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=24 L=24	1-09701-001-1	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=16 L=50	1-09701-158-0	01	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=36	8-94224-891-1	02	1	1412-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=21 L=24	8-98019-191-0	01	1	1412-

150 139 150 304 38 150 304 304 516 377 150 38 139 38 139 150 313 38 139 139 313 139 139 139 139 242 139 127 38 386 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

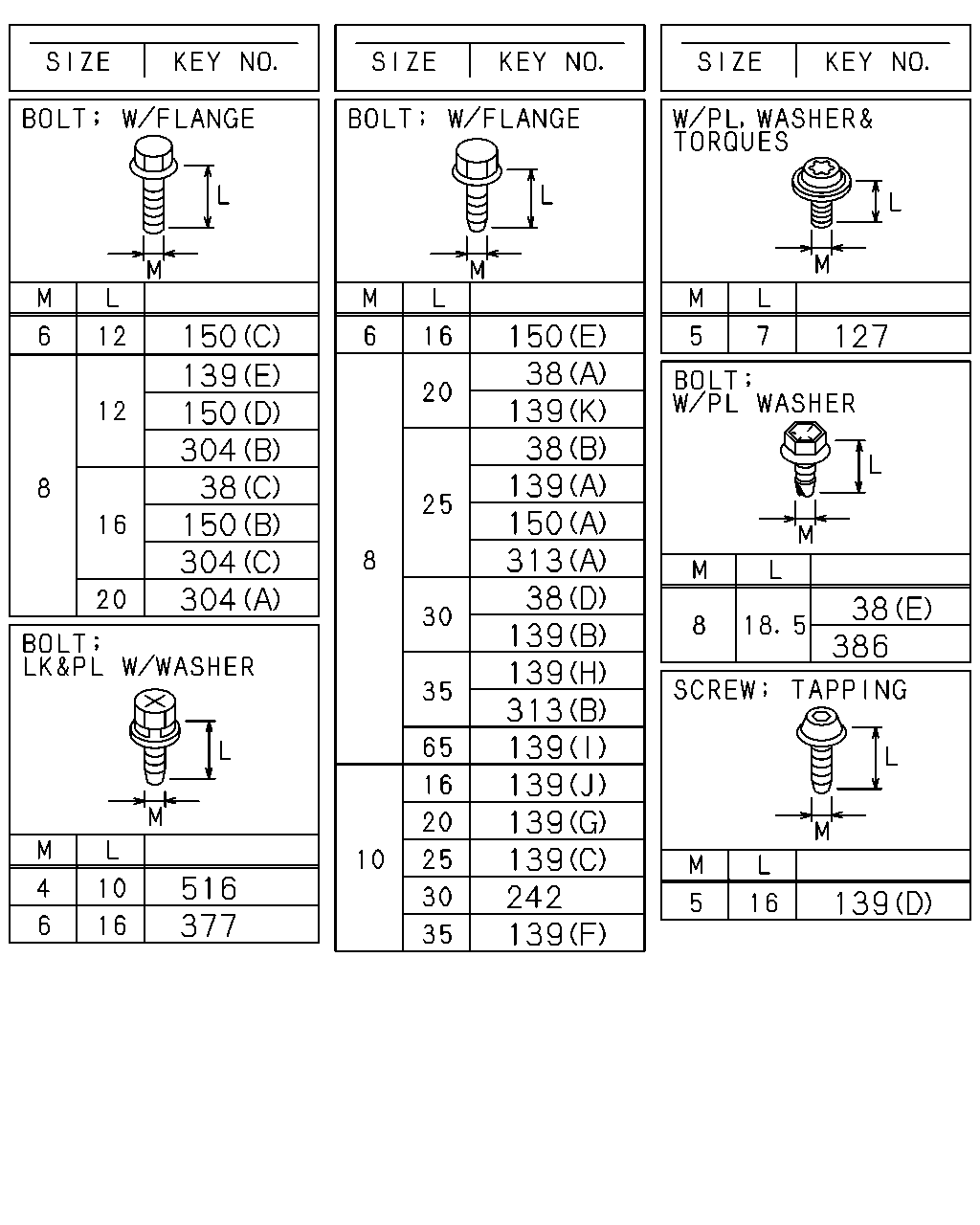

38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1412-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (D) M8X30 FLANGE	0-28650-830-0	01	1	1412-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE	0-28650-830-0	02	1	1412-
38	BOLT; CLIP,HARNESS FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE	0-28050-816-0	03	1	1412-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1412-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1412-
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1412-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1412-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	04	1	1412-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (K) M8X20 FLANGE	0-28650-820-0	01	1	1412-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (I) M8X65 FLANGE	1-09044-072-1	01	1	1412-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (J) M10X16 FLANGE	0-28051-016-0	03	1	1412-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (G) M10X20 FLANGE	0-28751-020-0	01	1	1412-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1412-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-
139	BOLT; BRKT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) M8X35 FLANGE	0-28650-835-0	01	1	1412-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1412-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1412-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1412-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1412-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1412-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M6X12 FLANGE	0-28050-612-0	03	1	1412-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X12 FLANGE	0-28050-812-0	01	1	1412-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE	0-28050-816-0	02	1	1412-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (E) M6X16 FLANGE	0-28650-616-0	01	1	1412-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-
150	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	1412-
242	BOLT; BRKT,HARNESS 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	01	1	1412-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	06	1	1412-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	09	1	1412-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	04	1	1412-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M8X35 FLANGE	0-28650-835-0	01	1	1412-
313	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1412-
313	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X35 FLANGE	0-28650-835-0	02	1	1412-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1412-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1412-
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1412-

14 16 48 22 305 16 14 48 206 183 217 225 530 503 538 16 14 305 14 48 1 1 178 178 178 14 14 14 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

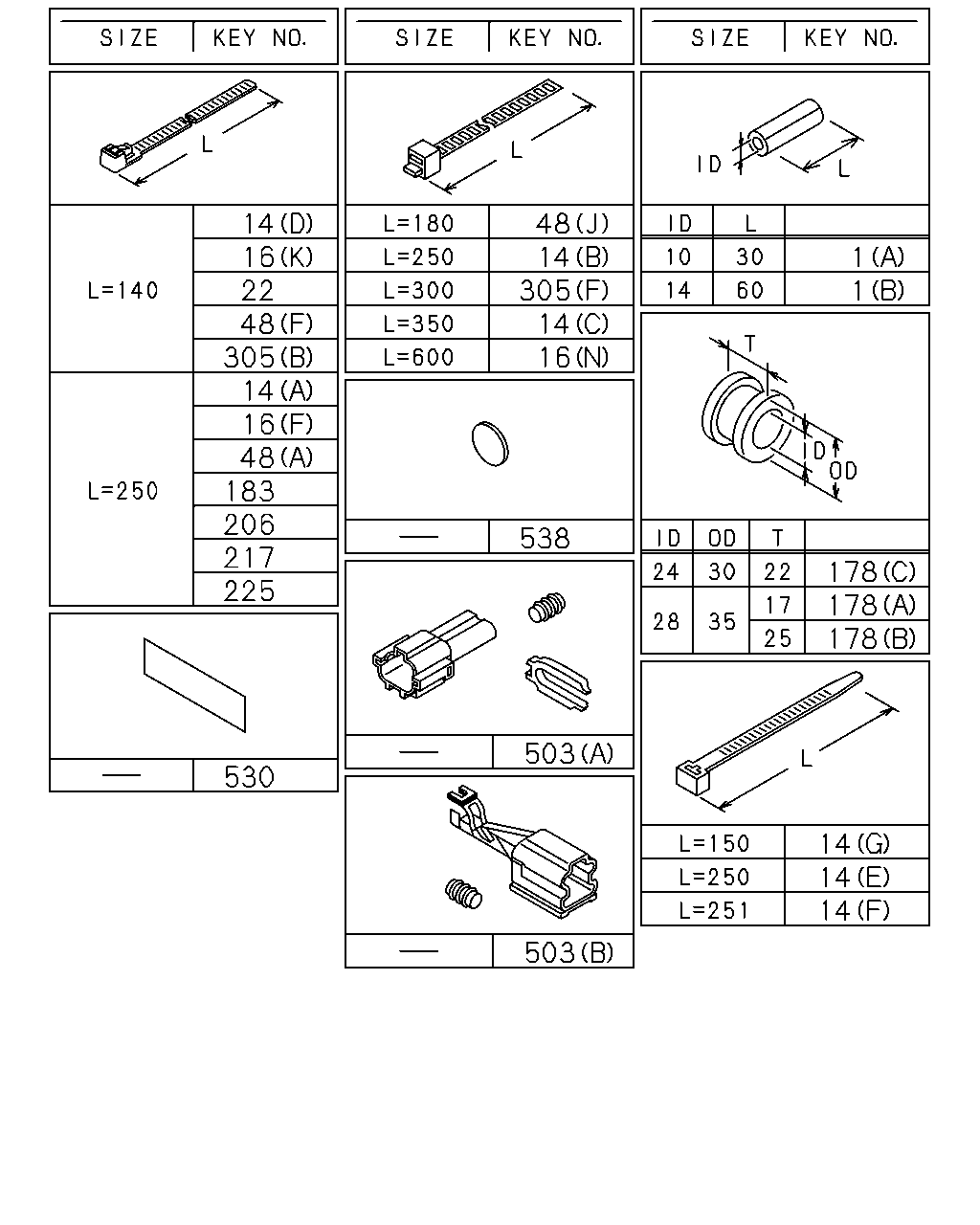

1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1412-
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1412-
14	CLIP; BAND,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) L=250	1-09707-126-0	02	1	1412-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (F) L=251	8-97619-917-0	01	1	1412-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (F) L=251	8-97619-917-0	02	1	1412-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=140	5-09707-031-1	02	1	1412-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (G) L=150	8-97355-273-0	01	1	1412-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=350	1-09707-183-0	01	1	1412-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (E) L=250	8-98216-430-0	08	1	1412-
14	CLIP; BAND,HARNESS FULLER FSO5206B OD M/T(Y4V) (A) L=250	5-09707-030-1	01	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 L=16	0-95235-025-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16	0-95325-025-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1412-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) L=140	5-09707-031-1	01	1	1412-
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (N) L=600	1-09707-107-1	01	1	1412-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (D) ID=24 L=24	1-09701-001-1	01	1	1412-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1412-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1412-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1412-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS (I) ID=15 H=30 L=30	1-09700-832-0	02	1	1412-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1412-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1412-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1412-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1412-
16	CLIP; HARNESS (J) L=40.6	8-97229-357-0	02	1	1412-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1412-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	02	1	1412-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (G) ID=15 L=65	1-09700-466-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=65	1-09700-466-0	01	1	1412-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1412-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (G) ID=15 L=65	1-09700-466-0	05	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (G) ID=15 L=65	1-09700-466-0	06	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (G) ID=15 L=65	1-09700-466-0	02	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (G) ID=15 L=65	1-09700-466-0	07	1	1412-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (I) ID=33 L=83	1-09701-291-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	1412-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	1412-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1412-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1412-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1412-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5	1-09709-179-0	01	1	1412-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1412-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 OD=30 T=22	1-09332-104-0	01	1	1412-
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1412-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1412-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	03	1	1412-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1412-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1412-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1412-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	02	1	1412-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	08	1	1412-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	01	1	1412-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=300	1-09707-001-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=24 L=27	1-09700-809-0	03	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1412-
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1412-
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1412-
503	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-82690-666-0	01	1	1412-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1412-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1412-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
