Isuzu WW
▶
TRUCKS
▶
FVR
▶
11660 - FVR MIDDLE EAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

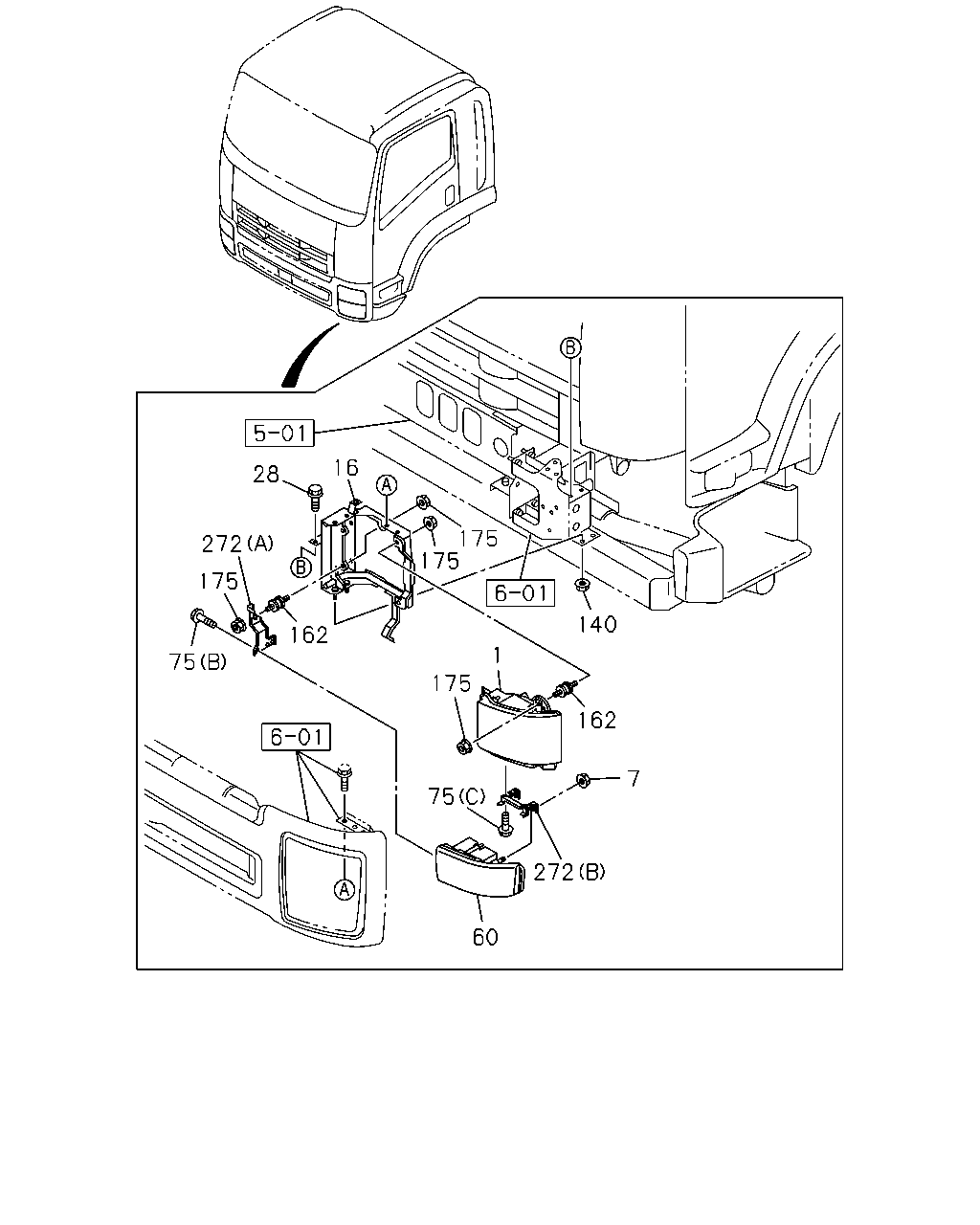

8-01 — LAMP; FRONT AND FRONT SIDE
(#153456) — 60 parça
◀
[801A] COMPONENT;HEAD AND FRT COMB LAMP (33 parça)
[801A] SIDE TURN SIGNAL LAMP (5 parça)
[801A] FRONT LAMP (22 parça)
▶
457
382
5
5
23
20
420
408
339
4
1
60
305
67
438
304
438
68
439
75
68
338
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-314-0
01
1
1412-
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-315-0
01
1
1412-
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-316-0
01
1
1412-
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-317-0
01
1
1412-
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98199-568-0
01
1
1412-
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98199-569-0
01
1
1412-
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98199-570-0
01
1
1412-
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98199-571-0
01
1
1412-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1412-
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1412-
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1412-
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1412-
60
LAMP ASM; FRT COMB
FOG LAMP<T96>
8-98238-630-0
01
1
1412-
60
LAMP ASM; FRT COMB
FOG LAMP<T96>
8-98238-631-0
01
1
1412-
60
LAMP ASM; FRT COMB
EXC. FOG LAMP<T96>
8-98238-632-0
01
1
1412-
60
LAMP ASM; FRT COMB
EXC. FOG LAMP<T96>
8-98238-633-0
01
1
1412-
67
GASKET; FRT COMB LAMP
8-98238-656-0
02
1
1412-
68
BULB; FRT COMB LAMP
FOG LAMP<T96> (A) 24V 70W
1-82194-106-0
02
1
1412-
68
BULB; FRT COMB LAMP
(B) 24V 21W
8-98051-495-0
02
1
1412-
75
SCREW; FRT COMB LAMP
FOG LAMP<T96> (A)
8-98074-439-0
02
1
1412-
75
SCREW; FRT COMB LAMP
(B) M6X16 FLANGE
0-28650-616-0
04
1
1412-
75
SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1412-
304
PLUG; SOCKET,FRT COMB LAMP
8-98051-390-0
02
1
1412-
305
COVER; FRT COMB LAMP
FOG LAMP<T96>
8-98240-559-0
02
1
1412-
305
COVER; FRT COMB LAMP
EXC. FOG LAMP<T96>
8-98240-560-0
02
1
1412-
338
LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98010-256-0
02
1
1412-
339
GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
1-86830-158-0
02
1
1412-
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1412-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1412-
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1412-
438
CAP; BREATHER,FRT COMB LAMP
8-97378-874-0
02
1
1412-
439
SPRING SET; COMB LAMP
FOG LAMP<T96>
8-98075-644-0
02
1
1412-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1412-
427
437
327
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1412-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1412-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1412-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1412-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1412-
175
175
16
28
272
175
75
162
140
162
1
175
7
272
75
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-314-0
01
1
1412-
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-315-0
01
1
1412-
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-316-0
01
1
1412-
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-317-0
01
1
1412-
7
NUT; FRT COMB LAMP
M6 FLANGE
0-91180-106-0
04
1
1412-
16
BRACKET; HEADLAMP
8-98013-015-2
01
1
1412-
16
BRACKET; HEADLAMP
8-98013-016-2
01
1
1412-
28
BOLT; HEADLAMP
M10X25 FLANGE
0-28651-025-0
04
1
1412-
60
LAMP ASM; FRT COMB
FOG LAMP<T96>
8-98238-630-0
01
1
1412-
60
LAMP ASM; FRT COMB
FOG LAMP<T96>
8-98238-631-0
01
1
1412-
60
LAMP ASM; FRT COMB
EXC. FOG LAMP<T96>
8-98238-632-0
01
1
1412-
60
LAMP ASM; FRT COMB
EXC. FOG LAMP<T96>
8-98238-633-0
01
1
1412-
75
SCREW; FRT COMB LAMP
FOG LAMP<T96> (A)
8-98074-439-0
02
1
1412-
75
SCREW; FRT COMB LAMP
(B) M6X16 FLANGE
0-28650-616-0
04
1
1412-
75
SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1412-
140
NUT
M10 FLANGE
0-91180-210-0
04
1
1412-
162
RUBBER; CUSHION UPR
1-82117-086-0
08
1
1412-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE
0-91180-108-0
16
1
1412-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-934-0
01
1
1412-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-935-0
01
1
1412-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-937-0
01
1
1412-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-938-0
01
1
1412-
