Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#153453) — 424 parça

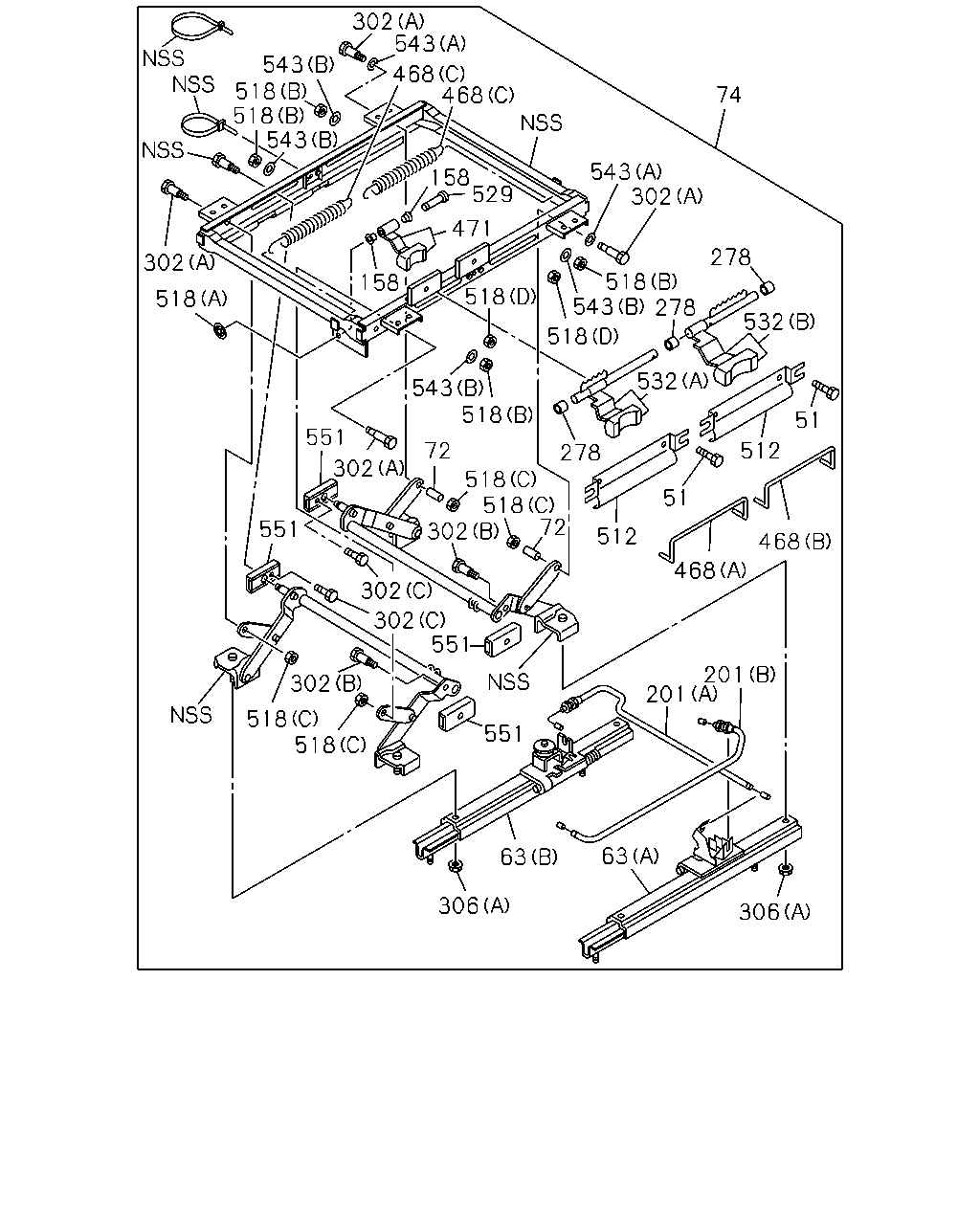

306 306 63 63 201 201 551 518 302 551 302 302 302 518 518 72 512 468 468 512 51 51 532 278 278 543 518 302 543 468 468 543 302 543 518 518 543 158 529 471 518 158 543 518 278 72 302 551 551 518 518 302 518 532 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1412-1506
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1412-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1412-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1510-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1412-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1412-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1412-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1503-1504
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1503-1504
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1505-1506
158	BUSHING; LINK ARM SEAT CLOTH<7FL>	1-75518-209-0	02	1	1505-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1507-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1412-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1503-1504
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1503-1504
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1505-1506
201	CABLE; ADJ SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1505-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1507-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1412-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1503-1504
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1503-1504
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1505-1506
201	CABLE; ADJ SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1505-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1507-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1412-1506
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1412-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1412-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1412-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1412-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1412-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1412-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1412-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1412-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1412-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1412-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1412-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-870-0	01	1	1503-1504
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1503-1504
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1505-1506
471	LEVER; SEAT ADJ SEAT CLOTH<7FL>	8-98107-870-0	01	1	1505-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1507-1509
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1412-1506
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1412-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1503-1504
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1503-1504
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1505-1506
518	NUT; TILT ADJ SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1505-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	1412-1502
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1503-1504
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1503-1504
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1505-1506
529	PIN; LINK SEAT CLOTH<7FL>	1-75518-262-0	01	1	1505-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1507-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1412-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1412-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1412-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1412-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1412-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1510-

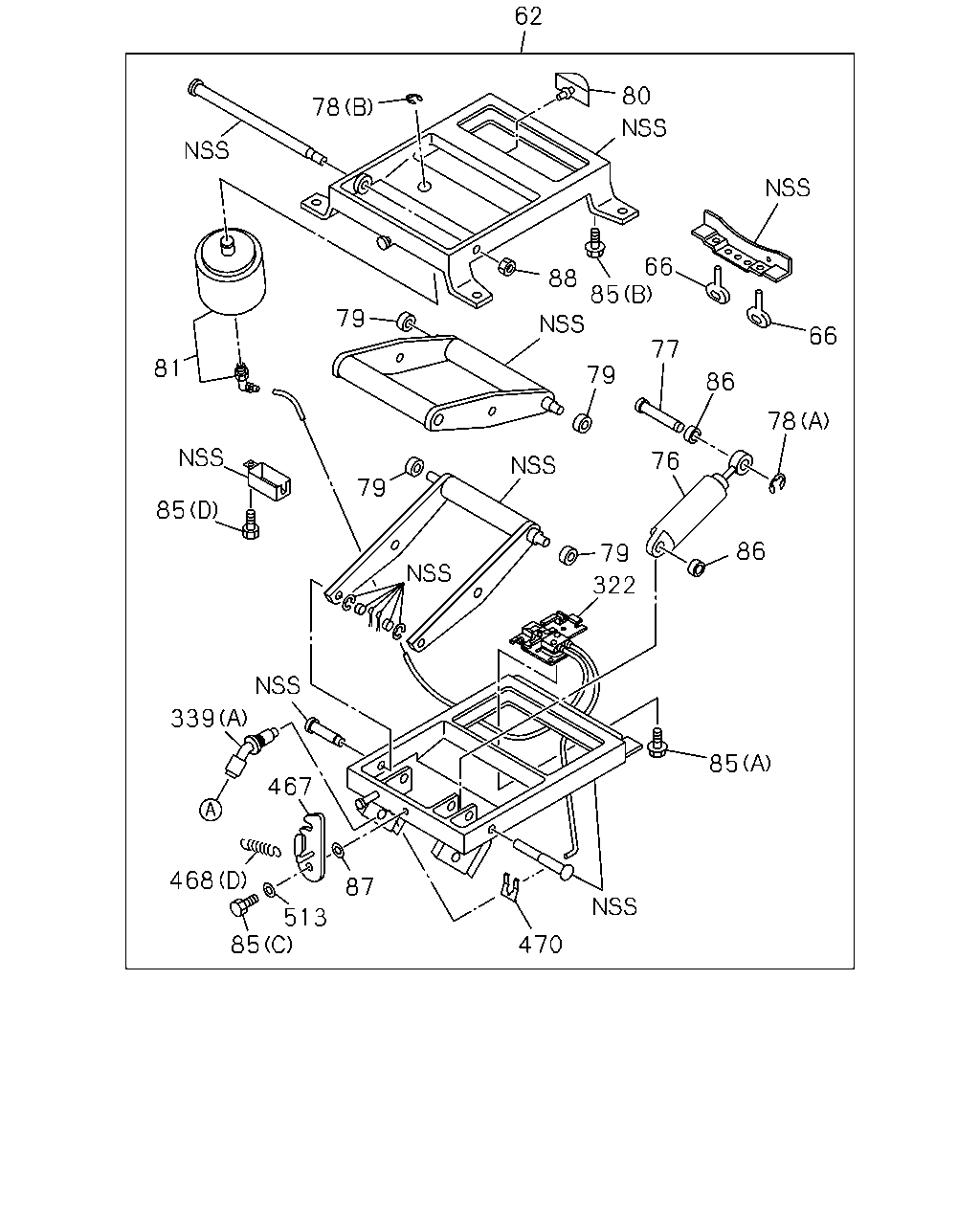

632 339 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1412-1510
339	UNION; DRIVER SEAT EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98014-971-0	01	1	1511-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1412-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98041-300-0	01	1	1412-1510
595	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ>	8-98041-300-0	01	1	1511-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1412-

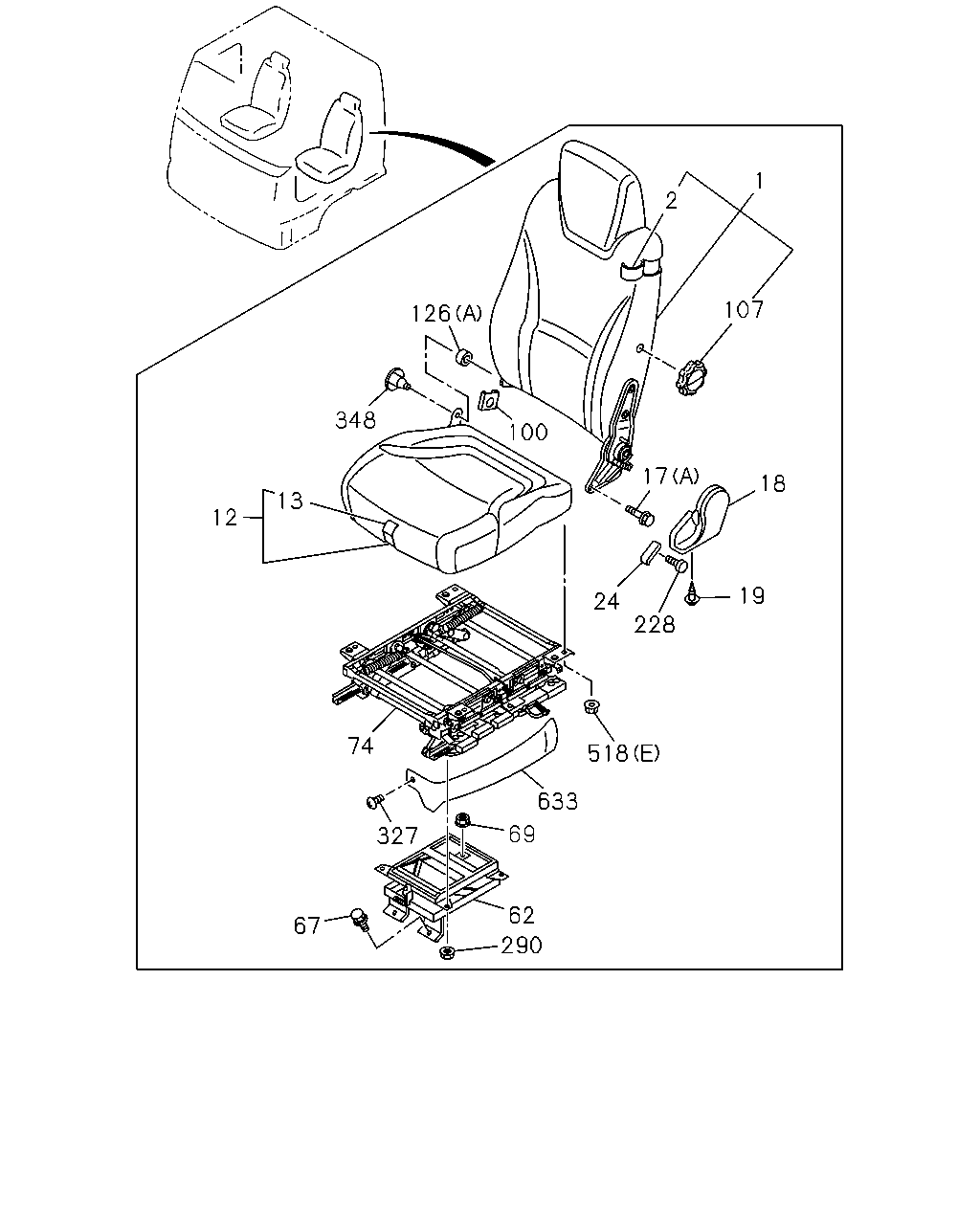

12 348 13 126 100 518 633 69 62 290 327 67 74 24 228 17 2 1 107 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1412-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97466-623-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-037-5	01	1	1412-1512
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97466-619-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1412-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97466-621-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1412-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-038-2	01	1	1412-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1412-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1412-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97466-612-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97414-035-2	01	1	1412-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97466-609-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1412-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-036-1	01	1	1412-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1412-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1412-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1503-1504
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1503-1504
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1505-1506
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1505-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1412-
19	SCREW; COVER M5	8-98062-663-0	01	1	1412-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1503-1504
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1503-1504
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1505-1506
19	SCREW; COVER SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1505-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1507-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1412-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1412-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1412-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1412-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1412-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-
100	COVER; HINGE	8-98203-070-0	01	1	1412-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1504
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1503-1504
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1505-1506
100	COVER; HINGE SEAT CLOTH<7FL>	8-98203-070-0	01	1	1505-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1507-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1412-1506
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1510-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1412-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1504
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1503-1504
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1505-1506
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1505-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1412-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1412-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1503-1504
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1503-1504
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1505-1506
228	SCREW; KNOB SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1505-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1507-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1412-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1510-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> ID=459	1-09987-273-0	01	1	1412-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1412-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1503-1504
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1503-1504
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1505-1506
518	NUT; TILT ADJ SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1505-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1412-

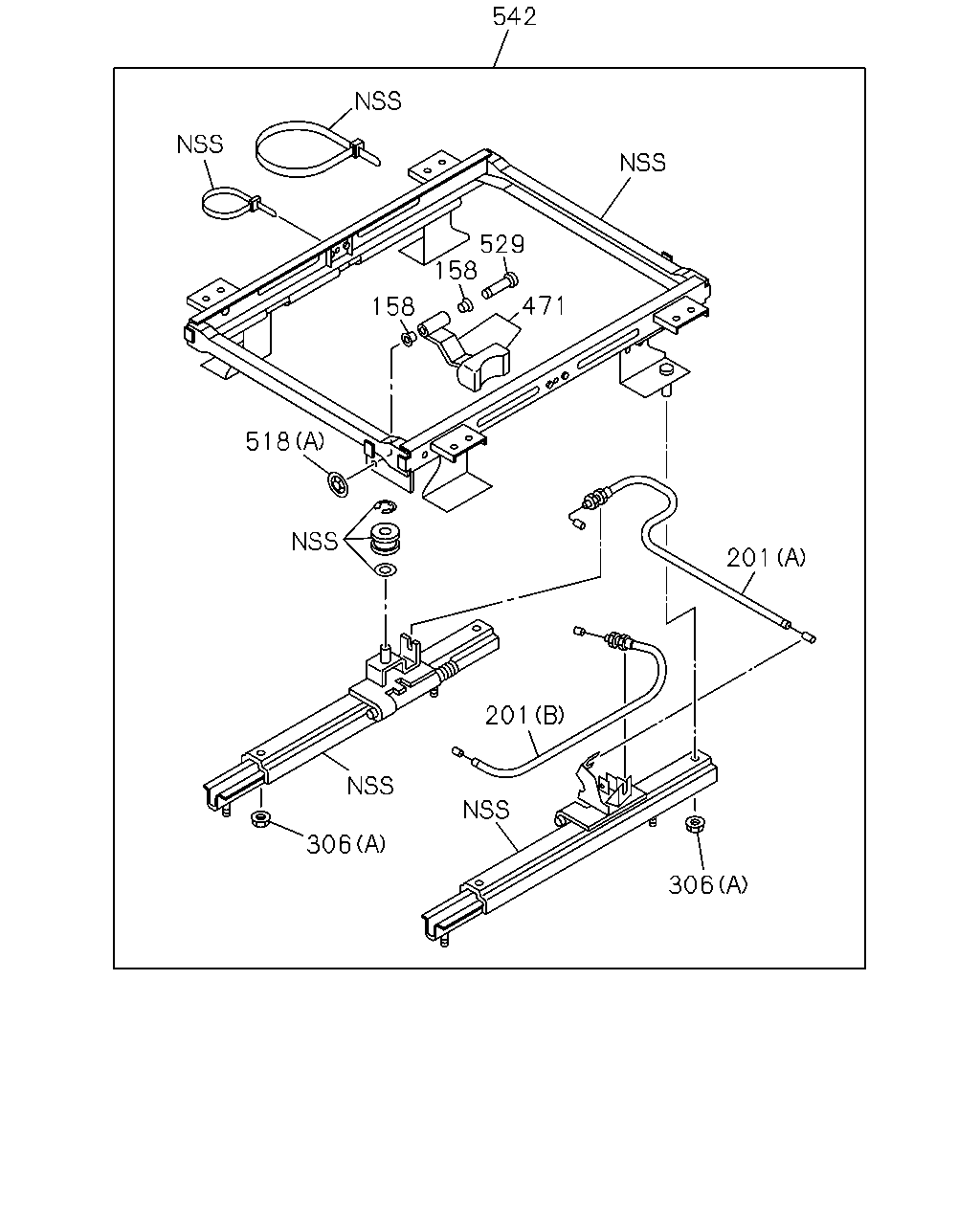

542 529 158 158 471 518 306 201 306 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1412-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1503-1504
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1503-1504
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1505-1506
158	BUSHING; LINK ARM SEAT CLOTH<7FL>	1-75518-209-0	02	1	1505-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1507-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1412-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1503-1504
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1503-1504
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1505-1506
201	CABLE; ADJ SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1505-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1507-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1412-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1503-1504
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1503-1504
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1505-1506
201	CABLE; ADJ SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1505-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1507-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1412-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1412-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1412-
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1412-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-870-0	01	1	1503-1504
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1503-1504
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1505-1506
471	LEVER; SEAT ADJ SEAT CLOTH<7FL>	8-98107-870-0	01	1	1505-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1507-1509
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1412-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1412-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1503-1504
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1503-1504
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1505-1506
518	NUT; TILT ADJ SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1505-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	1412-1502
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1503-1504
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1503-1504
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1505-1506
529	PIN; LINK SEAT CLOTH<7FL>	1-75518-262-0	01	1	1505-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1507-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1412-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

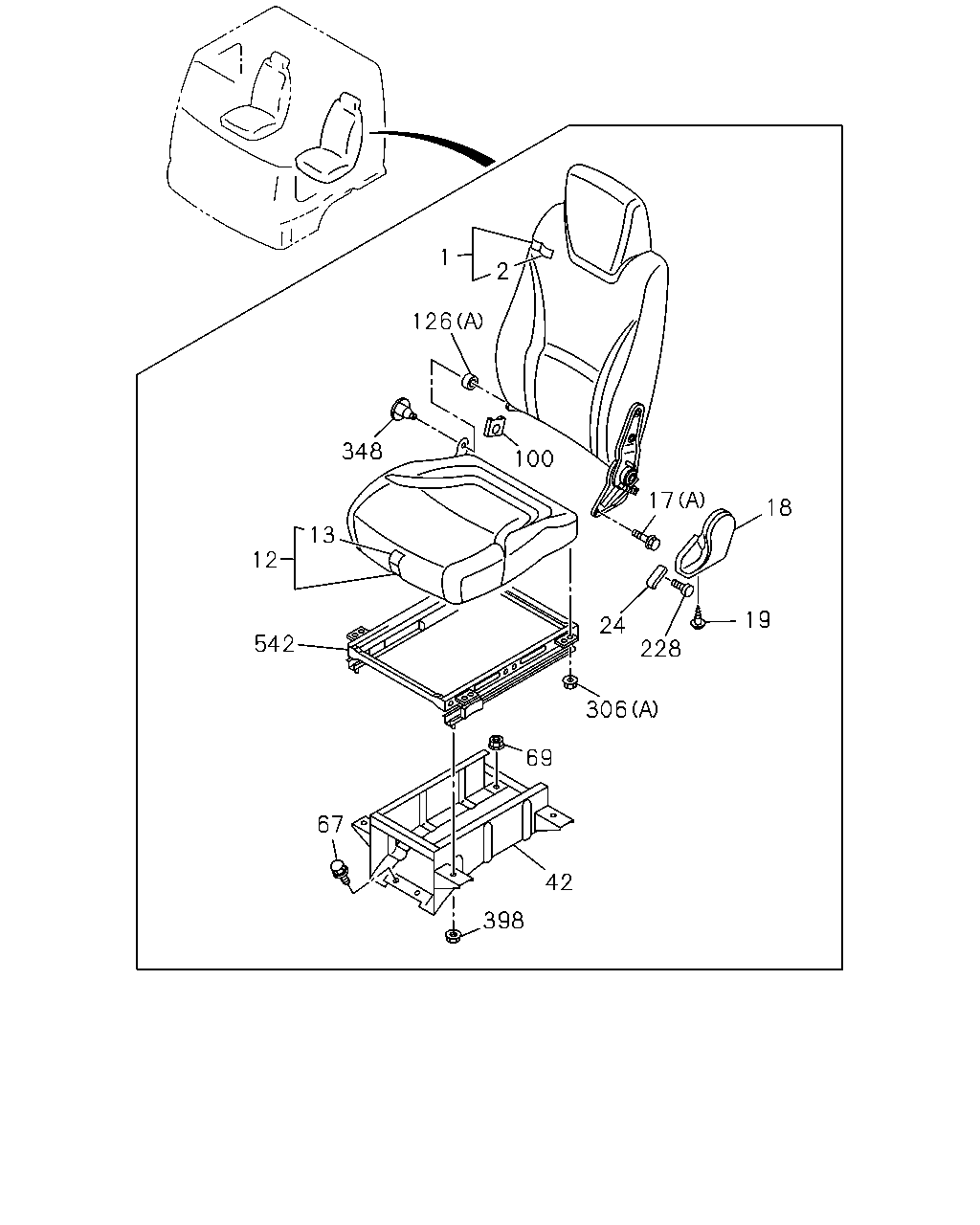

1 126 100 17 18 19 228 24 306 69 2 348 13 12 542 42 398 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1412-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97466-623-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-037-5	01	1	1412-1512
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97466-619-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1412-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97466-621-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1412-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-038-2	01	1	1412-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1412-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1412-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97466-612-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97414-035-2	01	1	1412-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97466-609-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1412-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-036-1	01	1	1412-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1412-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1412-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1503-1504
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1503-1504
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1505-1506
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1505-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1412-
19	SCREW; COVER M5	8-98062-663-0	01	1	1412-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1503-1504
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1503-1504
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1505-1506
19	SCREW; COVER SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1505-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1507-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1412-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	1412-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1412-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1412-
100	COVER; HINGE	8-98203-070-0	01	1	1412-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1504
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1503-1504
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1505-1506
100	COVER; HINGE SEAT CLOTH<7FL>	8-98203-070-0	01	1	1505-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1507-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1412-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1504
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1503-1504
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1505-1506
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1505-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1412-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1412-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1503-1504
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1503-1504
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1505-1506
228	SCREW; KNOB SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1505-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1507-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1412-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1412-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1412-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	1412-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1412-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

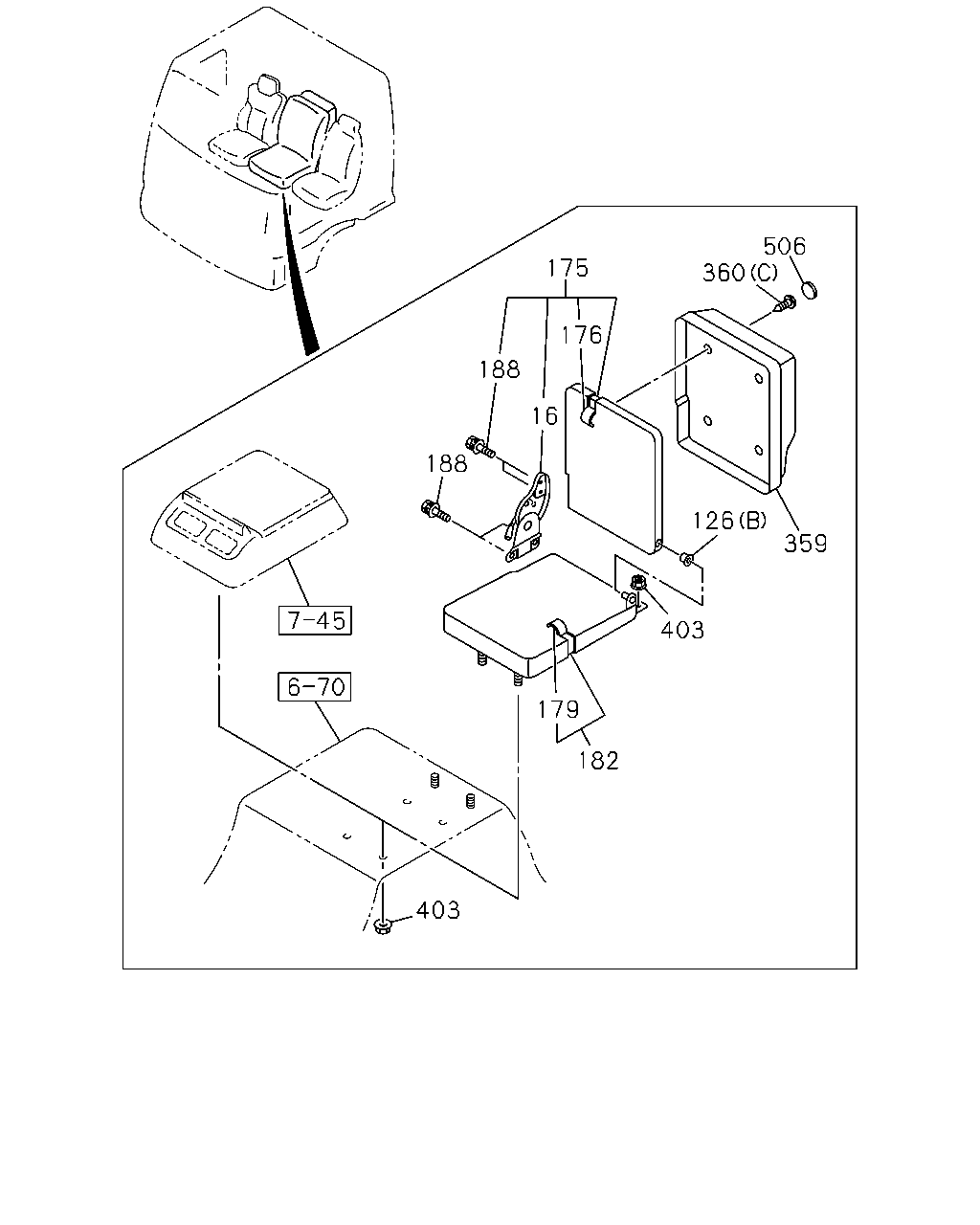

403 182 179 403 188 188 16 176 175 360 506 359 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1412-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1412-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1504
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1503-1504
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1505-1506
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1505-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1412-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	1412-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1412-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	1412-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1412-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-690-1	01	1	1412-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-433-1	01	1	1412-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-129-3	01	1	1412-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-431-3	01	1	1412-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1412-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1412-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1412-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1412-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1412-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1412-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1412-

359 536 534 360 365 533 359 535 360 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1412-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1412-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1412-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1412-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1412-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1412-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1412-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1412-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1412-

62 78 80 88 66 85 66 77 79 86 78 76 79 81 85 79 79 322 339 467 468 85 513 87 470 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1412-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1412-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	1412-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	1510-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1412-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1412-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1412-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1412-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1412-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1412-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1412-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1412-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1412-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1412-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1412-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1412-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1412-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	1412-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1412-1510
339	UNION; DRIVER SEAT EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98014-971-0	01	1	1511-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1412-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1412-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1412-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1412-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1412-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1412-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1412-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1412-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1510-

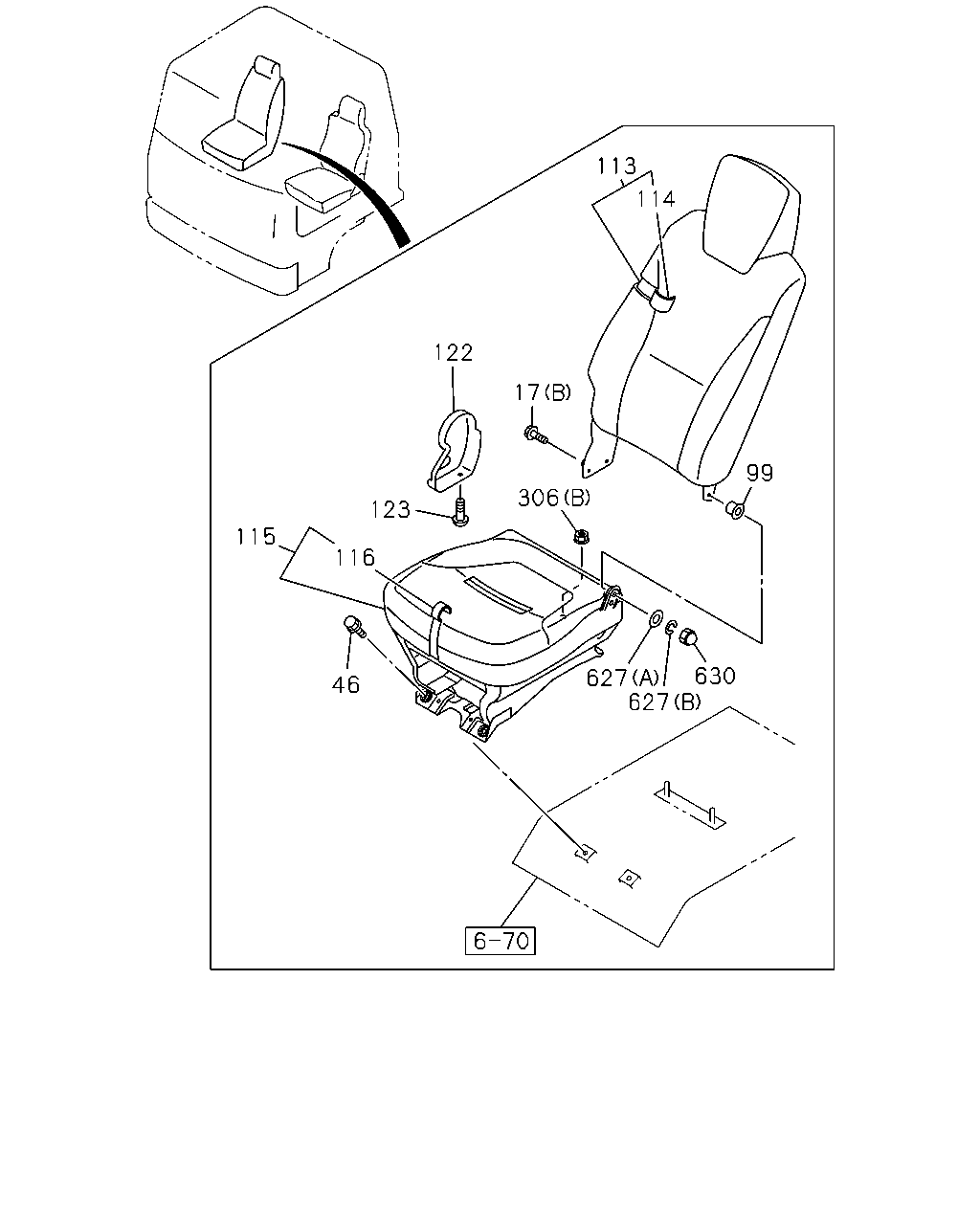

627 630 627 99 114 113 17 306 122 123 116 115 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1412-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1412-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1503-1504
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1503-1504
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1505-1506
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1505-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1412-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1412-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-041-1	01	1	1412-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-423-0	01	1	1412-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-042-0	01	1	1412-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-425-0	01	1	1412-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97414-039-1	01	1	1412-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-419-2	01	1	1412-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-040-0	01	1	1412-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-421-1	01	1	1412-
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	1412-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1412-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1412-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1412-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1412-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1412-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1412-
630	NUT; CAP M8	8-98063-225-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
