◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#15344) — 546 parça
çizim 96140
81 148 168 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0710-
16 CLIP; HARNESS
(AG) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710-
16 CLIP; HARNESS
(AG) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-
16 CLIP; HARNESS
(AK) ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
(AF) ID=19 L=20 		0-95235-836-0 01 1 0710-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0710-
16 CLIP; HARNESS
(AI) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 0710-
16 CLIP; HARNESS
(M) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0710-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0710-
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0710-1002
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0710-
16 CLIP; HARNESS
(S) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 04 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 08 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0710-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0710-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0710-
16 CLIP; HARNESS
(AC) ID=5-12 L=22 		1-09709-288-0 01 1 0710-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0710-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0710-
16 CLIP; HARNESS
(P) ID=24-30 L=18 		1-09709-297-0 01 1 0710-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0710-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0710-
16 CLIP; HARNESS
(AN) ID=21 L=47.5 		8-94178-108-0 04 1 0710-
16 CLIP; HARNESS
(T) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 01 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 03 1 0710-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 0710-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0710-0806
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 0807-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0710-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 07 1 0710-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(N) OD=7 H=1.2 		8-94364-750-0 02 1 0710-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 02 1 0710-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0710-
81 CLIP; HARNESS
(E) ID=18-24 L=18 		1-09709-294-0 01 1 0710-0711
81 CLIP; HARNESS
(C) 		1-09709-313-0 02 1 0710-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 06 1 0710-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0710-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 02 1 0710-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0710-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0710-
çizim 96141
53 53 53 53 53 53 53 59 211 211
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) L=130 		1-47478-959-0 02 1 0710-
53 BRACKET; HARNESS
(D) 		1-47479-537-0 04 1 0710-
53 BRACKET; HARNESS
(D) 		1-47479-537-0 05 1 0710-
53 BRACKET; HARNESS
(F) 		1-82698-382-0 01 1 0710-
53 BRACKET; HARNESS
(G) 		1-82698-495-2 01 1 0710-
53 BRACKET; HARNESS
(E) 		1-83129-472-1 01 1 0710-
53 BRACKET; HARNESS
(C) 		8-97610-991-0 01 1 0710-
53 BRACKET; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42129-495-0 01 1 0710-
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0710-
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0710-
211 BRACKET; AXLE HARNESS
(B) 		1-82698-588-0 01 1 0710-
çizim 96166
530 530 292 1 224 1 178 178 178 178 224 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0710-
1 SLEEVE; RUBBER
(A) ID=38.1 L=25 		1-09337-052-0 01 1 0710-
178 GROMMET; HARNESS
(E) ID=39 OD=45 T=13 		1-09332-076-0 02 1 0710-
178 GROMMET; HARNESS
(A) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0710-
178 GROMMET; HARNESS
(A) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0710-
178 GROMMET; HARNESS
(G) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0710-
178 GROMMET; HARNESS
(A) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0710-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0710-
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0710-
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0710-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710-
224 SLEEVE; RUBBER,HARNESS
(B) ID=6 L=30 		5-09360-352-0 01 1 0710-0904
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0710-
292 CAP; RUBBER 1-82690-667-0 01 1 0710-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 0710-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 02 1 0710-
530 SEAL; HARNESS
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710-
530 SEAL; HARNESS
LOW ROOF<6XQ> (A) 100X40 		1-72498-022-1 01 1 0710-
çizim 96171
119 127 82 423 515 515 340 294 219 524
BalonParca AdiParca NoAdetTipApplied Date
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 0710-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0710-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 0710-
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 0710-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0710-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0710-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0710-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0710-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0710-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0710-

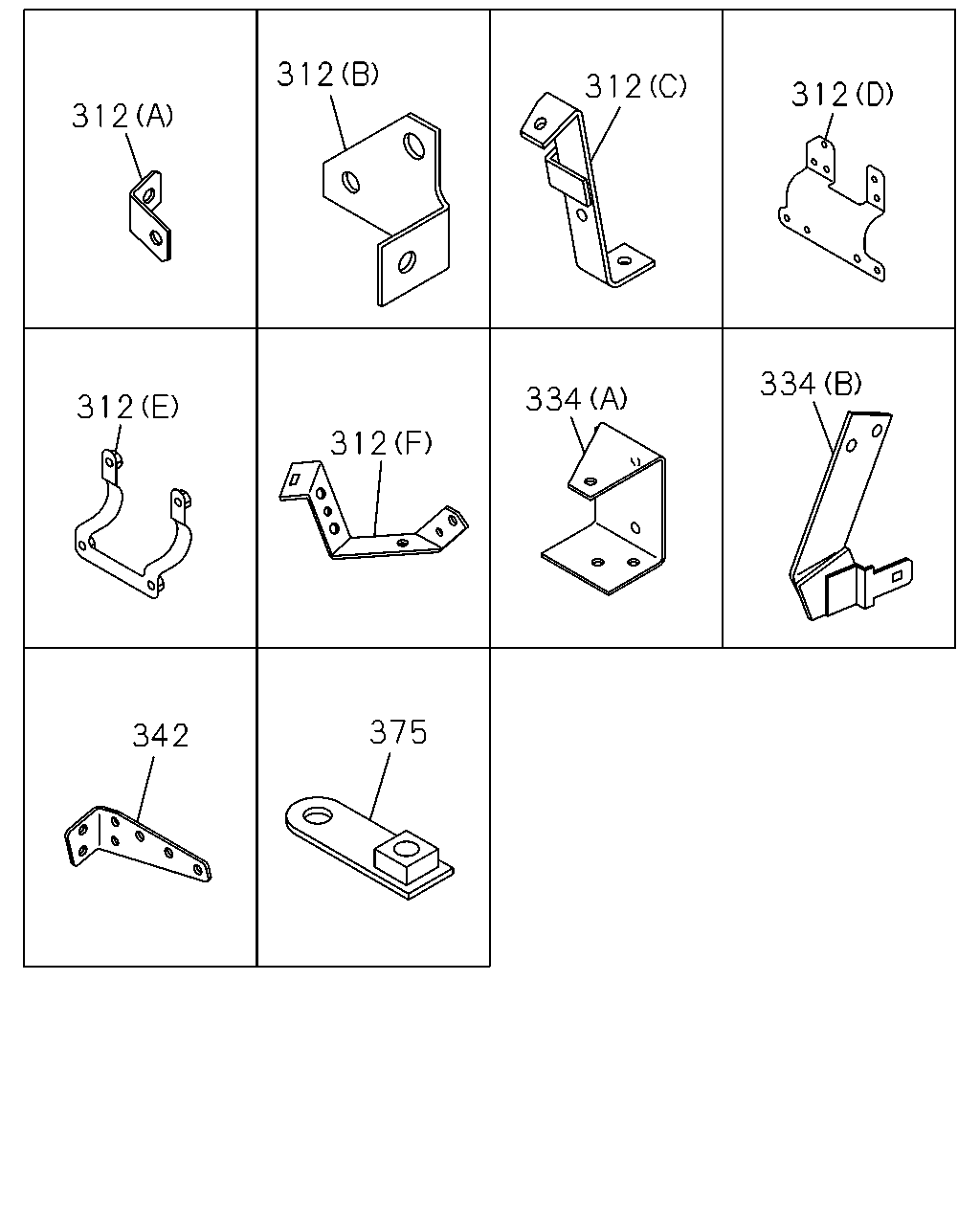

çizim 96233
312 312 312 312 334 334 312 312 342 375
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(D) 		1-82698-474-1 01 1 0710-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-476-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(F) 		1-82698-556-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-570-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(C) L=195.5 		1-82698-502-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(A) 		1-82699-199-0 01 1 0710-
334 BRACKET
(A) 		1-53457-153-2 01 1 0710-
334 BRACKET
(B) 		1-82698-650-0 01 1 0710-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0710-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0710-

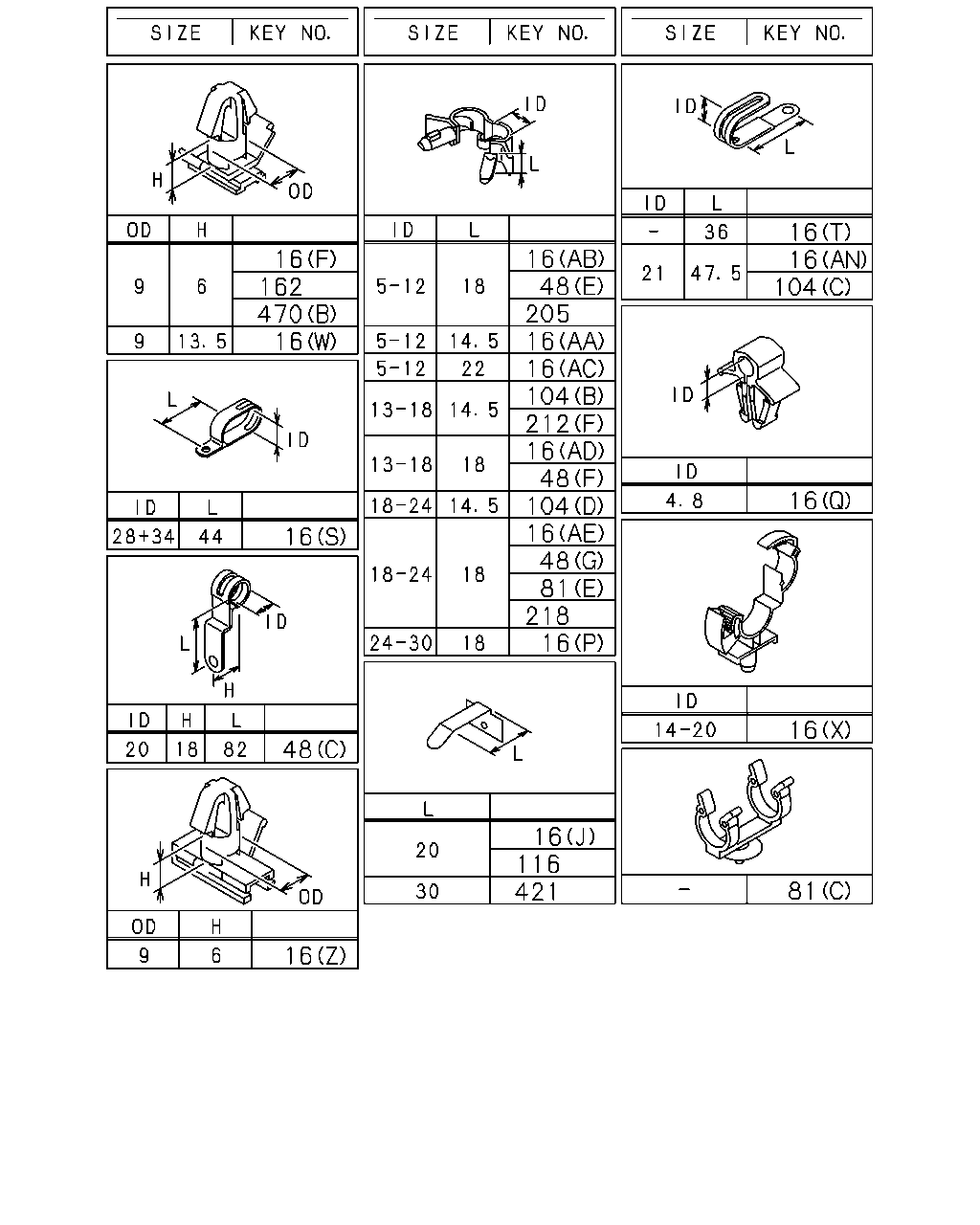

çizim 96561
16 16 104 16 48 205 16 16 104 212 16 48 104 16 48 81 218 16 16 162 470 16 16 16 16 48 16 116 421 81 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0710-
16 CLIP; HARNESS
(AG) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710-
16 CLIP; HARNESS
(AG) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-
16 CLIP; HARNESS
(AK) ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
(AF) ID=19 L=20 		0-95235-836-0 01 1 0710-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0710-
16 CLIP; HARNESS
(AI) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 0710-
16 CLIP; HARNESS
(M) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0710-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0710-
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0710-1002
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0710-
16 CLIP; HARNESS
(S) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 04 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 08 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0710-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0710-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0710-
16 CLIP; HARNESS
(AC) ID=5-12 L=22 		1-09709-288-0 01 1 0710-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0710-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0710-
16 CLIP; HARNESS
(P) ID=24-30 L=18 		1-09709-297-0 01 1 0710-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0710-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0710-
16 CLIP; HARNESS
(AN) ID=21 L=47.5 		8-94178-108-0 04 1 0710-
16 CLIP; HARNESS
(T) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 01 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 03 1 0710-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 0710-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0710-0806
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 0807-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0710-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 07 1 0710-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(N) OD=7 H=1.2 		8-94364-750-0 02 1 0710-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 02 1 0710-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-
48 CLIP; FRAME HARNESS
(B) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0710-0805
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 17 1 0806-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0710-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0710-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0710-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0710-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0710-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0710-
81 CLIP; HARNESS
(E) ID=18-24 L=18 		1-09709-294-0 01 1 0710-0711
81 CLIP; HARNESS
(C) 		1-09709-313-0 02 1 0710-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 06 1 0710-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0710-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 02 1 0710-
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710-
104 CLIP; HEADLAMP HARNESS
(D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0710-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 10 1 0710-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0710-0710
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0710-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 1410-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0710-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0710-
205 CLIP; BACK LAMP HARNESS
ID=5-12 L=18 		1-09709-287-0 01 1 0710-
212 CLIP; HORN HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710-
212 CLIP; HORN HARNESS
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0710-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0710-0904
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 04 1 0710-
421 CLIP; FLOOR HARNESS
L=30 SET=10 PIECE 		1-09987-265-0 05 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-

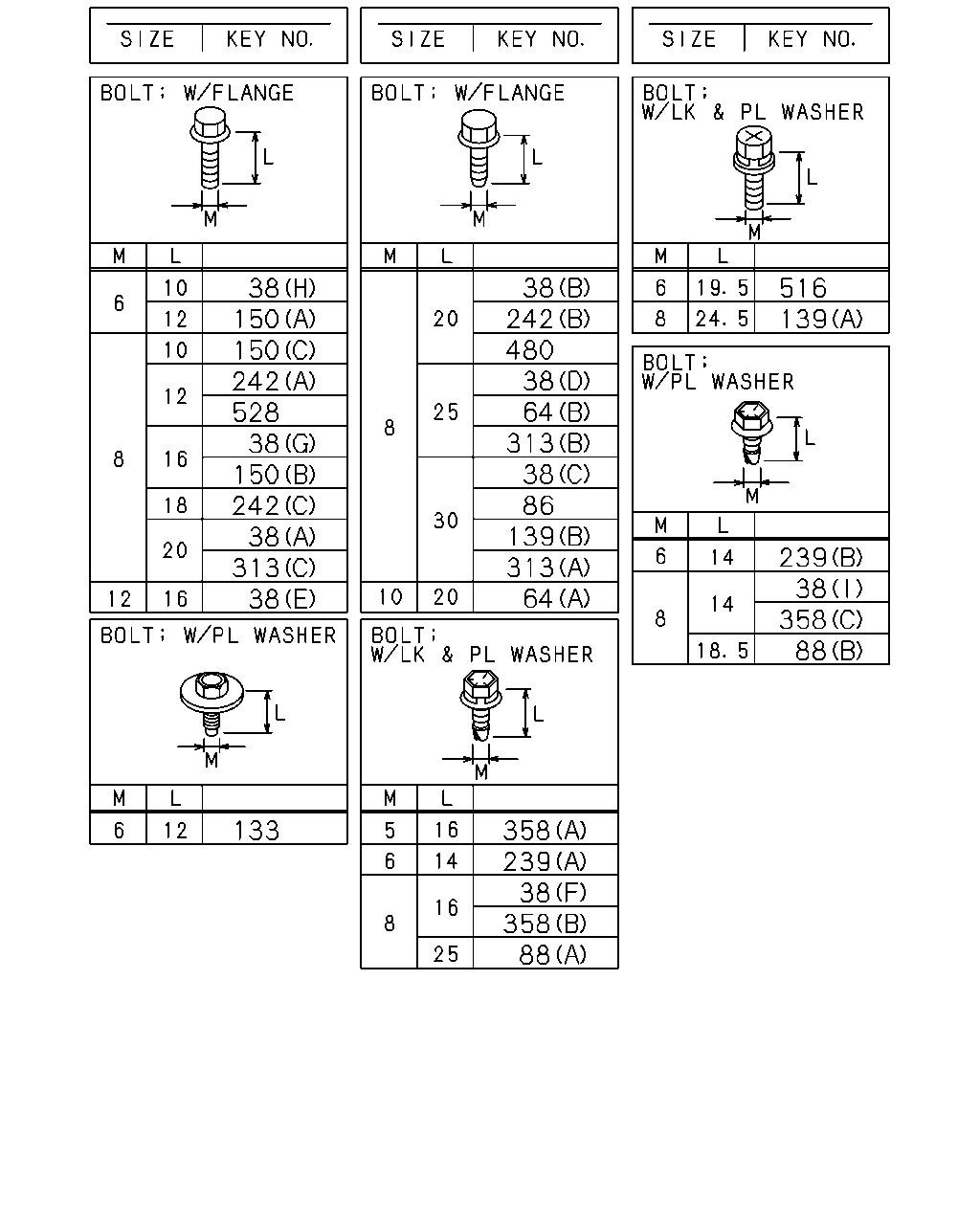

çizim 96564
38 242 480 38 64 313 38 86 139 313 64 38 150 150 242 528 38 150 242 38 313 38 516 139 239 38 358 88 133 358 239 38 358 88
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(H) M6X10 FLANGE 		0-28050-610-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0710-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0710-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 0710-1105
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-1201
38 BOLT; CLIP,HARNESS
(I) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) M8X16 FLANGE 		0-28050-816-0 02 1 0710-
64 SCREW; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711
64 SCREW; CLIP
(A) M10X20 FLANGE 		0-28751-020-0 01 1 0710-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0710-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0710-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0710-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0710-
139 BOLT; BRKT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
139 BOLT; BRKT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0710-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0710-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X10 FLANGE 		0-28050-810-0 02 1 0710-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0710-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0710-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-
242 BOLT; BRKT,HARNESS
(C) M8X18 FLANGE 		0-28080-818-0 01 1 0710-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0710-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0710-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 11 1 0710-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1201
358 BOLT; EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
528 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0710-

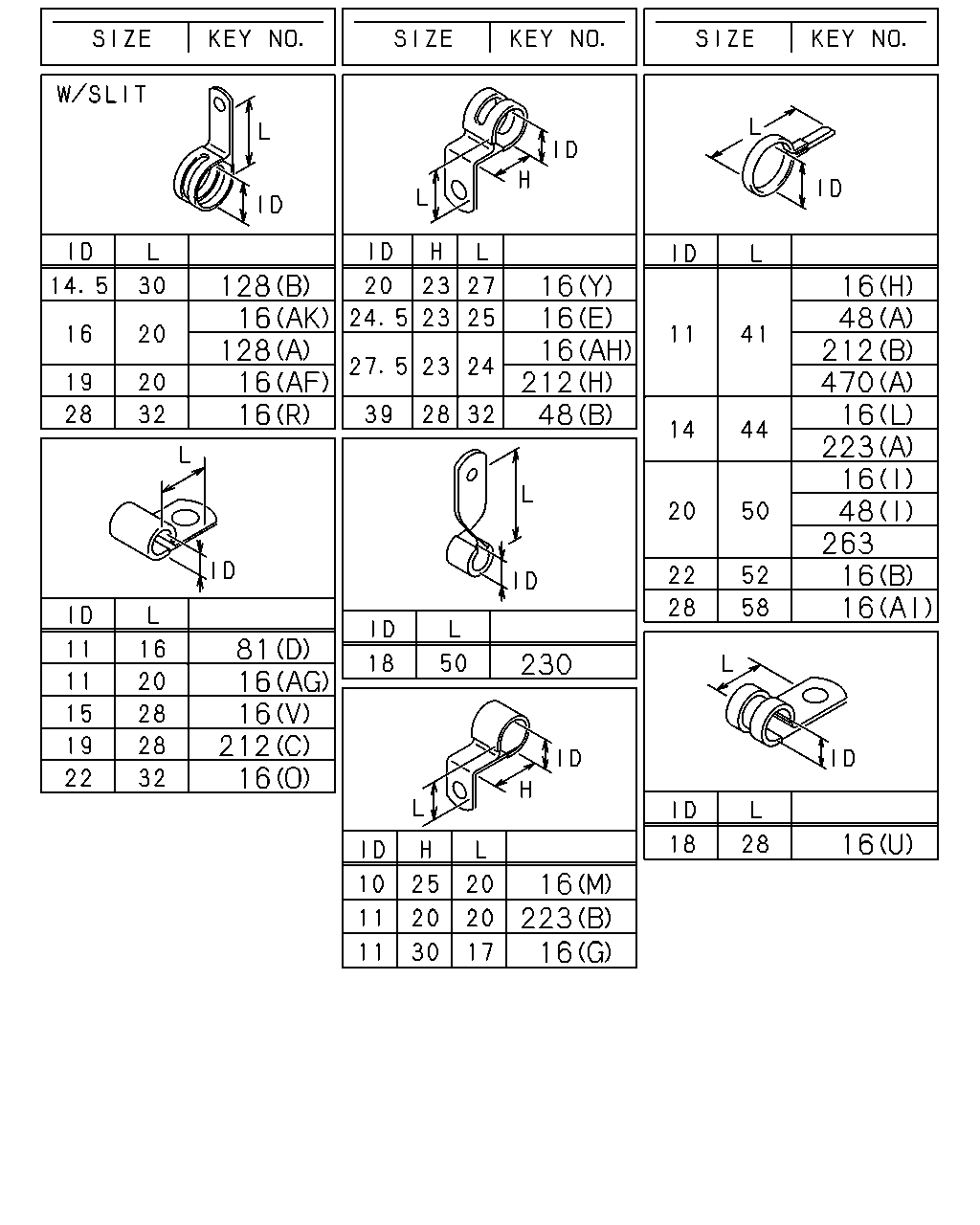

çizim 96565
128 16 128 16 16 81 16 16 212 16 16 223 16 230 48 212 16 16 16 16 48 212 470 16 223 16 48 263 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0710-
16 CLIP; HARNESS
(AG) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710-
16 CLIP; HARNESS
(AG) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-
16 CLIP; HARNESS
(AK) ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
(AF) ID=19 L=20 		0-95235-836-0 01 1 0710-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0710-
16 CLIP; HARNESS
(AI) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 0710-
16 CLIP; HARNESS
(M) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0710-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0710-
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0710-1002
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0710-
16 CLIP; HARNESS
(S) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 04 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 08 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0710-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0710-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0710-
16 CLIP; HARNESS
(AC) ID=5-12 L=22 		1-09709-288-0 01 1 0710-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0710-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0710-
16 CLIP; HARNESS
(P) ID=24-30 L=18 		1-09709-297-0 01 1 0710-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0710-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0710-
16 CLIP; HARNESS
(AN) ID=21 L=47.5 		8-94178-108-0 04 1 0710-
16 CLIP; HARNESS
(T) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 01 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 03 1 0710-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 0710-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0710-0806
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 0807-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0710-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 07 1 0710-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(N) OD=7 H=1.2 		8-94364-750-0 02 1 0710-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 02 1 0710-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-
48 CLIP; FRAME HARNESS
(B) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0710-0805
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 17 1 0806-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0710-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0710-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0710-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0710-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0710-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0710-
81 CLIP; HARNESS
(E) ID=18-24 L=18 		1-09709-294-0 01 1 0710-0711
81 CLIP; HARNESS
(C) 		1-09709-313-0 02 1 0710-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 06 1 0710-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0710-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 02 1 0710-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0710-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0710-
212 CLIP; HORN HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710-
212 CLIP; HORN HARNESS
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0710-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0710-0904
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0710-
223 CLIP; AIR TANK HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 0710-
230 CLIP; C/MBR HARNESS
ID=18 L=50 		1-09700-302-1 01 1 0710-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-
çizim 106831
14 194 212 14 16 33 48 194 212 16 14 16 81 104 111 171 194 206 212 305 369 14 16 48 102 121 171 194 212 380 16 33 51 142 194 369
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 08 1 0710-
14 CLIP; BAND,HARNESS
(D) L=250 		1-09707-126-0 02 1 0710-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 0710-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0710-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) L=250 		1-09707-126-0 01 1 0710-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 01 1 0710-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0710-
16 CLIP; HARNESS
(AG) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710-
16 CLIP; HARNESS
(AG) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-
16 CLIP; HARNESS
(AK) ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
(AF) ID=19 L=20 		0-95235-836-0 01 1 0710-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0710-
16 CLIP; HARNESS
(AI) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 0710-
16 CLIP; HARNESS
(M) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0710-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0710-
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0710-1002
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0710-
16 CLIP; HARNESS
(S) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 04 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 08 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0710-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0710-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0710-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0710-
16 CLIP; HARNESS
(AC) ID=5-12 L=22 		1-09709-288-0 01 1 0710-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0710-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0710-
16 CLIP; HARNESS
(P) ID=24-30 L=18 		1-09709-297-0 01 1 0710-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0710-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0710-
16 CLIP; HARNESS
(AN) ID=21 L=47.5 		8-94178-108-0 04 1 0710-
16 CLIP; HARNESS
(T) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 01 1 0710-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 03 1 0710-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 0710-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0710-0806
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 0807-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0710-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 07 1 0710-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
(N) OD=7 H=1.2 		8-94364-750-0 02 1 0710-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 02 1 0710-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0710-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0710-
33 CLIP; HARNESS,VLV
(A) L=180 		1-09707-162-1 01 1 0710-
33 CLIP; HARNESS,VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=350 		1-09707-183-0 01 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-
48 CLIP; FRAME HARNESS
(B) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0710-0805
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 17 1 0806-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0710-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0710-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0710-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0710-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0710-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0710-
51 CLIP; COOLER CMPR
L=180 		1-09707-162-1 01 1 0710-
81 CLIP; HARNESS
(E) ID=18-24 L=18 		1-09709-294-0 01 1 0710-0711
81 CLIP; HARNESS
(C) 		1-09709-313-0 02 1 0710-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 06 1 0710-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0710-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 02 1 0710-
102 CLIP; BAND
L=250 		5-09707-030-1 01 1 0710-
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710-
104 CLIP; HEADLAMP HARNESS
(D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0710-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 10 1 0710-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0710-0710
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0710-
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 0710-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 01 1 0710-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 01 1 1208-
171 CLIP; STARTER HARNESS
(B) L=250 		5-09707-030-1 03 1 0710-
171 CLIP; STARTER HARNESS
(A) L=140 		5-09707-031-1 08 1 0710-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0710-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0710-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 0710-
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 0710-1002
194 CLIP; BAND
(D) L=350 		1-09707-183-0 04 1 1003-1112
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 1201-1202
194 CLIP; BAND
(D) L=350 		1-09707-183-0 04 1 1203-
194 CLIP; BAND
(E) L=250 		5-09707-030-1 06 1 0710-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0710-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0710-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0710-
212 CLIP; HORN HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710-
212 CLIP; HORN HARNESS
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0710-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0710-0904
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 03 1 0710-
369 CLIP; BAND EDS HARNESS
(B) L=180 		1-09707-162-1 01 1 0907-
369 CLIP; BAND EDS HARNESS
(A) L=140 		5-09707-031-1 02 1 0710-
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
