6-01 — FRONT BUMPER (#153424) — 107 parça

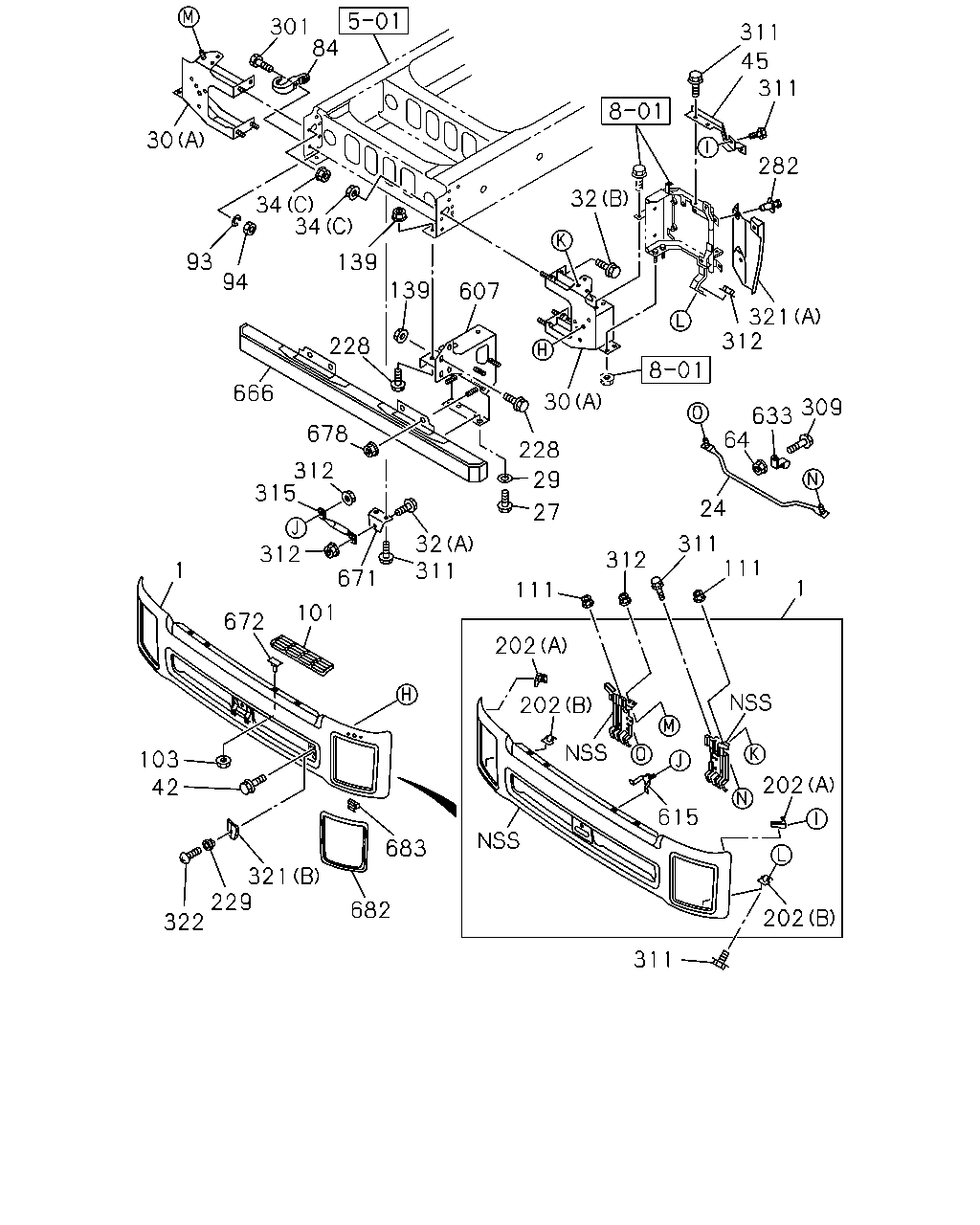

301 30 84 34 93 34 94 139 607 139 228 32 311 311 45 282 321 312 633 309 64 24 30 228 27 29 678 666 312 315 312 311 671 312 32 111 311 111 1 202 202 202 615 202 311 683 101 672 1 103 42 321 229 322 682

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1412-
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1412-
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1412-
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	08	1	1412-
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1412-
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1412-
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1412-
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1412-
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1412-
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1412-
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1412-
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1412-
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1412-
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1412-
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1412-
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1412-
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1412-
84	HOOK	1-57181-027-1	01	1	1412-
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1412-
94	NUT; HOOK M16	0-91110-516-0	02	1	1412-
101	STEP; BUMPER	8-97611-542-0	01	1	1412-
101	STEP; BUMPER	8-97611-543-0	01	1	1412-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1412-
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1412-
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M16	0-91110-516-0	02	1	1412-
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	06	1	1412-
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A)	8-97613-636-0	01	1	1412-
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A)	8-97613-637-0	01	1	1412-
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	8-97613-640-1	01	1	1412-
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	8-97613-641-1	01	1	1412-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M16X40	0-20851-640-0	02	1	1412-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1412-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1412-
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1412-
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1412-
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1412-
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1412-
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1412-
312	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1412-
312	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1412-
315	STAY; BUMPER	8-97613-645-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1412-
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1412-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1412-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98279-069-0	01	1	1412-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98279-070-0	01	1	1412-
615	BRACKET; BUMPER CENTER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915)	8-97613-643-1	01	1	1412-
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1412-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98196-475-0	01	1	1412-
671	BRACKET; STAY	8-97620-889-0	01	1	1412-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1412-
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1412-
682	BEZEL; BUMPER	8-97611-530-2	01	1	1412-
682	BEZEL; BUMPER	8-97611-531-2	01	1	1412-
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1412-

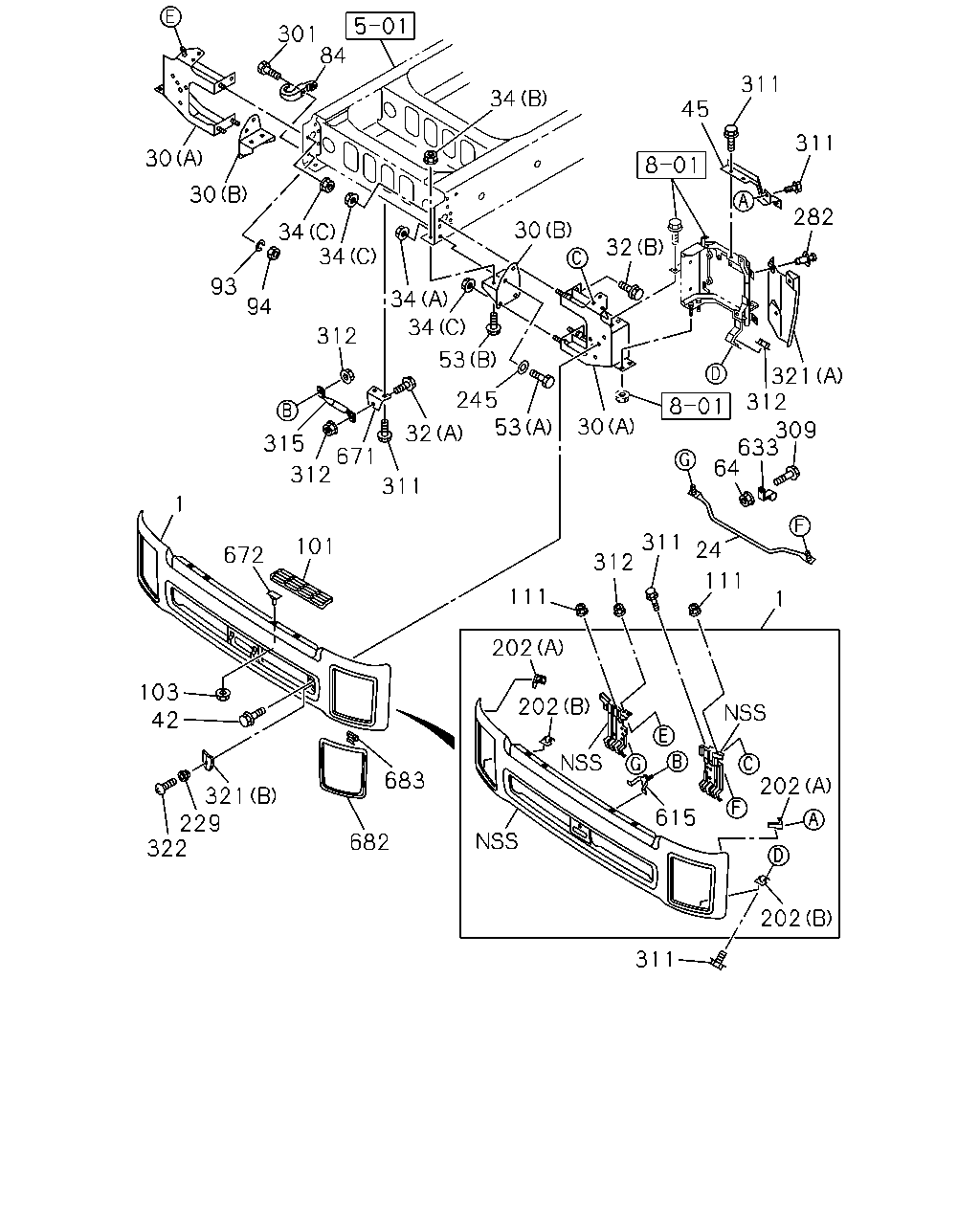

202 615 202 202 202 682 683 321 229 322 42 672 1 101 311 671 312 315 312 53 32 245 34 34 34 34 30 30 93 53 30 30 32 34 45 311 311 282 321 312 633 309 64 311 312 111 24 111 1 84 301 94 103 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1412-
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1412-
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1412-
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1412-
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1412-
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1412-
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1412-
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1412-
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1412-
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1412-
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1412-
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1412-
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1412-
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1412-
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40	0-20851-640-0	02	1	1412-
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE	0-28851-445-0	04	1	1412-
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1412-
84	HOOK	1-57181-027-1	01	1	1412-
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1412-
94	NUT; HOOK M16	0-91110-516-0	02	1	1412-
101	STEP; BUMPER	8-97611-542-0	01	1	1412-
101	STEP; BUMPER	8-97611-543-0	01	1	1412-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1412-
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1412-
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A)	8-97613-636-0	01	1	1412-
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A)	8-97613-637-0	01	1	1412-
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	8-97613-640-1	01	1	1412-
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	8-97613-641-1	01	1	1412-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1412-
245	WASHER; PL,BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30	0-91610-516-0	02	1	1412-
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1412-
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1412-
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1412-
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1412-
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1412-
312	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1412-
312	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1412-
315	STAY; BUMPER	8-97613-645-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1412-
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1412-
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1412-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1412-
615	BRACKET; BUMPER CENTER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915)	8-97613-643-1	01	1	1412-
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1412-
671	BRACKET; STAY	8-97620-889-0	01	1	1412-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1412-
682	BEZEL; BUMPER	8-97611-530-2	01	1	1412-
682	BEZEL; BUMPER	8-97611-531-2	01	1	1412-
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1412-
