Isuzu WW
▶
TRUCKS
▶
FVR
▶
11660 - FVR MIDDLE EAST
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

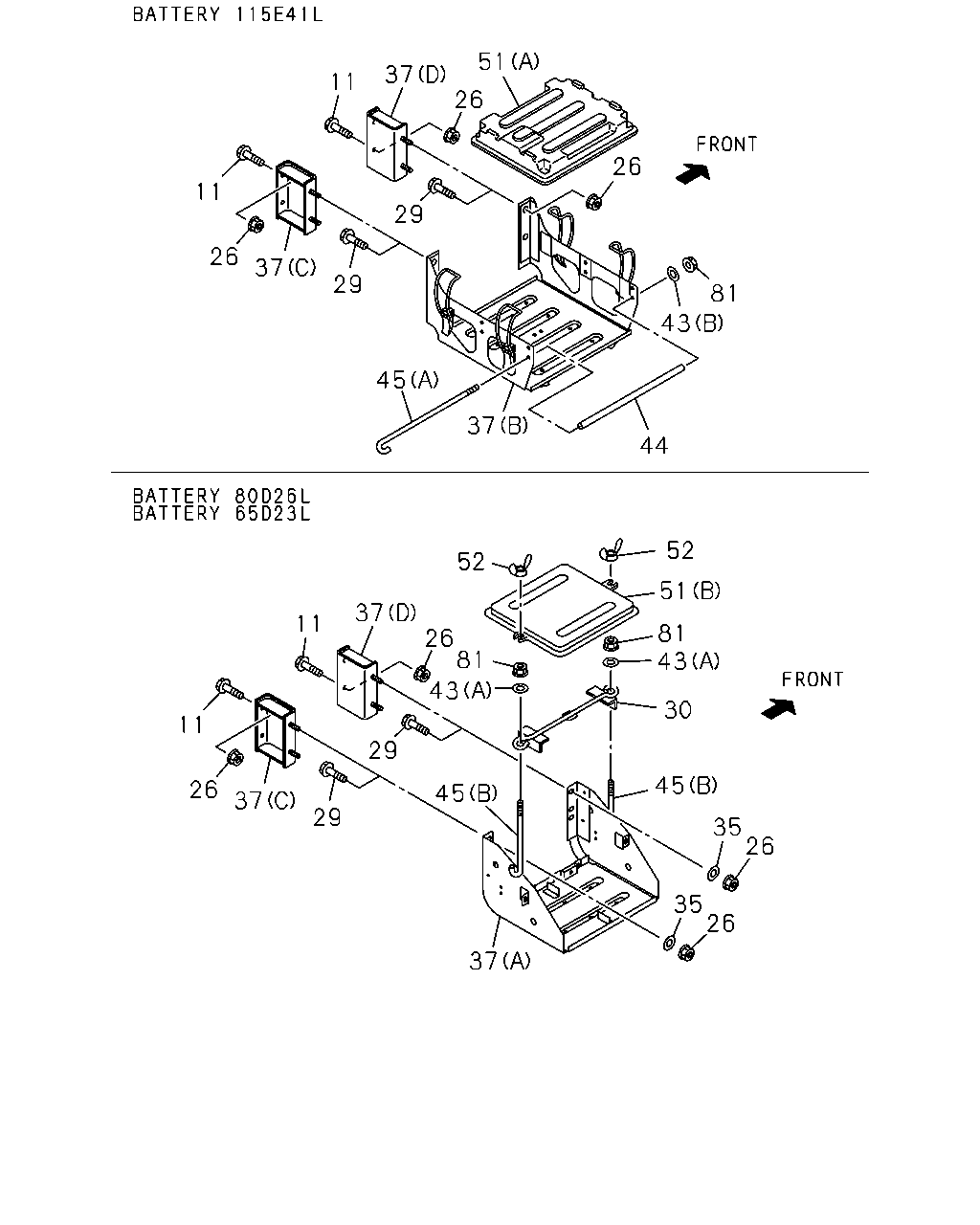

5-20 — BATTERY CARRIER
(#153422) — 20 parça
37
45
43
26
81
37
11
11
26
37
29
45
35
26
26
35
30
43
51
81
52
52
44
43
81
26
37
45
29
29
26
51
37
11
11
26
37
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X35 FLANGE
0-28651-035-0
04
1
1412-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1412-
26
NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE
0-91180-210-0
04
1
1412-
29
BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE
0-28651-035-0
04
1
1412-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1412-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1412-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1412-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1412-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1412-
37
BRACKET; BATTERY
6HK1-TCN ENG(82L) (D)
8-98088-828-0
01
1
1412-
37
BRACKET; BATTERY
6HK1-TCN ENG(82L) (C)
8-98162-291-0
01
1
1412-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1412-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1412-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1412-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1412-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1412-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1412-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1412-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1412-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1412-
