Isuzu WW
▶
TRUCKS
▶
EXY
▶
11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#15342) — 35 parça
◀

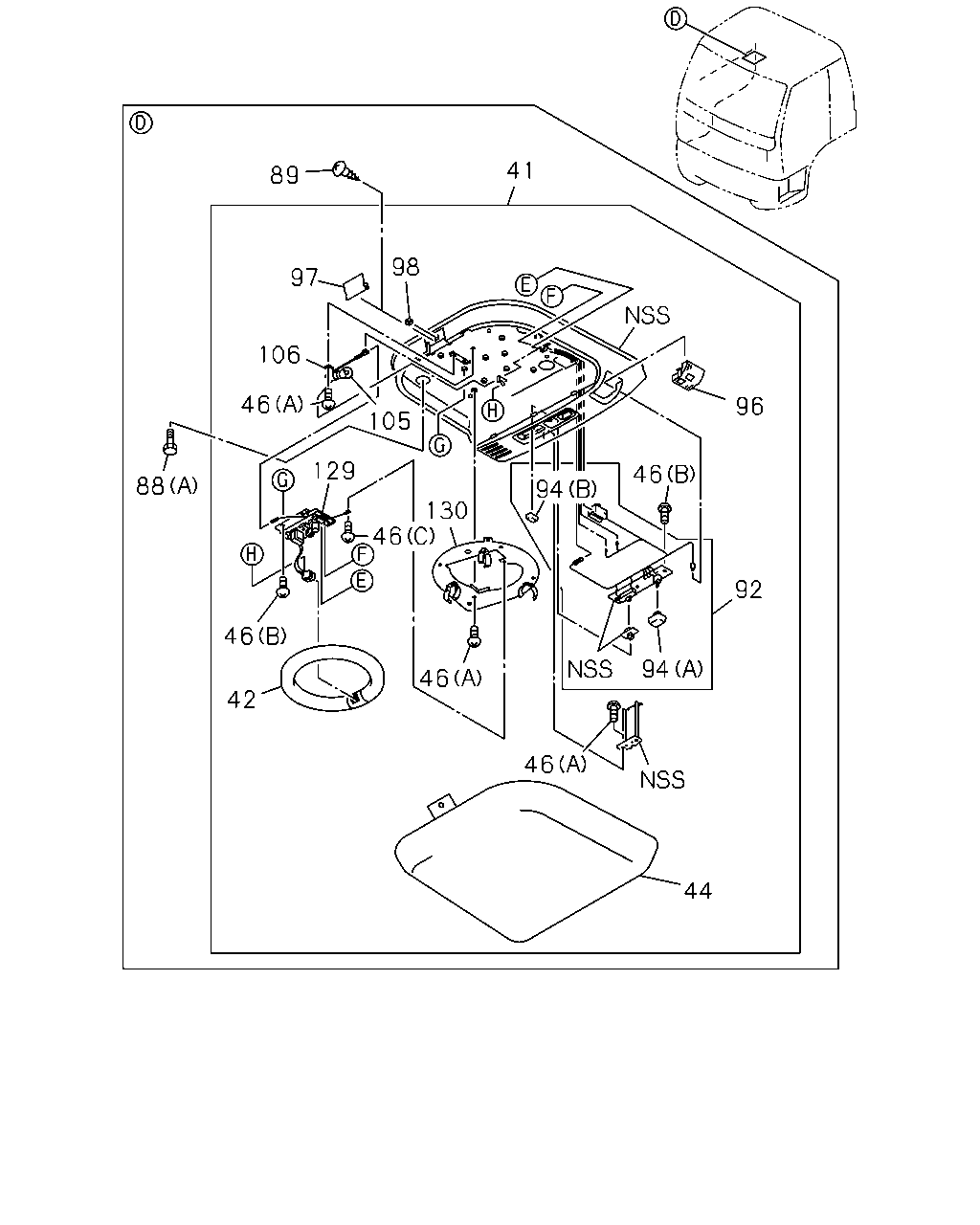

[805A] FLUORESCENT LAMP (19 parça)

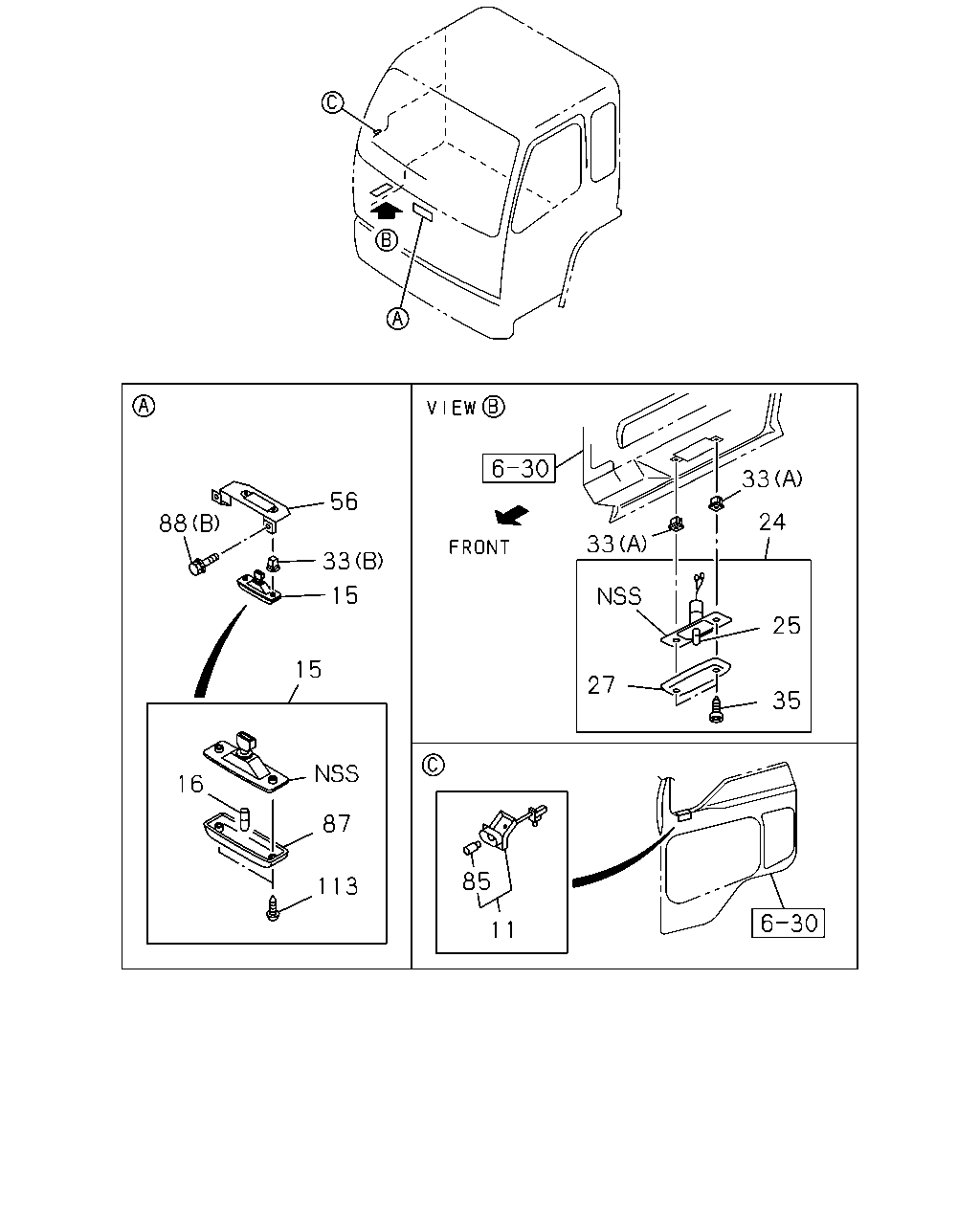

[805A] INSPECTION AND STEP LAMP (16 parça)
▶
89
41
98
97
96
106
46
105
88
129
94
46
130
46
92
46
42
46
94
46
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
LAMP ASM; FLUORESCENT
1-86830-323-1
01
1
0710-
42
LAMP; FLUORESCENT
1-86830-094-1
01
1
0710-
44
LENS; FLUORESCENT LAMP
1-86830-092-0
01
1
0710-
46
SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING
1-86830-095-0
08
1
0710-
46
SCREW; FLUORESCENT LAMP
(B) M4X12
1-86830-202-0
07
1
0710-
46
SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING
1-86830-336-0
01
1
0710-
88
BOLT; LAMP
(A) M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
0710-
88
BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0710-
89
SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING
0-71240-510-0
01
1
0710-
92
SWITCH ASM; FLUORESCENT
1-86830-341-0
01
1
0710-
94
KNOB; ROOM LAMP SW
(A)
1-86830-312-0
01
1
0710-
94
KNOB; ROOM LAMP SW
(B)
1-86830-313-0
01
1
0710-
96
CAP; SPOT LAMP
1-86830-385-0
01
1
0710-
97
CAP; LENS FIX
1-86830-311-0
01
1
0710-
98
GROMMET; SCREW,LENS FIX
1-86830-102-0
01
1
0710-
105
BULB; FLUORESCENT LAMP
28V 20W
1-86830-200-0
01
1
0710-
106
SOCKET; BULB
1-86830-201-0
01
1
0710-
129
INVERTER ASM; FLUORESCENT LAMP
1-86830-338-0
01
1
0710-
130
PLATE ASM; FLUORESCENT LAMP
1-86830-339-0
01
1
0710-
33
56
24
88
33
33
15
25
15
27
35
16
87
85
113
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
LAMP ASM; ASH TRAY
1-76458-076-1
01
1
0710-
15
LAMP; INSPECTION
1-82140-052-1
01
1
0710-
16
BULB; INSPECTION LAMP
24V 5W
1-82194-042-0
01
1
0710-
24
LAMP; STEP
1-82140-052-1
01
1
0710-
25
BULB; STEP LAMP
24V 5W
1-82194-042-0
01
1
0710-
27
LENS; STEP LAMP
1-82145-019-0
01
1
0710-
33
GROMMET; SCREW,LAMP
(B)
1-09983-182-0
02
1
0710-
33
GROMMET; SCREW,LAMP
(A) M4
5-09470-002-0
02
1
0710-
35
SCREW; STEP LAMP
M4X20
1-82149-006-0
02
1
0710-
56
BRACKET; LAMP
1-86830-302-1
01
1
0710-1103
56
BRACKET; LAMP
8-98121-191-0
01
1
1104-
85
BULB; ASH TRAY
24V 1.4W
1-76457-041-0
01
1
0710-
87
LENS; INSPECTION LAMP
1-82145-019-0
01
1
0710-
88
BOLT; LAMP
(A) M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
0710-
88
BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0710-
113
SCREW; LAMP
M4X20
1-82149-006-0
02
1
0710-
