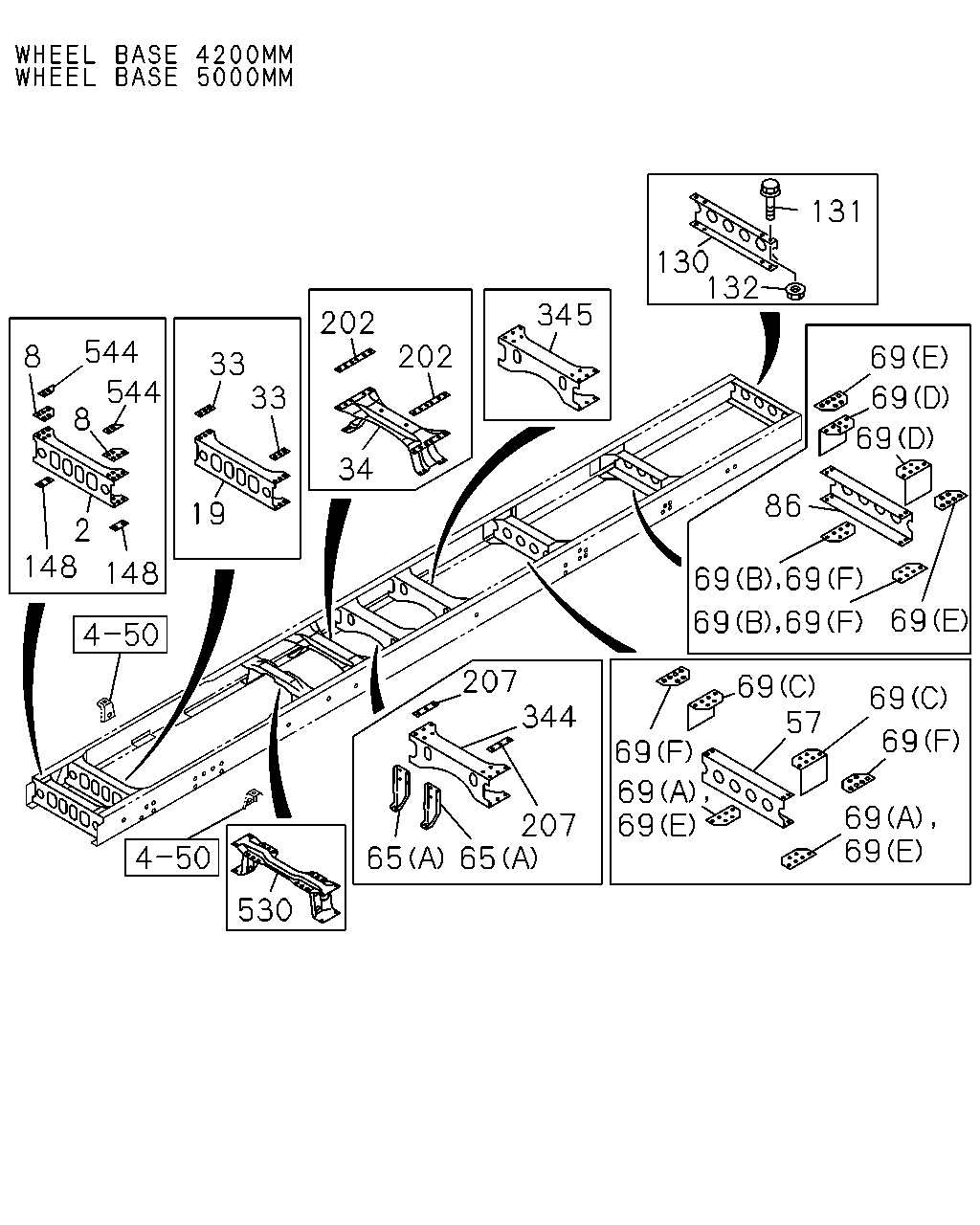

5-01 — FRAME AND OTHER PARTS (#153419) — 150 parça

69 69 69 69 57 69 69 69 69 207 65 65 344 207 530 148 148 2 544 544 8 8 19 33 33 34 202 202 345 132 130 131 69 69 69 86 69 69 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1412-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1412-	●	●	●
19	MEMBER; CROSS,2ND 4HK1-TCS ENG(RJS)	8-97645-337-0	01	1	1412-	●	●	●
19	MEMBER; CROSS,2ND 6HK1-TCN ENG(82L)	8-97623-239-3	01	1	1412-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1412-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1412-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1412-	●		●
57	MEMBER; CROSS,RR SUSP FRT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z)	8-97610-858-5	01	1	1412-	●		●
57	MEMBER; CROSS,RR SUSP FRT	8-97610-858-5	01	1	1412-		●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	1412-	●		●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97614-132-0	02	1	1412-	●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-97614-133-0	02	1	1412-			●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97621-881-0	02	1	1412-			●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (A)	8-97610-865-0	02	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (A)	8-97610-865-0	02	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (A)	8-97610-865-0	02	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (B)	8-97610-866-0	02	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B)	8-97610-866-0	02	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (B)	8-97610-866-0	02	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (C)	8-97619-800-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (C)	8-97619-800-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (C)	8-97619-800-0	01	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (C)	8-97619-801-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (C)	8-97619-801-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (C)	8-97619-801-0	01	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-802-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (D)	8-97619-802-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-802-0	01	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-803-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (D)	8-97619-803-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-803-0	01	1	1412-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97619-889-0	04	1	1412-	●		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-890-0	04	1	1412-	●		●
86	MEMBER; CROSS,RR SUSP RR 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1412-	●		●
86	MEMBER; CROSS,RR SUSP RR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z)	8-97610-858-5	01	1	1412-	●		●
86	MEMBER; CROSS,RR SUSP RR	8-97610-858-5	01	1	1412-		●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	1412-	●		●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1412-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1412-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1412-	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1412-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1412-	●	●	●
207	SPACER; 4TH C/MBR 4HK1-TCS ENG(RJS) 0.24KG	8-97611-245-0	02	1	1412-	●
207	SPACER; 4TH C/MBR 6HK1-TCN ENG(82L) 0.24KG	8-97611-245-0	02	1	1412-		●
207	SPACER; 4TH C/MBR 6HK1-TCN ENG(82L) 0.25KG	8-97611-244-0	02	1	1412-	●
207	SPACER; 4TH C/MBR 4HK1-TCS ENG(RJS) 0.25KG	8-97611-244-0	02	1	1412-		●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1412-			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1412-	●	●	●
345	MEMBER; CROSS,5TH 4HK1-TCS ENG(RJS)	8-97611-238-1	01	1	1412-		●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1412-			●
530	MEMBER; CROSS,T/M 4HK1-TCS ENG(RJS)	8-97638-949-0	01	1	1412-	●	●	●
544	PLATE; CAB FRT MTG 4HK1-TCS ENG(RJS)	8-97611-030-0	02	1	1412-	●		●
544	PLATE; CAB FRT MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z)	8-97611-030-0	02	1	1412-	●		●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1412-		●
544	PLATE; CAB FRT MTG HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97615-598-0	02	1	1412-	●		●

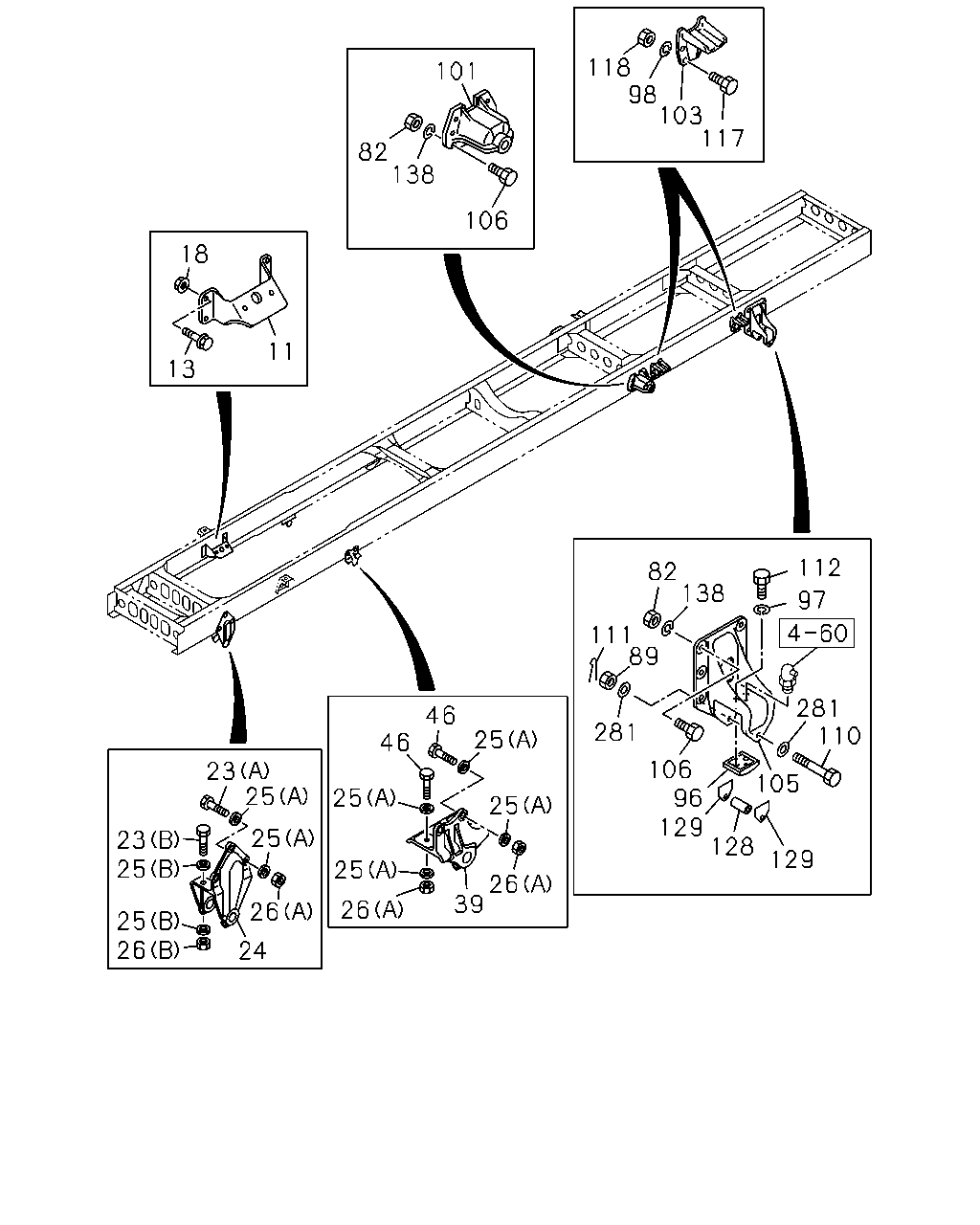

101 82 138 106 18 13 11 118 98 103 117 112 97 138 82 111 89 281 106 96 129 128 129 105 110 281 25 25 26 39 26 25 25 46 46 23 25 25 26 24 26 25 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG 4HK1-TCS ENG(RJS)	8-97639-385-1	01	1	1412-	●	●	●
11	BRACKET; ENG MTG 4HK1-TCS ENG(RJS)	8-97639-386-1	01	1	1412-	●	●	●
11	BRACKET; ENG MTG 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-549-0	02	1	1412-	●		●
11	BRACKET; ENG MTG 6HK1-TCN ENG(82L)	8-97619-549-0	02	1	1412-		●
11	BRACKET; ENG MTG HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-550-0	02	1	1412-	●		●
13	BOLT; BRKT,ENG MTG 4HK1-TCS ENG(RJS) M12X35 FLANGE	0-28661-235-0	12	1	1412-	●	●	●
13	BOLT; BRKT,ENG MTG 6HK1-TCN ENG(82L) M12X35 FLANGE	0-28661-235-0	08	1	1412-	●	●	●
18	NUT; BRKT,ENG MTG 4HK1-TCS ENG(RJS) M12 FLANGE	0-91180-212-0	12	1	1412-	●	●	●
18	NUT; BRKT,ENG MTG 6HK1-TCN ENG(82L) M12 FLANGE	0-91180-212-0	08	1	1412-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1412-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1412-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1412-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1412-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1412-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1412-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1412-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1412-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1412-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1412-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1412-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	1412-	●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	1412-	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	1412-	●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	1412-	●	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1412-	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	1412-	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	1412-	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	1412-	●	●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	1412-	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	1412-	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	1412-	●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	1412-	●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1412-	●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1412-	●	●	●
128	COLLAR; RUBBER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-53359-004-0	02	1	1412-	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	1412-	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	1412-	●	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-814-0	24	1	1412-	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	1412-	●	●	●

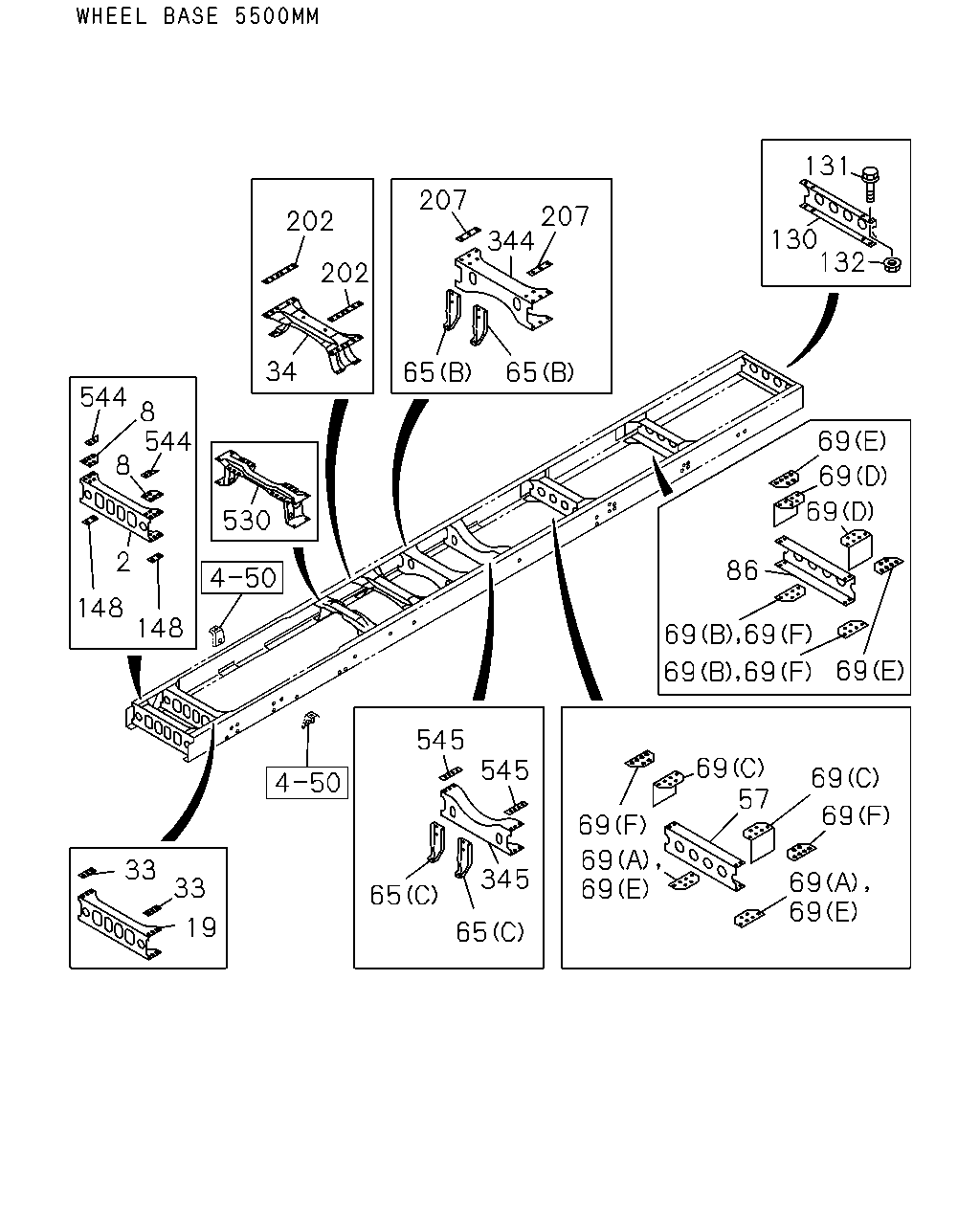

202 202 34 207 344 207 65 65 530 544 8 544 8 2 148 148 33 33 19 65 65 345 545 545 69 69 69 69 57 69 69 69 69 69 69 69 69 69 86 69 69 69 132 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1412-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1412-	●	●	●
19	MEMBER; CROSS,2ND 4HK1-TCS ENG(RJS)	8-97645-337-0	01	1	1412-	●	●	●
19	MEMBER; CROSS,2ND 6HK1-TCN ENG(82L)	8-97623-239-3	01	1	1412-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1412-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1412-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1412-	●		●
57	MEMBER; CROSS,RR SUSP FRT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z)	8-97610-858-5	01	1	1412-	●		●
57	MEMBER; CROSS,RR SUSP FRT	8-97610-858-5	01	1	1412-		●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	1412-	●		●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97614-132-0	02	1	1412-	●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-97614-133-0	02	1	1412-			●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97621-881-0	02	1	1412-			●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (A)	8-97610-865-0	02	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (A)	8-97610-865-0	02	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (A)	8-97610-865-0	02	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (B)	8-97610-866-0	02	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B)	8-97610-866-0	02	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (B)	8-97610-866-0	02	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (C)	8-97619-800-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (C)	8-97619-800-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (C)	8-97619-800-0	01	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (C)	8-97619-801-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (C)	8-97619-801-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (C)	8-97619-801-0	01	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-802-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (D)	8-97619-802-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-802-0	01	1	1412-		●
69	GUSSET; RR SUSP,UPR 4HK1-TCS ENG(RJS) (D)	8-97619-803-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (D)	8-97619-803-0	01	1	1412-	●		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-803-0	01	1	1412-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97619-889-0	04	1	1412-	●		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-890-0	04	1	1412-	●		●
86	MEMBER; CROSS,RR SUSP RR 4HK1-TCS ENG(RJS)	8-97610-858-5	01	1	1412-	●		●
86	MEMBER; CROSS,RR SUSP RR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z)	8-97610-858-5	01	1	1412-	●		●
86	MEMBER; CROSS,RR SUSP RR	8-97610-858-5	01	1	1412-		●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	1412-	●		●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1412-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1412-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1412-	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1412-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1412-	●	●	●
207	SPACER; 4TH C/MBR 4HK1-TCS ENG(RJS) 0.24KG	8-97611-245-0	02	1	1412-	●
207	SPACER; 4TH C/MBR 6HK1-TCN ENG(82L) 0.24KG	8-97611-245-0	02	1	1412-		●
207	SPACER; 4TH C/MBR 6HK1-TCN ENG(82L) 0.25KG	8-97611-244-0	02	1	1412-	●
207	SPACER; 4TH C/MBR 4HK1-TCS ENG(RJS) 0.25KG	8-97611-244-0	02	1	1412-		●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1412-			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1412-	●	●	●
345	MEMBER; CROSS,5TH 4HK1-TCS ENG(RJS)	8-97611-238-1	01	1	1412-		●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1412-			●
530	MEMBER; CROSS,T/M 4HK1-TCS ENG(RJS)	8-97638-949-0	01	1	1412-	●	●	●
544	PLATE; CAB FRT MTG 4HK1-TCS ENG(RJS)	8-97611-030-0	02	1	1412-	●		●
544	PLATE; CAB FRT MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z)	8-97611-030-0	02	1	1412-	●		●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1412-		●
544	PLATE; CAB FRT MTG HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97615-598-0	02	1	1412-	●		●
545	SPACER; 5TH C/MBR 6HK1-TCN ENG(82L) 0.24KG	8-97611-245-0	02	1	1412-			●
