◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11660 - FVR MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#153409) — 15 parça

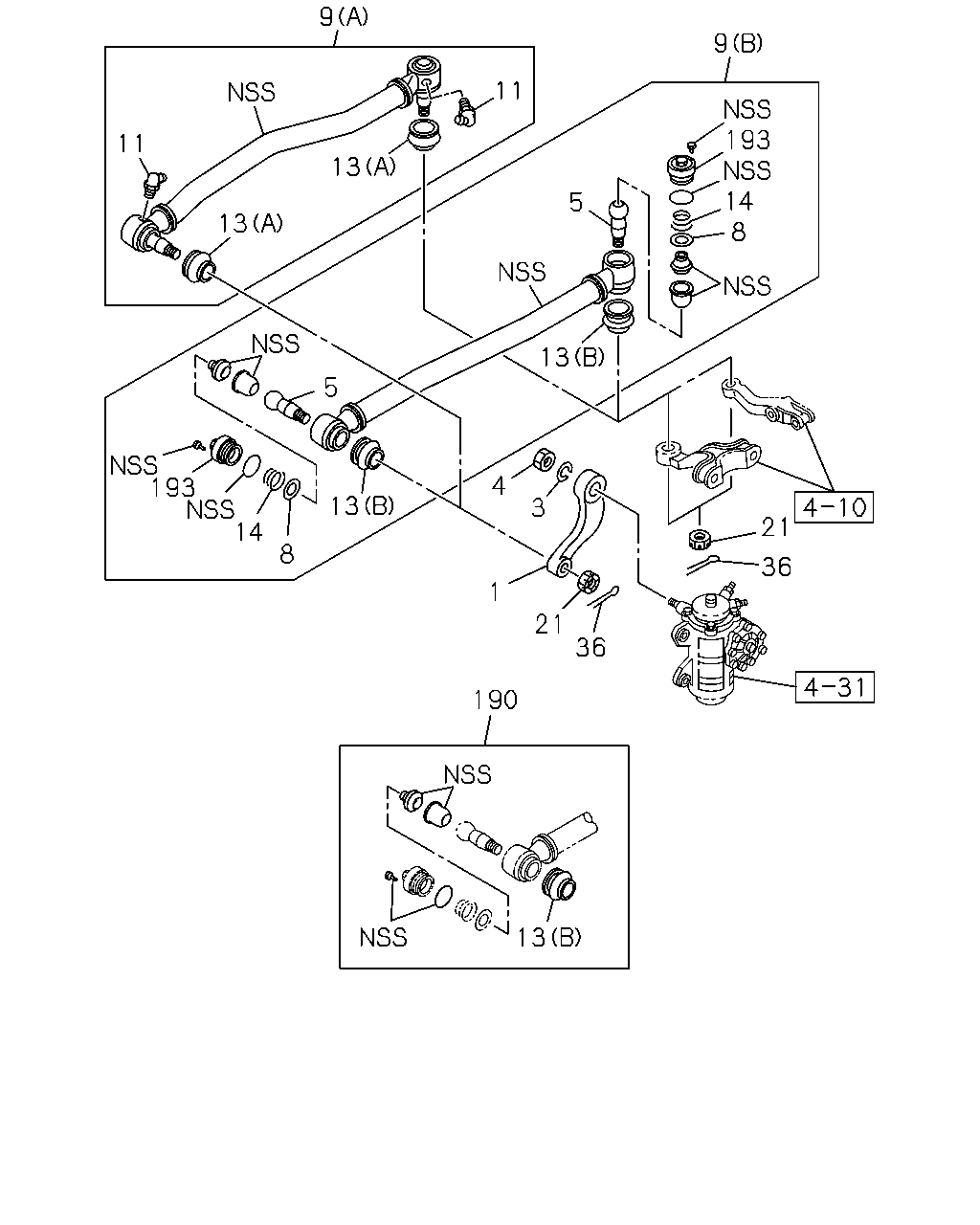

çizim 458703
11 13 13 11 9 9 14 193 8 5 13 5 13 8 14 193 1 3 4 21 21 36 36 190 13
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 1-44341-507-1 01 1 1412-
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-056-0 01 1 1412-
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 1412-
5 BALL; JOINT,DRAG LINK
6HK1-TCN ENG(82L) 		1-44361-105-1 02 1 1412-
8 SEAT; SPR,ROD END
6HK1-TCN ENG(82L) 		1-43159-075-0 02 1 1412-
9 LINK; DRAG
4HK1-TCS ENG(RJS) (A) 		8-98207-044-0 01 1 1412-
9 LINK; DRAG
6HK1-TCN ENG(82L) (B) 		1-44380-307-2 01 1 1412-
11 NIPPLE; GREASE,DRAG LINK
4HK1-TCS ENG(RJS) 		8-98160-122-0 02 1 1412-
13 BOOT; DRAG LINK
4HK1-TCS ENG(RJS) (A) 		1-43159-131-0 02 1 1412-
13 BOOT; DRAG LINK
6HK1-TCN ENG(82L) (B) 		1-43159-107-0 02 1 1412-
14 SPRING; COIL,DRAG LINK
6HK1-TCN ENG(82L) 		1-43159-074-0 02 1 1412-
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 1412-
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 1412-
190 REPAIR KIT; DRAG LINK
6HK1-TCN ENG(82L) 		1-85574-041-0 02 1 1412-
193 PLUG; END,DRAG LINK
6HK1-TCN ENG(82L) 		1-43159-093-0 02 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
