◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11660 - FVR MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#153402) — 736 parça

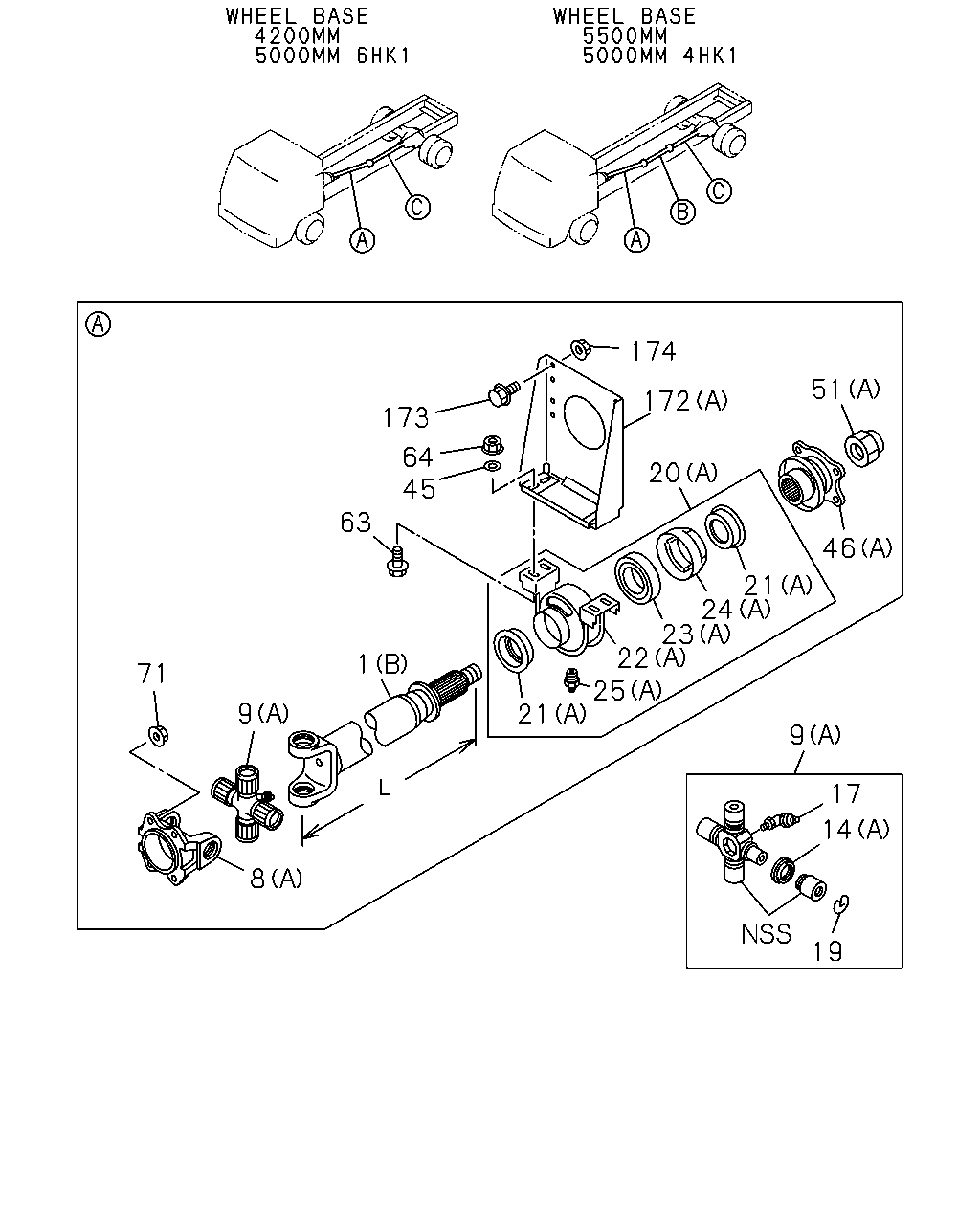

çizim 458685
9 17 14 19 46 51 21 24 23 22 25 21 20 172 174 173 45 63 64 1 9 71 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) L=1084 		8-98083-013-0 01 1 1412- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 1412- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=1104 		8-98217-160-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=1504 		8-98090-933-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 02 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 AR 1 1412- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1412- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) END 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) END PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1412- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1412- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1412- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1412- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1412- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1412- ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1412- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1412- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1412- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1412- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1412- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1412- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1412- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1412- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1412- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1412- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1412- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1412- ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1412- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1412- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		8-98020-889-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		8-98020-889-0 01 1 1412- ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1412-1505 ● ● ●
45 WASHER; PL,RET TO BRKT
PARKING BRAKE DRUM 10"(B1T) ID=10.5 OD=22 		0-91614-610-0 04 1 1506- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1412- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1412- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1412- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1412- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1412- ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1412- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1412- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1412- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1412-1505 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1412-1505 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1412-1505 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) M10X35 FLANGE 		0-28651-035-0 04 1 1506- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE 		0-28651-035-0 04 1 1506- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE 		0-28651-035-0 04 1 1506- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412-1505 ● ● ●
64 NUT; RET TO BRKT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412-1505 ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412-1505 ●
64 NUT; RET TO BRKT
PARKING BRAKE DRUM 10"(B1T) M10 FLANGE 		0-91180-210-0 04 1 1506- ● ● ●
64 NUT; RET TO BRKT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE 		0-91180-210-0 04 1 1506- ●
64 NUT; RET TO BRKT
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE 		0-91180-210-0 04 1 1506- ●
71 NUT; YOKE
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) M14 FLANGE 		8-97365-444-0 04 1 1506- ● ● ●
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 FLANGE 		8-97365-444-0 04 1 1506- ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1412-1505 ● ● ●
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) M16 FLANGE 		1-09449-065-0 04 1 1506- ● ● ●
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) M16 FLANGE 		1-09449-065-0 04 1 1506- ● ● ●
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 FLANGE 		1-09449-065-0 04 1 1506- ● ● ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 1412- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		8-98227-685-0 01 1 1412- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 1412- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 1412- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) 		8-98084-679-0 01 1 1412- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 1412- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) 		1-37515-136-0 01 1 1412- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		1-37515-136-0 01 1 1412- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1412- ● ● ●
173 BOLT; BRKT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1412- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1412- ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412- ● ● ●

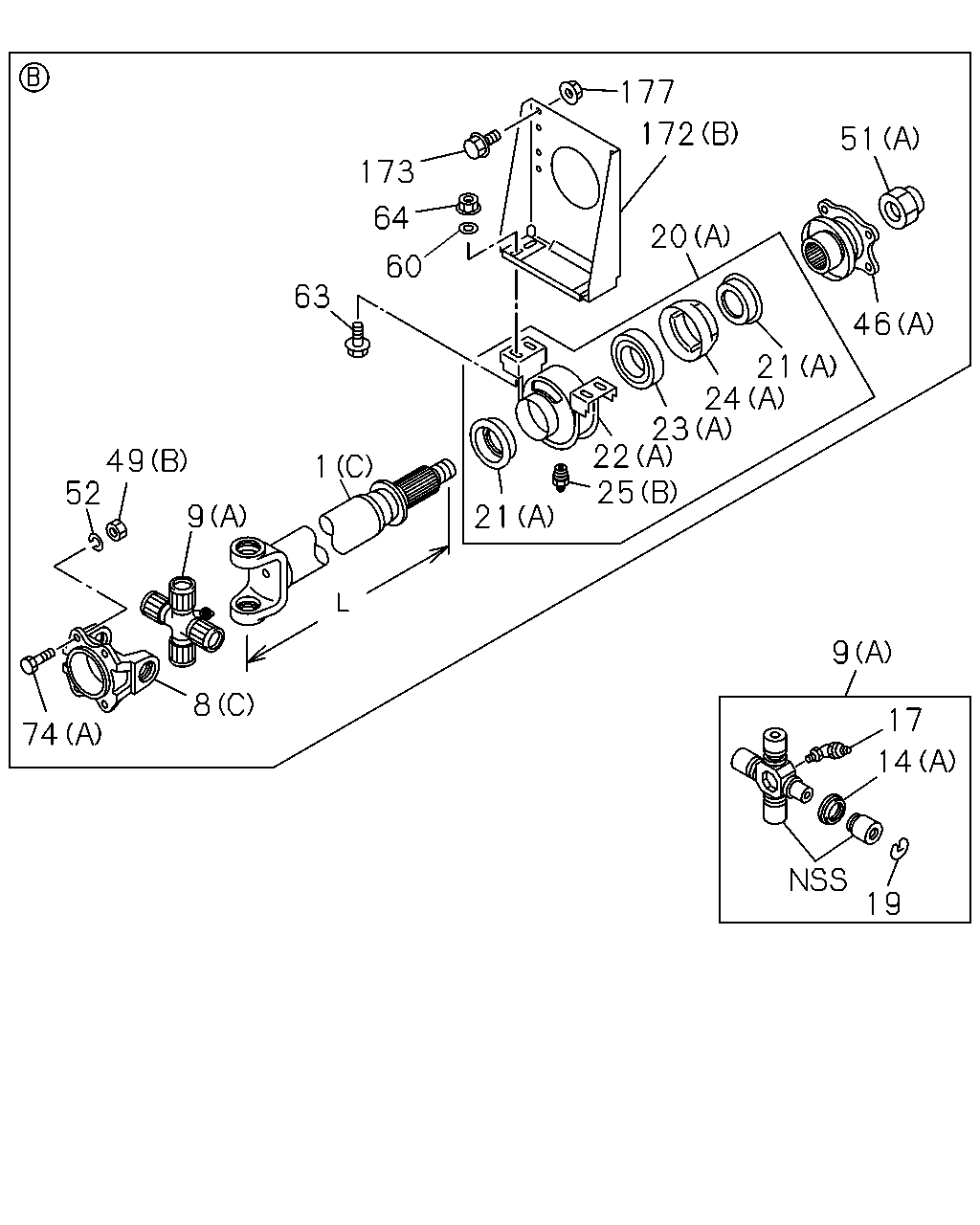

çizim 458790
51 46 21 24 23 22 21 25 20 172 177 173 60 64 63 1 9 8 49 52 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) L=1084 		8-98083-013-0 01 1 1412- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 1412- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=1104 		8-98217-160-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=1504 		8-98090-933-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 02 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 AR 1 1412- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1412- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) END 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) END PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1412- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1412- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1412- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1412- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1412- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1412- ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1412- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1412- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1412- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1412- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1412- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1412- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1412- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1412- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1412- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1412- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1412- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1412- ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1412- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1412- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		8-98020-889-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		8-98020-889-0 01 1 1412- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1412- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1412- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1412- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1412- ●
49 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 FLANGE 		8-97365-444-0 04 1 1506- ● ● ●
49 NUT; YOKE
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1412-1505 ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1412-1505 ●
49 NUT; YOKE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 		0-91110-514-0 04 1 1506- ●
49 NUT; YOKE
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 		0-91110-514-0 04 1 1506- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1412-1505 ●
49 NUT; YOKE
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M16 FLANGE 		1-09449-065-0 04 1 1506- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1412- ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1412- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1412- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1412- ●
52 WASHER; LK,YOKE
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1412-1505 ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1412-1505 ●
52 WASHER; LK,YOKE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2 		0-91510-614-0 04 1 1506- ●
52 WASHER; LK,YOKE
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2 		0-91510-614-0 04 1 1506- ●
60 WASHER; PL,RET TO BRKT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1412-1505 ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1412-1505 ●
60 WASHER; PL,RET TO BRKT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10.5 OD=22 		0-91614-610-0 04 1 1506- ●
60 WASHER; PL,RET TO BRKT
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10.5 OD=22 		0-91614-610-0 04 1 1506- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1412-1505 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1412-1505 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1412-1505 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) M10X35 FLANGE 		0-28651-035-0 04 1 1506- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE 		0-28651-035-0 04 1 1506- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE 		0-28651-035-0 04 1 1506- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412-1505 ● ● ●
64 NUT; RET TO BRKT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412-1505 ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412-1505 ●
64 NUT; RET TO BRKT
PARKING BRAKE DRUM 10"(B1T) M10 FLANGE 		0-91180-210-0 04 1 1506- ● ● ●
64 NUT; RET TO BRKT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE 		0-91180-210-0 04 1 1506- ●
64 NUT; RET TO BRKT
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE 		0-91180-210-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
PARKING BRAKE DRUM 10"(B1T) (A) M14X37 		1-09000-121-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1412-1505 ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 1412- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		8-98227-685-0 01 1 1412- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 1412- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 1412- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) 		8-98084-679-0 01 1 1412- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 1412- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) 		1-37515-136-0 01 1 1412- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		1-37515-136-0 01 1 1412- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1412- ● ● ●
173 BOLT; BRKT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1412- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1412- ●
177 NUT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412- ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1412- ●

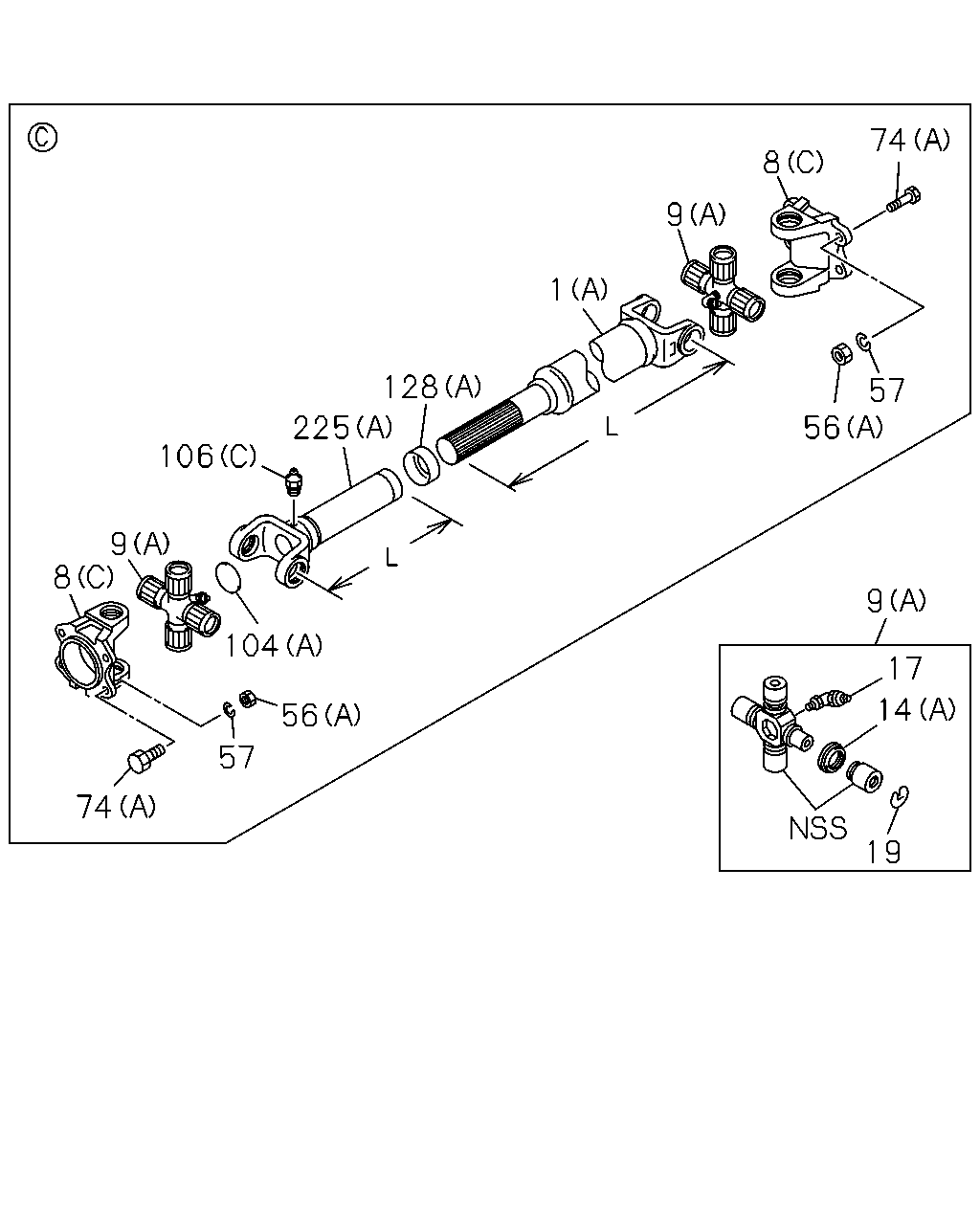

çizim 458818
74 8 9 1 57 128 225 106 9 8 104 56 57 74 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) L=1084 		8-98083-013-0 01 1 1412- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 1412- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=1104 		8-98217-160-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=1504 		8-98090-933-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 02 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 AR 1 1412- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1412- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) END 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) END PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1412- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1412- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1412- ● ● ●
56 NUT; YOKE
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14 FLANGE 		8-97365-444-0 08 1 1506- ● ● ●
56 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14 FLANGE 		8-97365-444-0 08 1 1506- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1412-1505 ● ● ●
56 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) (A) M14 		0-91110-514-0 08 1 1506- ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1412-1505 ● ●
56 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16 FLANGE 		1-09449-065-0 08 1 1506- ● ● ●
56 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 FLANGE 		1-09449-065-0 08 1 1506- ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 08 1 1412-1505 ● ● ●
57 WASHER; LK,YOKE
PARKING BRAKE DRUM 10"(B1T) ID=14.2 		0-91510-614-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
PARKING BRAKE DRUM 10"(B1T) (A) M14X37 		1-09000-121-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1412-1505 ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1412- ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (B) 		1-09600-067-0 01 1 1412- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 1412- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1412- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1412- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1412- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1412- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1412- ● ●

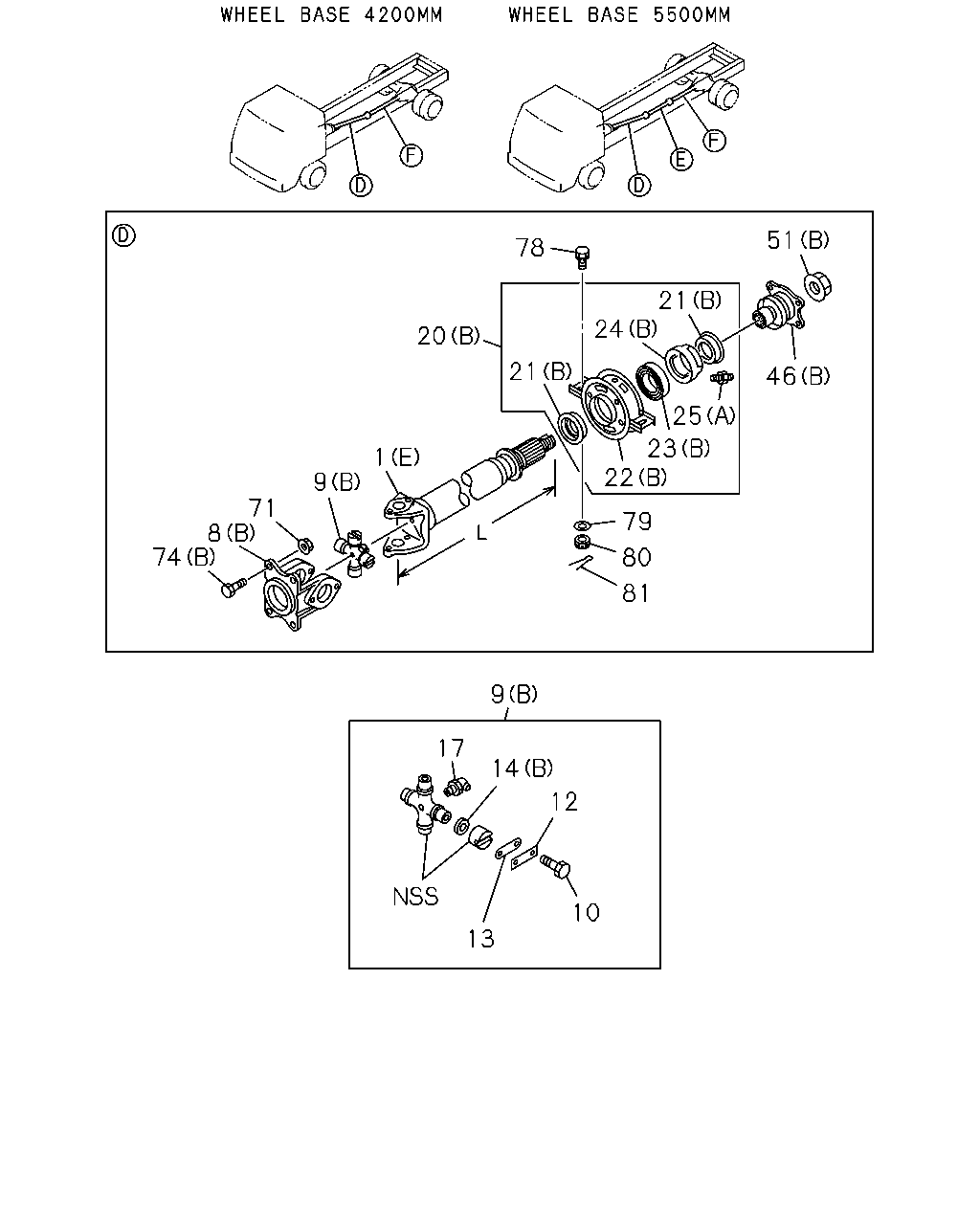

çizim 458853
81 79 80 23 22 25 46 51 78 21 24 21 20 1 9 71 8 74 17 9 14 12 10 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) L=1084 		8-98083-013-0 01 1 1412- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 1412- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=1104 		8-98217-160-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=1504 		8-98090-933-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 02 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 AR 1 1412- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1412- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1412- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1412- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1412- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) END 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) END PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1412- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1412- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1412- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1412- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1412- ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1412- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1412- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1412- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1412- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1412- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1412- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1412- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1412- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1412- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1412- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1412- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1412- ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1412- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1412- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		8-98020-889-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		8-98020-889-0 01 1 1412- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1412- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1412- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1412- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1412- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1412- ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1412- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1412- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1412- ●
71 NUT; YOKE
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) M14 FLANGE 		8-97365-444-0 04 1 1506- ● ● ●
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 FLANGE 		8-97365-444-0 04 1 1506- ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1412-1505 ● ● ●
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) M16 FLANGE 		1-09449-065-0 04 1 1506- ● ● ●
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) M16 FLANGE 		1-09449-065-0 04 1 1506- ● ● ●
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 FLANGE 		1-09449-065-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
PARKING BRAKE DRUM 10"(B1T) (A) M14X37 		1-09000-121-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1412-1505 ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1412-1505 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16X45 		1-09042-030-0 02 1 1506- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16X45 		1-09042-030-0 02 1 1506- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1412-1505 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=17 		1-09503-241-1 02 1 1506- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=17 		1-09503-241-1 02 1 1506- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1412-1505 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 SLOTTED 		8-98049-689-0 02 1 1506- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 SLOTTED 		8-98049-689-0 02 1 1506- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1412-1505 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=25 		0-81124-025-0 02 1 1506- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=25 		0-81124-025-0 02 1 1506- ● ● ●
çizim 458870
9 10 13 17 14 12 94 93 23 25 24 21 46 51 91 92 22 21 20 1 9 49 8 74
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) L=1084 		8-98083-013-0 01 1 1412- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 1412- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=1104 		8-98217-160-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=1504 		8-98090-933-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 02 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 AR 1 1412- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1412- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1412- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1412- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1412- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) END 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) END PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1412- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1412- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1412- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1412- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1412- ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1412- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1412- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1412- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1412- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1412- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1412- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1412- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1412- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1412- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1412- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1412- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1412- ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1412- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1412- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		8-98020-889-0 01 1 1412- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		8-98020-889-0 01 1 1412- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1412- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1412- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1412- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1412- ●
49 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 FLANGE 		8-97365-444-0 04 1 1506- ● ● ●
49 NUT; YOKE
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1412-1505 ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1412-1505 ●
49 NUT; YOKE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 		0-91110-514-0 04 1 1506- ●
49 NUT; YOKE
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 		0-91110-514-0 04 1 1506- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1412-1505 ●
49 NUT; YOKE
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M16 FLANGE 		1-09449-065-0 04 1 1506- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1412- ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1412- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1412- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1412- ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
PARKING BRAKE DRUM 10"(B1T) (A) M14X37 		1-09000-121-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1412-1505 ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1412-1505 ●
91 BOLT; HOLDER SET,CTR BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16X45 		1-09042-030-0 02 1 1506- ● ● ●
91 BOLT; HOLDER SET,CTR BRG
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) M16X45 		1-09042-030-0 02 1 1506- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1412-1505 ●
92 WASHER; LK,HOLDER SET,CTR BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=17 		1-09503-241-1 02 1 1506- ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) ID=17 		1-09503-241-1 02 1 1506- ● ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1412-1505 ●
93 NUT; HOLDER SET,CTR BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 SLOTTED 		8-98049-689-0 02 1 1506- ● ● ●
93 NUT; HOLDER SET,CTR BRG
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) M16 SLOTTED 		8-98049-689-0 02 1 1506- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1412-1505 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=3.7 L=25 		0-81124-025-0 02 1 1506- ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) OD=3.7 L=25 		0-81124-025-0 02 1 1506- ● ●
çizim 458884
9 83 12 13 84 17 14 56 104 74 8 9 106 225 106 107 128 1 9 8 74 56 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) L=1084 		8-98083-013-0 01 1 1412- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 1412- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) L=1104 		8-98217-160-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 1412- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=1504 		8-98090-933-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1412- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1412- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 1412- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1412- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 01 1 1412- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37211-056-3 02 1 1412- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1412- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 AR 1 1412- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 AR 1 1412- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1412- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1412- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1412- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1412- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1412- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1512- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) END 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) END PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1412- ●
56 NUT; YOKE
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14 FLANGE 		8-97365-444-0 08 1 1506- ● ● ●
56 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14 FLANGE 		8-97365-444-0 08 1 1506- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1412-1505 ● ● ●
56 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) (A) M14 		0-91110-514-0 08 1 1506- ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1412-1505 ● ●
56 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16 FLANGE 		1-09449-065-0 08 1 1506- ● ● ●
56 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 FLANGE 		1-09449-065-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),P60 PROP SHAFT(C2M),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 		1-09000-645-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
PARKING BRAKE DRUM 10"(B1T) (A) M14X37 		1-09000-121-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1412-1505 ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X37 		1-09000-121-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) (B) M16X48 		1-09000-383-0 04 1 1412-1505 ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 10"(B1T),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16X48 		1-09000-383-0 08 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1412-1505 ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ● ●
74 BOLT; YOKE,TRANS
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PARKING BRAKE DRUM 10"(B1T) (B) M16X48 		1-09000-383-0 04 1 1506- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1412- ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1412- ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1412- ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (B) 		1-09600-067-0 01 1 1412- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 1412- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1412- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1412- ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1412- ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1412- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1412- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1412- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
