3-78 — FIXING PARTS; AIR PIPING (#153401) — 129 parça

172 172 172 379 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1412-
34	NUT; BRKT 6HK1-TCN ENG(82L) (B) M8 FLANGE	0-91180-108-0	02	1	1412-
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (J) L=115 H=30	1-47477-715-3	01	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (K) L=125	1-47477-975-1	02	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (L)	8-98217-203-0	01	1	1412-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1412-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=65 B=25	8-98135-584-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=150 H=30	1-47477-629-2	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98166-032-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	8-98169-222-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98177-873-0	02	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-331-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-760-0	01	1	1412-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98112-515-1	01	1	1412-

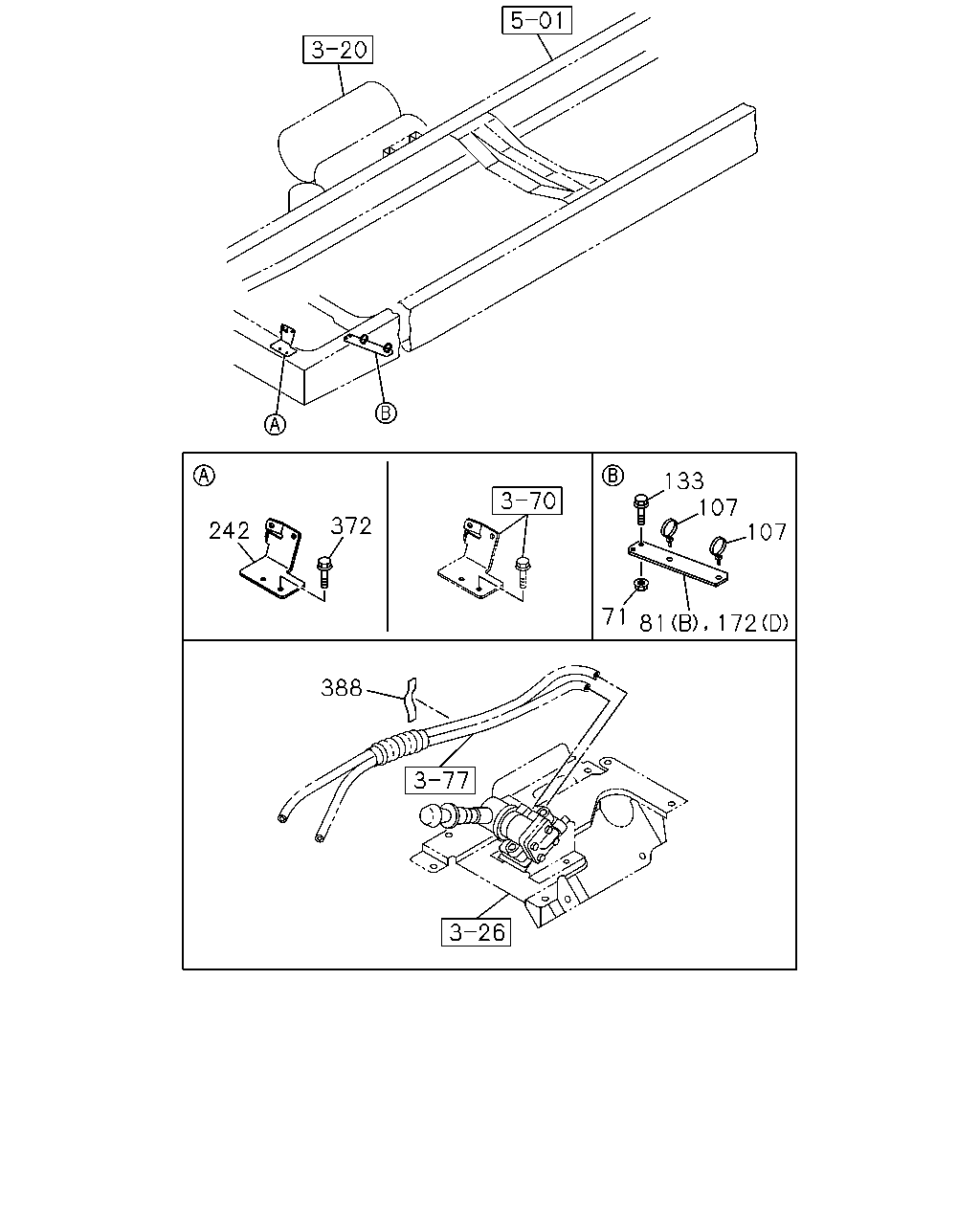

242 372 71 81 172 107 107 133 388

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	1412-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1412-
81	BRACKET; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98177-873-0	02	1	1412-
81	BRACKET; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98182-331-0	01	1	1412-
81	BRACKET; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98182-760-0	01	1	1412-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) (D)	8-98177-873-0	04	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 H=30	1-47477-629-2	01	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) L=60 H=30	1-47477-716-1	02	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-47479-693-0	01	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=65 B=25	8-98135-584-0	01	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	8-98186-380-0	01	1	1412-
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	39	1	1412-
107	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	41	1	1412-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	43	1	1412-
133	BOLT; BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	03	1	1412-
133	BOLT; BRKT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1412-
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	02	1	1412-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1412-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	01	1	1412-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1412-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (J) L=115 H=30	1-47477-715-3	01	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (K) L=125	1-47477-975-1	02	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (L)	8-98217-203-0	01	1	1412-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1412-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=65 B=25	8-98135-584-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=150 H=30	1-47477-629-2	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98166-032-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	8-98169-222-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98177-873-0	02	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-331-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-760-0	01	1	1412-
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98158-602-0	01	1	1412-
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1412-
388	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40	1-72498-022-1	03	1	1412-

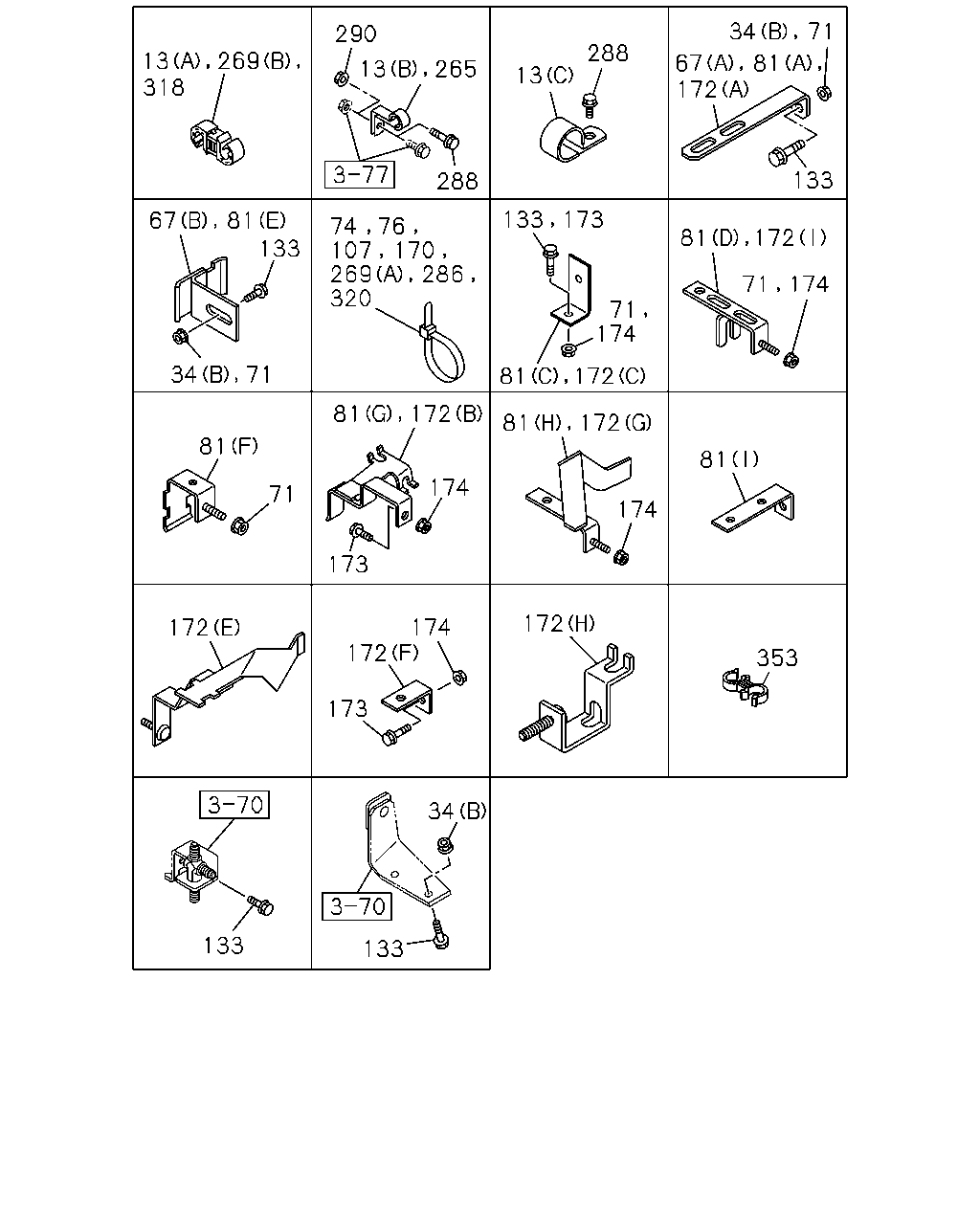

34 133 133 172 172 172 172 172 172 172 173 174 174 174 71 81 133 81 71 173 174 81 81 81 81 71 71 34 67 81 133 74 76 107 320 269 286 170 133 13 288 34 67 71 172 81 265 13 290 288 269 13 318 174 173 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1412-
13	CLIP; AIR PIPE 6HK1-TCN ENG(82L) (C) ID=7 L=16	0-95234-625-0	01	1	1412-
13	CLIP; AIR PIPE 6HK1-TCN ENG(82L) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	1412-
13	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 15	1-09709-276-1	01	1	1412-
13	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	1412-
13	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	03	1	1412-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=6.35 & 6.35	1-09709-273-1	03	1	1412-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	1412-
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1412-
34	NUT; BRKT 6HK1-TCN ENG(82L) (B) M8 FLANGE	0-91180-108-0	02	1	1412-
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	1412-
67	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 H=30	1-47477-629-2	01	1	1412-
67	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47479-693-0	01	1	1412-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	1412-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1412-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	03	1	1412-
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	10	1	1412-
74	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	13	1	1412-
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	14	1	1412-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5>,RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	01	1	1412-
81	BRACKET; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98177-873-0	02	1	1412-
81	BRACKET; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98182-331-0	01	1	1412-
81	BRACKET; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98182-760-0	01	1	1412-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) (D)	8-98177-873-0	04	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 H=30	1-47477-629-2	01	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) L=60 H=30	1-47477-716-1	02	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-47479-693-0	01	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=65 B=25	8-98135-584-0	01	1	1412-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	8-98186-380-0	01	1	1412-
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	39	1	1412-
107	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	41	1	1412-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	43	1	1412-
133	BOLT; BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	03	1	1412-
133	BOLT; BRKT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1412-
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	02	1	1412-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1412-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	01	1	1412-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1412-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1412-
170	CLIP; NYLON TUBE 4HK1-TCS ENG(RJS) L=350	1-09707-183-0	24	1	1412-
170	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	30	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (J) L=115 H=30	1-47477-715-3	01	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (K) L=125	1-47477-975-1	02	1	1412-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (L)	8-98217-203-0	01	1	1412-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1412-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=65 B=25	8-98135-584-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=150 H=30	1-47477-629-2	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98166-032-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	8-98169-222-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98177-873-0	02	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-331-0	01	1	1412-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-760-0	01	1	1412-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	05	1	1412-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1412-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1412-
173	BOLT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1412-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	07	1	1412-
174	NUT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	13	1	1412-
265	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1412-
269	CLIP; BAND,NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	02	1	1412-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=12 & 15	1-09709-281-1	01	1	1412-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	03	1	1412-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	1412-
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	01	1	1412-
288	BOLT; CLIP,AIR PIPE 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1412-
290	NUT; CLIP,AIR PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1412-
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	04	1	1412-
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	1412-
318	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	1412-
320	CLIP; BAND,FLEX FIX 6HK1-TCN ENG(82L) L=250	5-09707-030-1	01	1	1412-
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=18 & 18	8-94323-068-0	01	1	1412-
