3-77 — BRAKE PIPING; AIR,REAR (#153400) — 83 parça

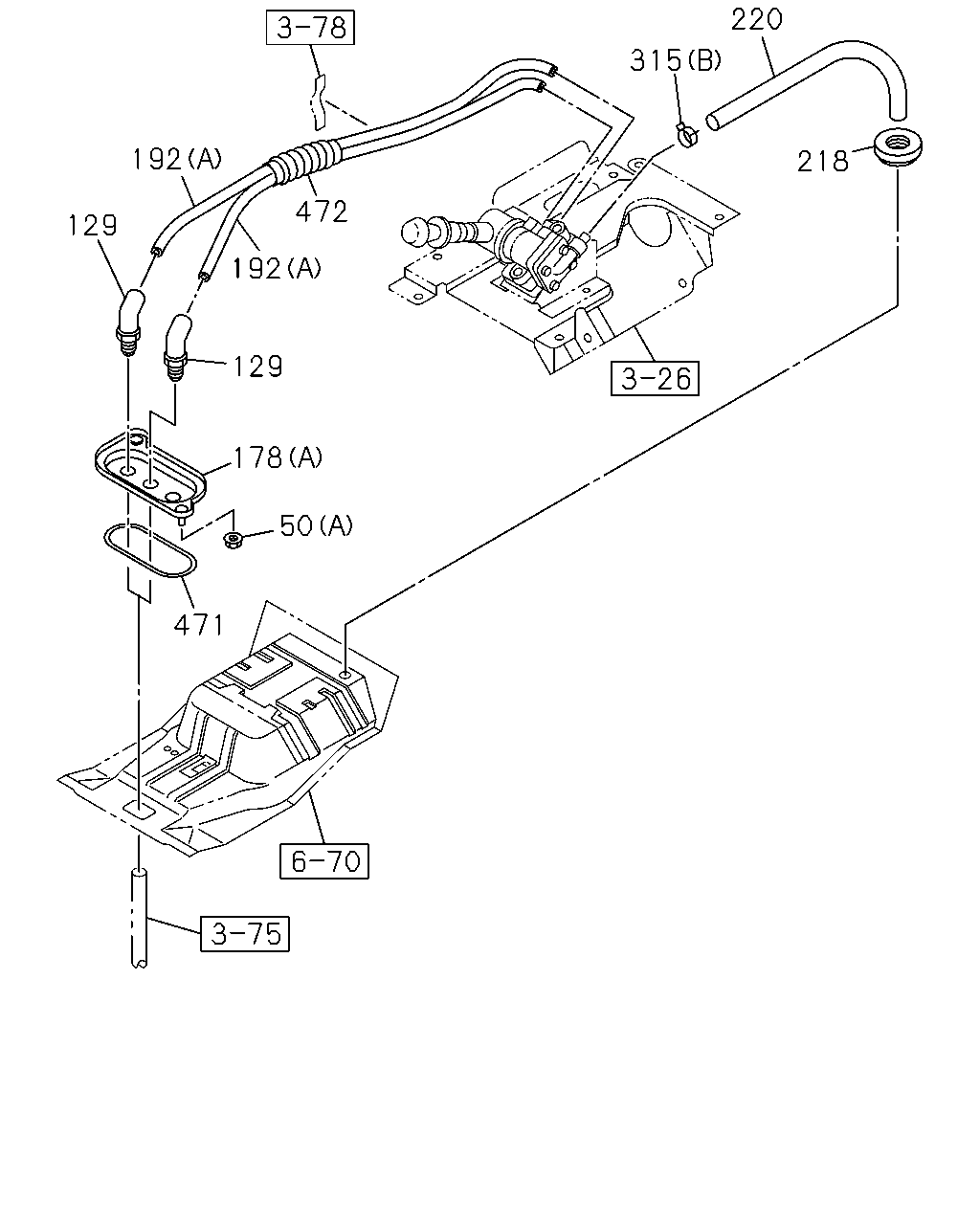

çizim 458786
192 129 192 472 129 178 50 471 218 315 220
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1412-1510
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 		0-91111-512-0 02 1 1412-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		0-91111-516-0 01 1 1412-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1412-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1412-
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-052-1 01 1 1412-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98031-034-1 01 1 1412-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-823-0 01 1 1412-
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-054-1 01 1 1412-1510
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98017-054-1 01 1 1511-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 1412-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 1412-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98109-842-0 01 1 1412-1507
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98308-959-0 01 1 1508-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1412-
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 1412-1510
218 GROMMET; VINYL HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=24 		9-61166-007-0 01 1 1511-
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1412-1510
220 HOSE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1511-
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14 		8-94238-572-0 01 1 1412-1510
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 		8-94238-572-0 01 1 1511-
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 1412-
471 SEAL; BRKT 1-79738-832-0 01 1 1412-1510
471 SEAL; BRKT 1-79738-832-0 01 1 1511-
472 TUBE; SPUTTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98067-708-0 01 1 1412-1510
472 TUBE; SPUTTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98067-708-0 01 1 1511-

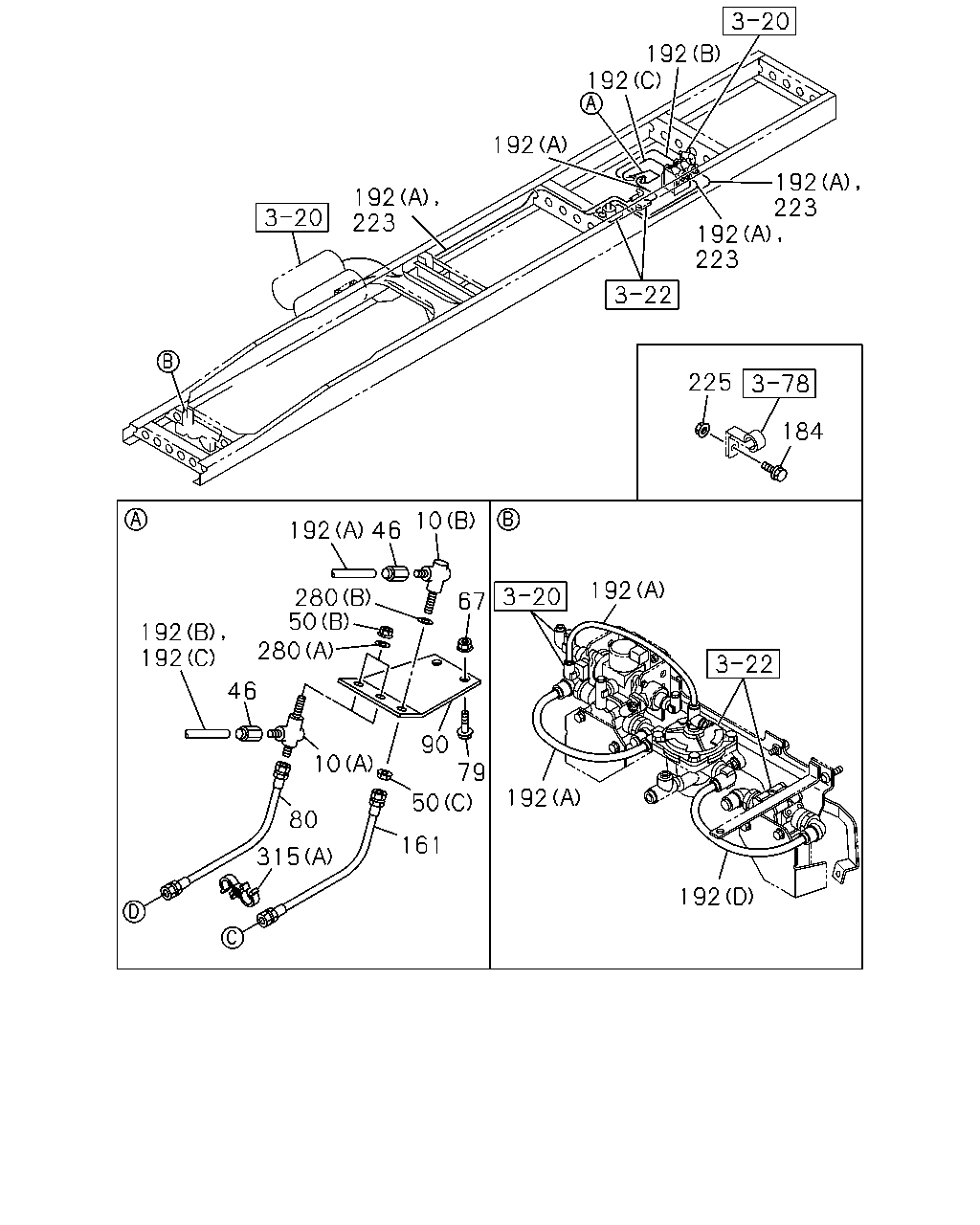

çizim 458802
192 223 192 192 192 192 223 192 223 184 225 192 46 10 67 280 50 280 46 192 192 10 50 90 161 79 80 315 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW 		0-92135-210-0 01 1 1412-
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY 		1-09650-182-1 02 1 1412-
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 1412-
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1412-1510
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 		0-91111-512-0 02 1 1412-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		0-91111-516-0 01 1 1412-
67 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1412-
79 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 1412-
80 HOSE; FLEX,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=660 		1-09363-814-0 02 1 1412-
90 BRACKET; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-851-1 01 1 1412-
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=680 		1-09363-742-0 01 1 1412-
184 BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 1412-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 1412-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 1412-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98109-842-0 01 1 1412-1507
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98308-959-0 01 1 1508-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1412-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1412-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1412-
225 NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 01 1 1412-
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2 		0-91510-812-0 02 1 1412-
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16.2 		0-91510-816-0 01 1 1412-
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14 		8-94238-572-0 01 1 1412-1510
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 		8-94238-572-0 01 1 1511-
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 1412-

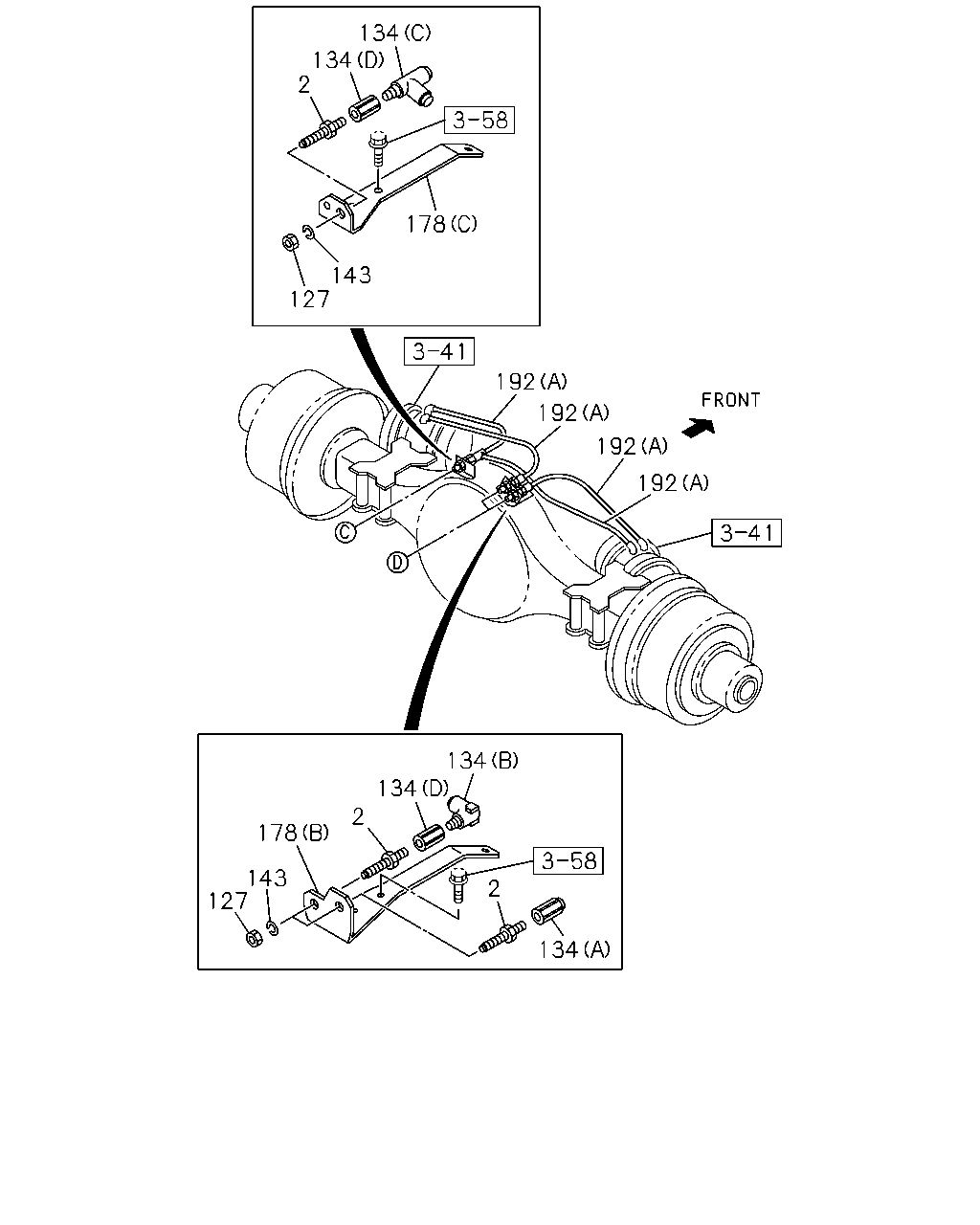

çizim 458816
134 134 2 178 143 127 192 192 192 192 134 134 2 178 143 127 2 134
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 01 1 1412-
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 02 1 1412-
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 01 1 1412-
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 02 1 1412-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1412-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1412-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1412-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1412-
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 01 1 1412-
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 02 1 1412-
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-052-1 01 1 1412-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98031-034-1 01 1 1412-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-823-0 01 1 1412-
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-054-1 01 1 1412-1510
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98017-054-1 01 1 1511-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 1412-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 1412-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98109-842-0 01 1 1412-1507
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98308-959-0 01 1 1508-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1412-
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1412-
