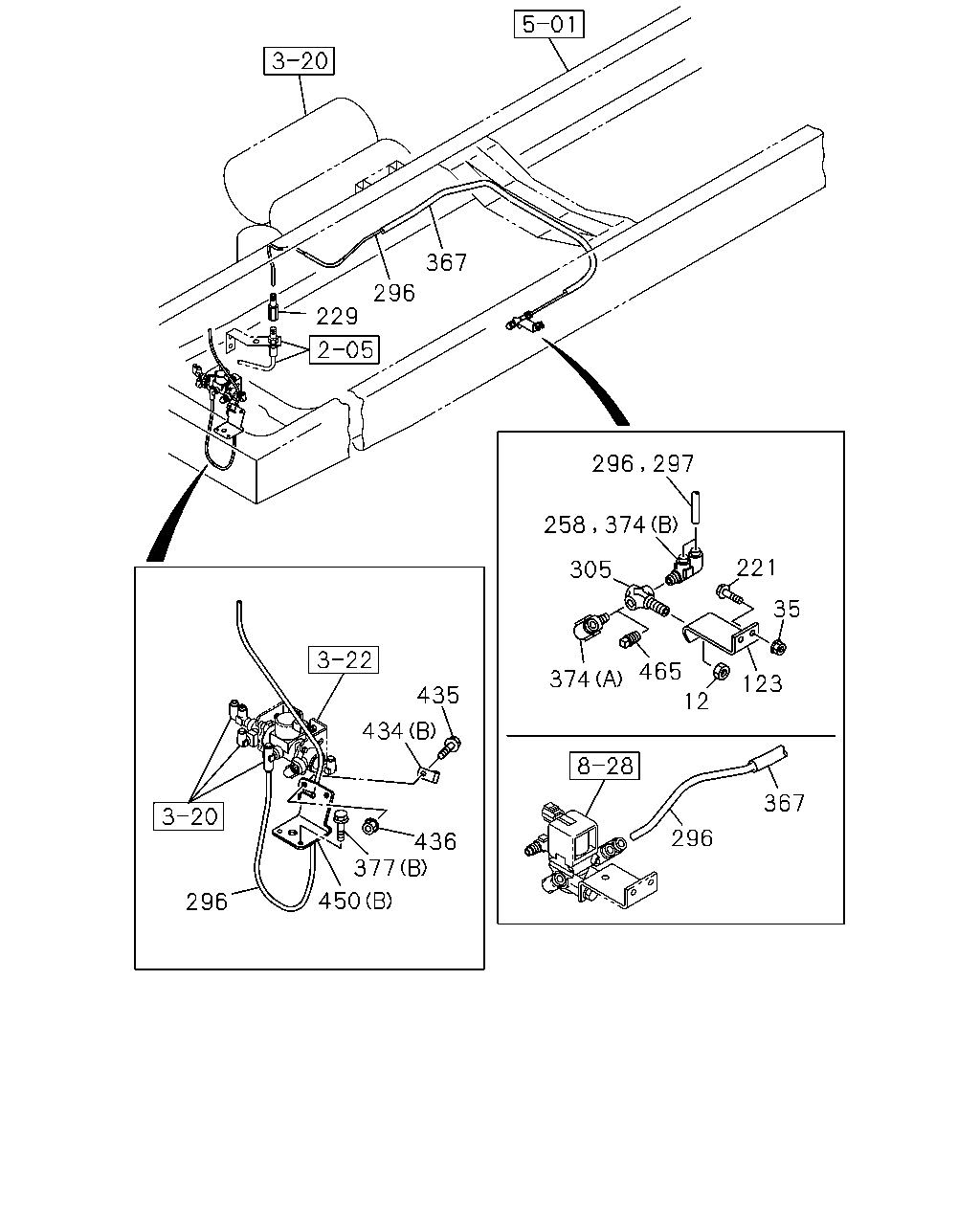

3-70 — BRAKE PIPING; AIR,AIR MASTER (#153398) — 185 parça

367 296 229 435 434 296 436 377 450 296 297 258 374 305 221 35 123 465 12 374 296 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1412-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1412-
123	BRACKET; UNION EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1412-
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1412-
229	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1412-
258	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1412-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1412-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1412-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1412-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1412-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1412-
374	CONNECTOR 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (B) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1412-
374	CONNECTOR 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-
374	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-
377	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X25 FLANGE	0-28650-825-0	02	1	1412-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	02	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	01	1	1412-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1412-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1412-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1412-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1412-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1412-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	03	1	1412-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1412-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1412-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1412-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1412-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1412-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1412-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98158-602-0	01	1	1412-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98232-692-0	01	1	1412-
465	PLUG RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1412-

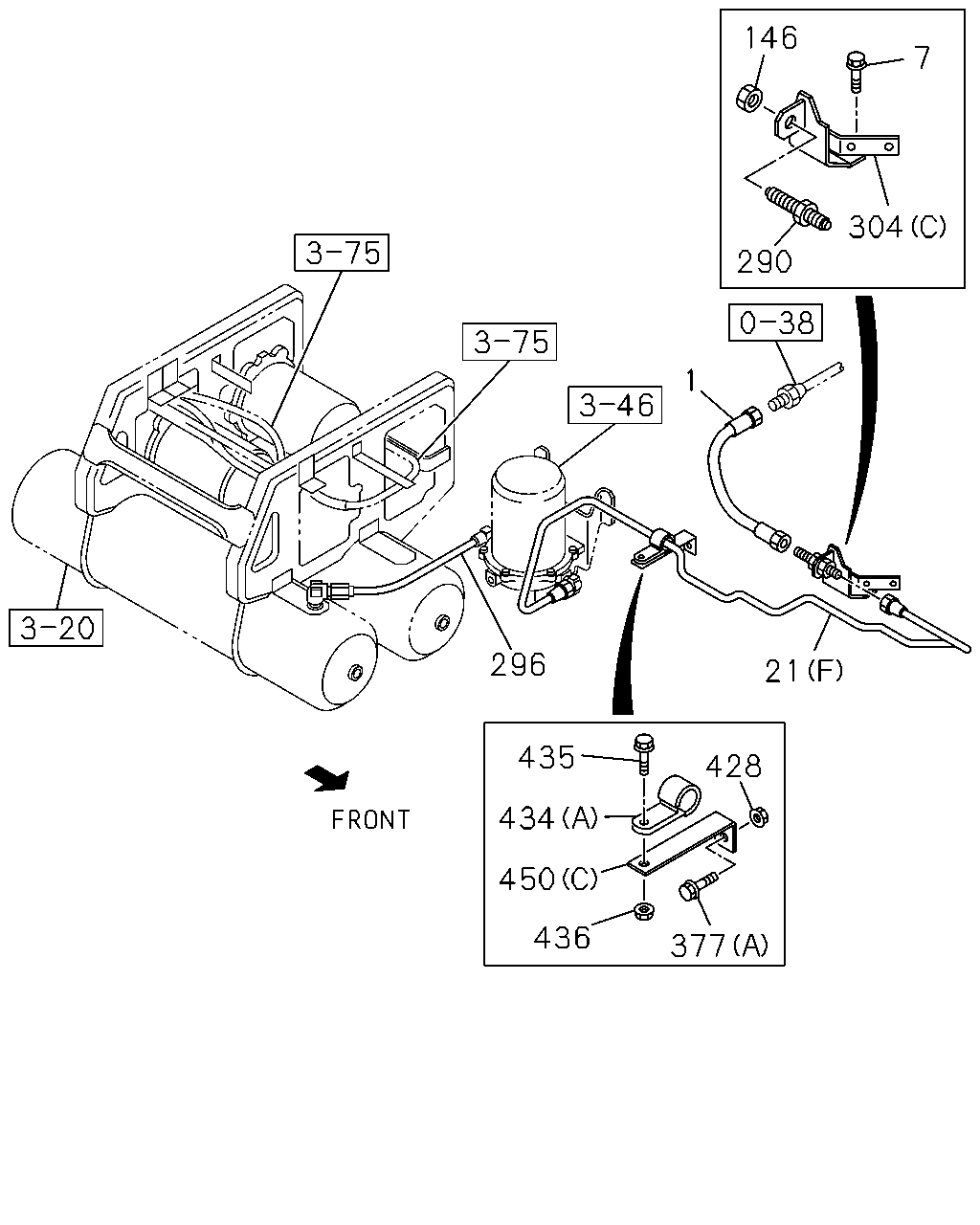

377 436 450 434 435 428 21 296 1 290 304 7 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1412-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	1412-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (F) L=1955	8-98226-430-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819	8-98211-170-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1744	8-98211-160-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1545	8-98211-175-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) L=1546	8-98211-191-0	01	1	1412-
146	NUT; UNION 4HK1-TCS ENG(RJS) M22	0-91110-522-0	01	1	1412-
290	UNION; AIR PIPE 4HK1-TCS ENG(RJS) M22	0-92123-315-0	01	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1412-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1412-
304	BRACKET; UNION 6HK1-TCN ENG(82L) (B)	8-98211-164-1	01	1	1412-
304	BRACKET; UNION 6HK1-TCN ENG(82L) (A)	8-98229-691-0	01	1	1412-
377	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X25 FLANGE	0-28650-825-0	02	1	1412-
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1412-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	02	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	01	1	1412-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1412-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1412-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1412-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1412-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1412-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	03	1	1412-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1412-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1412-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1412-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1412-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1412-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1412-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98158-602-0	01	1	1412-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98232-692-0	01	1	1412-

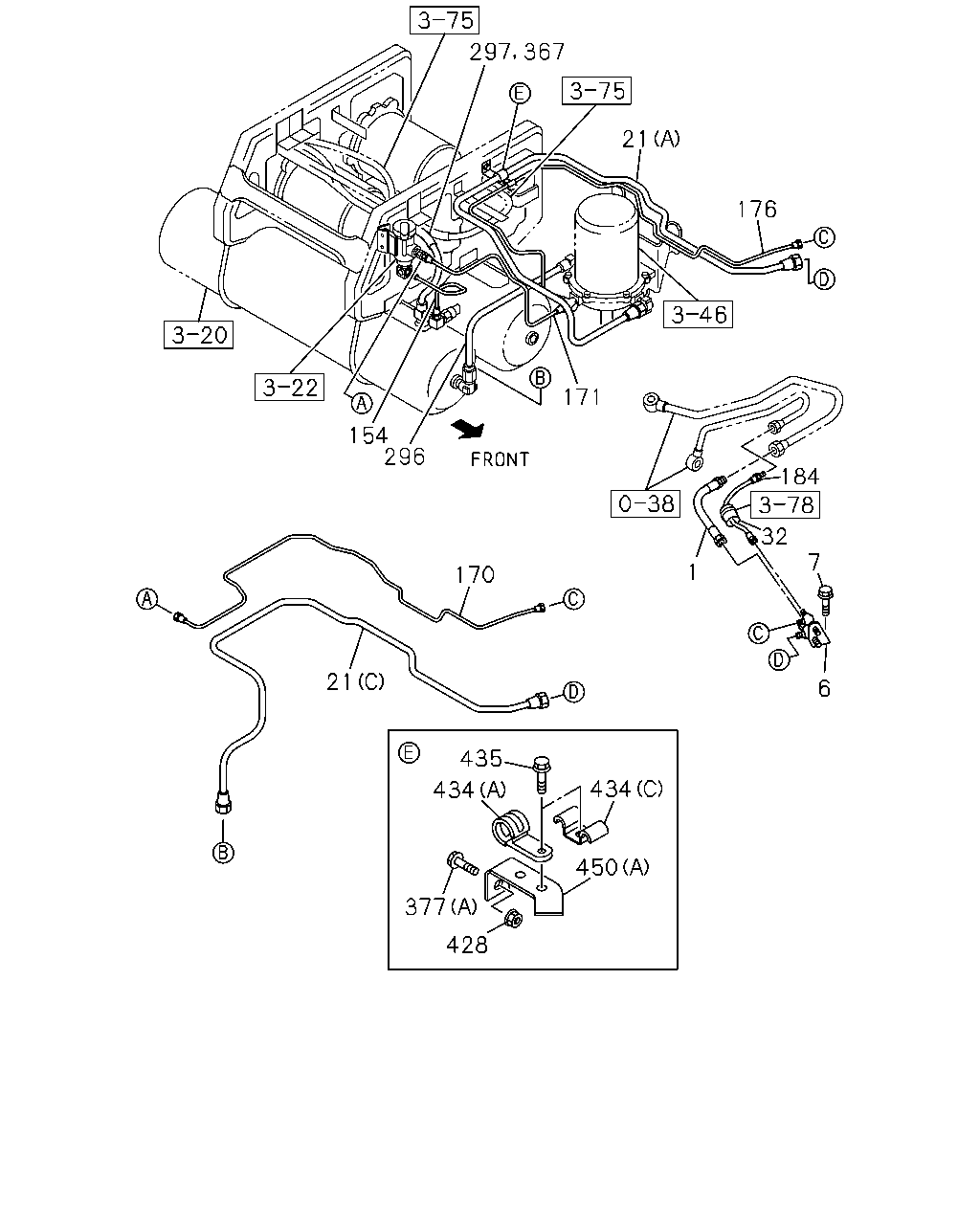

428 377 450 434 434 435 6 7 1 184 32 171 176 21 367 297 154 296 170 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1412-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	1412-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L)	8-98117-117-0	01	1	1412-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (F) L=1955	8-98226-430-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819	8-98211-170-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1744	8-98211-160-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1545	8-98211-175-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) L=1546	8-98211-191-0	01	1	1412-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) ID=32 OD=36 L=50	1-09337-023-0	01	1	1412-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98189-830-0	01	1	1412-
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	8-98211-158-0	01	1	1412-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	8-98211-190-0	01	1	1412-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1412-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1412-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=852 SERVICED BY L=900	1-47428-813-0	01	1	1412-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=864 SERVICED BY L=900	1-47428-813-0	01	1	1412-
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) L=350	1-09363-624-0	01	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1412-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1412-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1412-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1412-
377	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X25 FLANGE	0-28650-825-0	02	1	1412-
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1412-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	02	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	01	1	1412-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1412-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1412-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1412-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1412-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1412-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	03	1	1412-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1412-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1412-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98158-602-0	01	1	1412-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98232-692-0	01	1	1412-

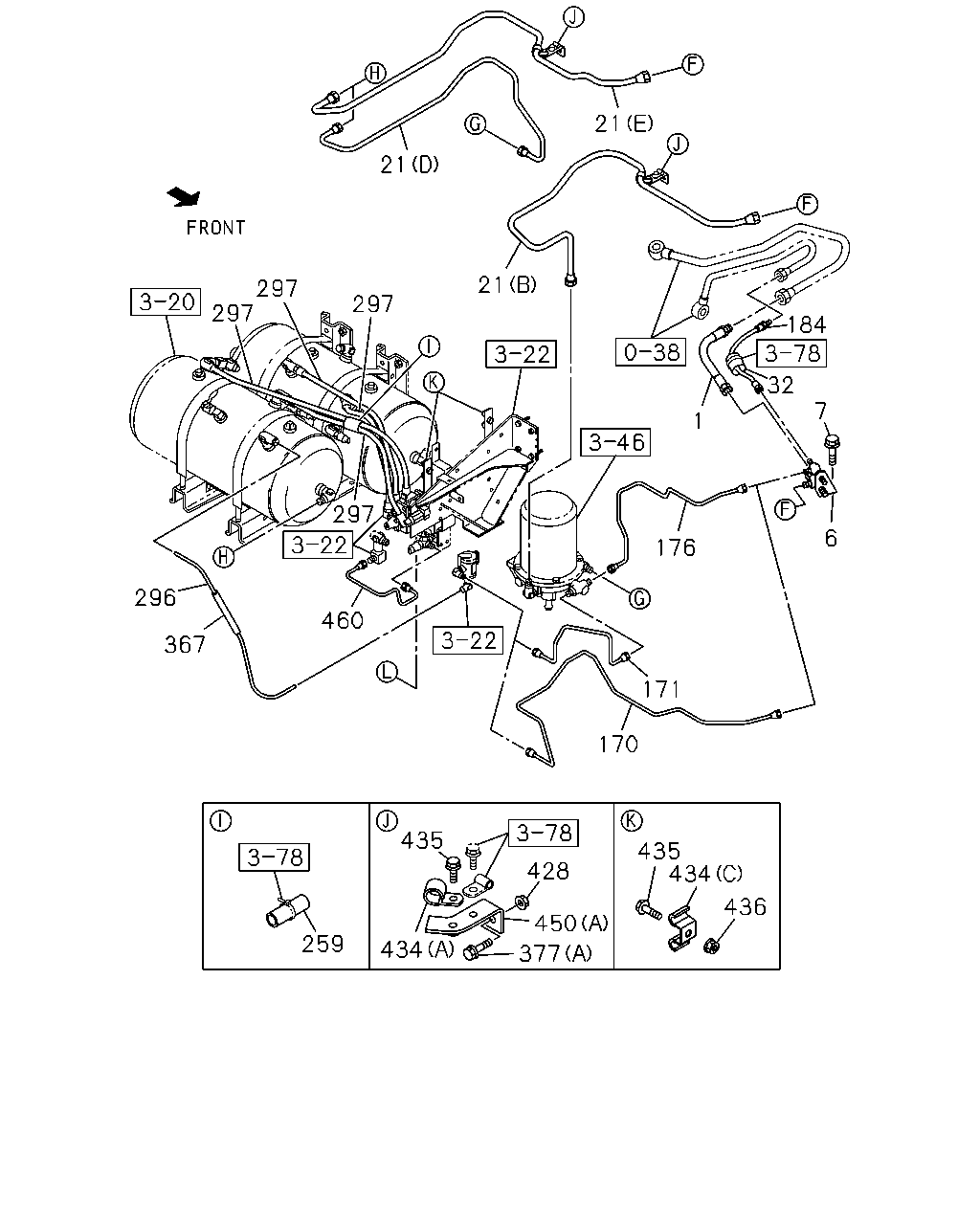

21 21 21 297 297 297 296 367 460 297 1 6 7 176 171 170 259 435 434 450 377 428 435 434 436 32 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1412-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	1412-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L)	8-98117-117-0	01	1	1412-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (F) L=1955	8-98226-430-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819	8-98211-170-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1744	8-98211-160-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1545	8-98211-175-0	01	1	1412-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) L=1546	8-98211-191-0	01	1	1412-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) ID=32 OD=36 L=50	1-09337-023-0	01	1	1412-
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	8-98211-158-0	01	1	1412-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	8-98211-190-0	01	1	1412-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1412-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1412-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=852 SERVICED BY L=900	1-47428-813-0	01	1	1412-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=864 SERVICED BY L=900	1-47428-813-0	01	1	1412-
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) L=350	1-09363-624-0	01	1	1412-
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1412-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1412-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1412-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1412-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1412-
377	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X25 FLANGE	0-28650-825-0	02	1	1412-
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1412-
434	CLIP 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	02	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	02	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	01	1	1412-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) ID=16 L=20	0-95235-536-0	01	1	1412-
434	CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1412-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1412-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1412-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1412-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1412-
435	BOLT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	03	1	1412-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1412-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1412-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1412-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1412-
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1412-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1412-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98158-602-0	01	1	1412-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98232-692-0	01	1	1412-
460	PIPE; AIR,PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98184-394-0	01	1	1412-

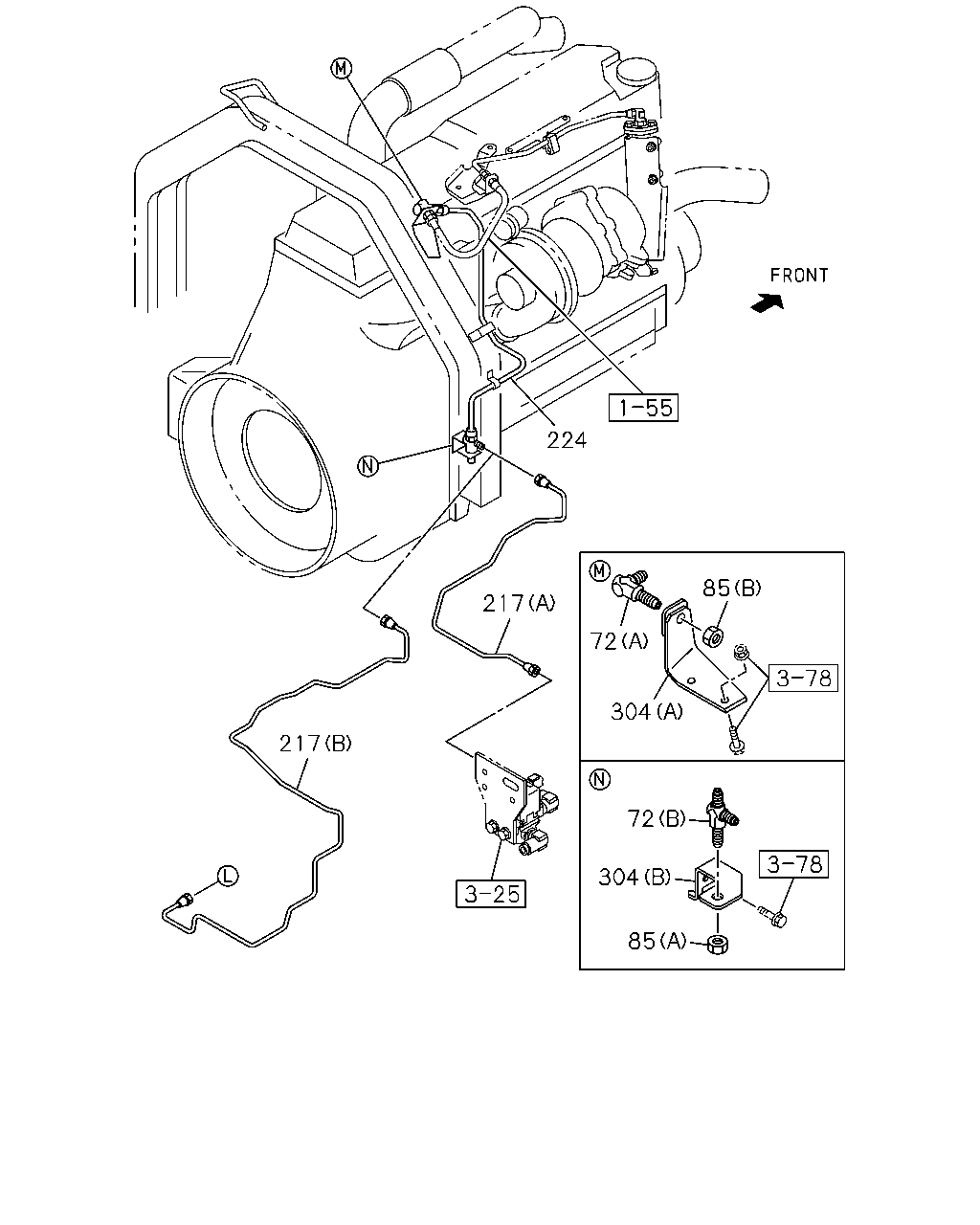

224 217 217 72 304 85 72 304 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	UNION; AIR PIPE 6HK1-TCN ENG(82L) (A) M12 ELBOW	0-92125-006-0	01	1	1412-
72	UNION; AIR PIPE 6HK1-TCN ENG(82L) (B) M12 2WAY	1-09654-059-2	01	1	1412-
85	NUT; UNION 6HK1-TCN ENG(82L) (A) M12	0-91111-512-0	01	1	1412-
85	NUT; UNION 6HK1-TCN ENG(82L) (B) M12	9-09840-280-0	01	1	1412-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=891 SERVICED BY L=900	1-47428-813-0	01	1	1412-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1897 SERVICED BY L=2000	1-47428-823-0	01	1	1412-
224	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCN ENG(82L) L=667 SERVICED BY L=700	1-47428-811-0	01	1	1412-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1412-
304	BRACKET; UNION 6HK1-TCN ENG(82L) (B)	8-98211-164-1	01	1	1412-
304	BRACKET; UNION 6HK1-TCN ENG(82L) (A)	8-98229-691-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
