3-25 — BRAKE LOCK CONTROL (#153388) — 10 parça

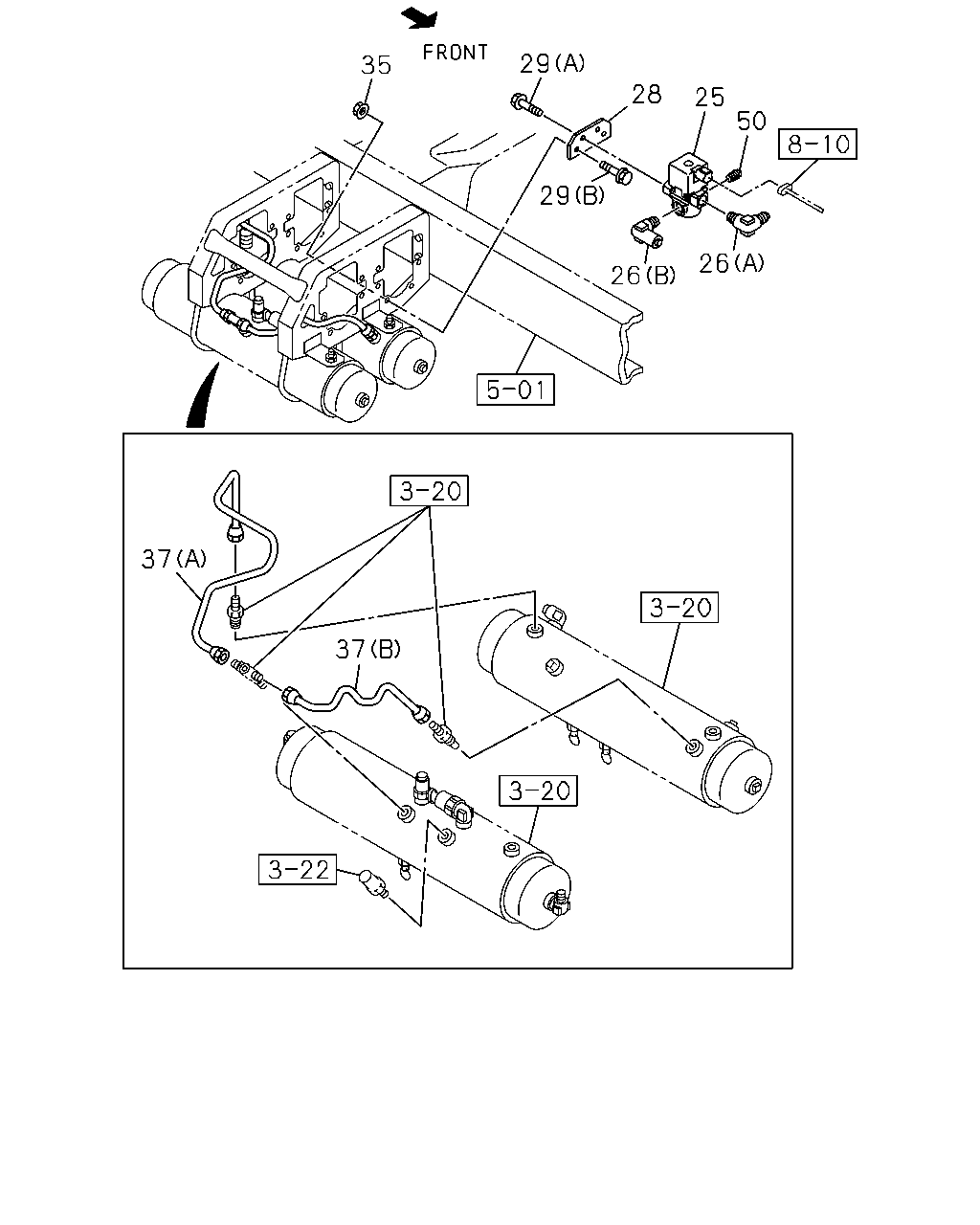

çizim 458751
35 29 28 29 25 26 26 50 37 37
BalonParca AdiParca NoAdetTipApplied Date A B
25 VALVE; CONT,BRK LOCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82563-871-2 01 1 1412- ●
26 UNION; CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1412- ●
26 UNION; CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1412- ●
28 BRACKET; CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98273-321-0 01 1 1412- ●
29 BOLT; BRKT,CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1412- ●
29 BOLT; BRKT,CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE 		0-28651-025-0 02 1 1412- ●
35 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE 		0-91180-210-0 02 1 1412- ●
37 PIPE; AIR,CHECK VLV TO DBL CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-98178-585-0 01 1 1412- ● ●
37 PIPE; AIR,CHECK VLV TO DBL CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98197-586-0 01 1 1412- ● ●
50 PLUG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4 		9-99204-513-0 01 1 1412- ●
