2-85 — POWER TAKE OFF CONTROL (#153380) — 15 parça
çizim 458021
15 3 3
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1412-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 1412-

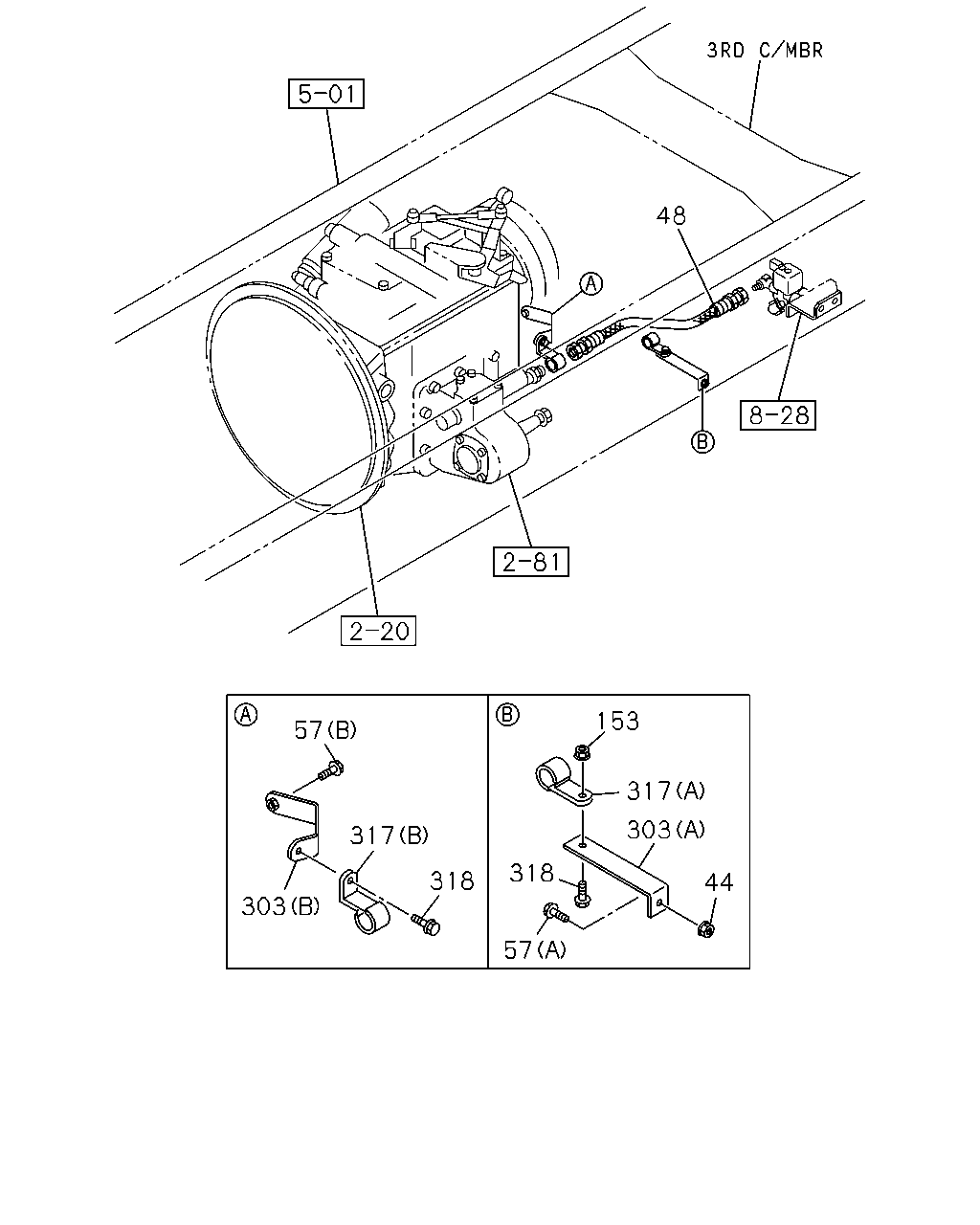

çizim 459124
57 318 153 317 303 44 317 318 303 57 48
BalonParca AdiParca NoAdetTipApplied Date
44 NUT; BRKT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 01 1 1412-
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> L=720 		1-09363-970-0 01 1 1412-
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=470 		1-09363-714-0 01 1 1412-
57 BOLT; BRKT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (A) M8X35 FLANGE 		0-28650-835-0 01 1 1412-
57 BOLT; BRKT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M10X25 FLANGE 		0-28651-025-0 01 1 1412-
153 NUT; CLIP
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 01 1 1412-
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (A) L=145 		1-47475-655-0 01 1 1412-
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) 		8-98136-973-0 01 1 1412-
317 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (A) ID=13 L=32 		0-95235-265-0 01 1 1412-
317 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) ID=15 L=22 H=30 		1-09701-215-1 01 1 1412-
318 BOLT; CLIP
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 1412-

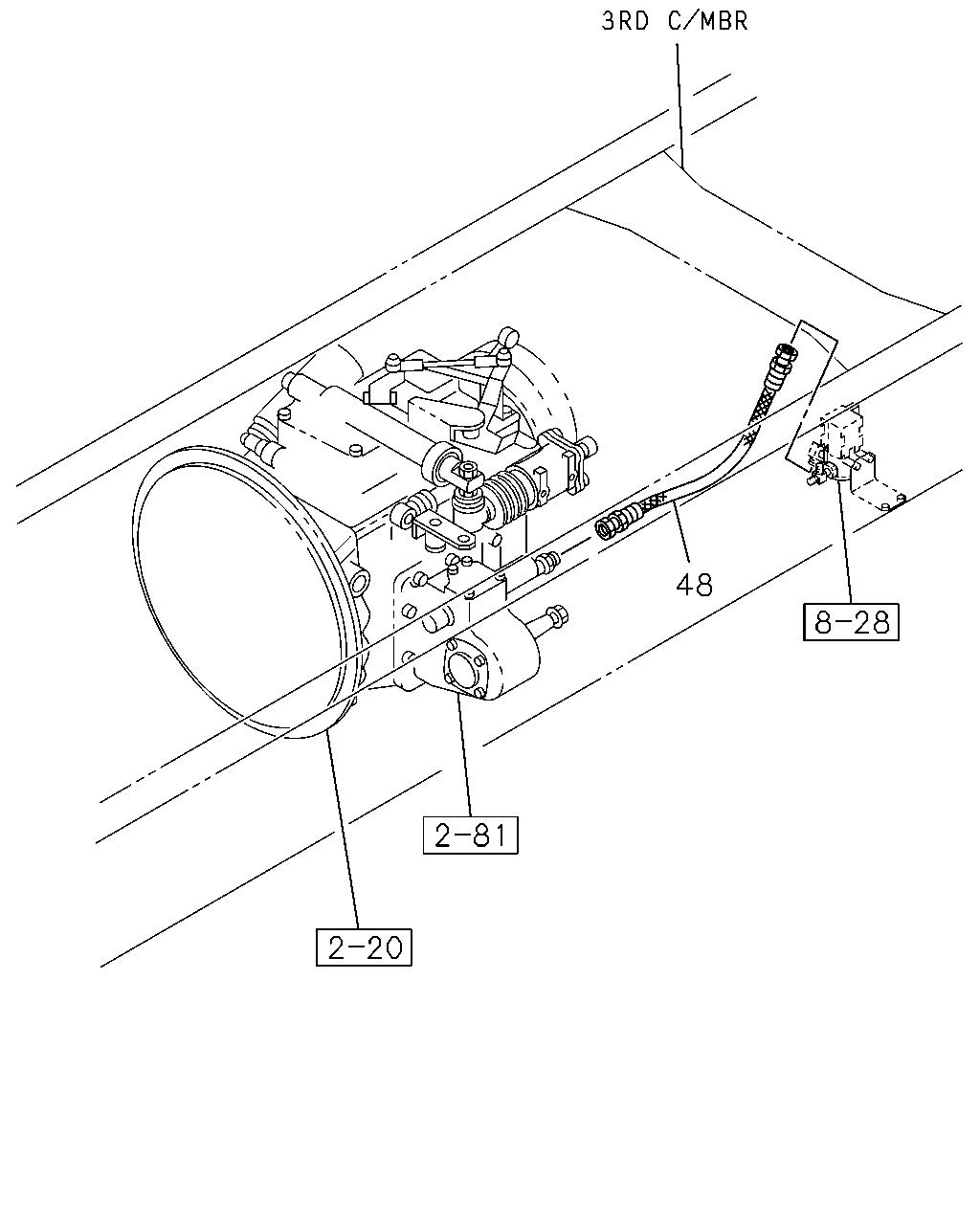

çizim 459510
48
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> L=720 		1-09363-970-0 01 1 1412-
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=470 		1-09363-714-0 01 1 1412-
