◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11660 - FVR MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-81A - POWER TAKE OFF; TRANSMISSION SIDE ▶
2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#153379) — 59 parça

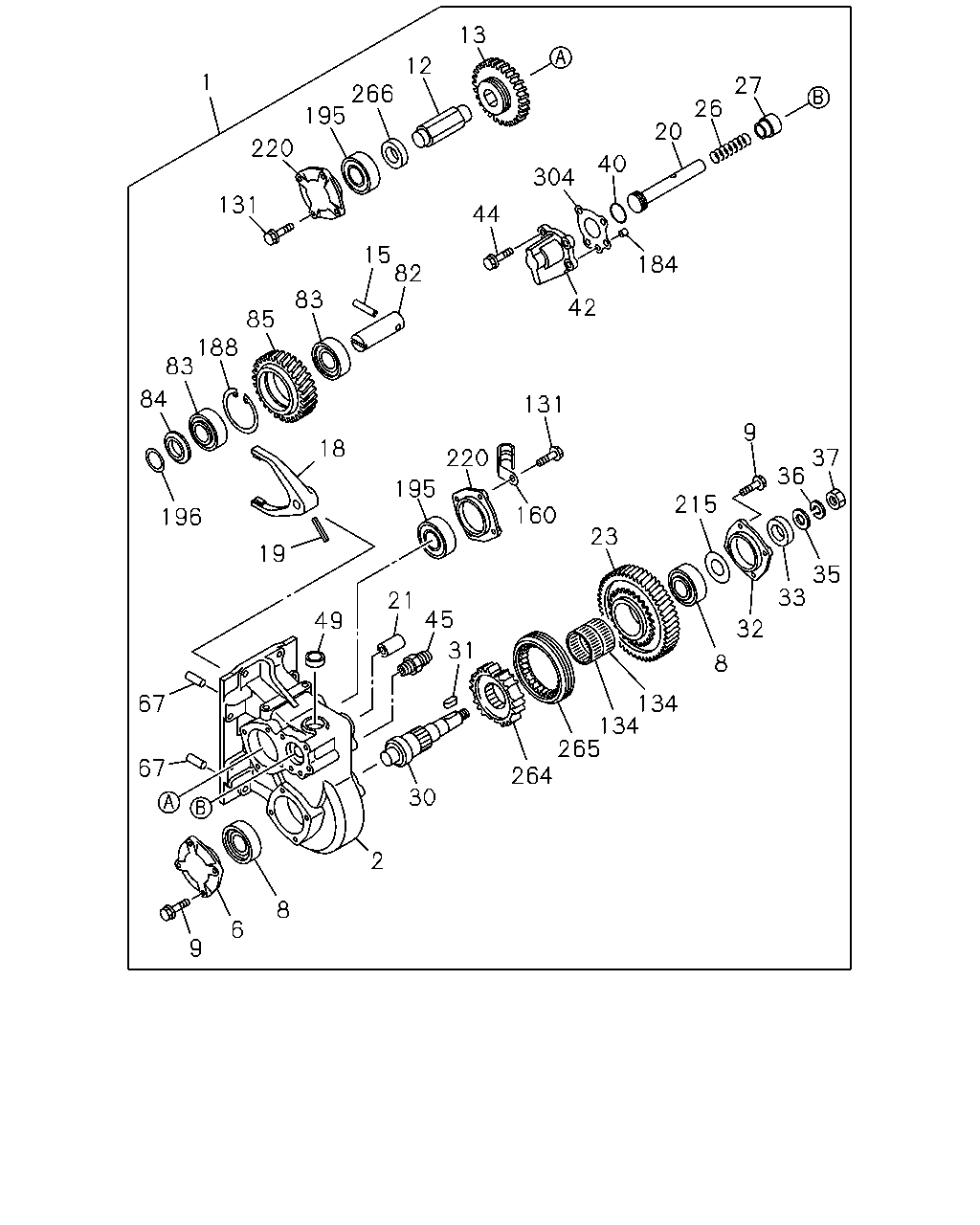

çizim 459048
13 1 12 266 195 220 131 83 85 188 83 84 15 44 304 40 20 26 27 184 42 131 220 18 195 19 196 49 45 23 160 21 31 264 134 265 134 32 8 33 215 36 37 9 35 30 2 8 6 9 67 67 82
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO GEAR=36/16(C5L) 		8-98238-578-1 01 1 1412-
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-577-0 01 1 1412-
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L) 		8-98238-785-1 01 1 1412-
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-784-0 01 1 1412-
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-910-0 01 1 1412-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		5-09820-017-0 02 1 1412-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28050-820-0 08 1 1412-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-791-0 01 1 1412-
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27 		8-98238-793-0 01 1 1412-
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4 		9-09678-514-0 01 1 1412-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-797-0 01 1 1412-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97306-596-0 01 1 1412-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-057-0 01 1 1412-
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98046-619-0 01 1 1412-
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L) Z=29 		8-98238-790-0 01 1 1412-
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37 		8-98238-789-0 01 1 1412-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-004-1 01 1 1412-
27 COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98153-945-0 01 1 1412-
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-787-0 01 1 1412-
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25 		8-98068-088-0 01 1 1412-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97305-794-0 01 1 1412-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38159-007-0 01 1 1412-
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 		0-91610-514-0 01 1 1412-
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2 		0-91510-814-0 01 1 1412-
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M14 		0-91111-514-0 01 1 1412-
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09561-324-0 01 1 1412-
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-798-0 01 1 1412-
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28050-820-0 04 1 1412-
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1412-
49 PLUG; IDLE SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98037-773-0 01 1 1412-
67 PIN; STRAIGHT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22 		8-98238-799-0 02 1 1412-
82 SHAFT; INPUT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-904-0 01 1 1412-
83 BEARING; INPUT SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		5-09820-017-0 02 1 1412-
84 COLLAR; INPUT SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-800-0 01 1 1412-
85 GEAR; INPUT SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28 		8-98238-795-0 01 1 1412-
131 BOLT; FLANGE
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28050-820-0 08 1 1412-
134 BEARING; NEEDLE,OUTPUT SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-803-0 02 1 1412-
160 CLIP; PTO A/T SIDE
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5 		5-09700-275-0 01 1 1412-
184 DOWEL; PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8 		9-11229-058-1 01 1 1412-
188 RING; SNAP,INPUT SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2 		1-09587-103-1 01 1 1412-
195 BEARING; ROLLER,TAPER,PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK 		8-97360-312-0 02 1 1412-
196 PIECE; THRUST
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50 		8-97106-724-0 02 1 1412-
196 PIECE; THRUST
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60 		8-97106-725-0 02 1 1412-
196 PIECE; THRUST
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65 		8-97106-726-0 02 1 1412-
196 PIECE; THRUST
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70 		8-97106-727-0 02 1 1412-
196 PIECE; THRUST
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80 		8-97106-728-0 02 1 1412-
196 PIECE; THRUST
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85 		8-97106-729-0 02 1 1412-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1 		5-33156-022-0 AR 1 1412-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2 		5-33156-024-0 AR 1 1412-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15 		8-98067-573-0 AR 1 1412-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40 		8-98067-574-0 AR 1 1412-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65 		8-98067-575-0 AR 1 1412-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80 		8-98067-576-0 AR 1 1412-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00 		8-98134-917-0 AR 1 1412-
220 COVER; IDLE SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98134-910-0 02 1 1412-
264 CLUTCH; OUTPUT SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-804-0 01 1 1412-
265 SLEEVE; OUTPUT SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-802-0 01 1 1412-
266 COLLAR; IDLE SHAFT
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98238-806-0 01 1 1412-
304 PACKING; PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98328-479-0 01 1 1412-
