Sayfa 2-39A - Isuzu EPC

2-39A — POWER ASSISTOR (#153377) — 66 parça

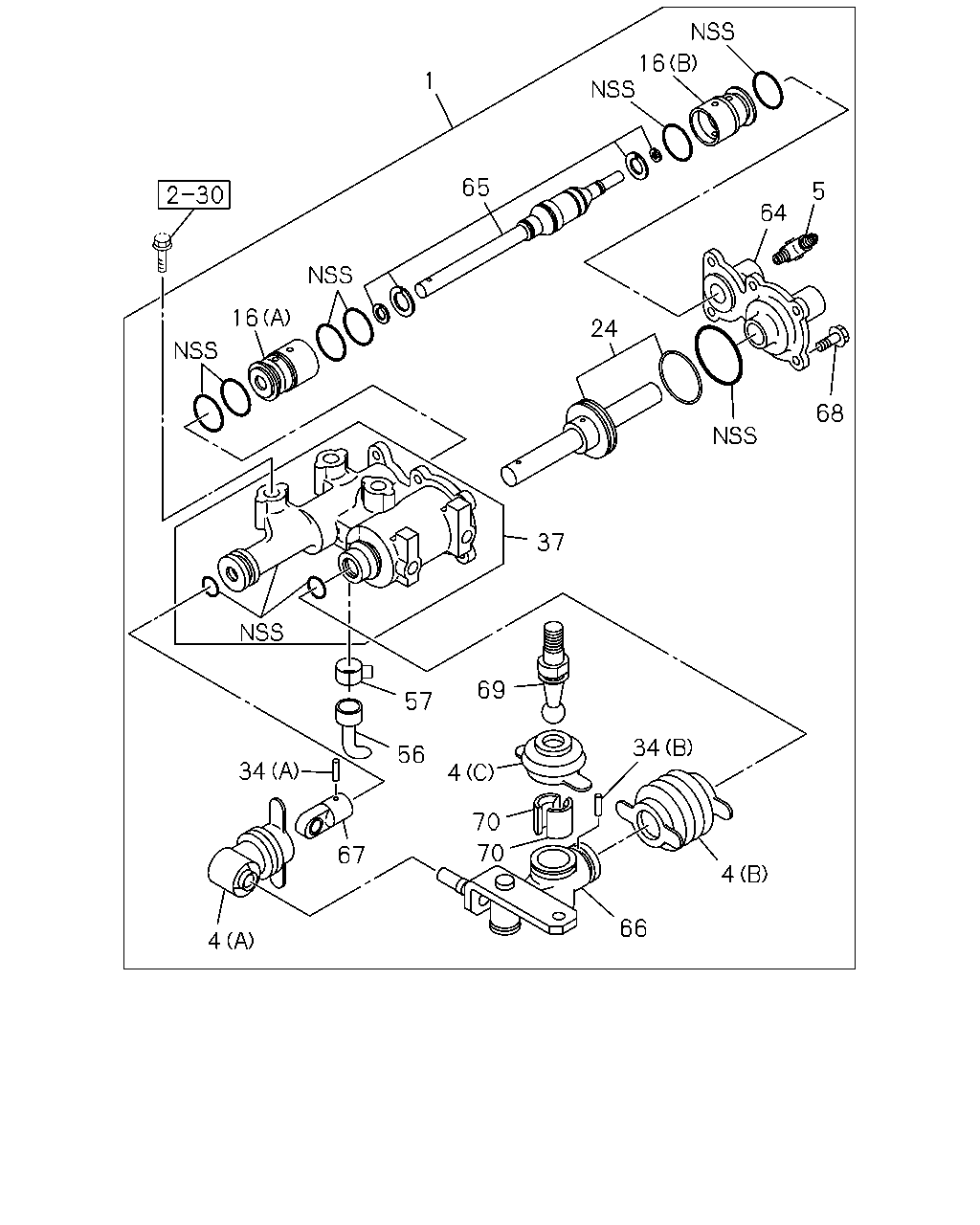

65 16 68 5 64 1 4 34 34 67 4 66 70 70 4 69 24 37 57 56 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98022-853-1	01	1	1412-
1	ASSISTOR ASM; POWER,SHIFT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	1412-
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	1412-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	1412-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	1412-
24	PISTON 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98065-242-0	01	1	1412-
24	PISTON 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	1412-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	1412-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	1412-
37	HOUSING; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-027-0	01	1	1412-
37	HOUSING; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	1412-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	1412-
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	1412-
64	COVER; HOUSING 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98025-483-0	01	1	1412-
64	COVER; HOUSING 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	1412-
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	1412-
66	JOINT ASM; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-137-0	01	1	1412-
66	JOINT ASM; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	1412-
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	1412-
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	1412-
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	1412-
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	1412-

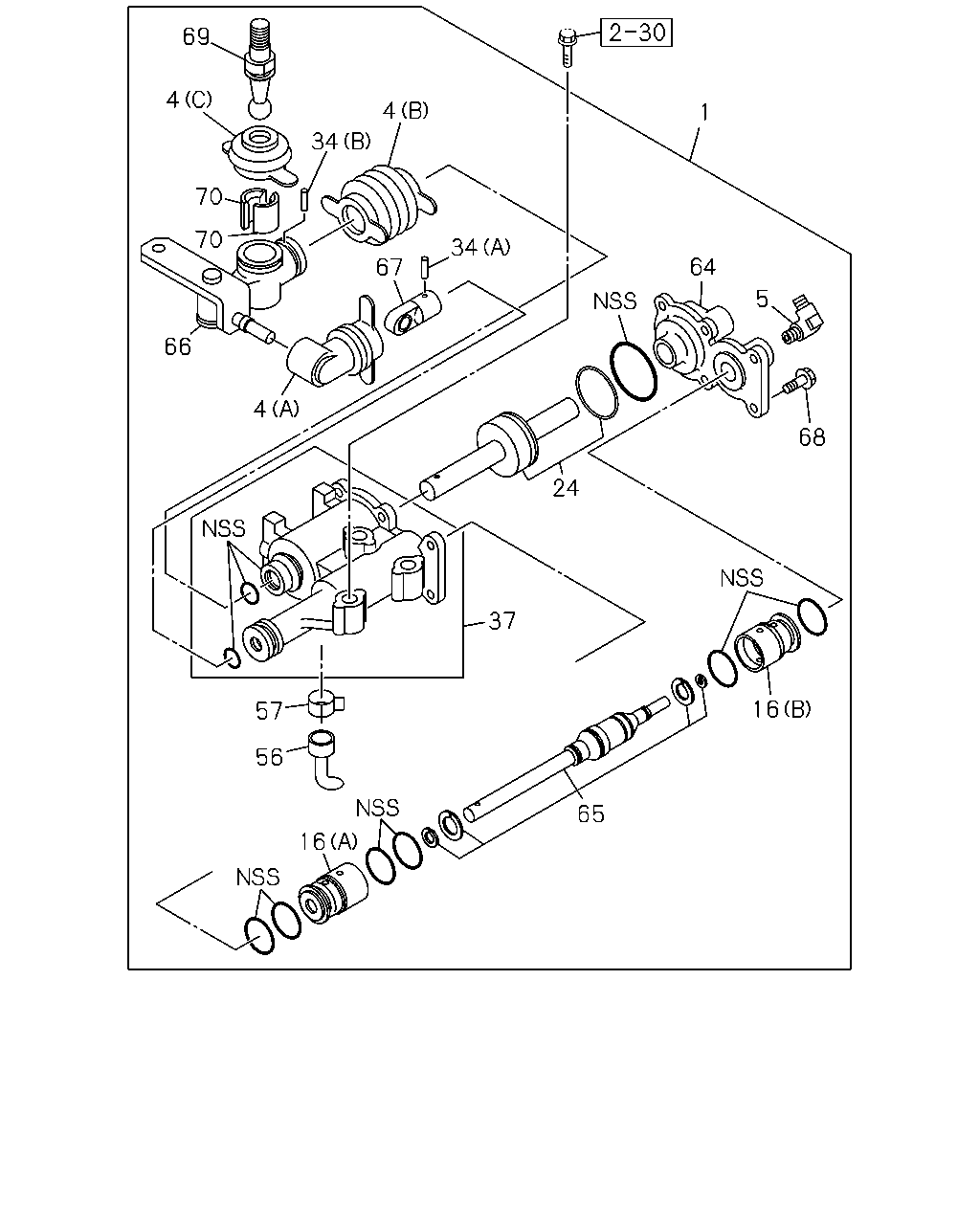

66 4 34 70 70 4 69 37 68 5 64 24 16 1 65 16 34 4 67 56 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98022-853-1	01	1	1412-
1	ASSISTOR ASM; POWER,SHIFT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	1412-
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	1412-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	1412-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	1412-
24	PISTON 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98065-242-0	01	1	1412-
24	PISTON 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	1412-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	1412-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	1412-
37	HOUSING; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-027-0	01	1	1412-
37	HOUSING; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	1412-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	1412-
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	1412-
64	COVER; HOUSING 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98025-483-0	01	1	1412-
64	COVER; HOUSING 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	1412-
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	1412-
66	JOINT ASM; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-137-0	01	1	1412-
66	JOINT ASM; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	1412-
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	1412-
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	1412-
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	1412-
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	1412-

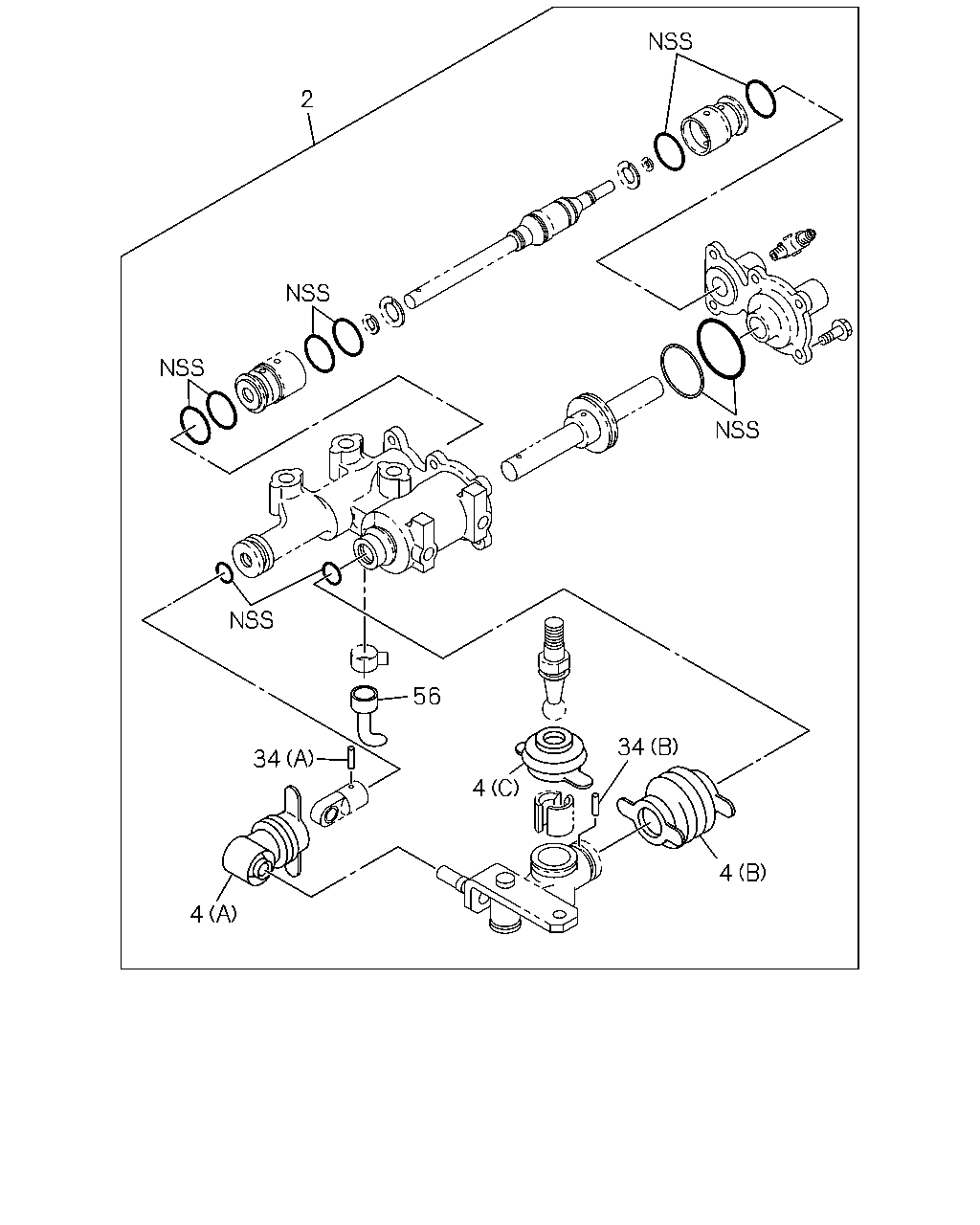

4 34 4 56 34 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-035-0	01	1	1412-
2	REPAIR KIT; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	1412-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	1412-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	1412-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	1412-

56 4 34 2 4 34 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-035-0	01	1	1412-
2	REPAIR KIT; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	1412-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	1412-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	1412-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	1412-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	1412-
