2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#153375) — 89 parça

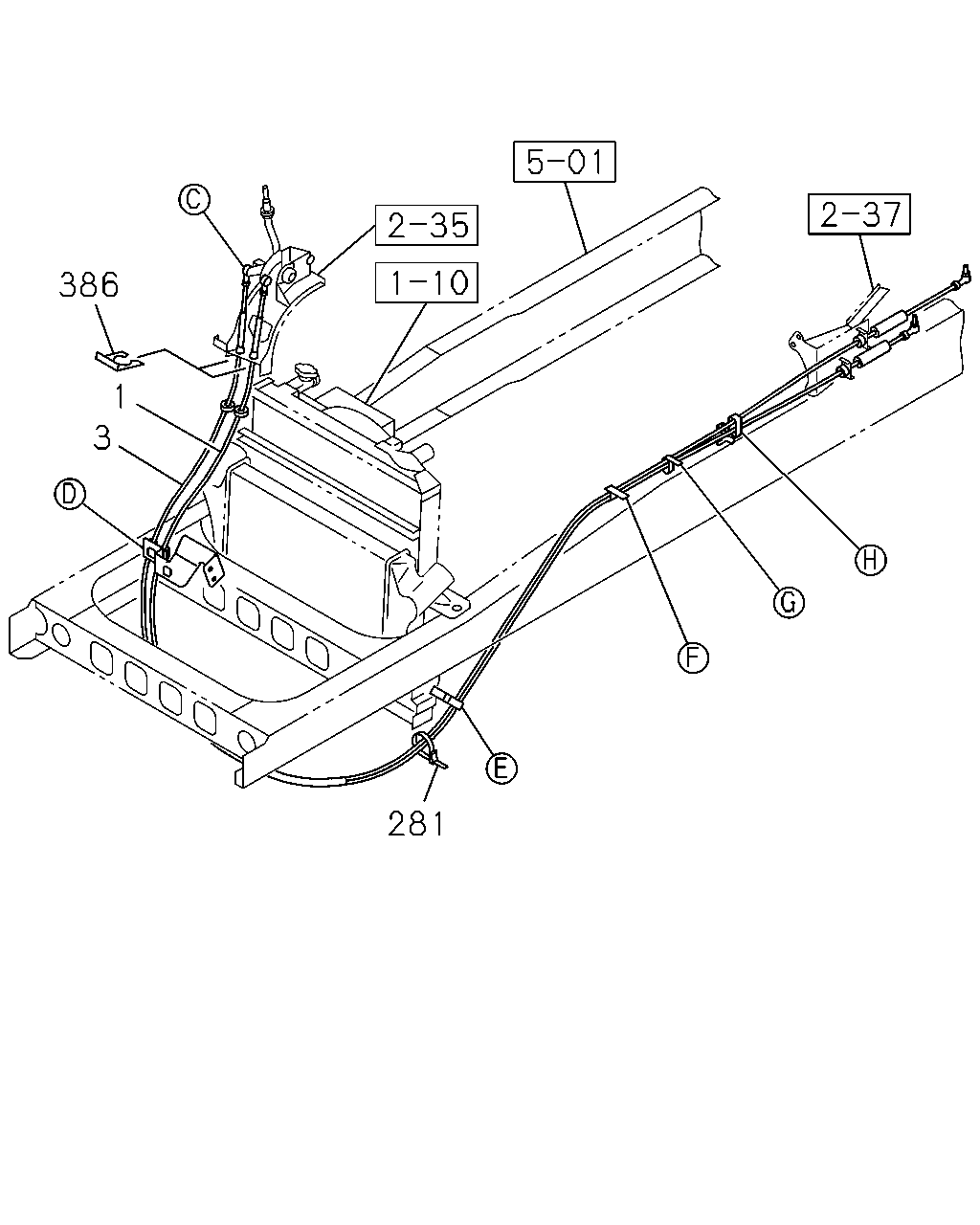

201 316 6 300 291 293 291 293 282 201 282 293 291 297 201 474 487 6 474 1 199 225 221 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> L=3120	8-98231-951-0	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3170	8-98231-950-1	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360	8-98017-472-6	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-471-7	01	1	1412-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3420	8-98047-806-6	01	1	1412-
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) L=3235	8-98231-955-0	01	1	1412-
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3565	8-98017-492-5	01	1	1412-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3595	8-98047-820-5	01	1	1412-
6	CLIP; CABLE FULLER FSO5206B OD M/T(Y4V) (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1412-
6	CLIP; CABLE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1412-
6	CLIP; CABLE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1412-
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1412-
201	BOLT; BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28050-820-0	01	1	1412-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) M8X16 FLANGE	0-28050-816-0	01	1	1412-
201	BOLT; BRKT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	1412-
201	BOLT; BRKT 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1412-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) M12X35 FLANGE	0-28151-235-0	01	1	1412-
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1412-
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1412-
282	BRACKET; TRANS SIDE 6HK1-TCN ENG(82L) (A)	8-98010-418-0	01	1	1412-
282	BRACKET; TRANS SIDE 6HK1-TCN ENG(82L) (B)	8-98171-762-0	01	1	1412-
291	CLIP; SHIFT TO SELECT,FRAME 6HK1-TCN ENG(82L) (A) ID=11X2 L=16	0-95325-026-0	02	1	1412-
291	CLIP; SHIFT TO SELECT,FRAME 6HK1-TCN ENG(82L) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1412-
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	01	1	1412-
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) (B) M8X20 FLANGE	0-28650-820-0	01	1	1412-
297	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1412-
300	BOLT; CLIP FULLER FSO5206B OD M/T(Y4V) M8X20 FLANGE	0-28650-820-0	01	1	1412-
300	BOLT; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	1412-
316	BRACKET; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	1412-
316	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V)	8-98086-439-0	01	1	1412-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	01	1	1412-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	02	1	1412-
487	BRACKET; CONT CABLE 4HK1-TCS ENG(RJS)	8-98080-013-2	01	1	1412-
487	BRACKET; CONT CABLE 6HK1-TCN ENG(82L)	8-98137-772-0	01	1	1412-

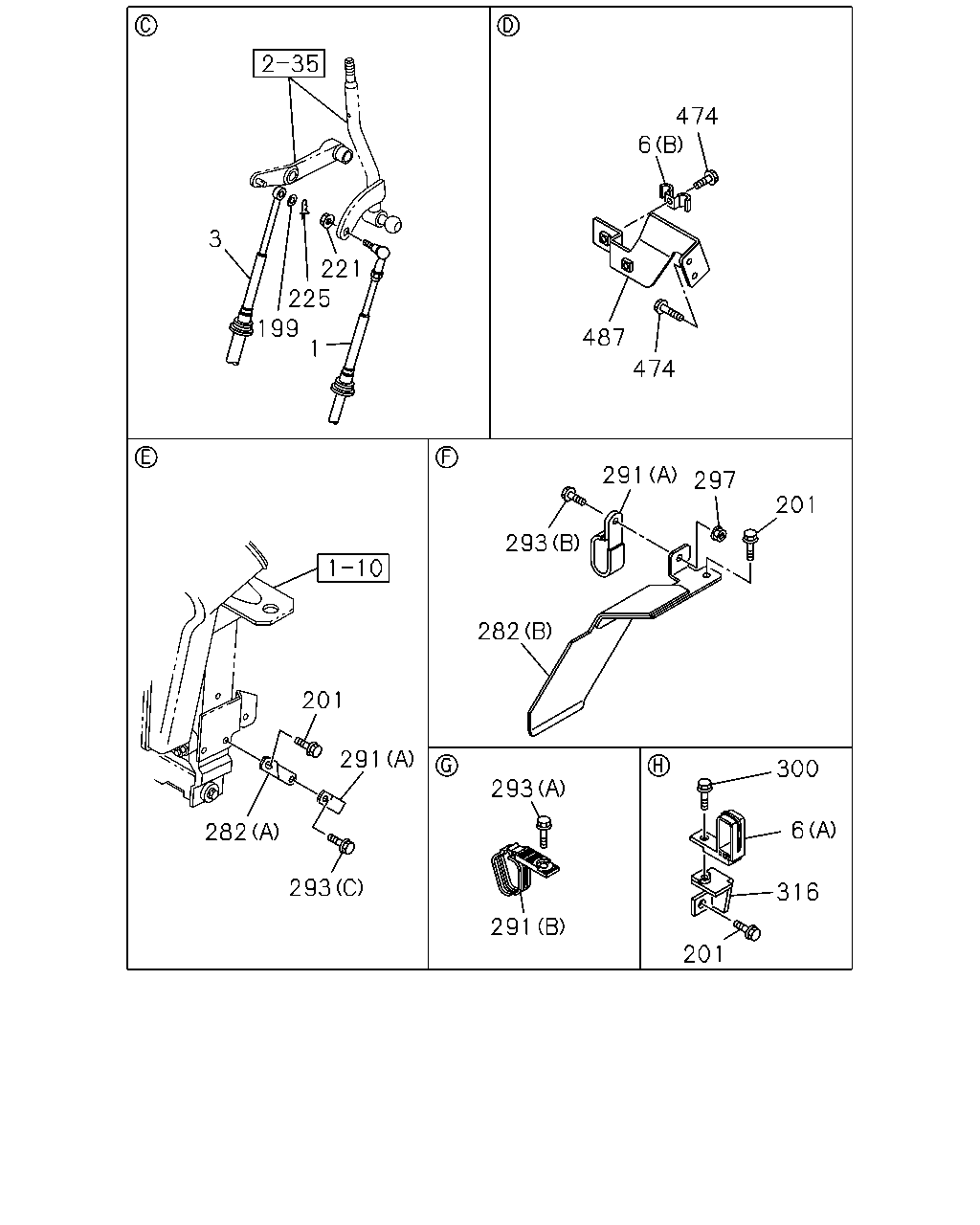

3 1 1 225 199 221 3 487 6 474 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> L=3120	8-98231-951-0	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3170	8-98231-950-1	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360	8-98017-472-6	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-471-7	01	1	1412-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3420	8-98047-806-6	01	1	1412-
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) L=3235	8-98231-955-0	01	1	1412-
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3565	8-98017-492-5	01	1	1412-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3595	8-98047-820-5	01	1	1412-
6	CLIP; CABLE FULLER FSO5206B OD M/T(Y4V) (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1412-
6	CLIP; CABLE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1412-
6	CLIP; CABLE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1412-
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1412-
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1412-
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1412-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	01	1	1412-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	02	1	1412-
487	BRACKET; CONT CABLE 4HK1-TCS ENG(RJS)	8-98080-013-2	01	1	1412-
487	BRACKET; CONT CABLE 6HK1-TCN ENG(82L)	8-98137-772-0	01	1	1412-

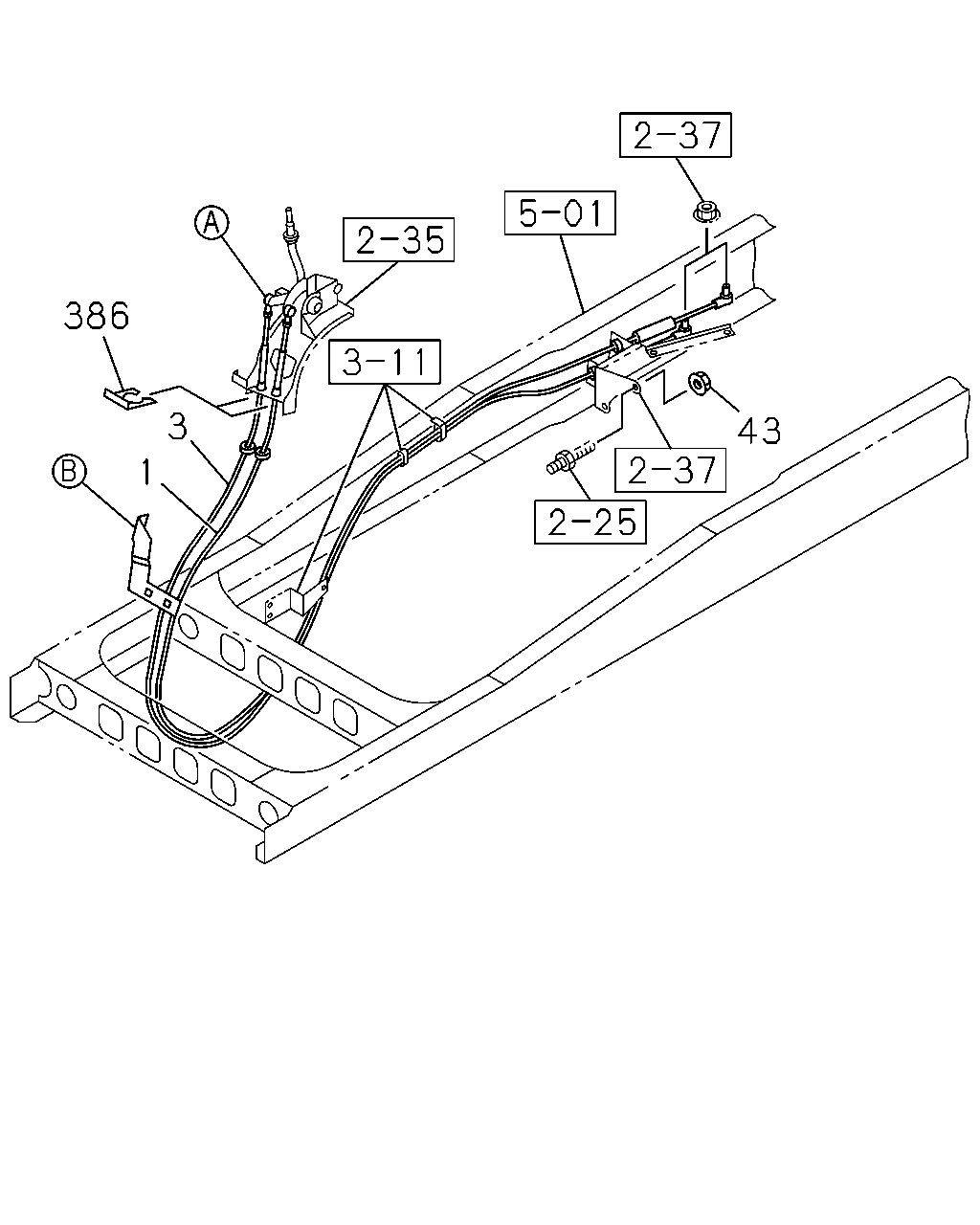

281 3 1 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> L=3120	8-98231-951-0	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3170	8-98231-950-1	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360	8-98017-472-6	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-471-7	01	1	1412-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3420	8-98047-806-6	01	1	1412-
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) L=3235	8-98231-955-0	01	1	1412-
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3565	8-98017-492-5	01	1	1412-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3595	8-98047-820-5	01	1	1412-
281	CLIP; BAND 6HK1-TCN ENG(82L) L=300	1-09707-001-1	01	1	1412-
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1412-

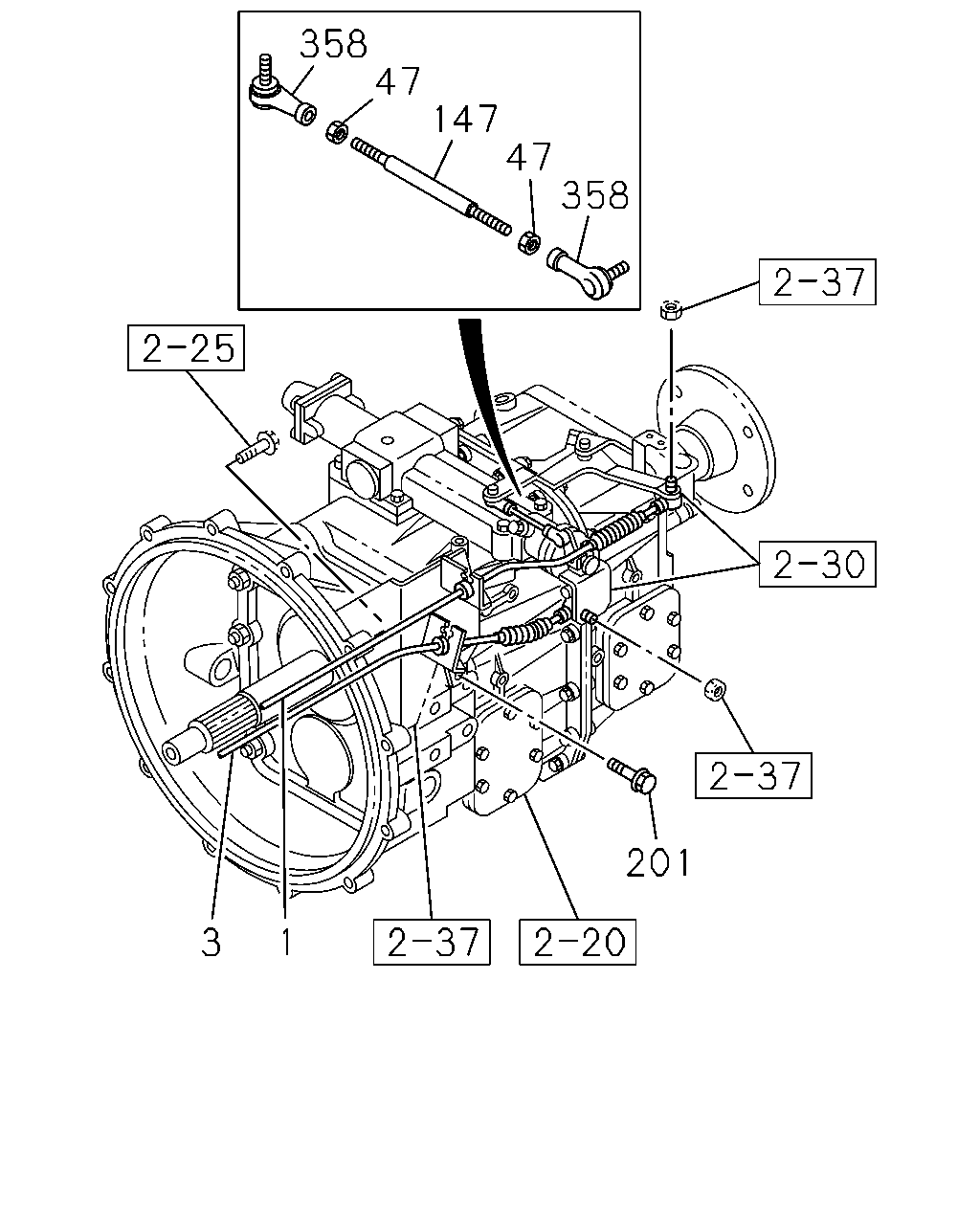

201 1 3 358 47 147 47 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> L=3120	8-98231-951-0	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3170	8-98231-950-1	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360	8-98017-472-6	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-471-7	01	1	1412-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3420	8-98047-806-6	01	1	1412-
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) L=3235	8-98231-955-0	01	1	1412-
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3565	8-98017-492-5	01	1	1412-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3595	8-98047-820-5	01	1	1412-
47	NUT; LK,LINK ROD FULLER FSO5206B OD M/T(Y4V) M8	0-91111-508-0	02	1	1412-
147	ROD; LINK FULLER FSO5206B OD M/T(Y4V)	0-84000-808-0	01	1	1412-
201	BOLT; BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28050-820-0	01	1	1412-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) M8X16 FLANGE	0-28050-816-0	01	1	1412-
201	BOLT; BRKT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	1412-
201	BOLT; BRKT 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1412-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) M12X35 FLANGE	0-28151-235-0	01	1	1412-
358	ROD END; SCREW FULLER FSO5206B OD M/T(Y4V) L=45.5	1-09760-118-1	02	1	1412-

43 386 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> L=3120	8-98231-951-0	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3170	8-98231-950-1	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360	8-98017-472-6	01	1	1412-
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385	8-98017-471-7	01	1	1412-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3420	8-98047-806-6	01	1	1412-
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) L=3235	8-98231-955-0	01	1	1412-
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3565	8-98017-492-5	01	1	1412-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) L=3595	8-98047-820-5	01	1	1412-
43	NUT; BRKT MZW6P M/T(RSZ) M10 FLANGE	0-91180-210-0	02	1	1412-
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
