Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#153372) — 241 parça

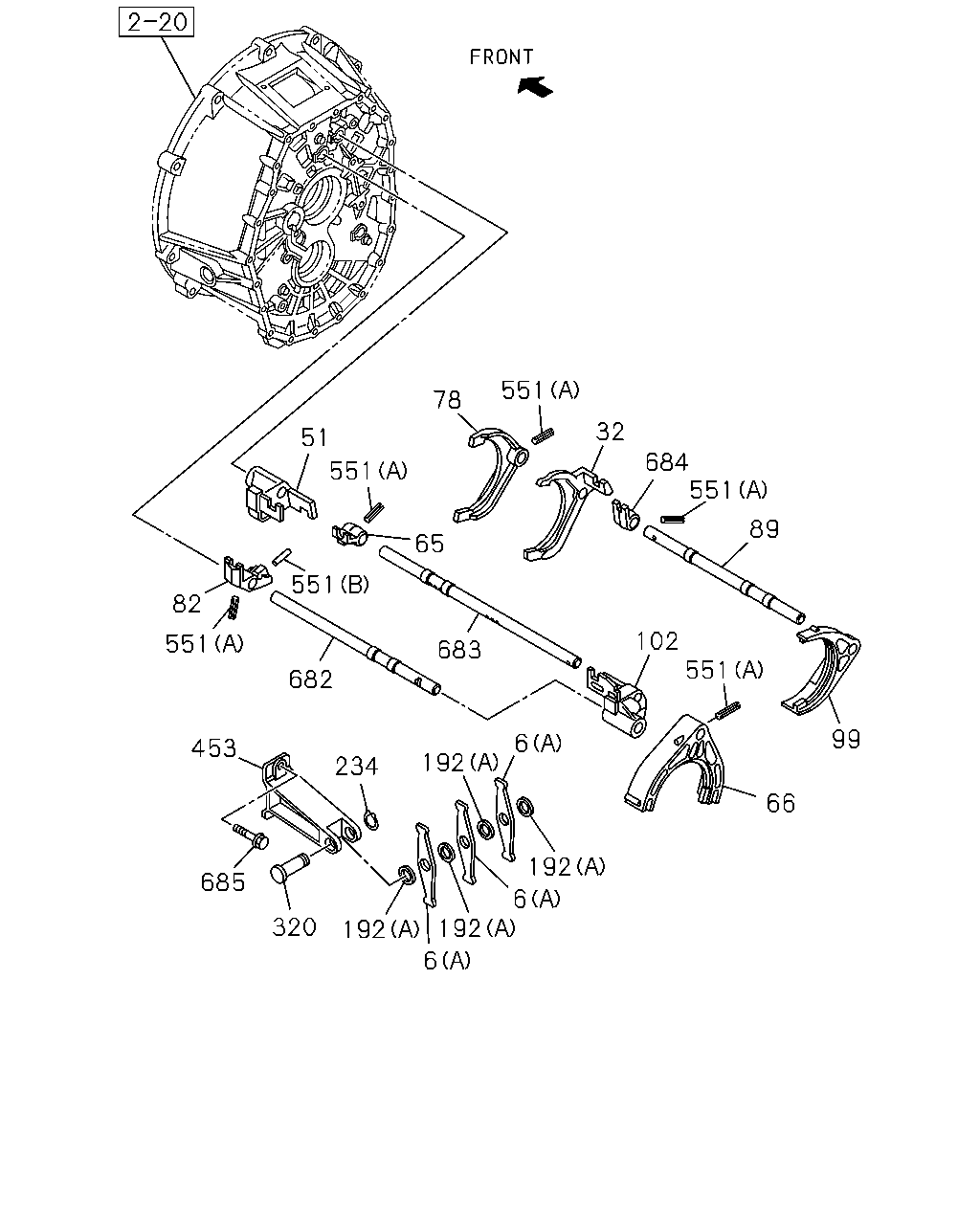

551 78 51 551 551 82 551 682 683 65 32 684 551 89 99 66 551 102 6 192 234 453 685 320 192 6 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1412-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1412-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1412-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1412-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1412-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1412-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1412-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1412-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1412-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1412-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1412-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1412-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1412-
192	WASHER; PL (B)	8-97305-661-0	02	1	1412-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1412-
320	SHAFT; LEVER	8-97377-928-0	01	1	1412-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1412-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1412-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1412-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1412-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1412-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1412-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1412-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1412-

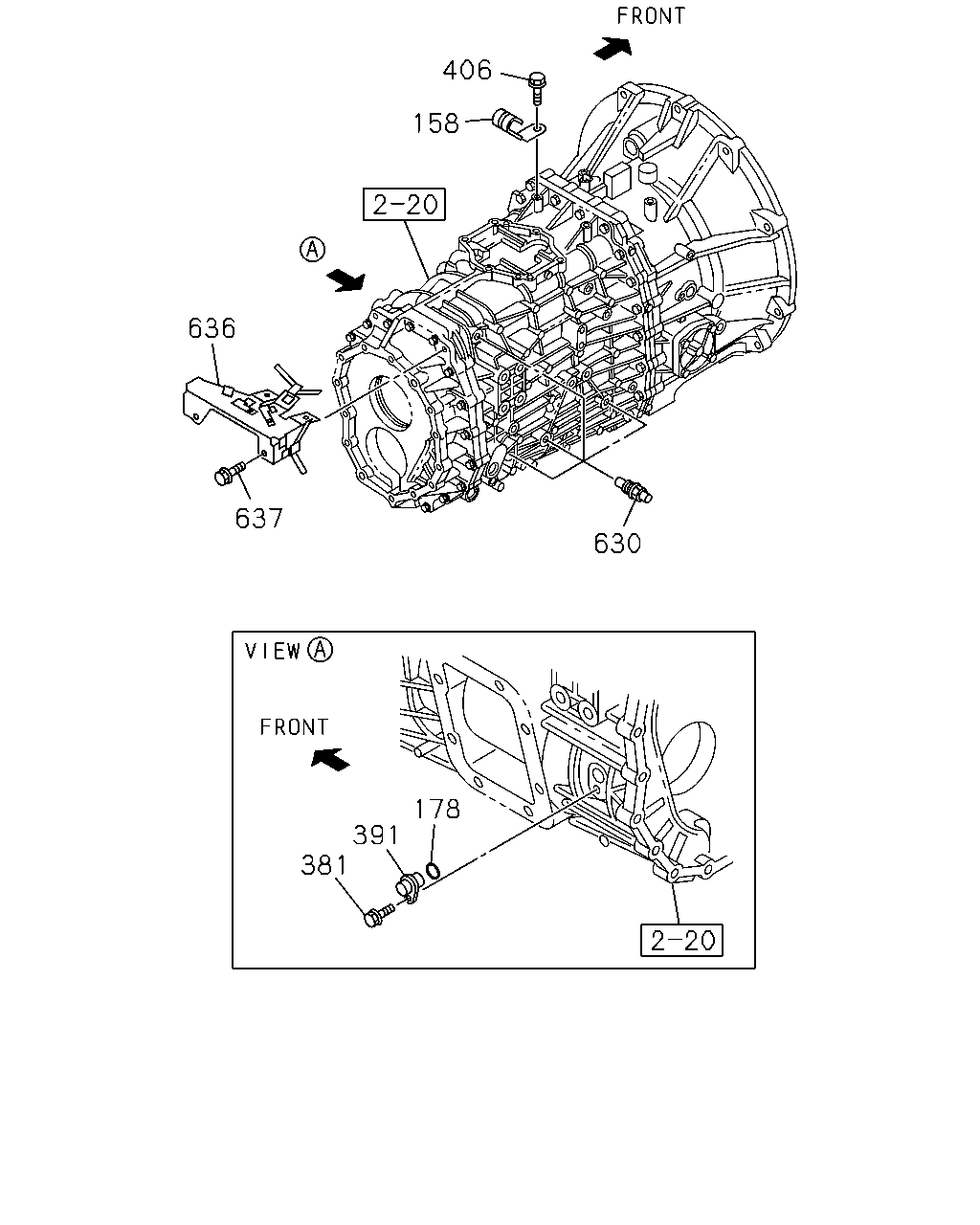

406 158 636 637 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1412-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1412-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1412-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1412-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1412-
630	DETENT ASM	8-98019-536-0	04	1	1412-
636	BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-97610-092-1	01	1	1412-1502
636	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-97610-096-2	01	1	1412-
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1412-1502
637	BOLT; BRACKET 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1503-

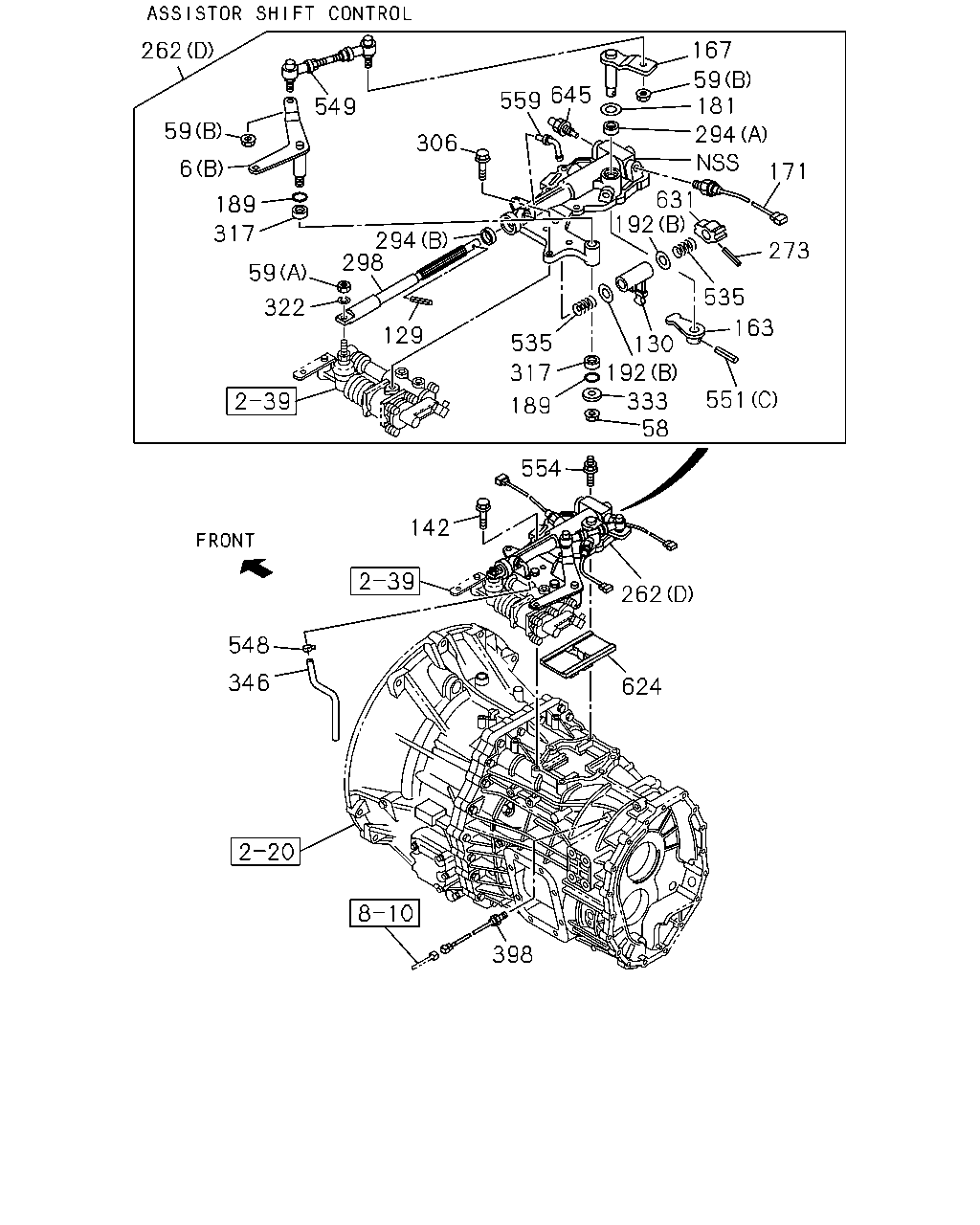

398 624 346 548 142 262 554 58 333 189 317 171 306 559 322 59 298 6 59 59 167 262 181 294 645 631 535 130 535 273 192 192 163 129 551 243 317 189 294 549

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1412-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1412-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1412-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1412-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1412-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1412-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1412-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1412-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1412-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1412-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1412-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1412-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1412-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1412-
192	WASHER; PL (B)	8-97305-661-0	02	1	1412-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1412-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-160-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1412-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1412-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1412-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1412-
317	BUSHING; LEVER	1-09330-119-0	02	1	1412-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1412-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1412-
346	HOSE; AIR	8-97309-855-0	01	1	1412-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1412-
535	SPRING; LEVER	8-97385-713-0	02	1	1412-
548	CLIP; HOSE	8-97031-674-0	01	1	1412-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1412-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1412-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1412-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1412-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1412-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1412-
559	PIPE; BREATHER	8-97358-318-0	01	1	1412-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1412-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1412-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1412-
645	DETENT ASM	8-98019-536-0	01	1	1412-

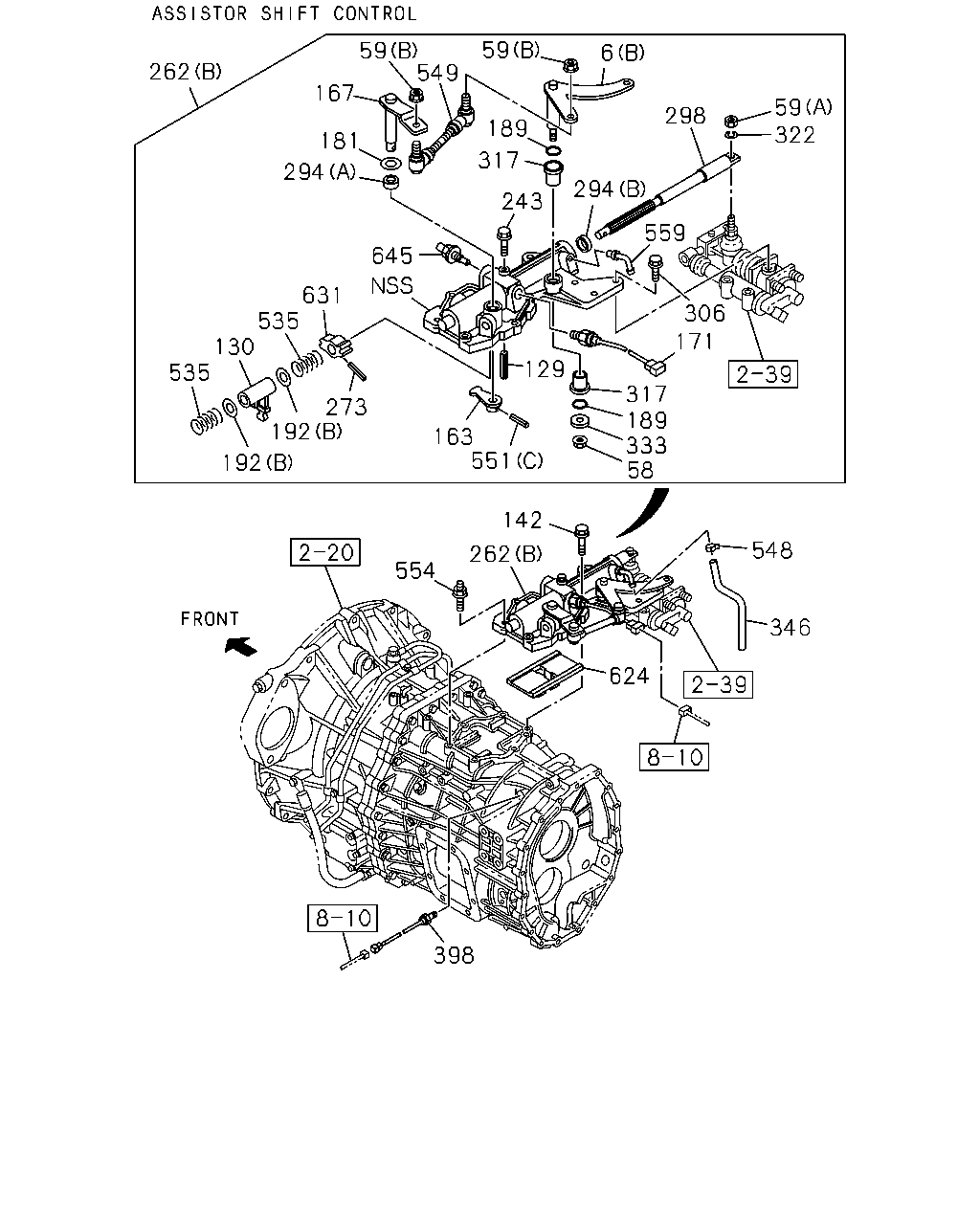

262 59 167 181 294 631 535 130 535 192 192 273 645 243 317 189 59 6 128 294 559 171 317 189 333 58 163 551 142 262 554 624 548 346 398 129 549

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1412-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1412-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1412-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1412-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1412-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1412-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1412-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1412-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1412-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1412-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1412-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1412-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1412-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1412-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1412-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1412-
192	WASHER; PL (B)	8-97305-661-0	02	1	1412-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1412-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-160-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1412-
317	BUSHING; LEVER	1-09330-119-0	02	1	1412-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1412-
346	HOSE; AIR	8-97309-855-0	01	1	1412-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1412-
535	SPRING; LEVER	8-97385-713-0	02	1	1412-
548	CLIP; HOSE	8-97031-674-0	01	1	1412-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1412-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1412-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1412-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1412-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1412-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1412-
559	PIPE; BREATHER	8-97358-318-0	01	1	1412-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1412-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1412-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1412-
645	DETENT ASM	8-98019-536-0	01	1	1412-

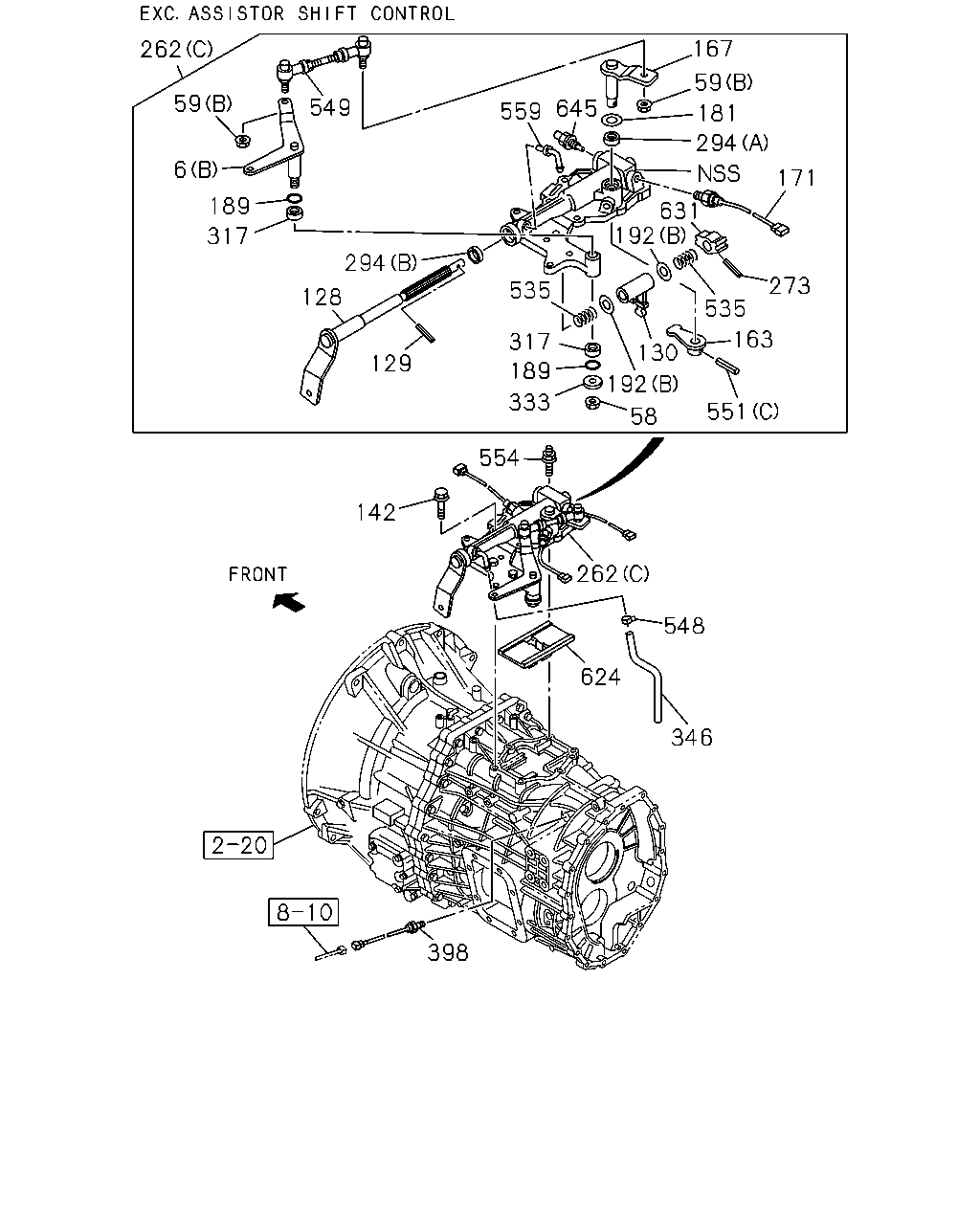

398 346 624 548 262 554 142 58 551 163 192 333 189 317 130 535 273 171 294 181 59 167 645 559 631 192 535 129 294 128 317 189 549 59 262 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1412-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1412-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1412-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1412-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1412-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1412-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1412-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1412-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1412-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1412-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1412-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1412-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1412-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1412-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1412-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1412-
192	WASHER; PL (B)	8-97305-661-0	02	1	1412-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-160-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1412-
317	BUSHING; LEVER	1-09330-119-0	02	1	1412-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1412-
346	HOSE; AIR	8-97309-855-0	01	1	1412-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1412-
535	SPRING; LEVER	8-97385-713-0	02	1	1412-
548	CLIP; HOSE	8-97031-674-0	01	1	1412-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1412-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1412-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1412-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1412-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1412-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1412-
559	PIPE; BREATHER	8-97358-318-0	01	1	1412-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1412-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1412-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1412-
645	DETENT ASM	8-98019-536-0	01	1	1412-

398 346 548 624 262 554 142 58 333 551 192 130 163 535 535 317 273 189 129 322 298 59 317 189 6 59 262 549 306 559 645 167 181 59 294 171 294 192 631

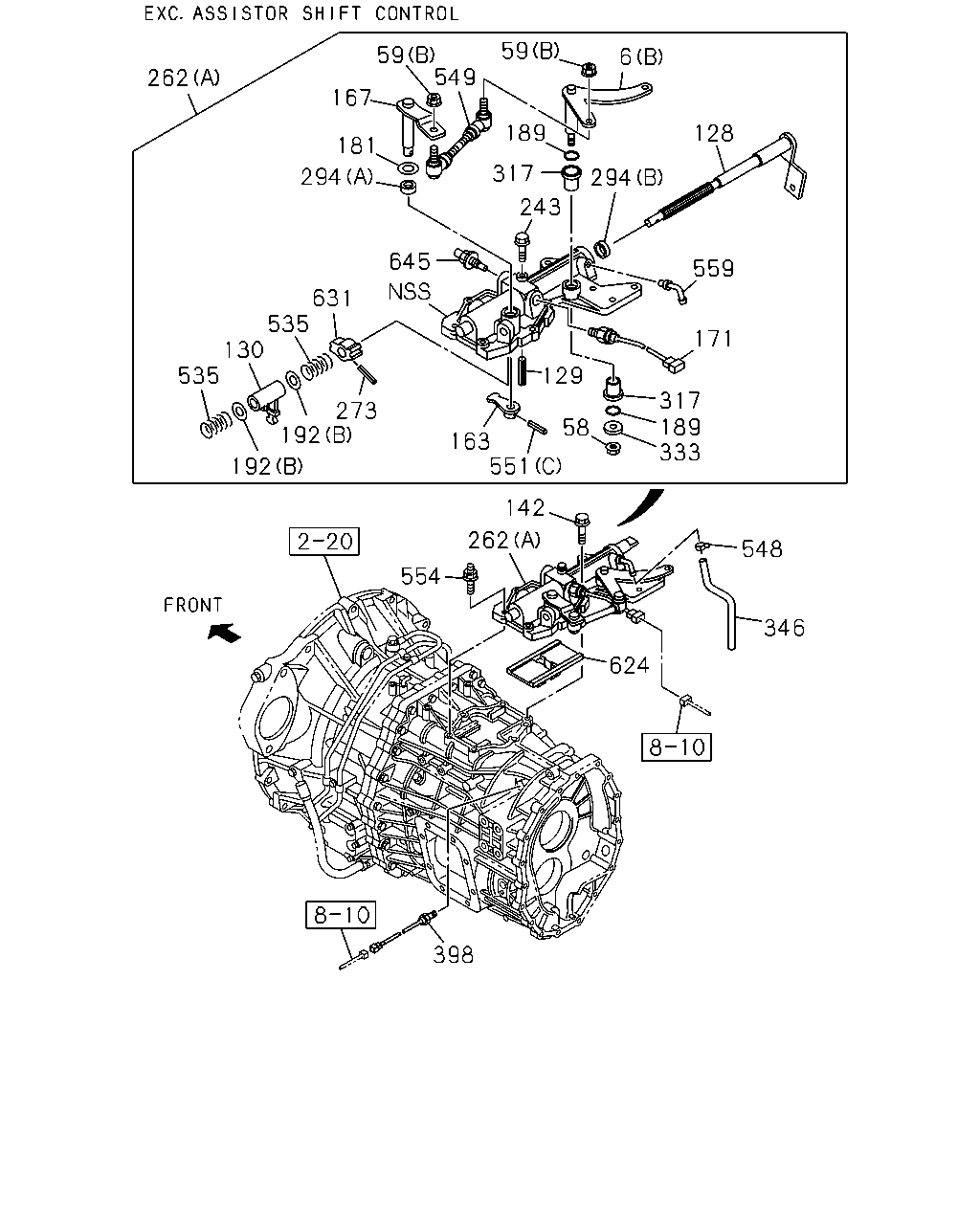

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1412-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1412-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1412-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1412-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1412-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1412-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1412-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1412-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1412-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1412-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1412-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1412-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1412-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1412-
192	WASHER; PL (B)	8-97305-661-0	02	1	1412-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-160-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1412-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1412-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1412-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1412-
317	BUSHING; LEVER	1-09330-119-0	02	1	1412-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1412-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1412-
346	HOSE; AIR	8-97309-855-0	01	1	1412-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1412-
535	SPRING; LEVER	8-97385-713-0	02	1	1412-
548	CLIP; HOSE	8-97031-674-0	01	1	1412-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1412-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1412-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1412-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1412-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1412-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1412-
559	PIPE; BREATHER	8-97358-318-0	01	1	1412-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1412-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1412-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1412-
645	DETENT ASM	8-98019-536-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
