◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#15337) — 87 parça

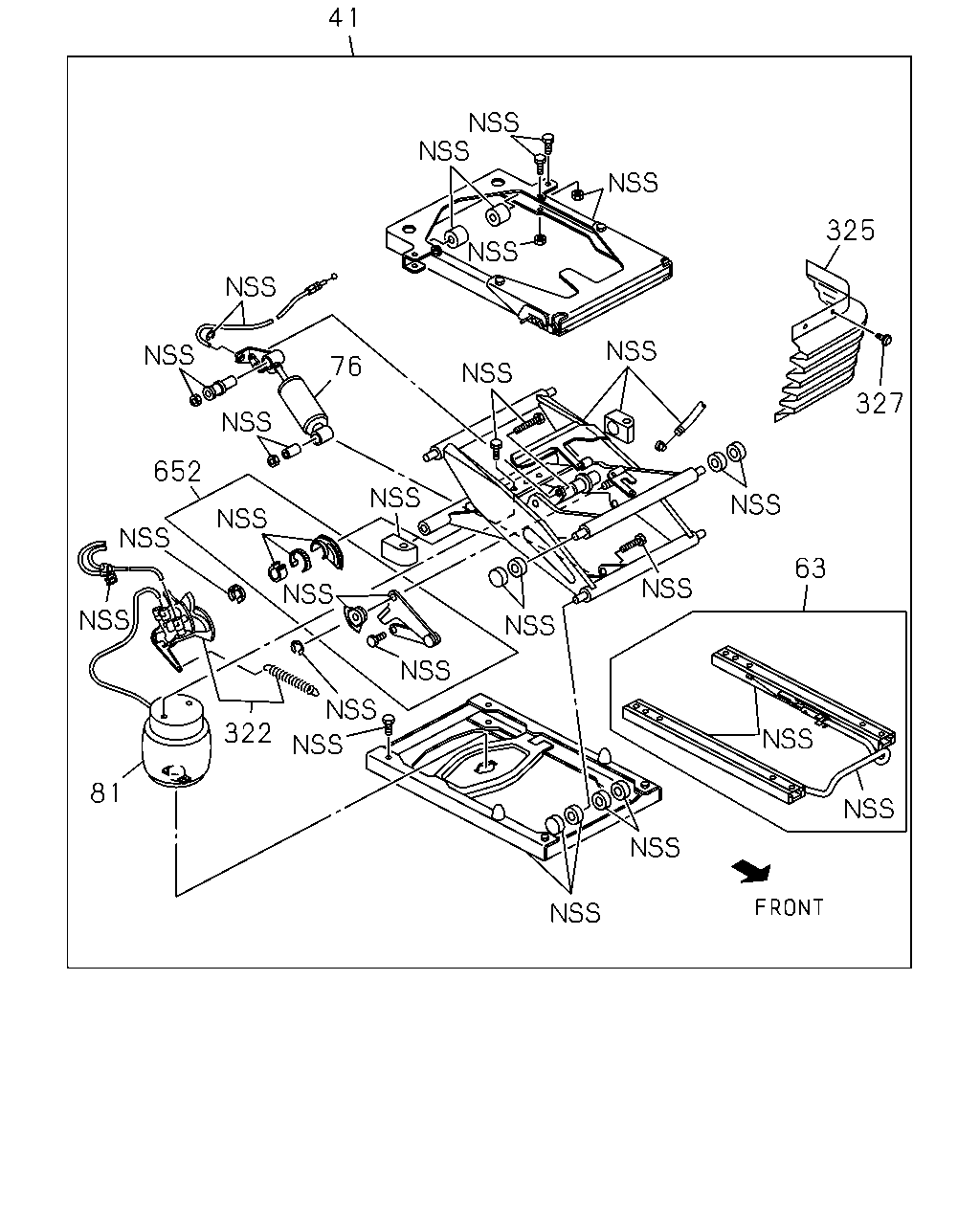

çizim 96002
41 76 652 81 322 325 327 63
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 0710-1212
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-0 01 1 1301-
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 0710-1212
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-0 01 1 1301-
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0710-
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0710-
81 SPRING; AIR 8-98098-000-0 01 1 0710-
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0710-
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0710-
327 CLIP; COVER 8-98098-004-0 01 1 0710-
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0710-

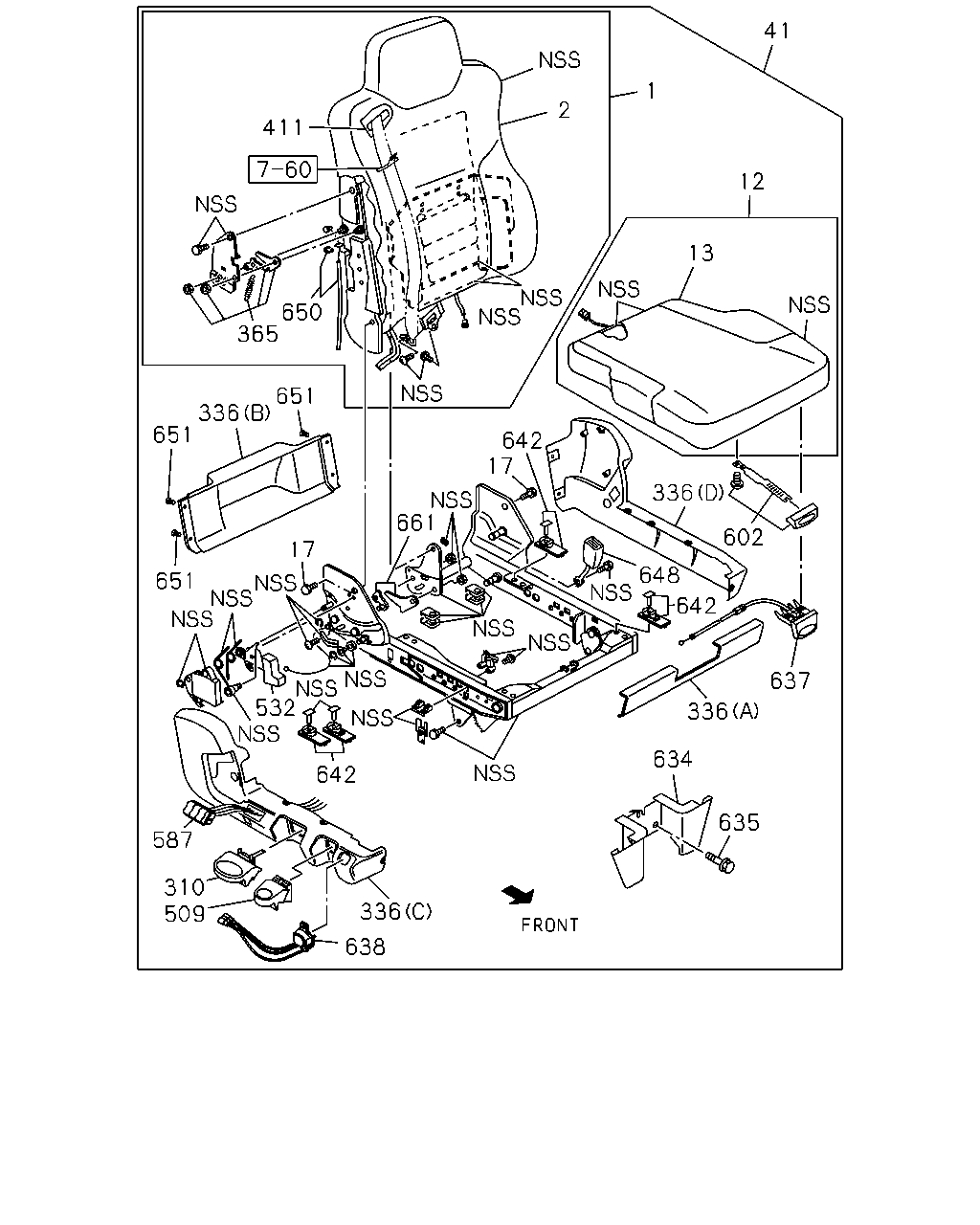

çizim 96228
41 1 2 12 13 642 17 336 602 648 642 637 336 634 635 336 638 310 509 587 642 532 651 17 651 651 650 365 336 411 661
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR BAG(TFQ) 		8-98097-964-0 01 1 0710-
1 BACK ASM; SEAT
EXC. AIR BAG(TFQ) 		8-98097-963-0 01 1 0710-
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0710-1212
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301-
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0710-
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0710-
17 BOLT; RECLINING 8-98097-974-0 02 1 0710-
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 0710-1212
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-0 01 1 1301-
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 0710-1212
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-0 01 1 1301-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0710-
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0710-
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0710-
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0710-
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0710-
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0710-
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0710-
509 LEVER; DAMPER 8-98097-988-0 01 1 0710-
532 LEVER ASM; TILT 8-98097-982-0 01 1 0710-
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0710-
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0710-
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0710-
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0710-
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0710-
638 VALVE; LOWERING 8-98097-994-0 01 1 0710-
642 SLIDER; CUSHION 8-98192-932-0 04 1 0710-
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0710-
650 CABLE 8-98097-973-0 01 1 0710-1212
650 CABLE 8-98232-354-0 01 1 1301-
651 RIVET 8-98194-075-0 04 1 0710-
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0710-

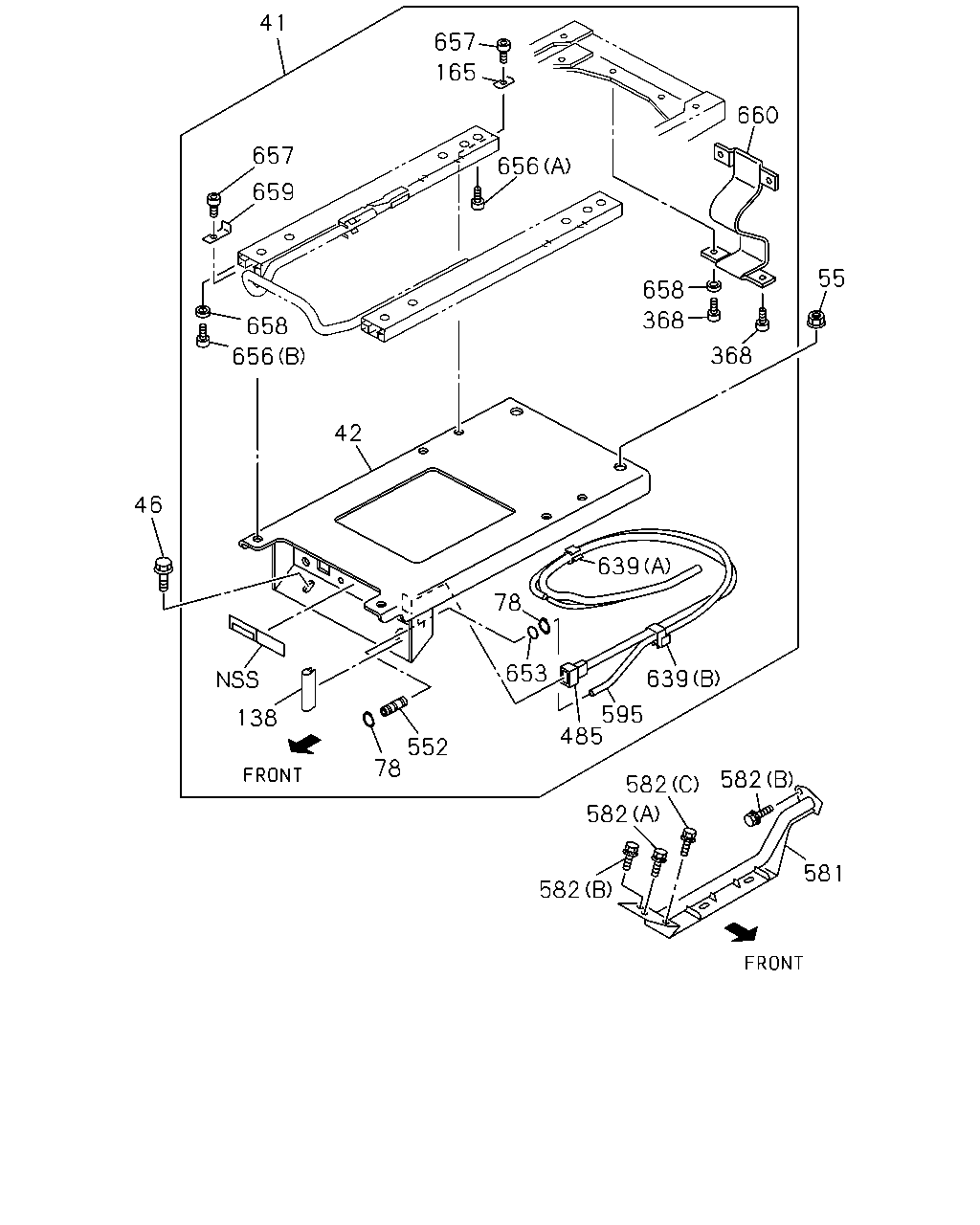

çizim 106809
41 657 165 657 659 656 660 658 368 368 55 658 656 46 42 138 552 78 653 78 639 595 485 639 582 582 582 582 581
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98036-942-2 01 1 0710-1212
41 SEAT ASM; DRIVER
AIR BAG(TFQ) 		8-98195-067-0 01 1 1301-
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98013-721-2 01 1 0710-1212
41 SEAT ASM; DRIVER
EXC. AIR BAG(TFQ) 		8-98195-066-0 01 1 1301-
42 STAND; DRIVER SEAT 8-98106-347-0 01 1 0710-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0710-
78 RING; SNAP 8-98101-900-0 02 1 0710-
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0710-
165 WASHER; PL 1-75590-086-0 04 1 0710-
368 BOLT; SEAT 8-98106-353-0 04 1 0710-
485 HARNESS; FRT SEAT
AIR BAG(TFQ) 		8-98106-360-0 01 1 0710-
485 HARNESS; FRT SEAT
EXC. AIR BAG(TFQ) 		8-98106-361-0 01 1 0710-
552 CONNECTOR 8-98101-902-0 01 1 0710-
581 PIPE; SEAT 1-73907-605-2 01 1 0710-
582 BOLT; PIPE,SEAT
(B) 		1-09980-619-1 02 1 0710-
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
582 BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0710-
595 TUBE; NYLON 8-98106-348-0 01 1 0710-
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0710-
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0710-
653 GASKET 8-98101-901-0 01 1 0710-
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0710-
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0710-
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0710-
658 SPACER; BOLT 8-98106-355-0 02 1 0710-
659 STOPPER 8-98106-356-0 02 1 0710-
660 BELT; TETHER 8-98106-357-0 01 1 0710-

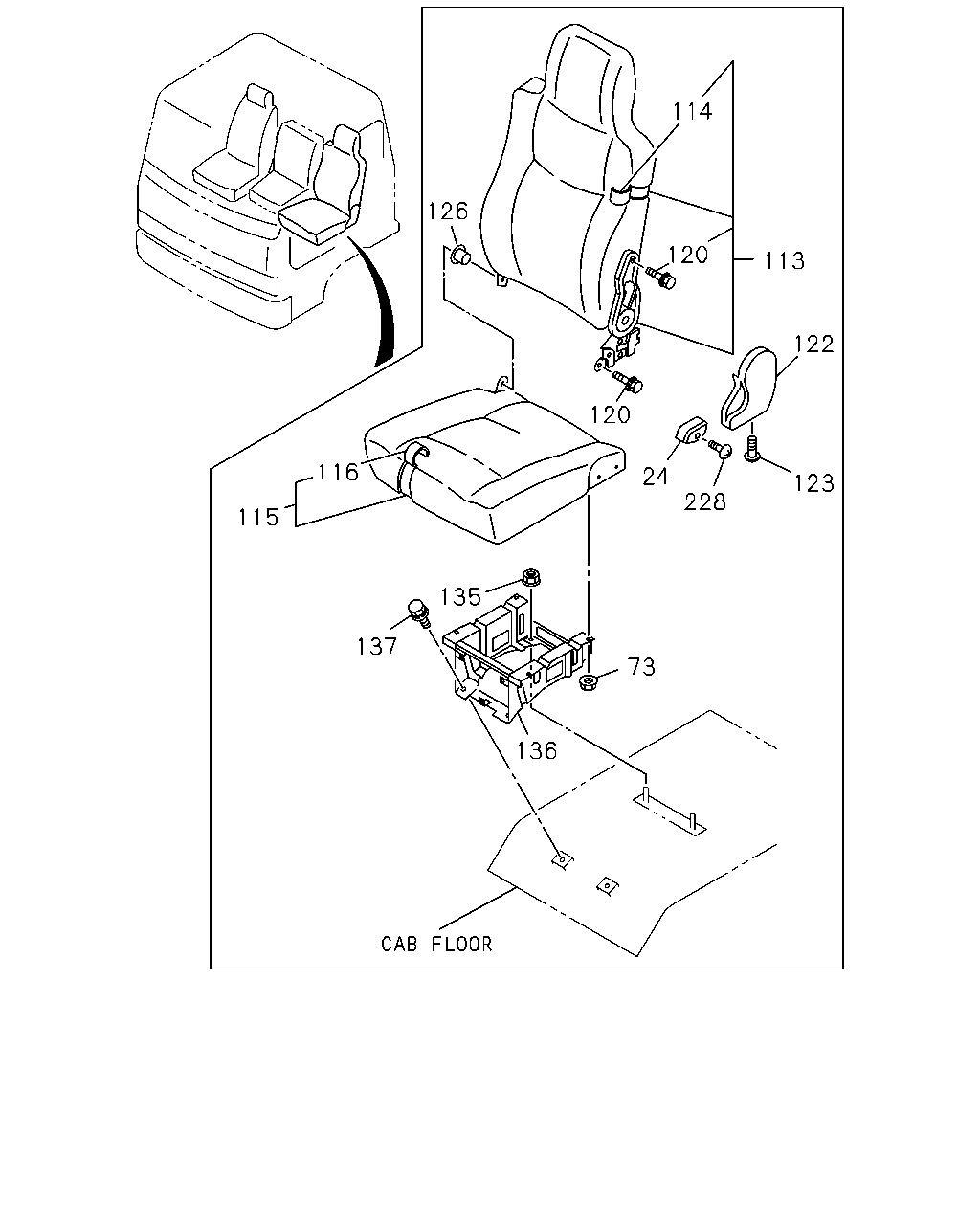

çizim 336623
126 114 113 120 122 120 24 228 123 116 115 137 135 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT 1-75418-067-0 01 1 0710-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0710-
113 BACK ASM; SEAT 8-98054-773-0 01 1 0710-
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98054-777-0 01 1 0710-
115 CUSHION ASM; PASSENGER SEAT 8-98054-770-0 01 1 0710-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98054-775-0 01 1 0710-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0710-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0710-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0710-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0710-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0710-
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 0710-1305
136 STAND; PASSENGER SEAT 8-98242-298-0 01 1 1306-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0710-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0710-
