2-20A — MANUAL TRANSMISSION ASM AND CASE (#153366) — 81 parça

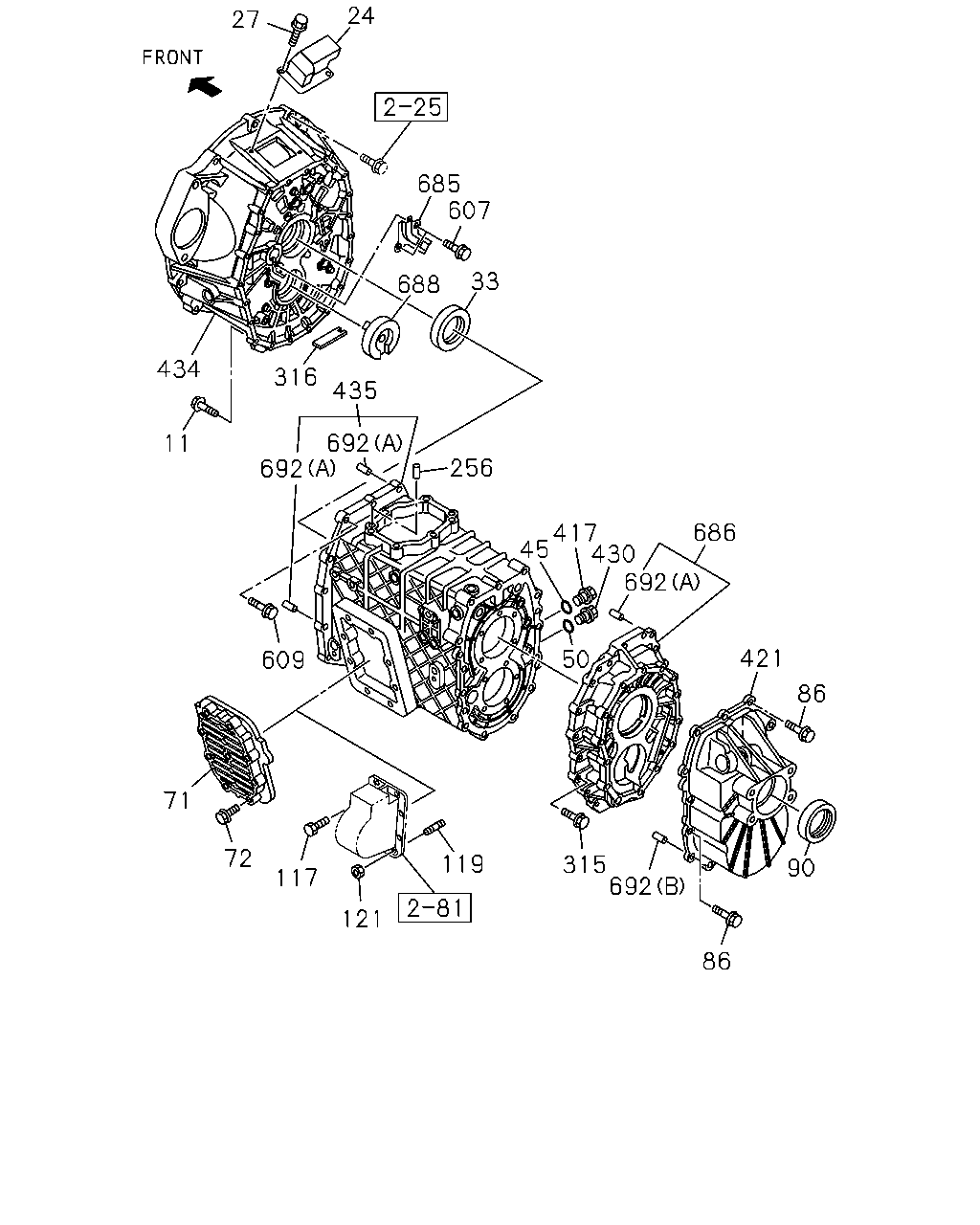

27 24 434 11 685 607 688 33 316 435 692 692 256 609 71 72 117 121 119 45 417 686 430 692 50 315 692 86 90 421 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT 4HK1-TCS ENG(RJS) M12X25 FLANGE	0-28151-225-0	01	1	1412-
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS)	8-98284-107-0	01	1	1412-
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L)	8-98283-062-0	01	1	1412-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1412-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1412-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1412-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1412-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1412-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1412-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1412-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1412-
119	STUD; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1412-
121	NUT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1412-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1412-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1412-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1412-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1412-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1412-
434	HOUSING; CLU 4HK1-TCS ENG(RJS)	8-98004-507-2	01	1	1412-
434	HOUSING; CLU 6HK1-TCN ENG(82L)	8-98004-506-2	01	1	1412-
435	CASE; TRANS	8-98236-421-1	01	1	1412-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1412-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1412-
685	COVER; OIL PORT	8-98018-864-1	01	1	1412-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1412-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1412-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1412-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1412-

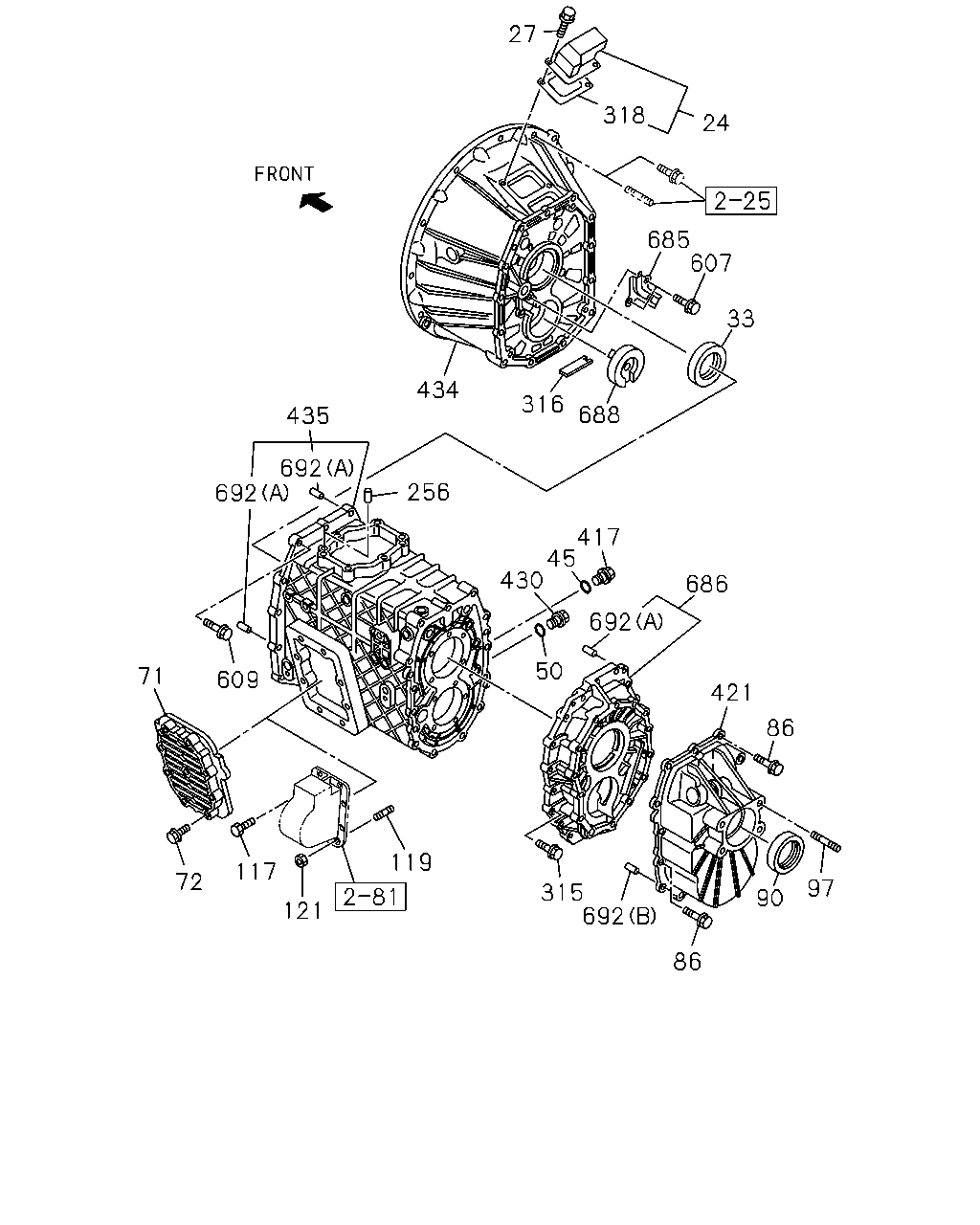

27 434 435 692 256 692 609 71 72 117 121 119 315 692 86 90 97 86 421 50 692 686 417 45 430 316 688 685 607 33 318 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS)	8-98284-107-0	01	1	1412-
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L)	8-98283-062-0	01	1	1412-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1412-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1412-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1412-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1412-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1412-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1412-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1412-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1412-
97	STUD; PARKING BRK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1412-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1412-
119	STUD; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1412-
121	NUT; PTO FIX TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1412-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1412-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1412-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1412-
318	GASKET; COVER 6HK1-TCN ENG(82L)	1-31139-023-0	01	1	1412-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1412-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1412-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1412-
434	HOUSING; CLU 4HK1-TCS ENG(RJS)	8-98004-507-2	01	1	1412-
434	HOUSING; CLU 6HK1-TCN ENG(82L)	8-98004-506-2	01	1	1412-
435	CASE; TRANS	8-98236-421-1	01	1	1412-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1412-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1412-
685	COVER; OIL PORT	8-98018-864-1	01	1	1412-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1412-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1412-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1412-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1412-

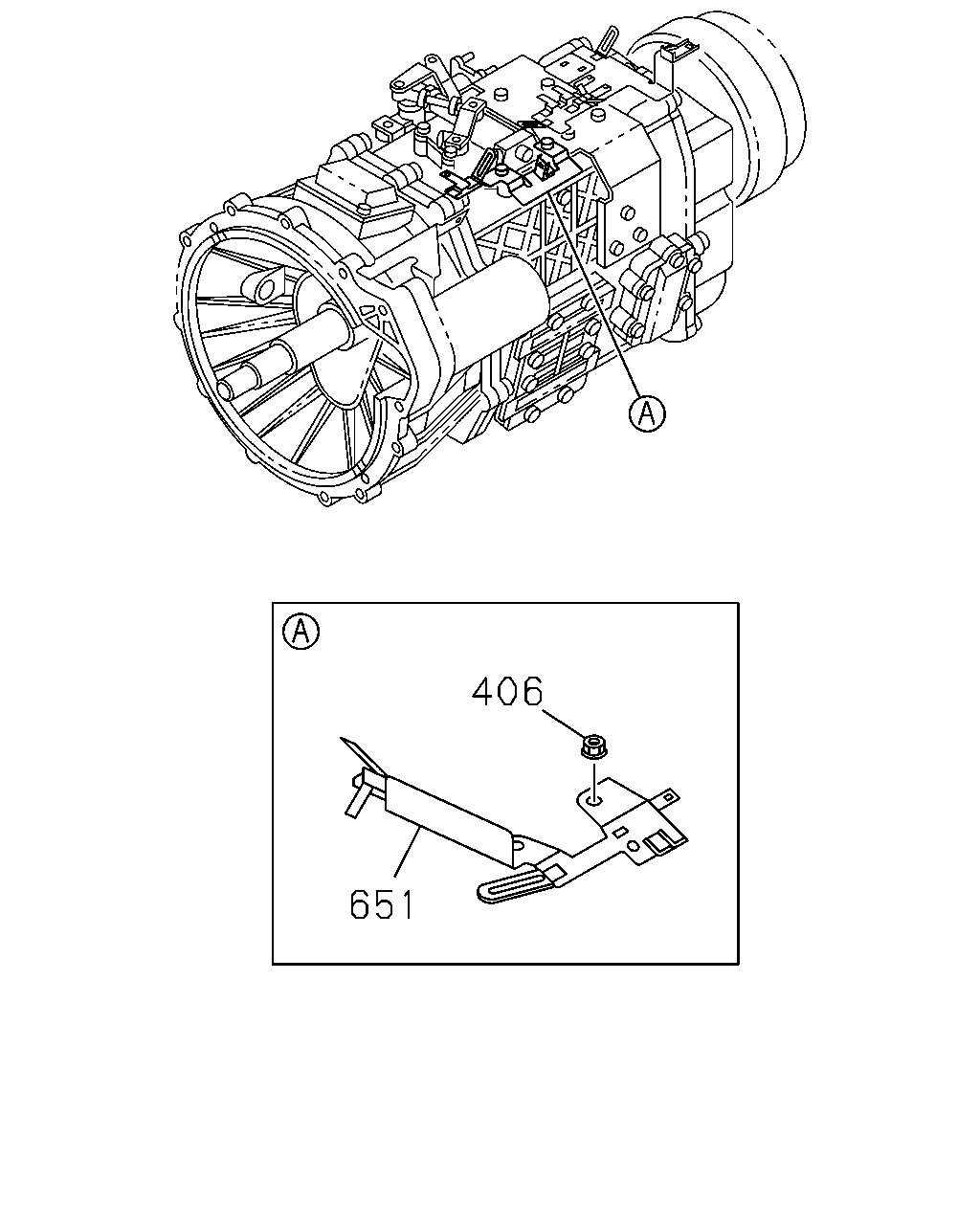

406 651

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	406	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1412-
	651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS)	8-97609-800-3	01	1	1412-

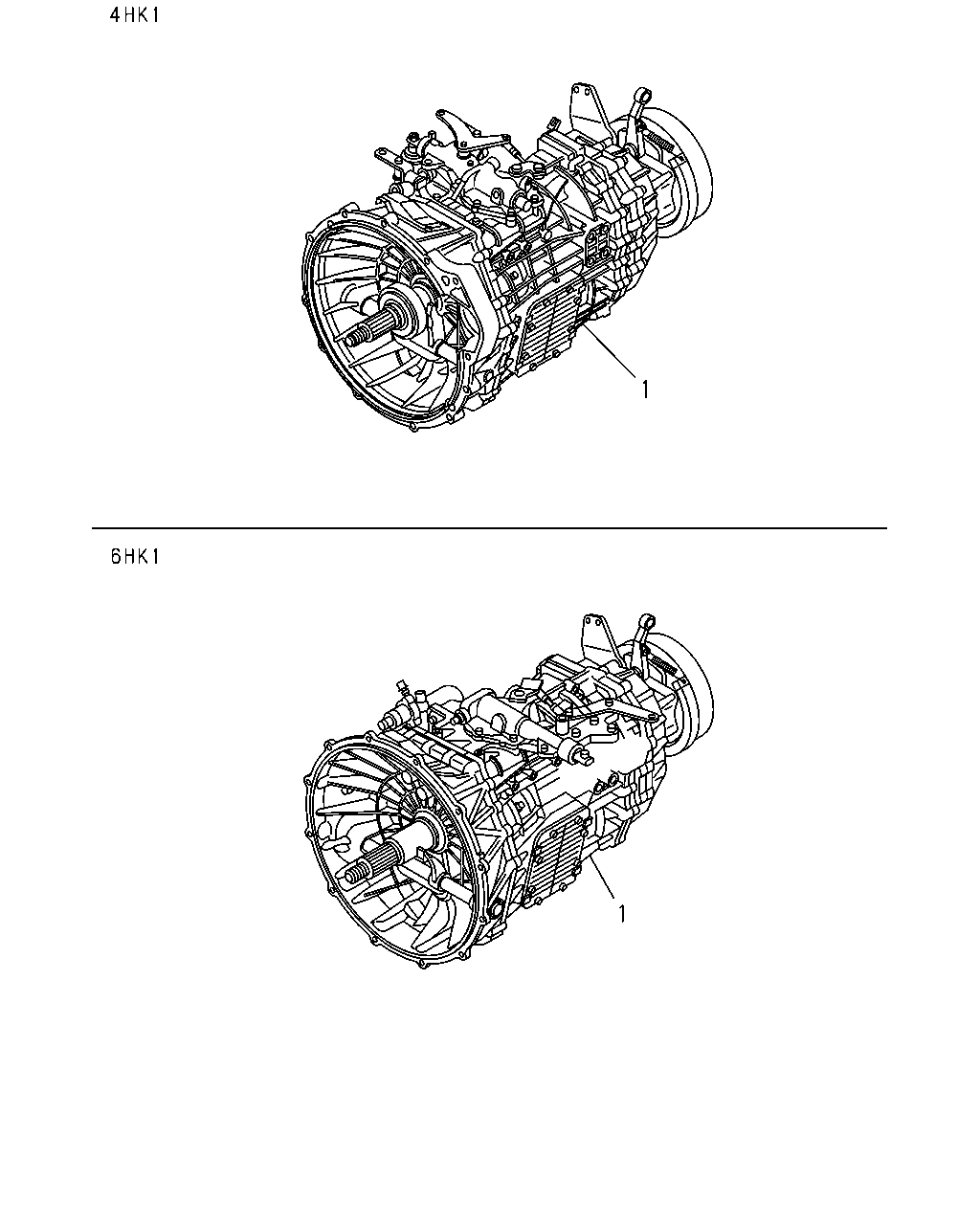

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO GEAR=36/16(C5L) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98212-131-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO GEAR=36/16(C5L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98212-129-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDEPTO WO/LEVER(SH5)	8-98212-131-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDEPTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98212-129-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-518-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDEPTO WO/LEVER(SH5)	8-98134-518-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDEPTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	8-98173-555-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98173-555-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	8-98134-520-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1412-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1412-
