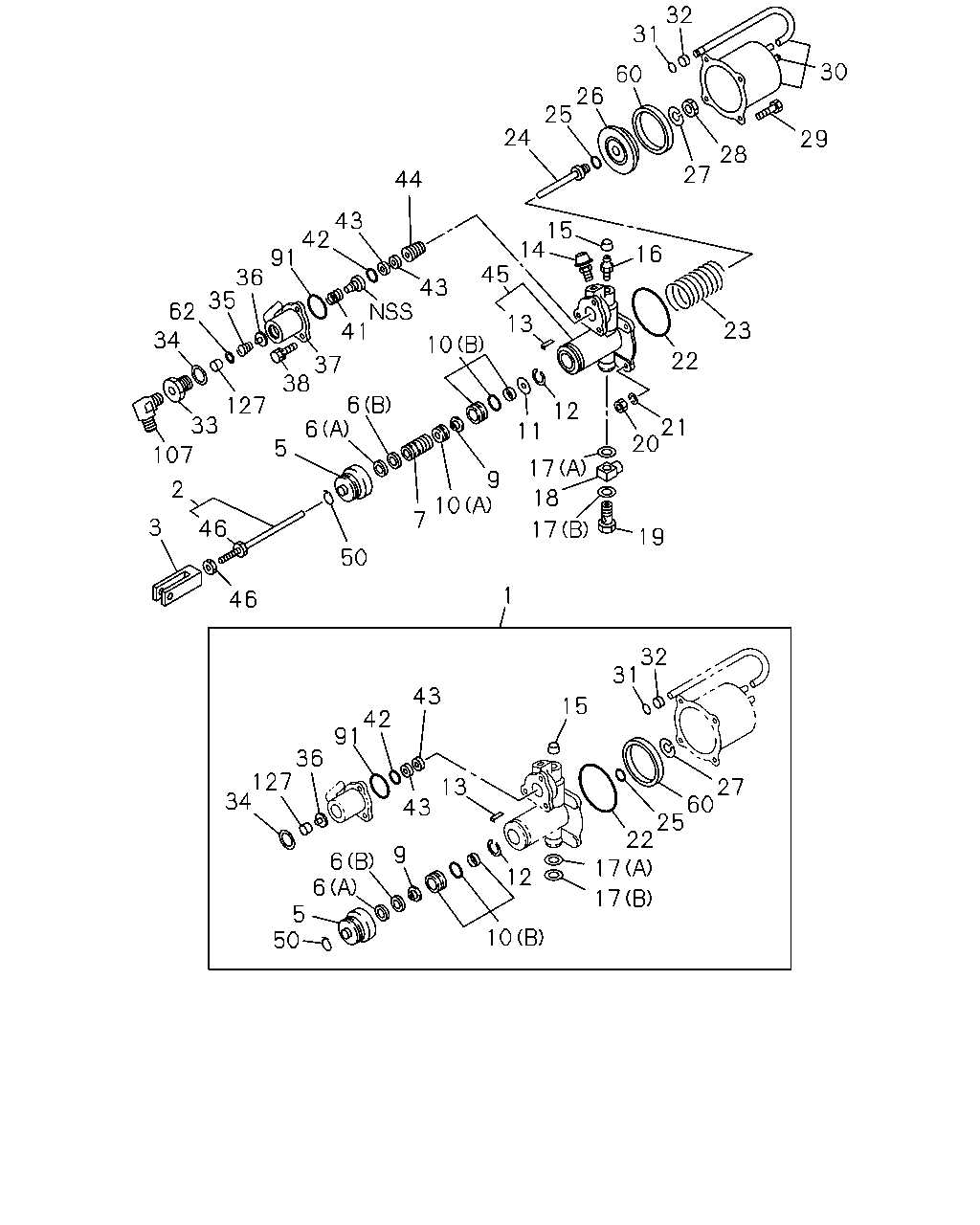

1 |
REPAIR KIT; CLU BOOSTER
|
1-31829-605-0 |
01 |
1 |
1412- |
| |
2 |
ROD; PUSH,CLU BOOSTER
|
1-31824-240-0 |
01 |
1 |
1412- |
| |
3 |
CLEVIS; PUSH ROD,CLU BOOSTER
|
1-31829-186-1 |
01 |
1 |
1412- |
| |
5 |
GUARD; PISTON,CLU BOOSTER
|
1-31829-503-0 |
01 |
1 |
1412- |
| |
6 |
GASKET; PISTON CUP,CLU BOOSTER
(B)
|
1-31829-032-0 |
01 |
1 |
1412- |
| |
6 |
GASKET; PISTON CUP,CLU BOOSTER
(A)
|
1-31829-033-0 |
01 |
1 |
1412- |
| |
7 |
PISTON; CLU BOOSTER
|
1-31821-064-0 |
01 |
1 |
1412- |
| |
9 |
GASKET; PISTON CUP,CLU BOOSTER
|
1-31829-003-0 |
01 |
1 |
1412- |
| |
10 |
RETAINER; PISTON,CLU BOOSTER
(B)
|
1-31829-107-0 |
01 |
1 |
1412- |
| |
10 |
RETAINER; PISTON,CLU BOOSTER
(A)
|
1-31829-108-0 |
01 |
1 |
1412- |
| |
11 |
WASHER; PISTON,CLU BOOSTER
|
1-31829-105-0 |
01 |
1 |
1412- |
| |
12 |
RING; RET,CLU BOOSTER
|
9-83315-315-0 |
01 |
1 |
1412- |
| |
13 |
PIN; SPR
|
1-31829-109-0 |
01 |
1 |
1412- |
| |
14 |
COVER; EXH,CLU BOOSTER
|
1-31829-564-0 |
01 |
1 |
1412- |
| |
15 |
PROTECTOR; END PLATE,CLU BOOSTER
|
9-83335-044-0 |
01 |
1 |
1412- |
| |
16 |
PLUG; END PLATE,CLU BOOSTER
|
9-83331-704-0 |
01 |
1 |
1412- |
| |
17 |
GASKET; CONN,CLU BOOSTER
(A)
|
9-09920-267-0 |
01 |
1 |
1412- |
| |
17 |
GASKET; CONN,CLU BOOSTER
(B)
|
9-09920-268-0 |
01 |
1 |
1412- |
| |
18 |
CONNECTOR; END PLATE,CLU BOOSTER
|
1-31829-248-0 |
01 |
1 |
1412- |
| |
19 |
BOLT; EYE,END PLATE,CLU BOOSTER
|
9-83315-047-0 |
01 |
1 |
1412- |
| |
20 |
NUT; END PLATE TO SHELL,CLU BOOSTER
|
9-83315-085-0 |
04 |
1 |
1412- |
| |
21 |
WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2
|
9-09150-508-0 |
04 |
1 |
1412- |
| |
22 |
GASKET; END PLATE TO SHELL,CLU BOOSTER
|
1-09623-327-0 |
01 |
1 |
1412- |
| |
23 |
SPRING; SHELL,CLU BOOSTER
|
1-31829-358-0 |
01 |
1 |
1412- |
| |
24 |
ROD; PUSH,CLU BOOSTER
|
1-31829-112-0 |
01 |
1 |
1412- |
| |
25 |
GASKET; PUSH ROD,CLU BOOSTER
|
1-09623-321-0 |
01 |
1 |
1412- |
| |
26 |
PISTON; SHELL,CLU BOOSTER
|
1-31821-083-0 |
01 |
1 |
1412- |
| |
27 |
SPRING; CLU BOOSTER
|
1-31829-111-0 |
01 |
1 |
1412- |
| |
28 |
NUT; PUSH ROD,CLU BOOSTER
|
9-88510-365-0 |
01 |
1 |
1412- |
| |
29 |
BOLT; END PLATE TO SHELL,CLU BOOSTER
|
1-31829-015-0 |
04 |
1 |
1412- |
| |
30 |
SHELL; CYL,CLU BOOSTER
|
1-31811-123-0 |
01 |
1 |
1412- |
| |
31 |
GASKET; SHELL,CLU BOOSTER
|
1-31829-113-0 |
01 |
1 |
1412- |
| |
32 |
BUSHING; SHELL,CLU BOOSTER
|
1-31829-114-0 |
01 |
1 |
1412- |
| |
33 |
CONNECTOR; UPR,VLV,CLU BOOSTER
|
1-31829-212-0 |
01 |
1 |
1412- |
| |
34 |
GASKET; CONN,CLU BOOSTER
|
1-31829-053-0 |
01 |
1 |
1412- |
| |
35 |
SPRING; POPPET VLV,CLU BOOSTER
|
1-31829-537-0 |
01 |
1 |
1412- |
| |
36 |
VALVE; POPPET,CLU BOOSTER
|
1-31829-536-0 |
01 |
1 |
1412- |
| |
37 |
BODY; UPR,VLV,CLU BOOSTER
|
1-31811-138-0 |
01 |
1 |
1412- |
| |
38 |
SCREW; UPR VLV TO END PLATE,CLU BOOSTE
|
9-83315-113-0 |
03 |
1 |
1412- |
| |
41 |
SPRING; DIAPH,CLU BOOSTER
|
1-31829-420-0 |
01 |
1 |
1412- |
| |
42 |
GASKET; FITTING,CLU BOOSTER
|
1-31829-143-0 |
01 |
1 |
1412- |
| |
43 |
GASKET; UPR VLV,CLU BOOSTER
|
1-31829-060-0 |
02 |
1 |
1412- |
| |
44 |
PISTON; UPR VLV,CLU BOOSTER
|
1-31821-087-0 |
01 |
1 |
1412- |
| |
45 |
PLATE; END,CLU BOOSTER
|
1-31811-144-0 |
01 |
1 |
1412- |
| |
46 |
NUT; PUSH ROD,CLU BOOSTER
M10
|
9-09111-410-0 |
02 |
1 |
1412- |
| |
50 |
CLAMP; PISTON GUARD,CLU BOOSTER
|
1-31829-599-0 |
01 |
1 |
1412-1412 |
| |
50 |
CLAMP; PISTON GUARD,CLU BOOSTER
|
1-31829-504-0 |
01 |
1 |
1501- |
| |
60 |
GASKET; SHELL,CLU BOOSTER
|
1-31829-535-0 |
01 |
1 |
1412- |
| |
62 |
RETAINER; POPPET
|
1-31829-489-0 |
01 |
1 |
1412- |
| |
91 |
GASKET; CLU BOOSTER
|
1-31829-103-0 |
01 |
1 |
1412- |
| |
107 |
CONNECTOR; ELBOW
|
1-09650-358-1 |
01 |
1 |
1412- |
| |
127 |
FILTER; POPPET
|
1-31829-495-0 |
01 |
1 |
1412- |
