2-05 — CLUTCH PIPING (#153361) — 122 parça

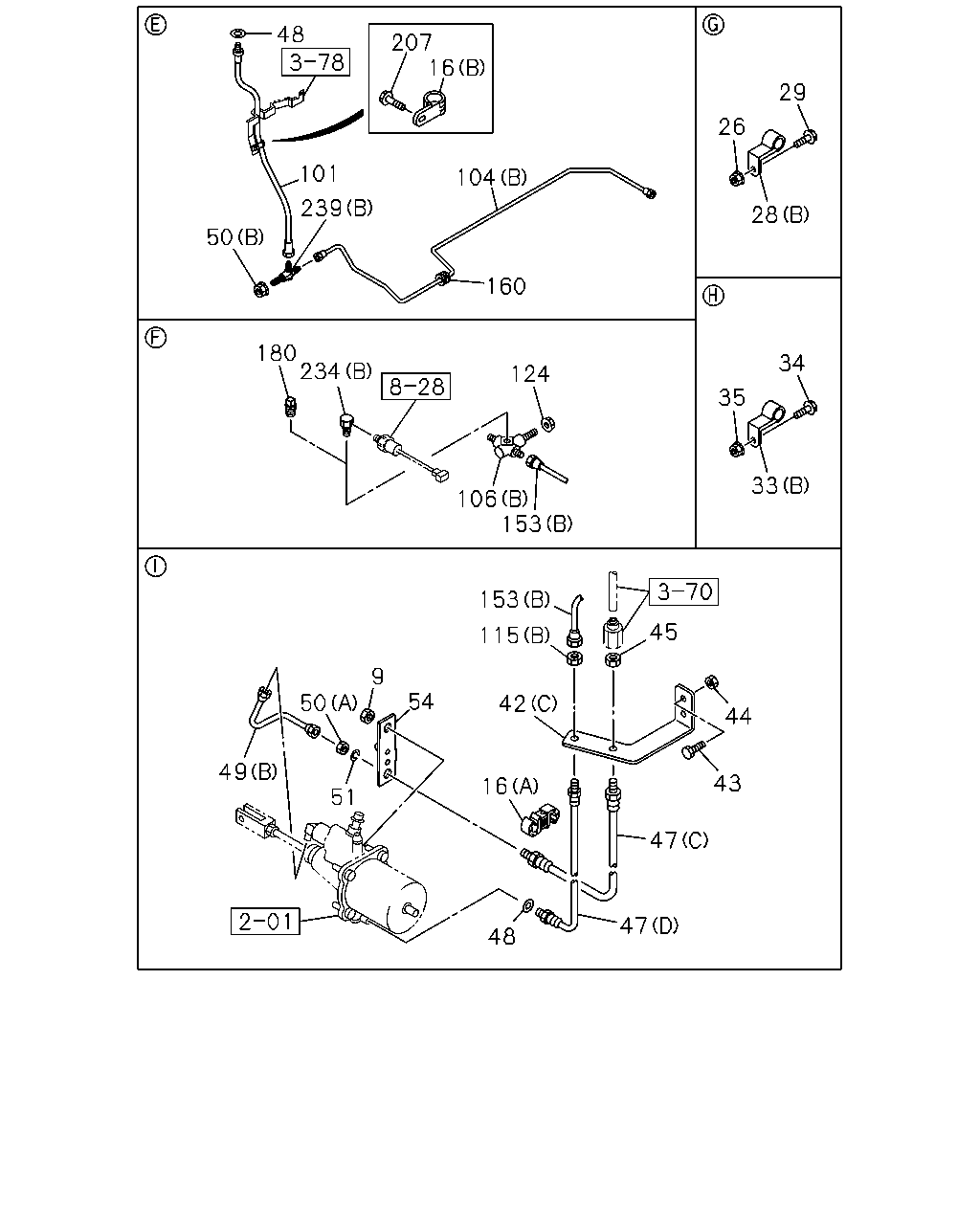

çizim 459009
48 207 16 101 239 50 180 124 160 104 26 29 28 33 35 34 106 153 153 115 42 45 44 43 47 47 48 16 54 9 50 49 51 234
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
FULLER FSO5206B OD M/T(Y4V) M8 FLANGE 		0-91180-208-0 02 1 1412-
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1412-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1412-
26 NUT; CLIP,OIL PIPE
FULLER FSO5206B OD M/T(Y4V) M8 FLANGE 		0-91180-108-0 01 1 1412-
28 CLIP; OIL PIPE
MZW6P M/T(RSZ) (A) ID=6.35 		1-09701-247-1 01 1 1412-
28 CLIP; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 1412-
29 BOLT; CLIP,OIL PIPE
FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE 		0-28650-825-0 01 1 1412-
33 CLIP; OIL PIPE
4HK1-TCS ENG(RJS) (A) ID=6.35 		1-09701-247-1 03 1 1412-
33 CLIP; OIL PIPE
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 		1-09701-247-1 03 1 1412-
33 CLIP; OIL PIPE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=6.35 		1-09701-247-1 05 1 1412-
33 CLIP; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20 		1-09700-604-0 05 1 1412-
34 BOLT; PIPE CLIP
FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE 		0-28650-830-0 05 1 1412-
35 NUT; PIPE CLIP
FULLER FSO5206B OD M/T(Y4V) M8 FLANGE 		0-91180-108-0 05 1 1412-
42 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) (A) 		8-98180-225-0 01 1 1412-
42 BRACKET; FLEX HOSE,CLU CONT
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98180-225-0 01 1 1412-
42 BRACKET; FLEX HOSE,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98105-654-0 01 1 1412-
42 BRACKET; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98100-603-0 01 1 1412-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1412-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1412-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) (B) L=460 		1-09364-264-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (A) L=430 		1-09363-623-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=520 		1-09363-657-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=400 		1-09364-262-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (A) L=370 		1-09363-621-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=430 		1-09363-726-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (C) L=430 		1-09363-726-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=375 		1-09364-407-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380 		1-09363-884-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470 		1-09363-716-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (D) L=330 		1-09364-607-0 01 1 1412-
48 GASKET; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1412-
48 GASKET; FLEX HOSE,CLU CONT
6HK1-TCN ENG(82L) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1412-
48 GASKET; FLEX HOSE,CLU CONT
6HK1-TCN ENG(82L) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1412-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T(RSZ) (A) L=239 		1-49117-401-0 01 1 1412-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FULLER FSO5206B OD M/T(Y4V) (B) 		1-49116-838-0 01 1 1412-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1412-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1412-
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1412-
54 BRACKET; AIR,FLEX HOSE
FULLER FSO5206B OD M/T(Y4V) 		1-47475-372-0 01 1 1412-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) (A) L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (B) L=1225 SERVICED BY L=1250 		1-47428-764-0 01 1 1412-
106 UNION; OIL PIPE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY 		8-98051-113-0 01 1 1412-
106 UNION; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1412-
115 NUT; FLEX HOSE,CLU CONT
MZW6P M/T(RSZ) (A) M12 		9-09840-280-0 01 1 1412-
115 NUT; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (B) M14 		0-91111-514-0 01 1 1412-
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
4HK1-TCS ENG(RJS) (A) L=2594 SERVICED BY L=2650 		1-47428-743-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2868 		8-98250-243-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2738 		8-98152-246-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) (B) L=2743 		8-98152-245-0 01 1 1412-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412-
180 PLUG; PIPE
FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1412-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1412-
234 CONNECTOR; ELBOW
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) PT1/8 ELBOW 		8-94338-418-1 01 1 1412-
234 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> (B) 		1-09660-012-0 01 1 1412-
239 UNION; CLU HOSE
MZW6P M/T(RSZ) (A) M12 2WAY 		1-09654-059-2 01 1 1412-
239 UNION; CLU HOSE
FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 2WAY 		1-09654-141-2 01 1 1412-

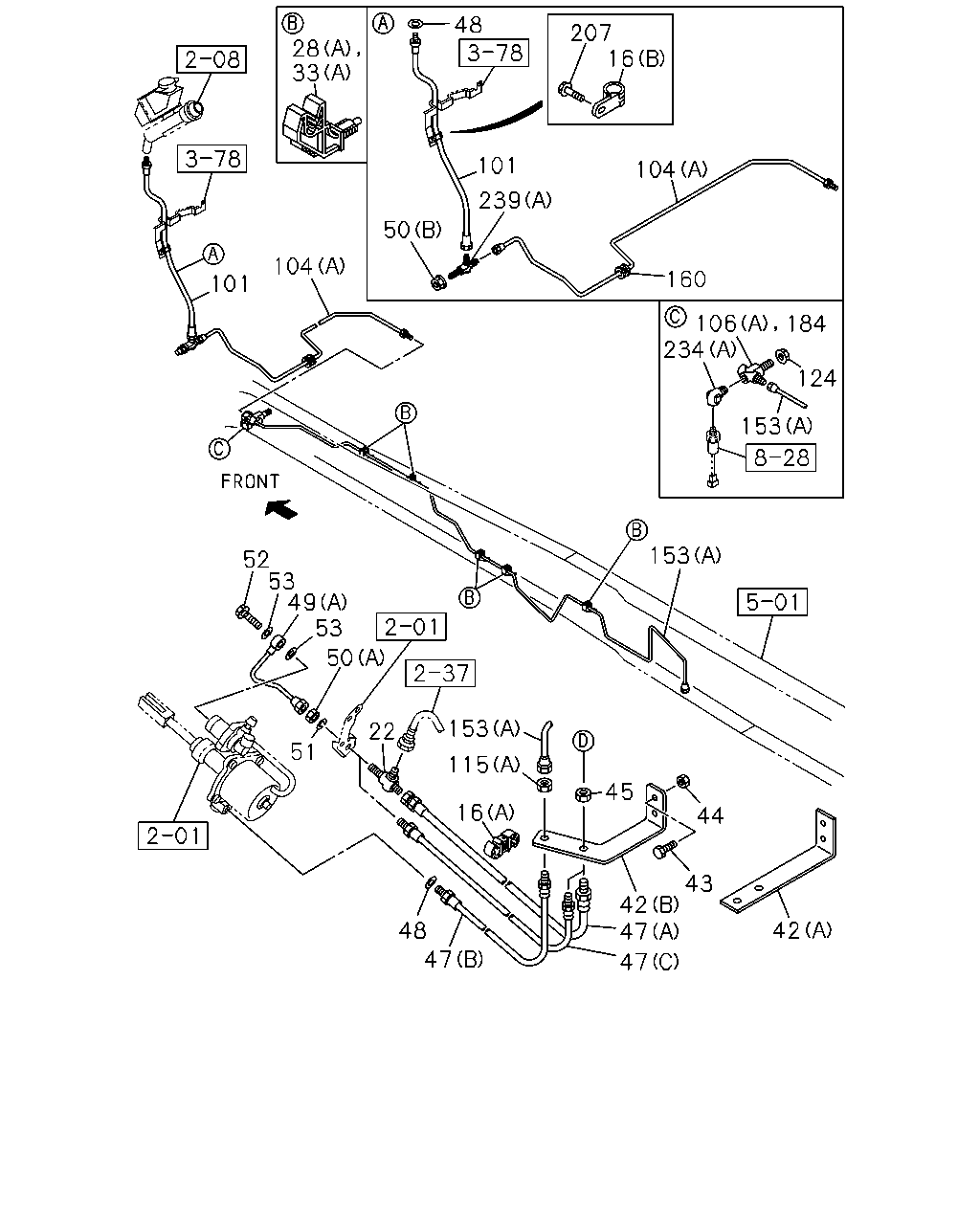

çizim 459043
42 47 42 47 44 43 45 153 115 16 48 47 22 50 53 49 53 52 51 153 153 124 184 106 234 160 104 239 101 16 207 48 28 33 101 104 50
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1412-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1412-
22 UNION; CLU PIPE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1412-
28 CLIP; OIL PIPE
MZW6P M/T(RSZ) (A) ID=6.35 		1-09701-247-1 01 1 1412-
28 CLIP; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 1412-
33 CLIP; OIL PIPE
4HK1-TCS ENG(RJS) (A) ID=6.35 		1-09701-247-1 03 1 1412-
33 CLIP; OIL PIPE
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 		1-09701-247-1 03 1 1412-
33 CLIP; OIL PIPE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=6.35 		1-09701-247-1 05 1 1412-
33 CLIP; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20 		1-09700-604-0 05 1 1412-
42 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) (A) 		8-98180-225-0 01 1 1412-
42 BRACKET; FLEX HOSE,CLU CONT
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98180-225-0 01 1 1412-
42 BRACKET; FLEX HOSE,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98105-654-0 01 1 1412-
42 BRACKET; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98100-603-0 01 1 1412-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1412-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1412-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) (B) L=460 		1-09364-264-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (A) L=430 		1-09363-623-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=520 		1-09363-657-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=400 		1-09364-262-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (A) L=370 		1-09363-621-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=430 		1-09363-726-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (C) L=430 		1-09363-726-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=375 		1-09364-407-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) L=380 		1-09363-884-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470 		1-09363-716-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (D) L=330 		1-09364-607-0 01 1 1412-
48 GASKET; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1412-
48 GASKET; FLEX HOSE,CLU CONT
6HK1-TCN ENG(82L) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1412-
48 GASKET; FLEX HOSE,CLU CONT
6HK1-TCN ENG(82L) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1412-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T(RSZ) (A) L=239 		1-49117-401-0 01 1 1412-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FULLER FSO5206B OD M/T(Y4V) (B) 		1-49116-838-0 01 1 1412-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1412-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1412-
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1412-
52 BOLT; EYE,AIR PIPE
MZW6P M/T(RSZ) M14X27 FLANGE 		1-09675-086-0 01 1 1412-
53 GASKET; JOINT BOLT
MZW6P M/T(RSZ) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1412-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) (A) L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FULLER FSO5206B OD M/T(Y4V) (B) L=1225 SERVICED BY L=1250 		1-47428-764-0 01 1 1412-
106 UNION; OIL PIPE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 3WAY 		8-98051-113-0 01 1 1412-
106 UNION; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1412-
115 NUT; FLEX HOSE,CLU CONT
MZW6P M/T(RSZ) (A) M12 		9-09840-280-0 01 1 1412-
115 NUT; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (B) M14 		0-91111-514-0 01 1 1412-
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
4HK1-TCS ENG(RJS) (A) L=2594 SERVICED BY L=2650 		1-47428-743-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2868 		8-98250-243-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2738 		8-98152-246-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) (B) L=2743 		8-98152-245-0 01 1 1412-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412-
184 UNION; FLEX HOSE
4HK1-TCS ENG(RJS) 		8-98150-865-0 01 1 1412-
184 UNION; FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1412-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1412-
234 CONNECTOR; ELBOW
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) PT1/8 ELBOW 		8-94338-418-1 01 1 1412-
234 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> (B) 		1-09660-012-0 01 1 1412-
239 UNION; CLU HOSE
MZW6P M/T(RSZ) (A) M12 2WAY 		1-09654-059-2 01 1 1412-
239 UNION; CLU HOSE
FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 2WAY 		1-09654-141-2 01 1 1412-

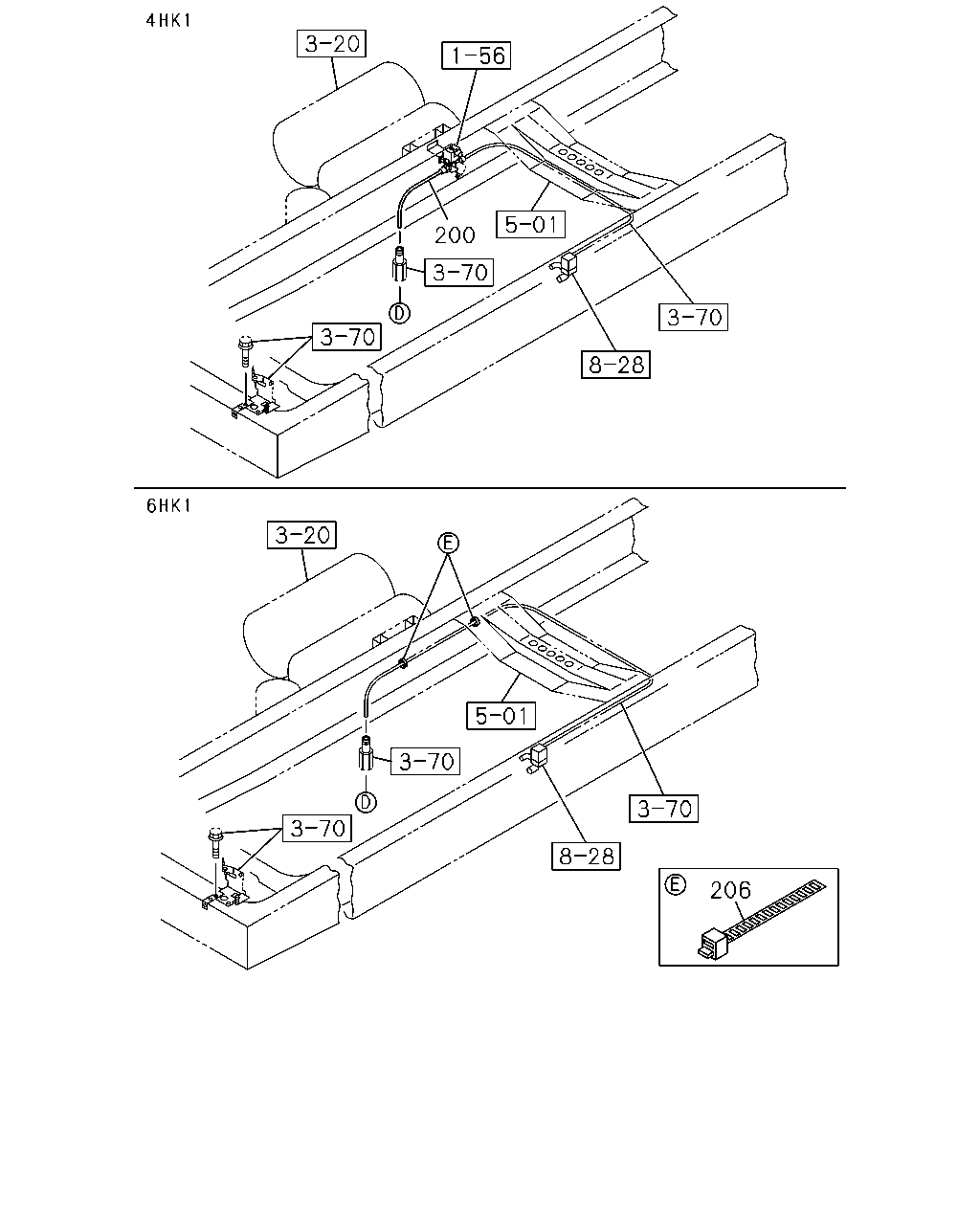

çizim 459395
200 206
BalonParca AdiParca NoAdetTipApplied Date
200 TUBE; NYLON
4HK1-TCS ENG(RJS) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1412-
206 CLIP; TUBE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350 		1-09707-183-0 02 1 1412-
çizim 459614
153
BalonParca AdiParca NoAdetTipApplied Date
153 PIPE ASM; CLU,UNION TO FLEX
4HK1-TCS ENG(RJS) (A) L=2594 SERVICED BY L=2650 		1-47428-743-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2868 		8-98250-243-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2738 		8-98152-246-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) (B) L=2743 		8-98152-245-0 01 1 1412-
