Isuzu WW
▶
TRUCKS
▶
FVR
▶
11660 - FVR MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

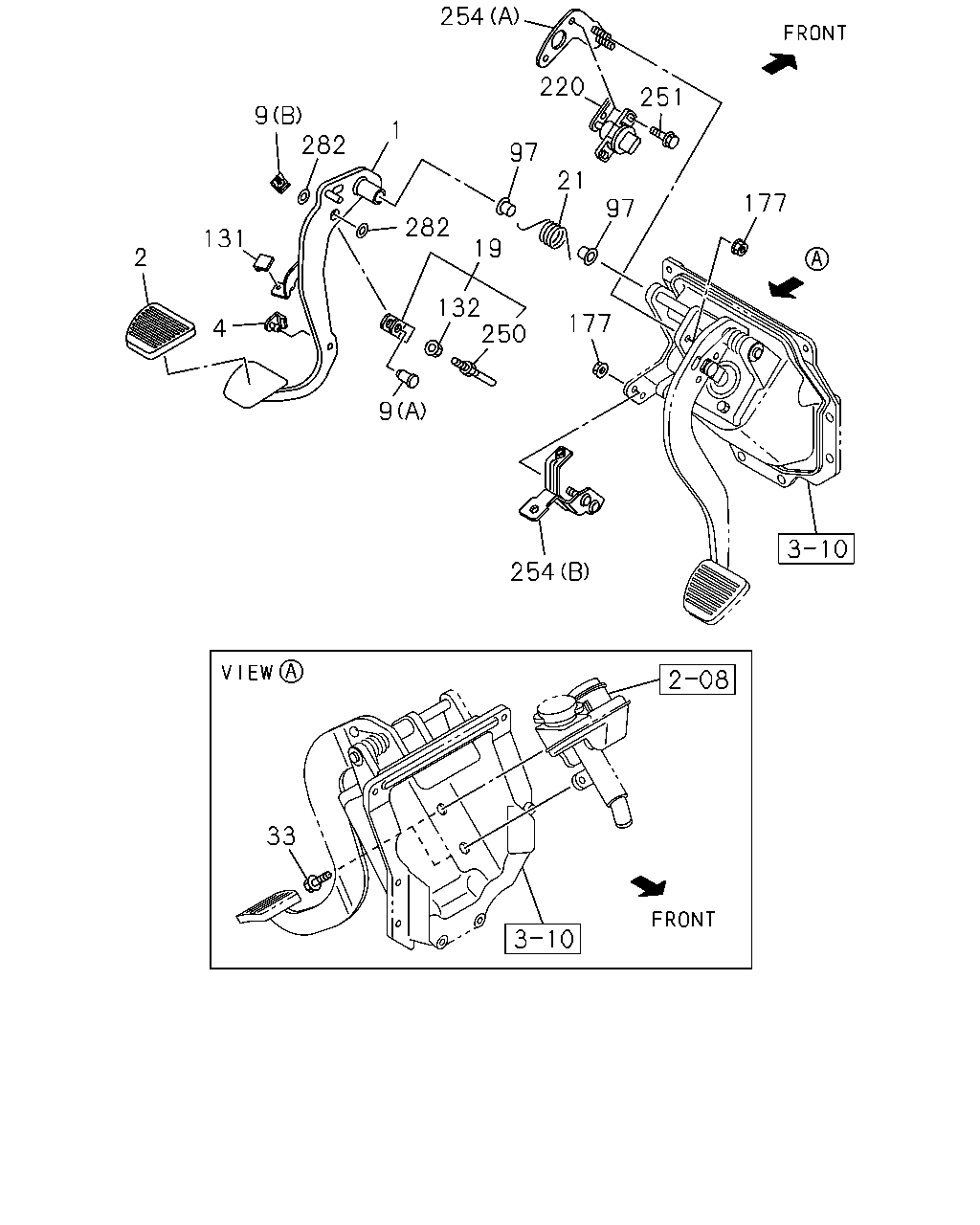

2-03 — CLUTCH PEDAL AND CONTROL
(#153360) — 20 parça
33
254
177
177
251
97
21
97
19
250
132
9
282
220
1
254
282
9
131
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
H.S.A SYSTEM<6EP>
8-98064-603-1
01
1
1412-
1
PEDAL; CLU
EXC. H.S.A SYSTEM<6EP>
8-98064-605-1
01
1
1412-
2
COVER; CLU PEDAL
8-98056-865-0
01
1
1412-
4
STOPPER; CLU PEDAL
8-98079-251-0
01
1
1412-
9
PIN; CLU PEDAL
(B)
8-98007-161-0
01
1
1412-
9
PIN; CLU PEDAL
(A)
8-98147-657-0
01
1
1412-
19
ROD ASM; PUSH,CLU
8-98021-406-1
01
1
1412-
21
SPRING; RETURN,CLU PEDAL
8-98021-560-0
01
1
1412-
33
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
0-28051-220-0
02
1
1412-
97
BUSHING; CLU PEDAL SHAFT
8-94238-596-0
02
1
1412-
131
STOPPER; CLU SW
8-97302-305-0
01
1
1412-
132
NUT; LK,PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
1412-
177
NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
04
1
1412-
177
NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
02
1
1412-
220
SENSOR; CLUTCH
H.S.A SYSTEM<6EP>
1-80250-014-0
01
1
1412-
250
ROD; PUSH,CLU
8-97615-589-0
01
1
1412-
251
BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16
0-52000-616-0
02
1
1412-
254
BRACKET; CLU SENSOR
(B)
8-98021-377-1
01
1
1412-
254
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A)
8-98021-376-1
01
1
1412-
282
SPACER; CLU PEDAL
8-98070-329-0
02
1
1412-
