7-45 — CONSOLE BOX (#15336) — 49 parça

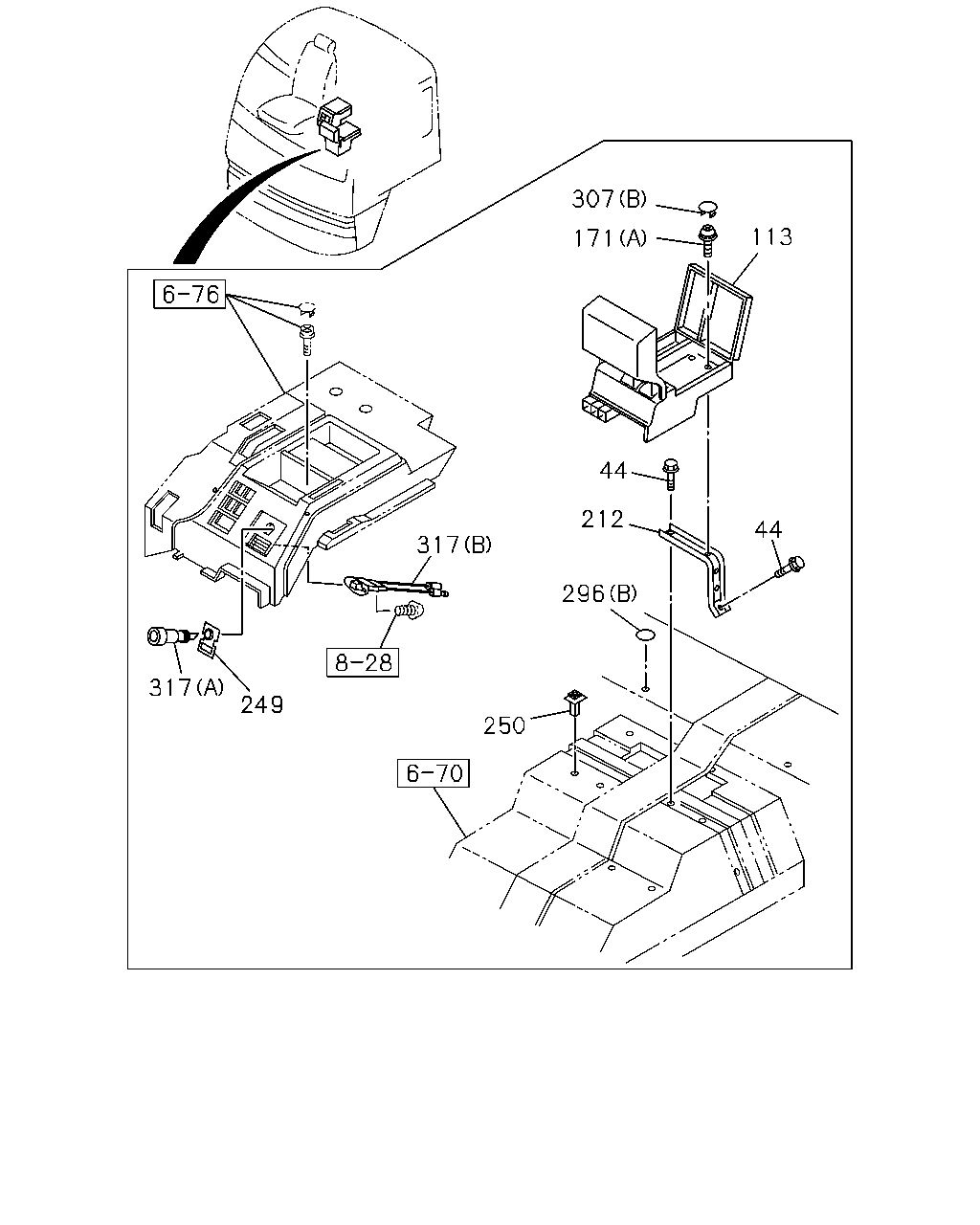

çizim 96011
307 171 113 44 44 212 317 296 317 249 250
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE 1-72537-326-1 01 1 0710-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710-
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0710-
249 COVER 1-82529-001-0 01 1 0710-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0710-
296 SEAL
(A) 		1-72537-094-1 01 1 0710-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0710-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710-
317 CONSENT
(B) 		1-82523-020-2 01 1 0710-
317 CONSENT
(A) 		8-94382-451-1 01 1 0710-

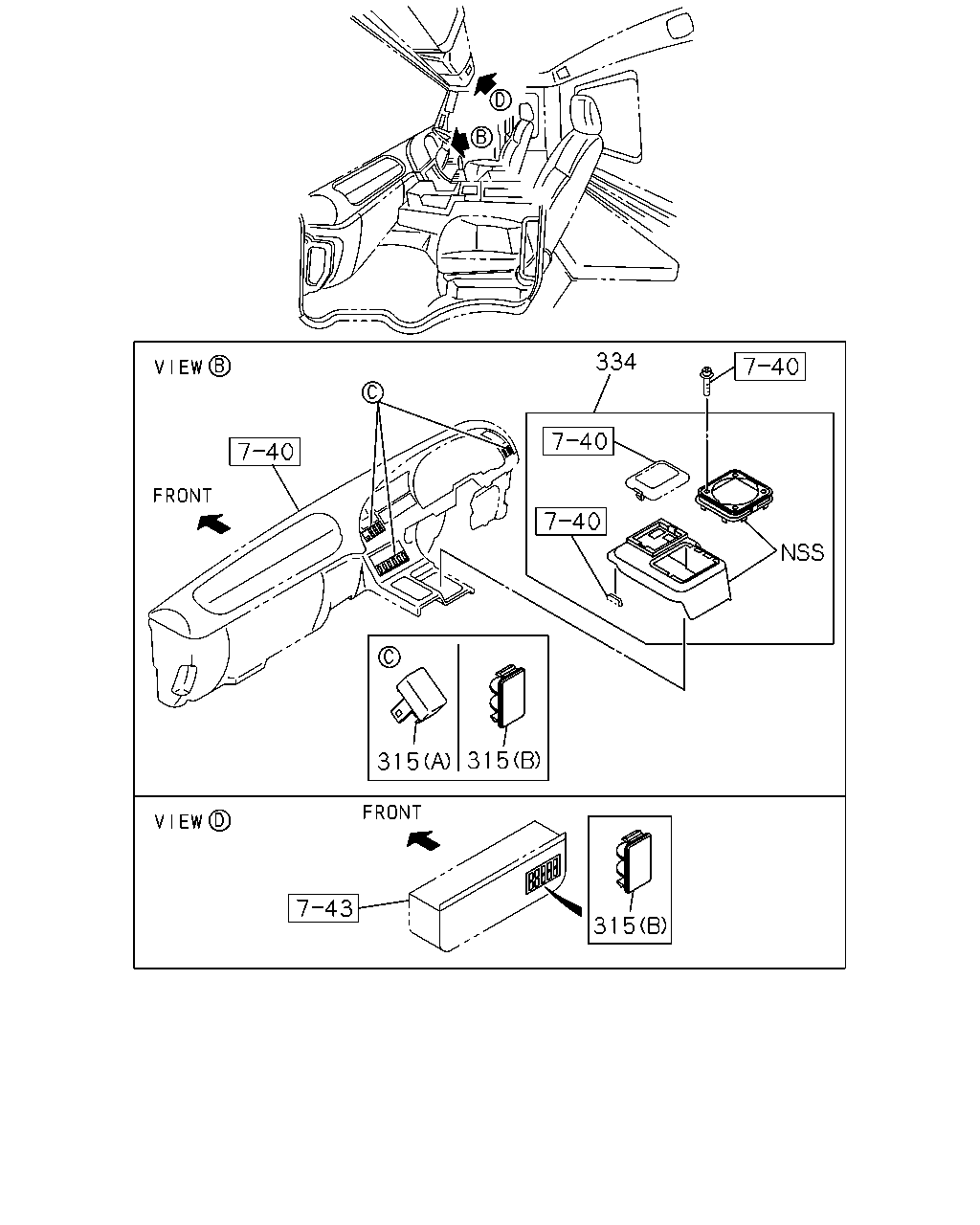

çizim 96226
334 315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0710-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0710-
334 COVER; CHANGE LEVER 1-72447-969-1 01 1 0710-

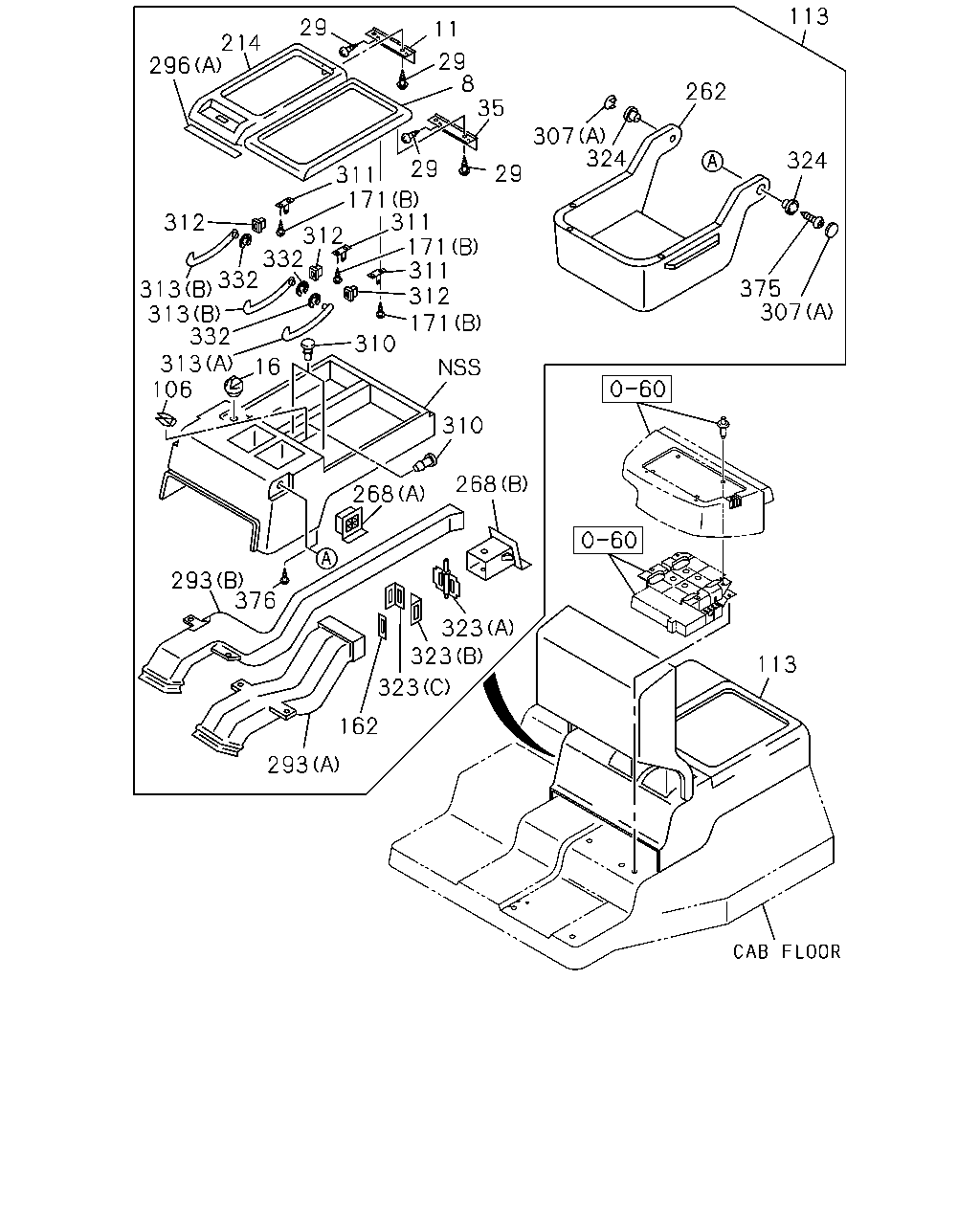

çizim 106813
113 11 29 214 296 29 8 35 262 307 324 324 29 29 311 171 311 312 312 171 311 332 332 313 313 332 312 171 310 375 307 16 313 106 310 268 268 293 376 323 323 323 162 293 113
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE 1-72537-332-0 01 1 0710-
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0710-
16 KNOB ASM 1-72537-189-0 01 1 0710-
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 0710-
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0710-
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0710-
113 BOX; CONSOLE 1-72537-326-1 01 1 0710-
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 0710-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710-
214 LID; CONSOLE 1-72537-339-0 01 1 0710-
262 TABLE ASM 1-72537-187-1 01 1 0710-
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0710-
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0710-
293 DUCT
(A) 		1-72537-081-3 01 1 0710-
293 DUCT
(B) 		1-72537-083-2 01 1 0710-
296 SEAL
(A) 		1-72537-094-1 01 1 0710-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0710-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710-
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0710-
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0710-
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0710-
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0710-
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0710-
323 SHUTTER
(A) 		1-72537-084-1 01 1 0710-
323 SHUTTER
(B) 		1-72537-126-0 01 1 0710-
323 SHUTTER
(C) 		1-72537-127-0 01 1 0710-
324 BUSHING 1-72537-116-0 02 1 0710-
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0710-
375 SCREW; TAP BUSHING
M6X20 		1-72537-319-0 02 1 0710-
376 SCREW; TAP DUCT
M4X14 		1-72537-320-0 03 1 0710-
