Isuzu WW
▶
TRUCKS
▶
FVR
▶
11660 - FVR MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01B - CLUTCH
▶
2-01B — CLUTCH
(#153359) — 53 parça
◀

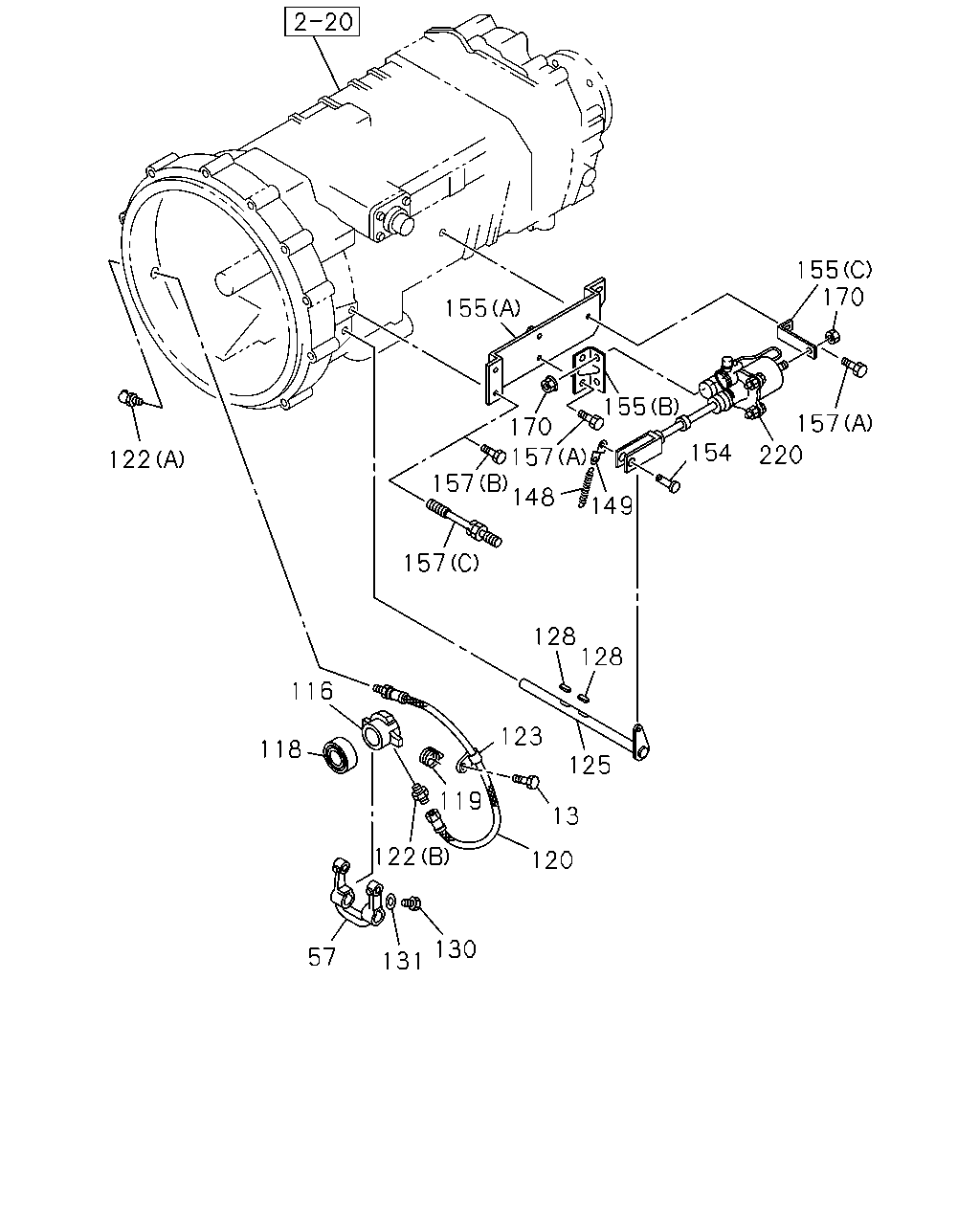

[201B] BOOSTER AND BRACKET (27 parça)

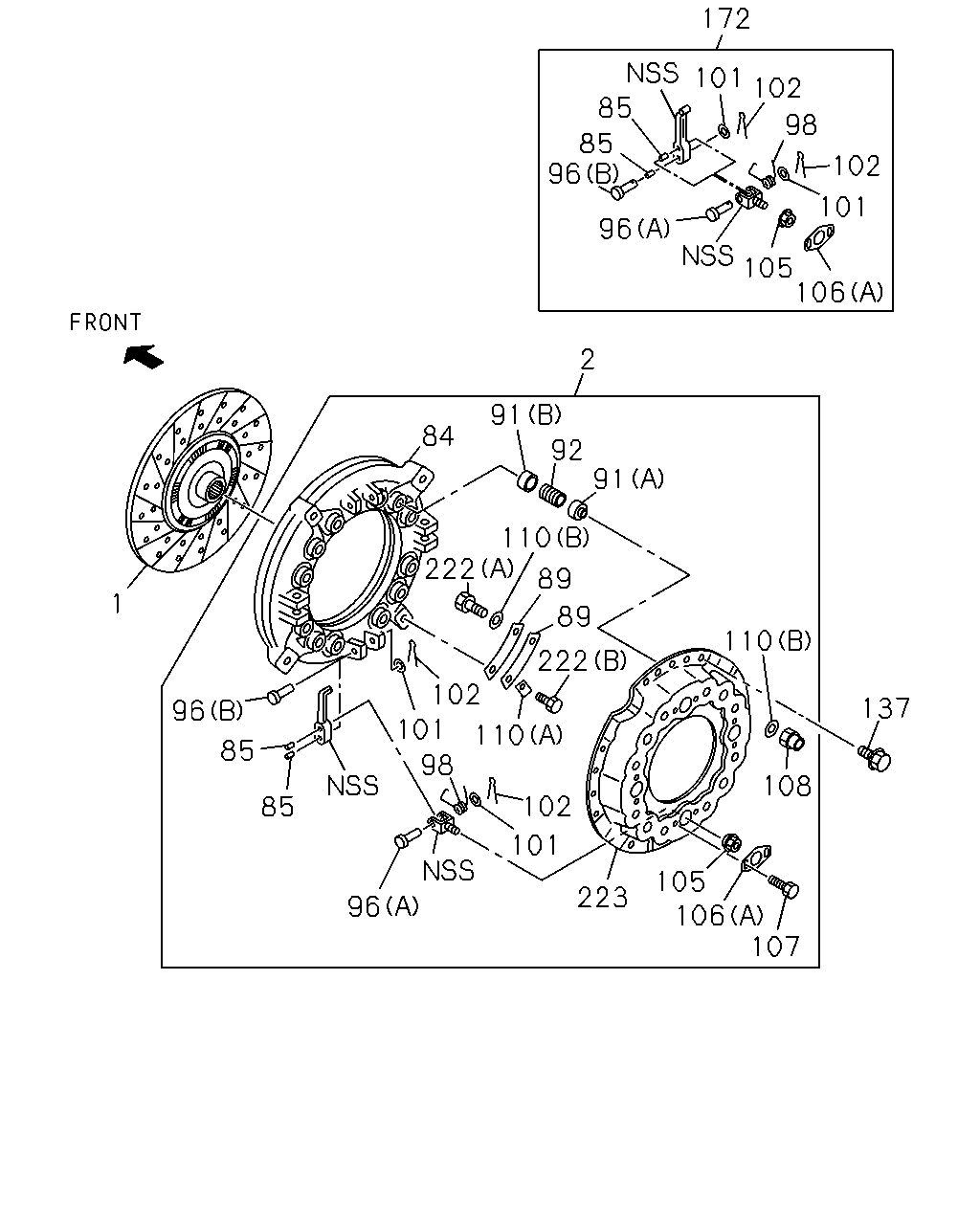

[201B] DISC AND PLATE (26 parça)
▶
220
157
170
155
154
155
149
148
157
170
157
157
128
128
123
125
13
120
119
116
118
122
131
57
130
122
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1412-
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
1412-
116
BLOCK; SHIFT,CLU
1-31321-077-1
01
1
1412-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
1412-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
1412-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
1412-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
1412-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
1412-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
0-90301-410-0
01
1
1412-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
1412-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
1412-
125
SHAFT; CLU
1-31342-300-0
01
1
1412-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1412-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
1412-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1412-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1412-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
1412-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1412-
155
BRACKET; MINIPACK
(B)
1-31429-066-0
01
1
1412-
155
BRACKET; MINIPACK
(C)
1-31429-322-0
01
1
1412-
155
BRACKET; MINIPACK
(A)
1-31429-390-0
01
1
1412-
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
04
1
1412-
157
BOLT; BRKT
(B) M12X20 FLANGE
0-28151-220-0
01
1
1412-
157
BOLT; BRKT
(C) M10X18,M12X25 L=54.7
1-09029-087-0
01
1
1412-
170
NUT; BOOSTER FIX
M8 FLANGE
0-91180-208-0
03
1
1412-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-525-1
01
1
1412-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-159-0
01
1
1412-
137
110
108
107
106
105
223
102
101
110
222
89
89
110
91
92
2
91
84
222
102
101
98
85
96
85
96
1
106
105
101
102
98
102
101
172
85
85
96
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15"
1-31240-851-2
01
1
1412-
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-119-0
01
1
1412-
2
PLATE ASM; PRESSURE,CLU
1-31220-377-2
01
1
1412-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-146-0
01
1
1412-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
1412-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1412-
89
PLATE; STRAP
1-31229-050-0
16
1
1412-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
1412-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
1412-
92
SPRING; CLU
1-31214-066-0
12
1
1412-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1412-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1412-
98
SPRING; RETURN
1-31233-003-0
04
1
1412-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
1412-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
1412-
105
NUT; SUPPORT
1-31235-014-0
04
1
1412-
106
PLATE; LK,LEVER SUPPORT
(A)
1-31239-019-0
04
1
1412-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1412-
108
NUT; STRAP
1-09449-036-0
04
1
1412-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
1412-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
1412-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1412-
172
LEVER KIT; RELEASE,CLU
1-87831-170-1
01
1
1412-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
1412-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
1412-
223
COVER; CLU
1-31211-019-1
01
1
1412-
