1-50 — EXHAUST PIPE AND SILENCER (#153355) — 193 parça

81 75 62 56 75 60 81 107 70 105 22 126 22 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1412-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1412-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1412-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-304-0	01	1	1412-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A) L=40 B=50 H=74	1-22139-045-0	02	1	1412-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1412-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	1-22131-435-1	01	1	1412-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1412-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98183-955-0	02	1	1412-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	8-98212-611-0	01	1	1412-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (B) L=39	8-98060-852-0	02	1	1412-
62	TUBE; DIST,BRKT (A) L=22	9-22159-024-0	01	1	1412-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X50	0-10856-050-0	01	1	1412-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M10X70 FLANGE	0-28051-070-0	02	1	1412-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X50	0-10856-050-0	02	1	1412-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X50 FLANGE	0-28051-050-0	01	1	1412-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) (C) OD=40	1-22159-094-0	02	1	1412-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1412-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT	0-91370-010-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1412-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1412-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28651-040-0	04	1	1412-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1412-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M10	0-91110-510-0	02	1	1412-
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1412-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1412-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1412-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1412-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) (B)	8-98206-305-0	01	1	1412-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) (A)	8-98069-920-0	01	1	1412-

126 107 22 105 97 94 22 75 70 62 56 75 97 81 60 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1412-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1412-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1412-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-304-0	01	1	1412-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A) L=40 B=50 H=74	1-22139-045-0	02	1	1412-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1412-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	1-22131-435-1	01	1	1412-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1412-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98183-955-0	02	1	1412-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	8-98212-611-0	01	1	1412-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (B) L=39	8-98060-852-0	02	1	1412-
62	TUBE; DIST,BRKT (A) L=22	9-22159-024-0	01	1	1412-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X50	0-10856-050-0	01	1	1412-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M10X70 FLANGE	0-28051-070-0	02	1	1412-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X50	0-10856-050-0	02	1	1412-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X50 FLANGE	0-28051-050-0	01	1	1412-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) (C) OD=40	1-22159-094-0	02	1	1412-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1412-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT	0-91370-010-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1412-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1412-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28651-040-0	04	1	1412-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1412-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) ID=10.5	9-09164-510-0	02	1	1412-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M10	0-91110-510-0	02	1	1412-
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1412-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1412-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1412-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1412-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) (B)	8-98206-305-0	01	1	1412-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) (A)	8-98069-920-0	01	1	1412-

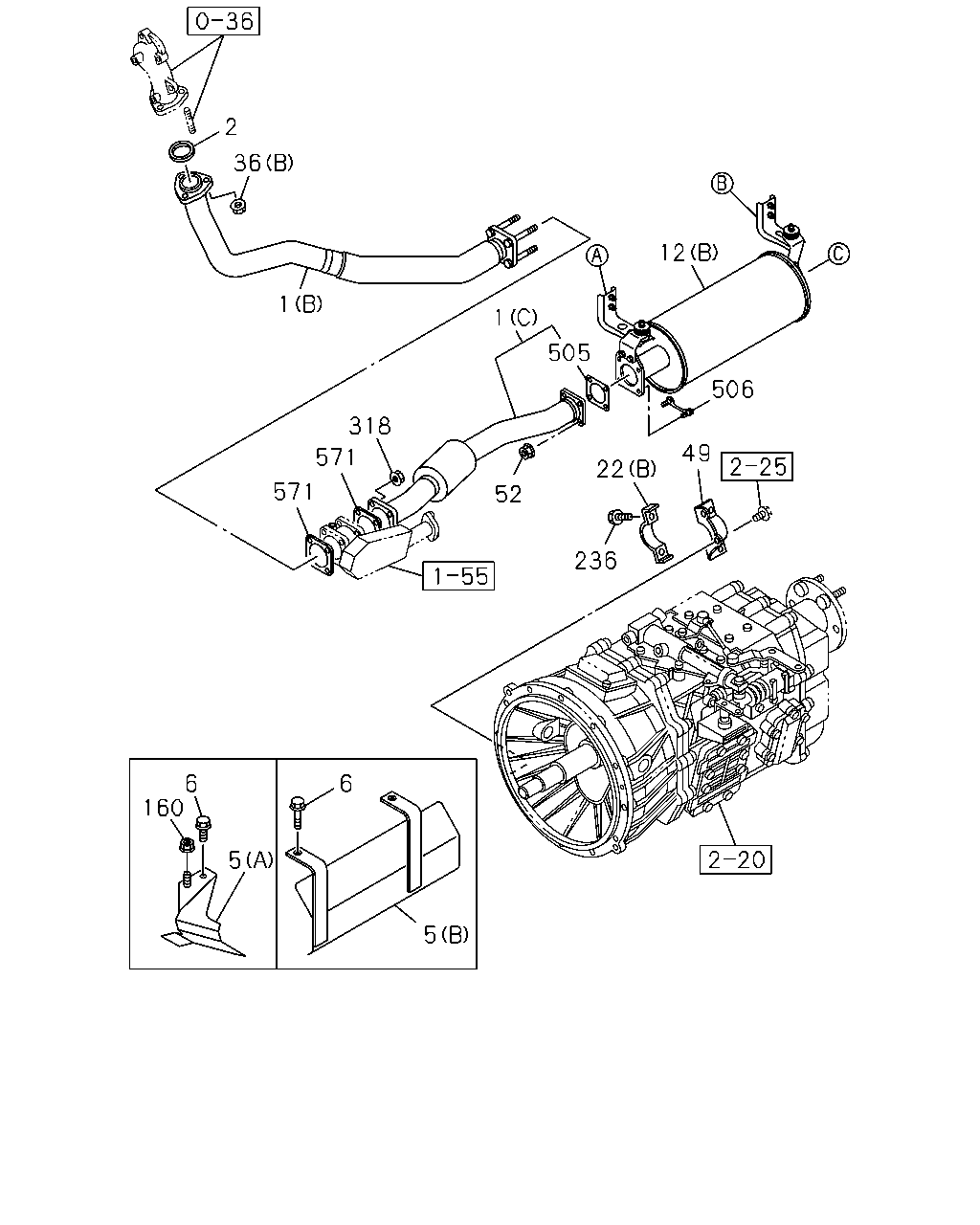

2 1 36 1 12 505 22 506 49 52 236 318 571 571 5 6 5 6 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98082-498-0	01	1	1412-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-98206-298-0	01	1	1412-
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98212-603-0	01	1	1412-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1412-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5> (B)	8-98255-001-0	01	1	1412-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (A)	8-98208-210-1	01	1	1412-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1412-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1412-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98090-389-2	01	1	1412-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98212-605-0	01	1	1412-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1412-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1412-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1412-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1412-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1412-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS)	8-98234-530-0	01	1	1412-
52	NUT; BRKT 4HK1-TCS ENG(RJS) M12 FLANGE	0-91180-212-0	04	1	1412-
160	NUT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1412-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1412-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	1412-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-98096-305-0	01	1	1412-
506	BRACKET; STUD 4HK1-TCS ENG(RJS) M12X35	1-22131-963-0	02	1	1412-
571	GASKET 4HK1-TCS ENG(RJS) ID=64	8-97373-108-0	02	1	1412-

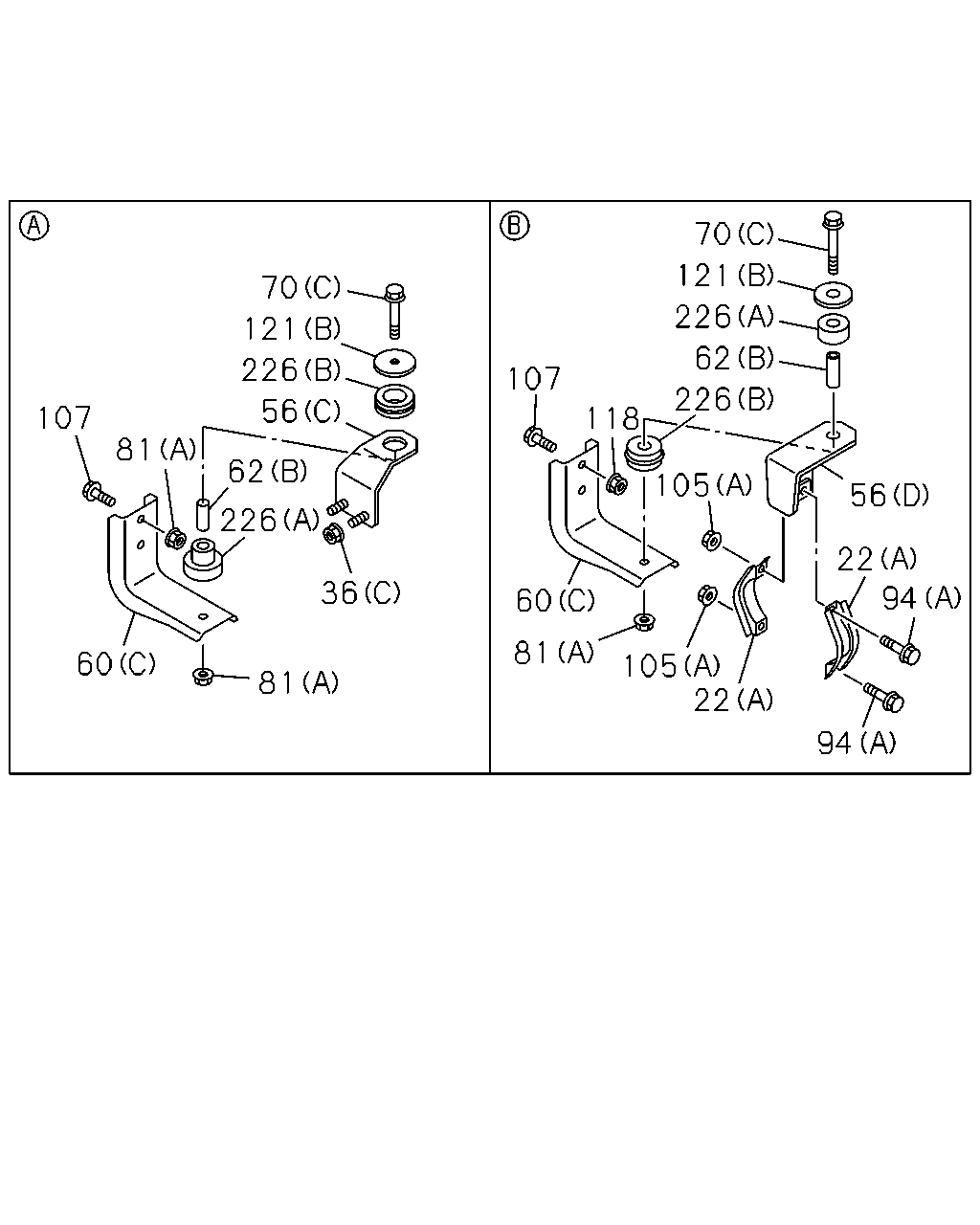

70 121 226 56 62 226 36 81 60 81 107 70 121 226 62 226 118 107 105 56 22 94 94 22 105 81 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1412-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1412-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1412-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1412-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1412-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1412-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-304-0	01	1	1412-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A) L=40 B=50 H=74	1-22139-045-0	02	1	1412-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1412-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	1-22131-435-1	01	1	1412-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1412-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98183-955-0	02	1	1412-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	8-98212-611-0	01	1	1412-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (B) L=39	8-98060-852-0	02	1	1412-
62	TUBE; DIST,BRKT (A) L=22	9-22159-024-0	01	1	1412-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X50	0-10856-050-0	01	1	1412-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M10X70 FLANGE	0-28051-070-0	02	1	1412-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X50	0-10856-050-0	02	1	1412-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X50 FLANGE	0-28051-050-0	01	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT	0-91370-010-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1412-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1412-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28651-040-0	04	1	1412-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1412-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M10	0-91110-510-0	02	1	1412-
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1412-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1412-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1412-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1412-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1412-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (B) ID=11 OD=54	1-09503-154-2	02	1	1412-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) (A) ID=10.5 OD=32	0-91614-810-0	02	1	1412-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	02	1	1412-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	02	1	1412-

36 1 34 36 17 107 118 81 81 121 75 60 75 56 94 70 105 22 63 22 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98082-498-0	01	1	1412-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-98206-298-0	01	1	1412-
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98212-603-0	01	1	1412-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) M12X120	1-09000-293-0	01	1	1412-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1412-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1412-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1412-
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1412-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1412-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1412-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1412-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1412-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-304-0	01	1	1412-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A) L=40 B=50 H=74	1-22139-045-0	02	1	1412-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1412-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	1-22131-435-1	01	1	1412-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1412-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98183-955-0	02	1	1412-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	8-98212-611-0	01	1	1412-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) L=11	1-22139-026-0	02	1	1412-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X50	0-10856-050-0	01	1	1412-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M10X70 FLANGE	0-28051-070-0	02	1	1412-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X50	0-10856-050-0	02	1	1412-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X50 FLANGE	0-28051-050-0	01	1	1412-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) (C) OD=40	1-22159-094-0	02	1	1412-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1412-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (A) OD=40	1-22159-193-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1412-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT	0-91370-010-0	02	1	1412-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1412-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1412-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28651-040-0	04	1	1412-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1412-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (B) M10	0-91110-510-0	02	1	1412-
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1412-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1412-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1412-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1412-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1412-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (B) ID=11 OD=54	1-09503-154-2	02	1	1412-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) (A) ID=10.5 OD=32	0-91614-810-0	02	1	1412-

1 12 1 20 476 20 476 475 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98082-498-0	01	1	1412-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-98206-298-0	01	1	1412-
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98212-603-0	01	1	1412-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5> (B)	8-98255-001-0	01	1	1412-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (A)	8-98208-210-1	01	1	1412-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1412-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1412-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98090-389-2	01	1	1412-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98212-605-0	01	1	1412-
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L) M10X49.8	8-97039-586-0	02	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L) OD=112	1-22119-294-1	01	1	1412-
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-94141-851-0	02	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
