29 |
HOSE; FUEL
4HK1-TCS ENG(RJS)
(C)
|
8-98220-011-0 |
01 |
1 |
1412- |
| |
29 |
HOSE; FUEL
4HK1-TCS ENG(RJS)
(D)
L=730
|
8-98205-834-0 |
01 |
1 |
1412- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
(D)
L=730
|
8-98205-834-0 |
01 |
1 |
1412- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
(A)
|
8-98078-196-2 |
01 |
1 |
1412- |
| |
29 |
HOSE; FUEL
6HK1-TCN ENG(82L)
(B)
|
8-98078-197-1 |
01 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(G)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
02 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(C)
ID=14
|
1-09704-102-0 |
04 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(H)
ID=13-18 L=14.5
|
1-09709-290-0 |
02 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(D)
ID=16
|
8-94238-568-0 |
04 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(A)
ID=13
|
8-94238-571-0 |
08 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
(E)
L=250
|
5-09707-030-1 |
05 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=250
|
5-09707-030-1 |
05 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
1412- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
1412- |
| |
47 |
PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
(B)
|
8-98213-750-0 |
01 |
1 |
1412- |
| |
47 |
PIPE; FUEL,RETURN
6HK1-TCN ENG(82L)
(A)
L=688
|
8-98129-921-0 |
01 |
1 |
1412- |
| |
67 |
HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
(C)
|
8-98206-489-0 |
01 |
1 |
1412- |
| |
67 |
HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
(D)
|
8-98208-821-0 |
01 |
1 |
1412- |
| |
67 |
HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L)
(A)
L=110
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1412- |
| |
67 |
HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L)
(B)
L=210
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1412- |
| |
80 |
BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1412- |
| |
80 |
BOLT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1412- |
| |
80 |
BOLT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
(B)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1412- |
| |
80 |
BOLT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1412- |
| |
82 |
CLIP; FUEL HOSE
6HK1-TCN ENG(82L)
ID=13 & 16.5
|
8-94169-028-0 |
01 |
1 |
1412- |
| |
83 |
NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1412- |
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L)
FUEL TANK 200L FRAME SIDE<N20>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1412- |
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(D)
|
1-47475-427-1 |
01 |
1 |
1412- |
| |
97 |
BRACKET; CLIP
4HK1-TCS ENG(RJS)
(E)
|
8-98126-612-0 |
01 |
1 |
1412- |
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(C)
L=50
|
1-47475-299-2 |
01 |
1 |
1412- |
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(A)
|
8-98053-654-0 |
01 |
1 |
1412- |
| |
97 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
(B)
|
8-98129-922-0 |
01 |
1 |
1412- |
| |
174 |

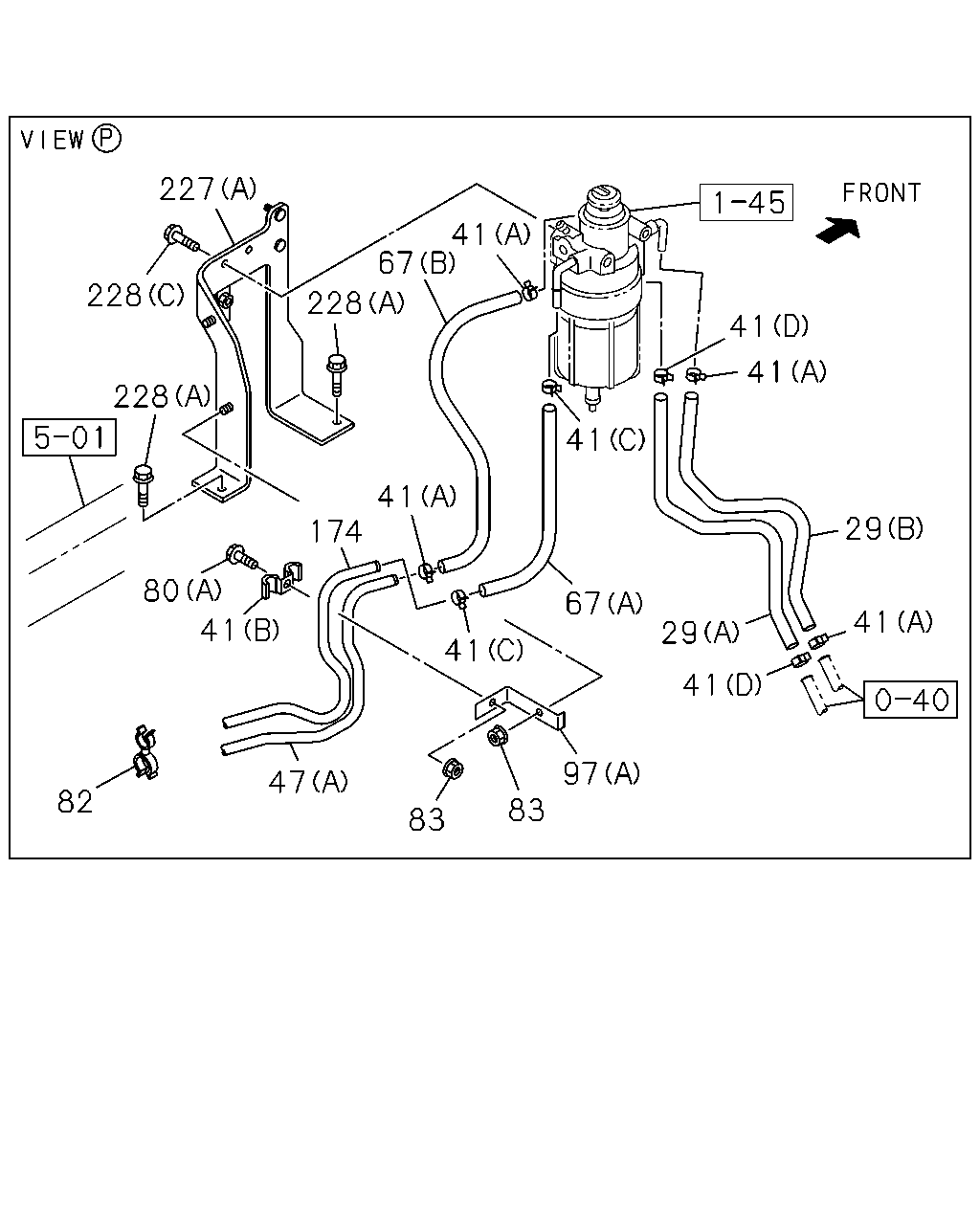

PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L)
L=685
|
8-98129-920-0 |
01 |
1 |
1412- |
| |
227 |

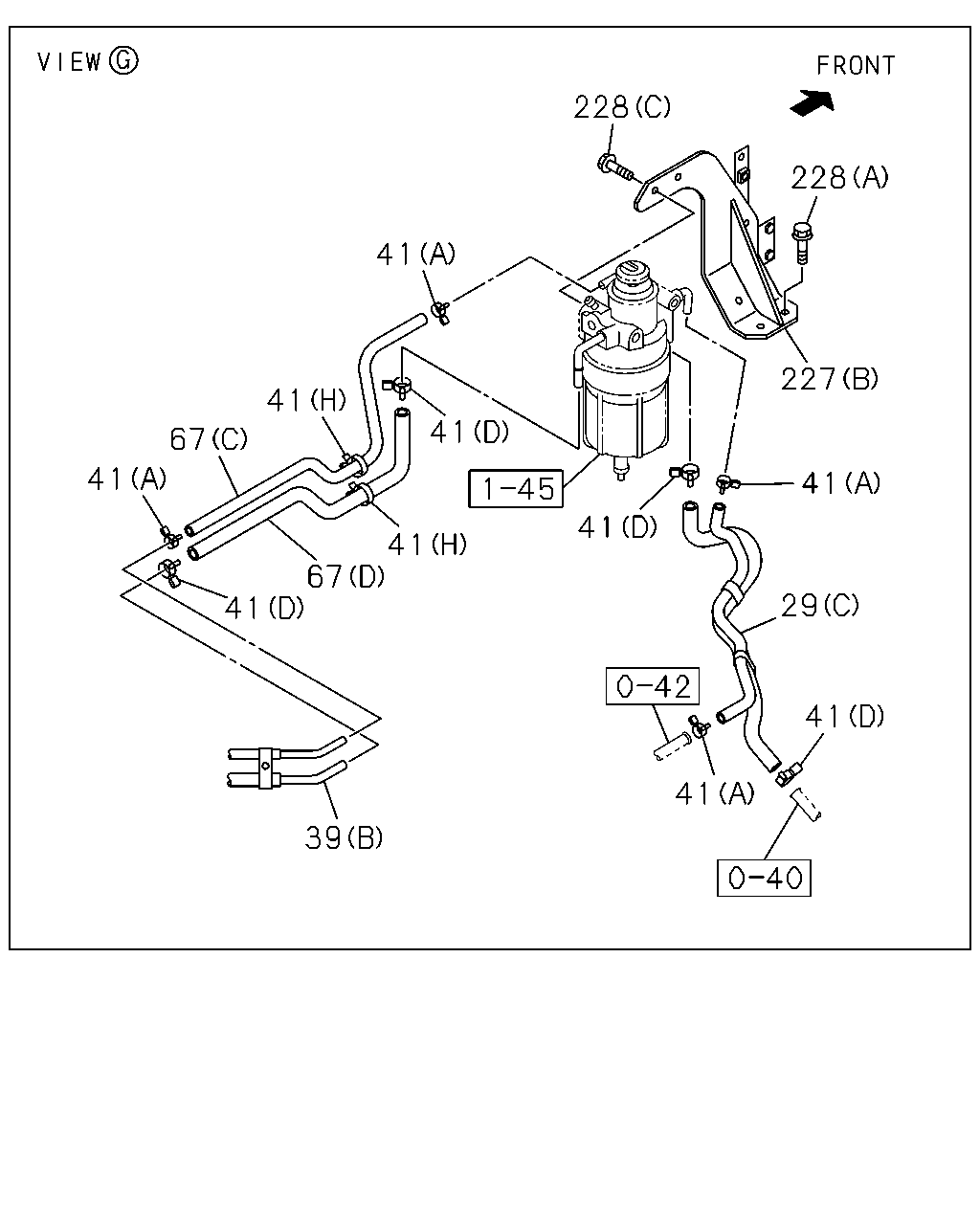

BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS)
(B)
|
8-98203-480-0 |
01 |
1 |
1412- |
| |
227 |
BRACKET; FUEL SEDIMENTER
6HK1-TCN ENG(82L)
(A)
|
8-98044-366-3 |
01 |
1 |
1412- |
| |
228 |
BOLT; BRKT,SEDIMENTER
FUEL TANK 200L FRAME SIDE<N20>
(B)
M10X60 FLANGE
|
0-28051-060-0 |
02 |
1 |
1412- |
| |
228 |
BOLT; BRKT,SEDIMENTER
(A)
M8X25 FLANGE
|
0-28050-825-0 |
02 |
1 |
1412- |
| |
228 |
BOLT; BRKT,SEDIMENTER
(C)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1412- |
