1-31 — AIR DUCT (#153350) — 148 parça

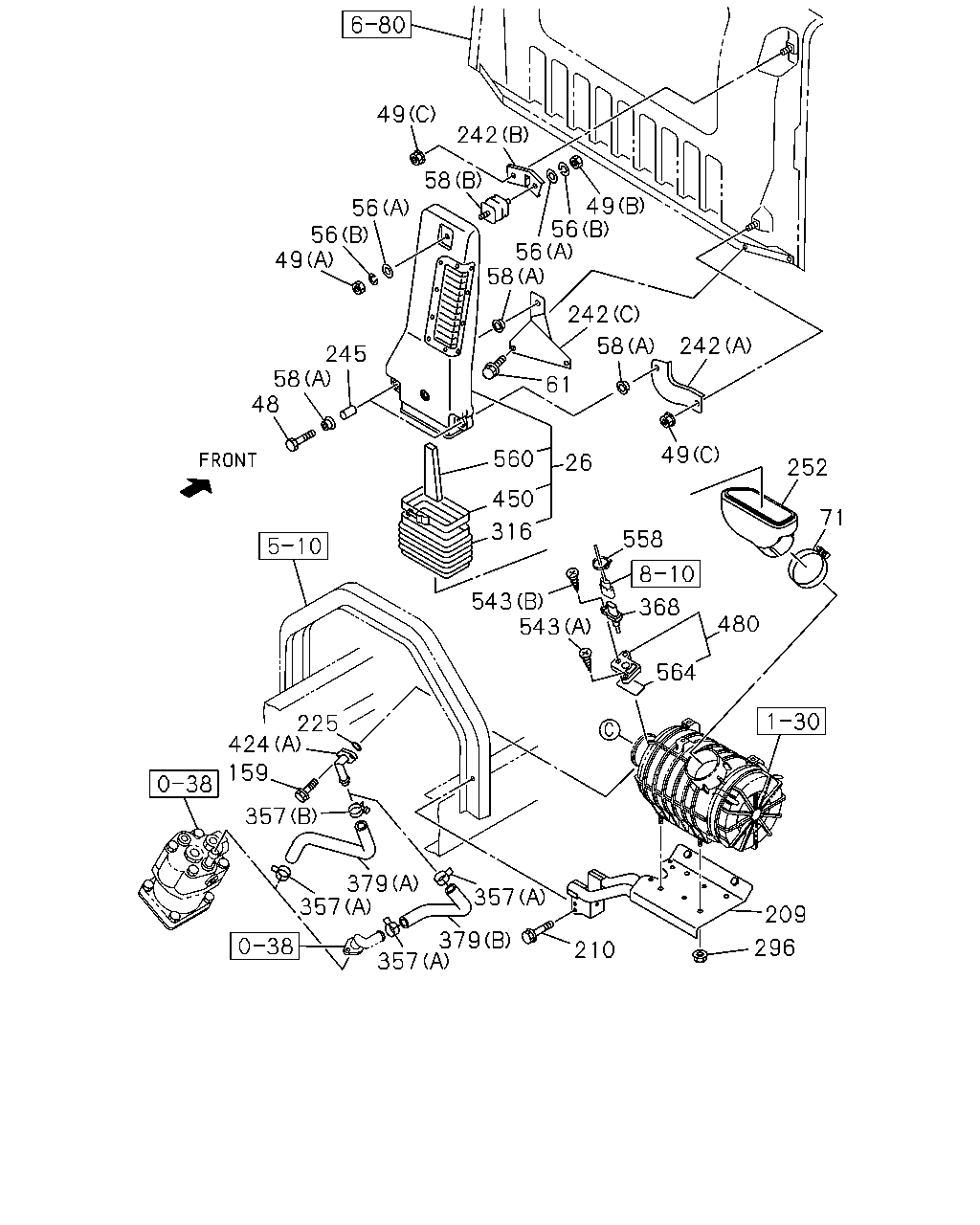

çizim 458381
49 242 58 56 56 49 245 58 48 560 450 316 242 58 56 56 49 58 61 242 49 26 558 252 71 480 564 368 543 543 209 296 210 357 357 379 357 379 357 159 424 225
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1412- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1412- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1412- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1412- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1412- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1412- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1412- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1412- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1412- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1412- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1412- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1412- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1412- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1412- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1412- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1412- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1412- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1412- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1412- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1412- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1412- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1412- ● ●
357 CLIP; RUBBER HOSE
(D) ID=24 		8-98025-921-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95 		8-98133-357-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99 		1-09707-141-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1412- ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1412- ● ●
379 HOSE; RUBBER
(C) 		8-98188-903-0 01 1 1412- ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97619-194-0 01 1 1412- ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98077-469-0 01 1 1412- ●
424 PIPE; AIR,INL
(B) 		8-98081-837-0 01 1 1412- ●
424 PIPE; AIR,INL
(A) 		8-98081-834-0 01 1 1412- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1412- ● ●
480 ADAPTER 8-98086-417-0 01 1 1412- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1412- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1412- ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1412- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1412- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1412- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1412- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1412- ● ●

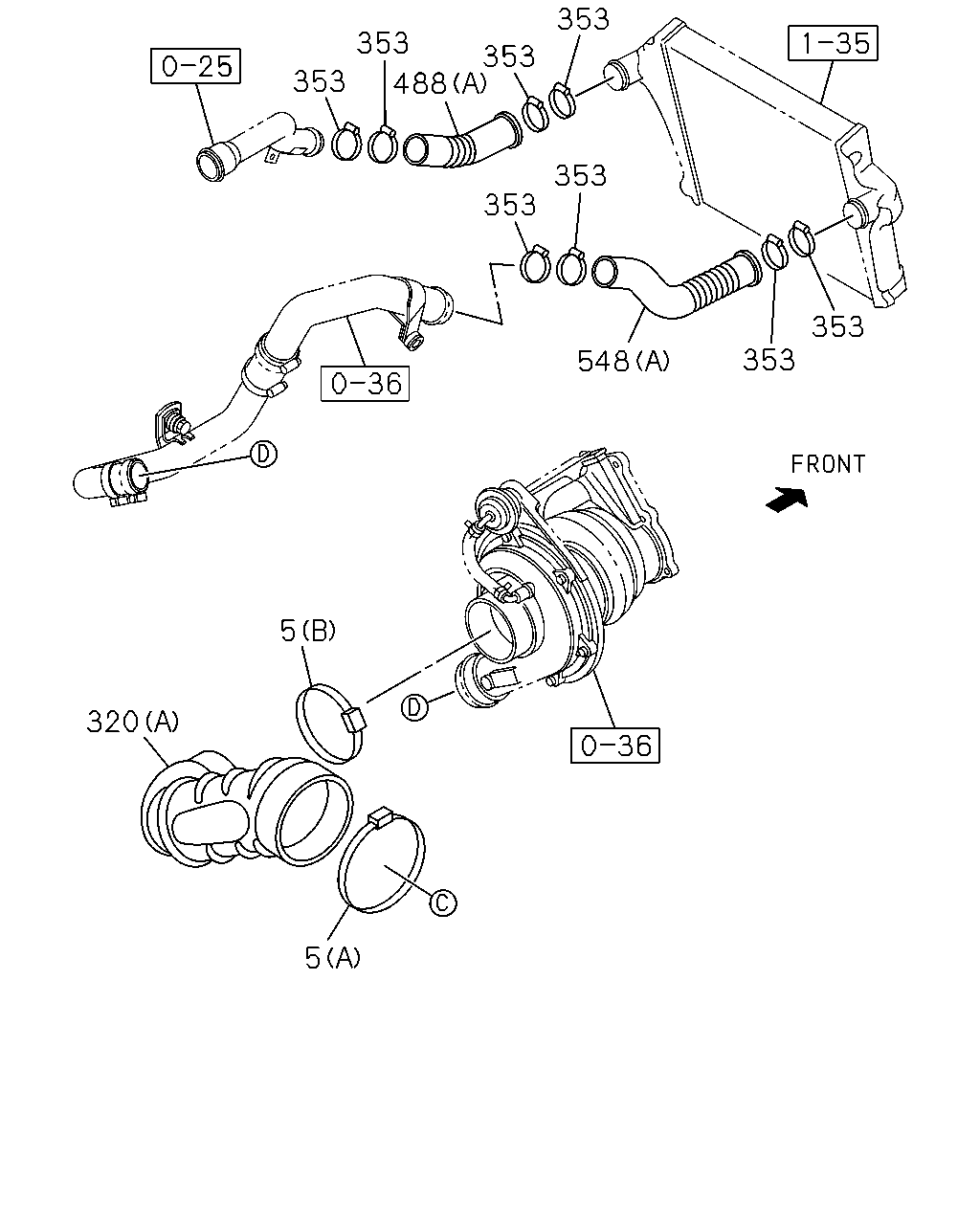

çizim 458518
353 353 353 488 353 353 353 353 353 548 320 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 01 1 1412- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (C) ID=75 		8-98206-613-0 01 1 1412- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1412- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1412- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1412- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1412- ● ●
320 HOSE; CONN,ACL
(B) 		8-98188-580-0 01 1 1412- ●
320 HOSE; CONN,ACL
(A) 		8-98073-257-0 01 1 1412- ●
353 CLIP; RUBBER HOSE
ID=60-65 		8-98096-418-0 02 1 1412- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 02 1 1412- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 02 1 1412- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1412- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1412- ●
488 HOSE; RUBBER,PIPE
(B) 		8-98204-041-0 01 1 1412- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98012-936-1 01 1 1412- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-971-1 01 1 1412- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98211-753-0 01 1 1412- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-974-1 01 1 1412- ●

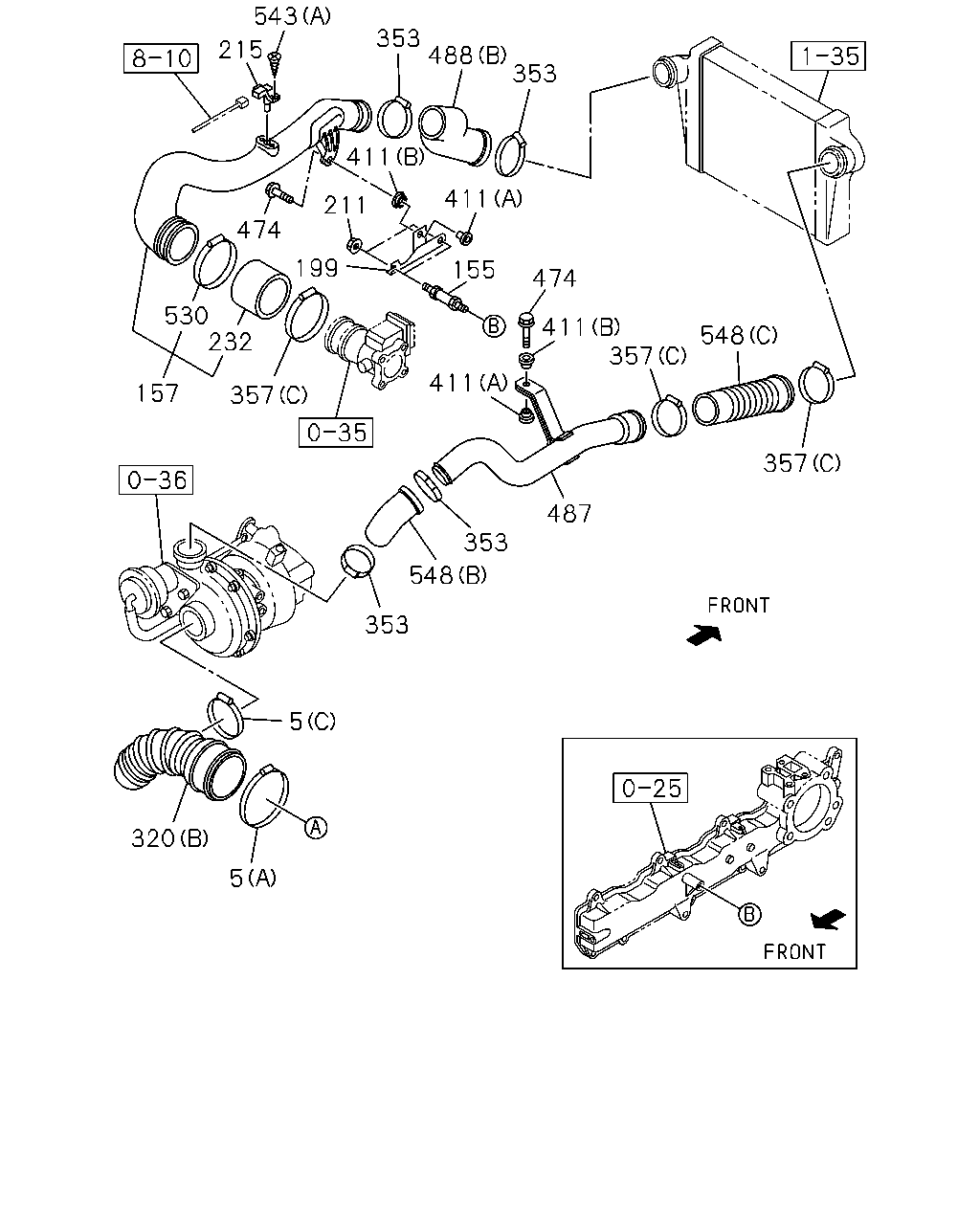

çizim 458524
215 543 353 353 488 411 411 155 199 474 211 474 411 357 548 411 357 157 232 530 487 353 548 353 5 5 320 357
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 01 1 1412- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (C) ID=75 		8-98206-613-0 01 1 1412- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1412- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1412- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1412- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1412- ● ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1412- ●
157 PIPE; AIR 8-98010-719-3 01 1 1412- ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1412- ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1412- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1412- ●
232 HOSE; CONN 8-98067-929-0 01 1 1412- ●
320 HOSE; CONN,ACL
(B) 		8-98188-580-0 01 1 1412- ●
320 HOSE; CONN,ACL
(A) 		8-98073-257-0 01 1 1412- ●
353 CLIP; RUBBER HOSE
ID=60-65 		8-98096-418-0 02 1 1412- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 02 1 1412- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 02 1 1412- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1412- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1412- ●
357 CLIP; RUBBER HOSE
(D) ID=24 		8-98025-921-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95 		8-98133-357-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99 		1-09707-141-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1412- ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1412- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1412- ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1412- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98211-755-0 01 1 1412- ●
488 HOSE; RUBBER,PIPE
(B) 		8-98204-041-0 01 1 1412- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98012-936-1 01 1 1412- ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1412- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1412- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1412- ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1412- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-971-1 01 1 1412- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98211-753-0 01 1 1412- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-974-1 01 1 1412- ●

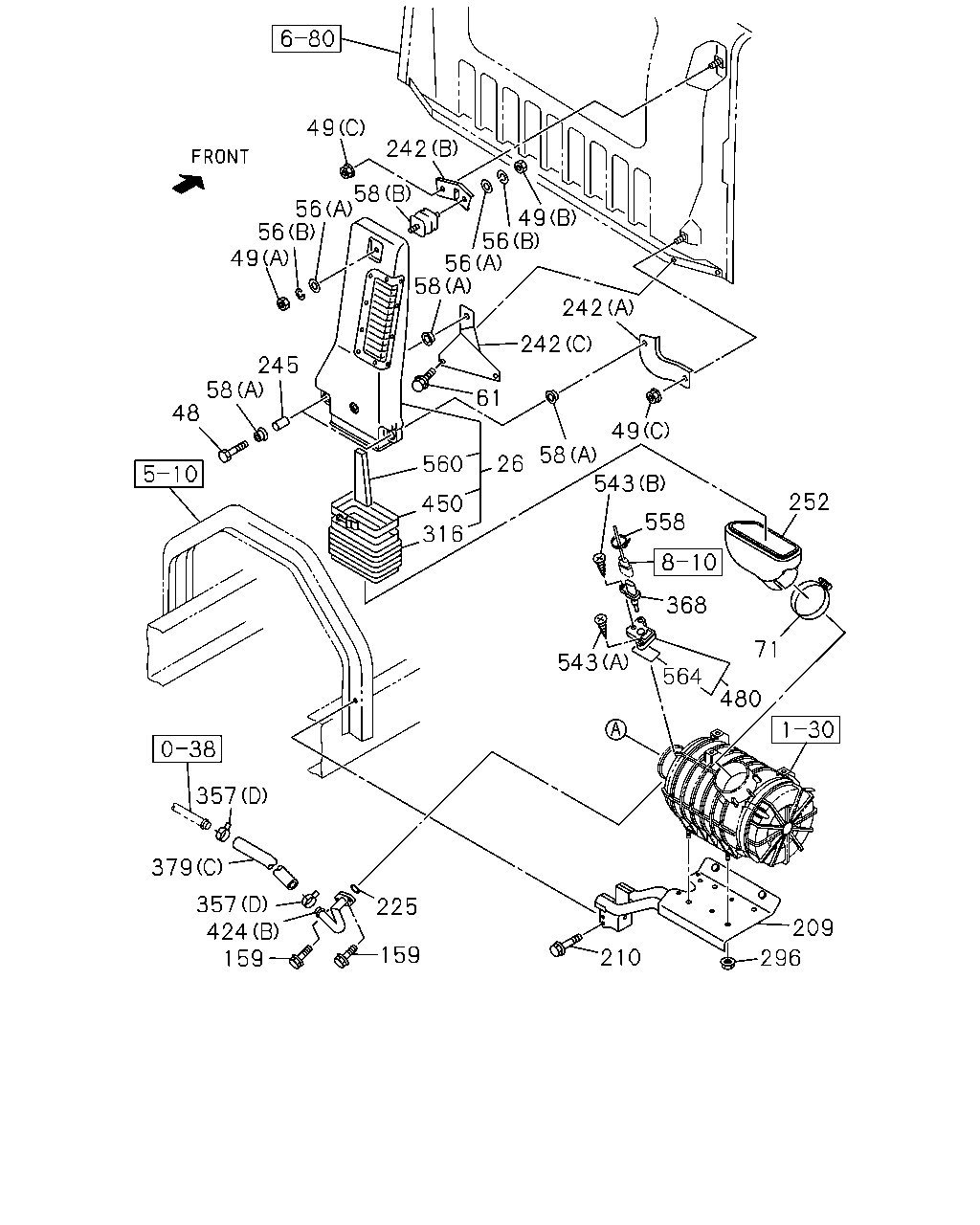

çizim 458982
296 210 209 225 159 159 357 424 379 357 543 564 368 558 252 543 49 58 26 560 450 316 48 58 245 58 56 56 49 242 242 242 49 56 58 56 49 61 71 480
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1412- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1412- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1412- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1412- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1412- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1412- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1412- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1412- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1412- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1412- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1412- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1412- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1412- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1412- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1412- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1412- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1412- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1412- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1412- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1412- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1412- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1412- ● ●
357 CLIP; RUBBER HOSE
(D) ID=24 		8-98025-921-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95 		8-98133-357-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99 		1-09707-141-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1412- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1412- ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1412- ● ●
379 HOSE; RUBBER
(C) 		8-98188-903-0 01 1 1412- ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97619-194-0 01 1 1412- ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98077-469-0 01 1 1412- ●
424 PIPE; AIR,INL
(B) 		8-98081-837-0 01 1 1412- ●
424 PIPE; AIR,INL
(A) 		8-98081-834-0 01 1 1412- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1412- ● ●
480 ADAPTER 8-98086-417-0 01 1 1412- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1412- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1412- ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1412- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1412- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1412- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1412- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1412- ● ●
