0-65 — STARTER (#153342) — 110 parça

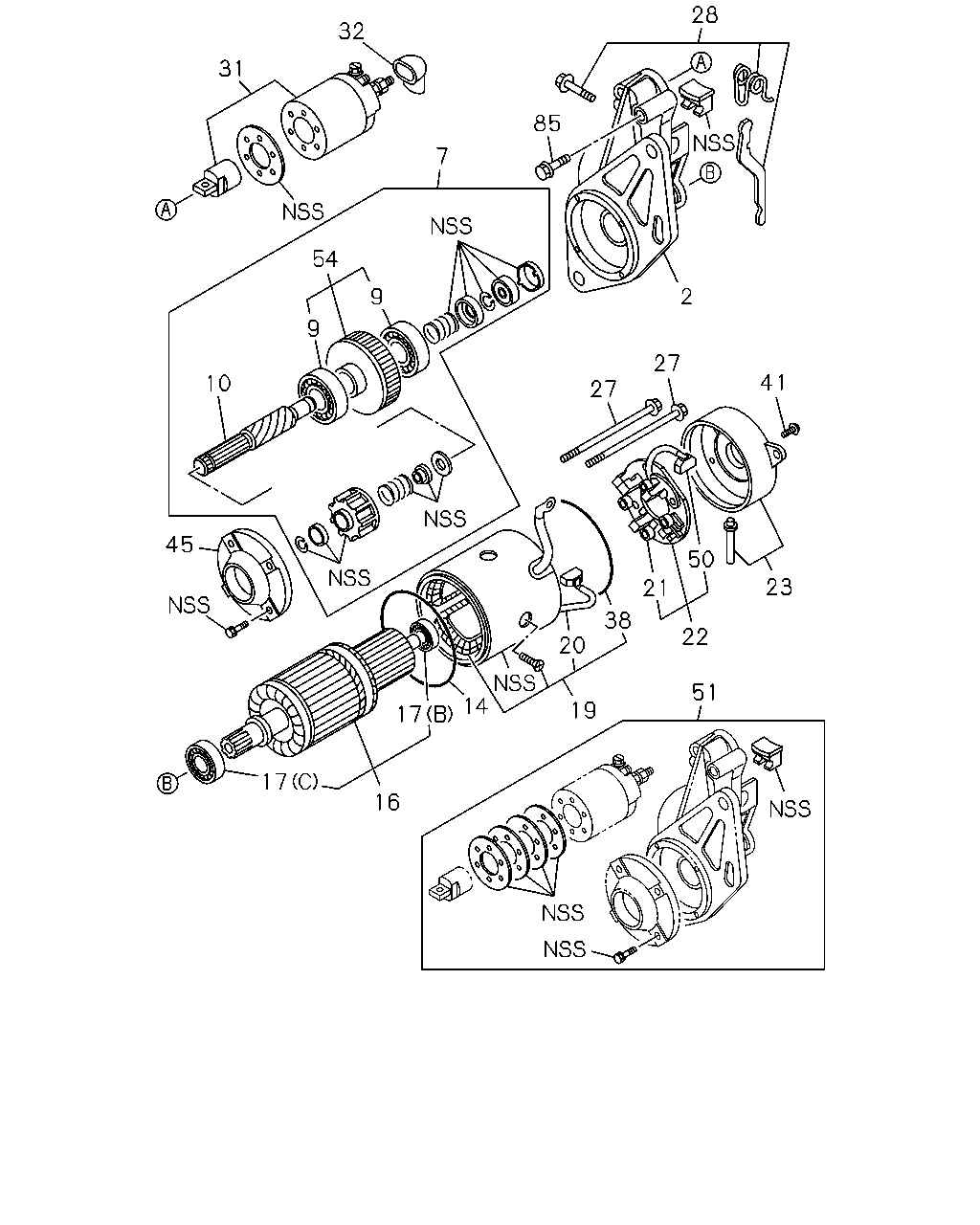

7 32 31 85 28 2 27 27 54 9 9 10 41 23 50 21 22 51 38 20 19 14 45 17 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98251-559-0	01	1	1509-
2	CASE; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98251-559-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-98261-669-0	8-98261-349-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98222-105-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98222-105-0	01	1	1509-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98261-669-0	8-98245-549-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 8-98245-260-1	8-97025-673-0	02	1	1509-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 8-98245-260-1	8-97025-673-0	02	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-98245-260-1	8-98259-739-0	01	1	1509-
10	SHAFT; GEAR STARTER ASM PART: A = 8-98245-260-1	8-98259-739-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-98245-260-1	8-97377-691-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-98245-260-1	8-97377-691-0	01	1	1509-
16	ARMATURE; STARTER ASM PART: B = 8-98261-669-0	1-81121-075-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-98245-260-1	8-97230-557-0	01	1	1509-
16	ARMATURE; STARTER ASM PART: A = 8-98245-260-1	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-98261-669-0	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-98245-260-1	8-94228-436-0	01	1	1509-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-98245-260-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-98245-260-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-98245-260-1	8-97030-387-0	01	1	1509-
19	COIL; FIELD,STARTER ASM PART: A = 8-98245-260-1	8-98253-306-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-98245-260-1	8-98253-306-0	01	1	1509-
20	BRUSH; (+),STARTER ASM PART: B = 8-98261-669-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-98245-260-1	8-97230-560-0	02	1	1509-
20	BRUSH; (+),STARTER ASM PART: A = 8-98245-260-1	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-98261-669-0	1-81129-768-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-98245-260-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-98245-260-1	8-94152-972-0	04	1	1509-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-98245-260-1	8-97230-562-0	01	1	1509-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-98245-260-1	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-98261-669-0	8-98245-553-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-98245-260-1	8-98246-366-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-98245-260-1	8-98246-366-0	01	1	1509-
23	COVER; RR COVER STARTER ASM PART: B = 8-98261-669-0	8-98248-764-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-98261-669-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-98245-260-1	8-97192-423-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-98245-260-1	8-97192-423-0	02	1	1509-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-98261-669-0	1-81129-762-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-98245-260-1	8-98159-690-0	01	1	1509-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-98245-260-1	8-98159-690-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-98245-260-1	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-98245-260-1	8-98246-367-0	01	1	1509-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-98261-669-0	8-98285-039-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 8-98245-260-1	8-98253-307-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 8-98245-260-1	8-98253-307-0	01	1	1509-
38	GASKET; RR COVER,STARTER ASM PART: A = 8-98245-260-1	8-97230-559-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 8-98245-260-1	8-97230-559-0	01	1	1509-
41	SCREW; RR COVER,STARTER ASM PART: A = 8-98245-260-1	8-97117-107-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 8-98245-260-1	8-97117-107-0	02	1	1509-
45	RETAINER; BEARING,STARTER ASM PART: A = 8-98245-260-1	8-98246-369-0	01	1	-
45	RETAINER; BEARING,STARTER ASM PART: A = 8-98245-260-1	8-98246-369-0	01	1	1509-
50	BRUSH; (-),STARTER ASM PART: A = 8-98245-260-1	8-97230-563-0	02	1	1509-
50	BRUSH; (-),STARTER ASM PART: A = 8-98245-260-1	8-97230-563-0	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-98245-260-1	8-97377-690-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-98245-260-1	8-97377-690-0	01	1	1509-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-98261-669-0	1-81129-761-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98222-106-0	01	1	1509-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98222-106-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-98245-260-1	8-94408-500-0	02	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-98245-260-1	8-94408-500-0	02	1	1509-

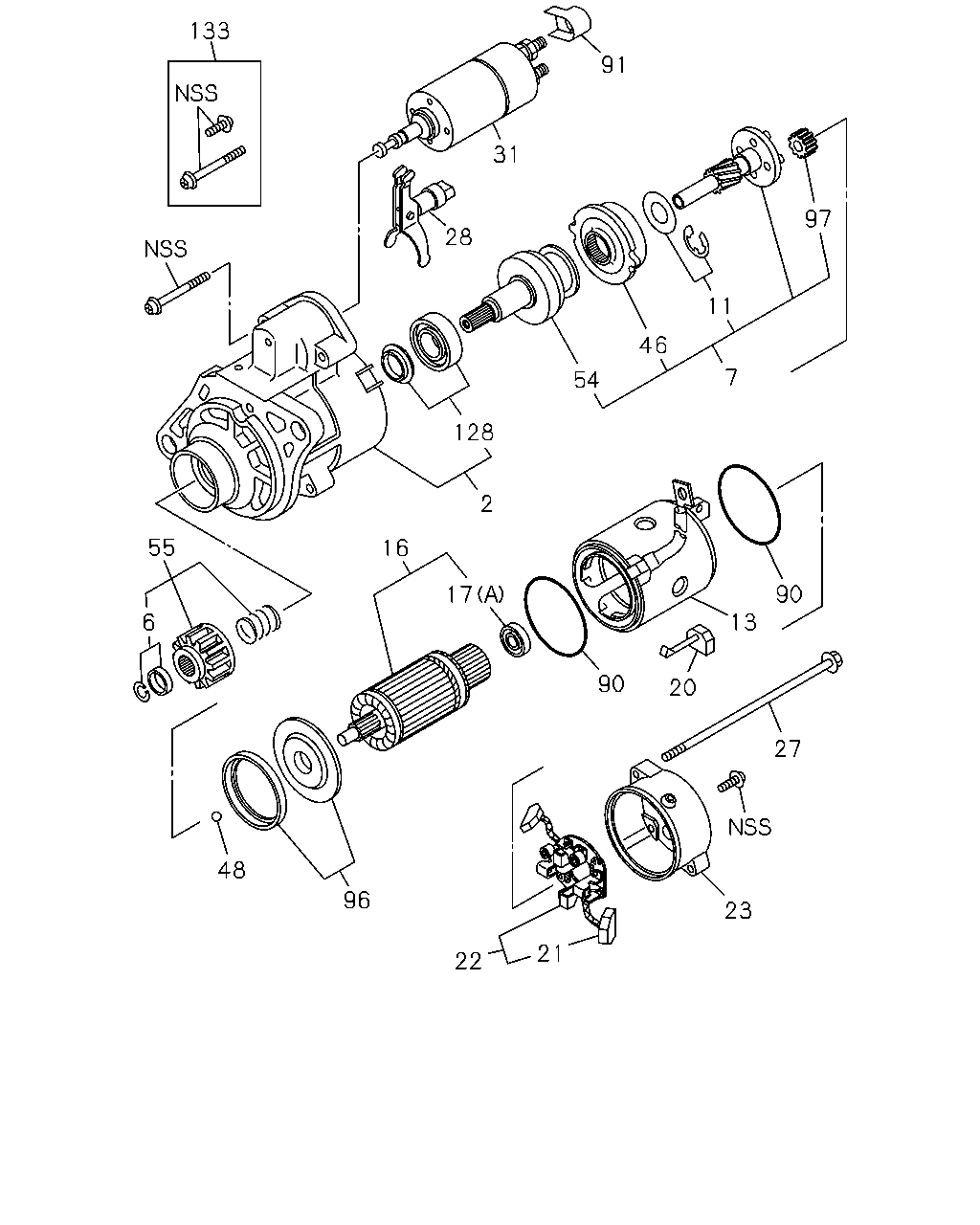

133 31 91 28 54 128 2 46 11 97 7 16 55 6 48 96 22 21 23 27 90 13 20 90 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98251-559-0	01	1	1509-
2	CASE; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98251-559-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-98261-669-0	8-98261-349-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: B = 8-98261-669-0	8-94475-688-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98222-105-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98222-105-0	01	1	1509-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98261-669-0	8-98245-549-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: B = 8-98261-669-0	8-97116-484-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-98261-669-0	8-98285-040-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-98261-669-0	1-81121-075-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-98245-260-1	8-97230-557-0	01	1	1509-
16	ARMATURE; STARTER ASM PART: A = 8-98245-260-1	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-98261-669-0	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-98245-260-1	8-94228-436-0	01	1	1509-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-98245-260-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-98245-260-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-98245-260-1	8-97030-387-0	01	1	1509-
20	BRUSH; (+),STARTER ASM PART: B = 8-98261-669-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-98245-260-1	8-97230-560-0	02	1	1509-
20	BRUSH; (+),STARTER ASM PART: A = 8-98245-260-1	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-98261-669-0	1-81129-768-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-98245-260-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-98245-260-1	8-94152-972-0	04	1	1509-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-98245-260-1	8-97230-562-0	01	1	1509-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-98245-260-1	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-98261-669-0	8-98245-553-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-98245-260-1	8-98246-366-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-98245-260-1	8-98246-366-0	01	1	1509-
23	COVER; RR COVER STARTER ASM PART: B = 8-98261-669-0	8-98248-764-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-98261-669-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-98245-260-1	8-97192-423-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-98245-260-1	8-97192-423-0	02	1	1509-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-98261-669-0	1-81129-762-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-98245-260-1	8-98159-690-0	01	1	1509-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-98245-260-1	8-98159-690-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-98245-260-1	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-98245-260-1	8-98246-367-0	01	1	1509-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-98261-669-0	8-98285-039-0	01	1	-
46	GEAR; CLU STARTER ASM PART: B = 8-98261-669-0	8-97116-485-0	01	1	-
48	BALL; PINION,STARTER ASM PART: B = 8-98261-669-0	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-98261-669-0	1-81129-761-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98222-106-0	01	1	1509-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-98245-260-1	8-98222-106-0	01	1	-
55	PINION; CLU,STARTER ASM PART: B = 8-98261-669-0	8-98060-835-0	01	1	-
90	GASKET; ARMATURE ASM PART: B = 8-98261-669-0	1-81129-767-0	02	1	-
91	COVER; STARTER ASM PART: B = 8-98261-669-0	1-81129-764-0	01	1	-
96	GASKET; FRT CASE ASM PART: B = 8-98261-669-0	8-98248-761-0	01	1	-
97	GEAR; STARTER ASM PART: B = 8-98261-669-0	8-97116-490-0	04	1	-
128	BEARING; STARTER ASM PART: B = 8-98261-669-0	1-81129-758-0	01	1	-
133	SCREW SET; STARTER ASM PART: B = 8-98261-669-0	1-81129-765-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
