0-50 — OIL COOLER AND OIL FILTER (#153336) — 87 parça

321 321 321 265 2 265 13 66 434 386 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1412-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1412-		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1412-1509	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1412-		●
13	VALVE; RELIEF	8-98238-944-0	01	1	1412-		●
66	SPRING; VLV	8-98238-943-0	01	1	1412-		●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1412-	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1412-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1412-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1412-		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1412-		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1412-		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1412-		●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1412-		●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1412-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1412-		●

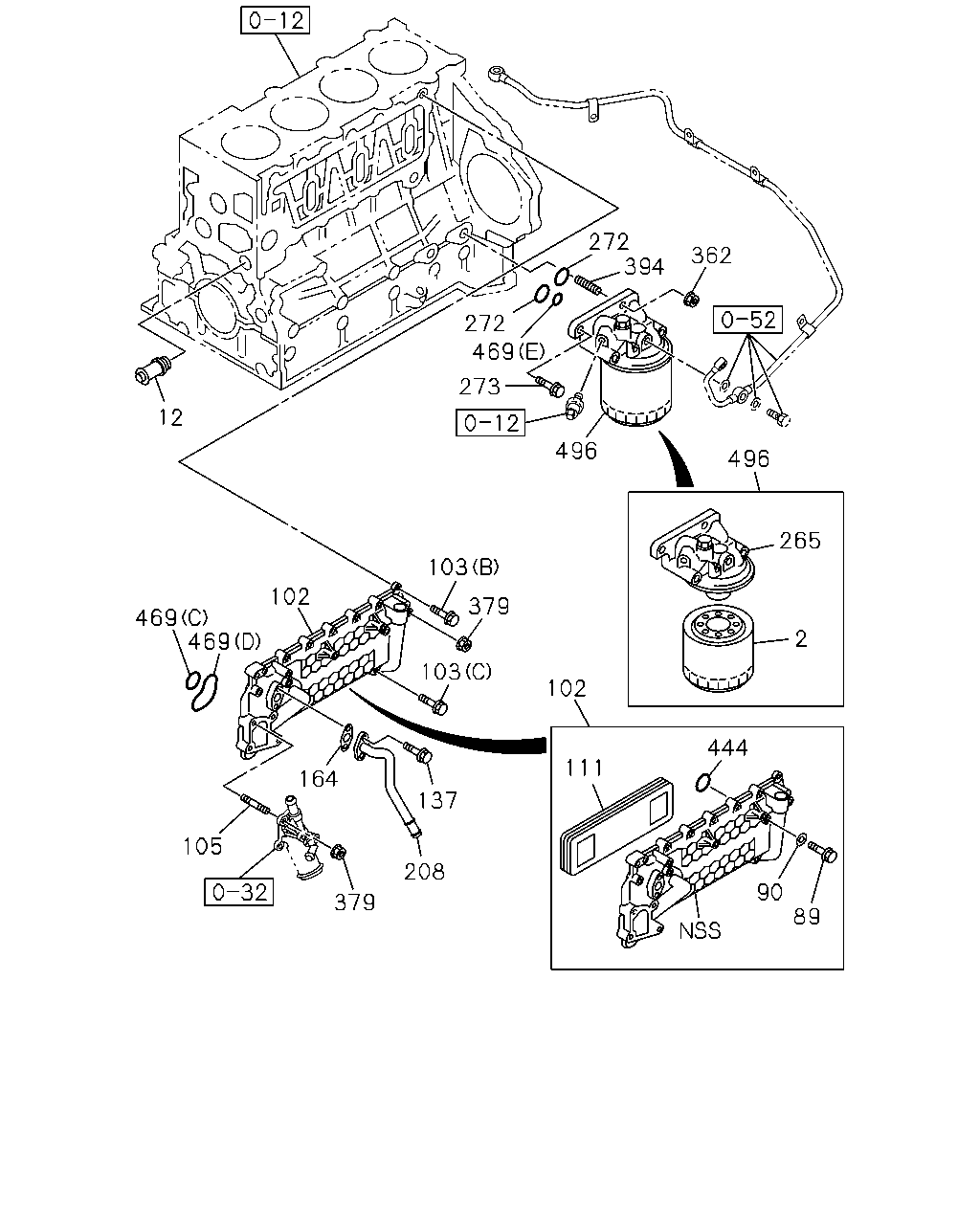

272 362 394 496 496 273 469 272 12 102 103 379 103 102 2 265 111 444 90 89 208 379 137 164 105 469 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1412-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1412-		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1412-1509	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1412-		●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1412-	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1412-	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1412-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1412-	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1412-		●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1412-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1412-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1412-		●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1412-		●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1412-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1412-	●
137	BOLT M8X20 FLANGE	0-28650-820-0	04	1	1412-	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1412-	●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	1412-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1412-	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1412-		●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1412-	●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1412-	●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	1412-	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1412-	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1412-	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1412-	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1412-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1412-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1412-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1412-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1412-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1412-		●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1412-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1412-		●

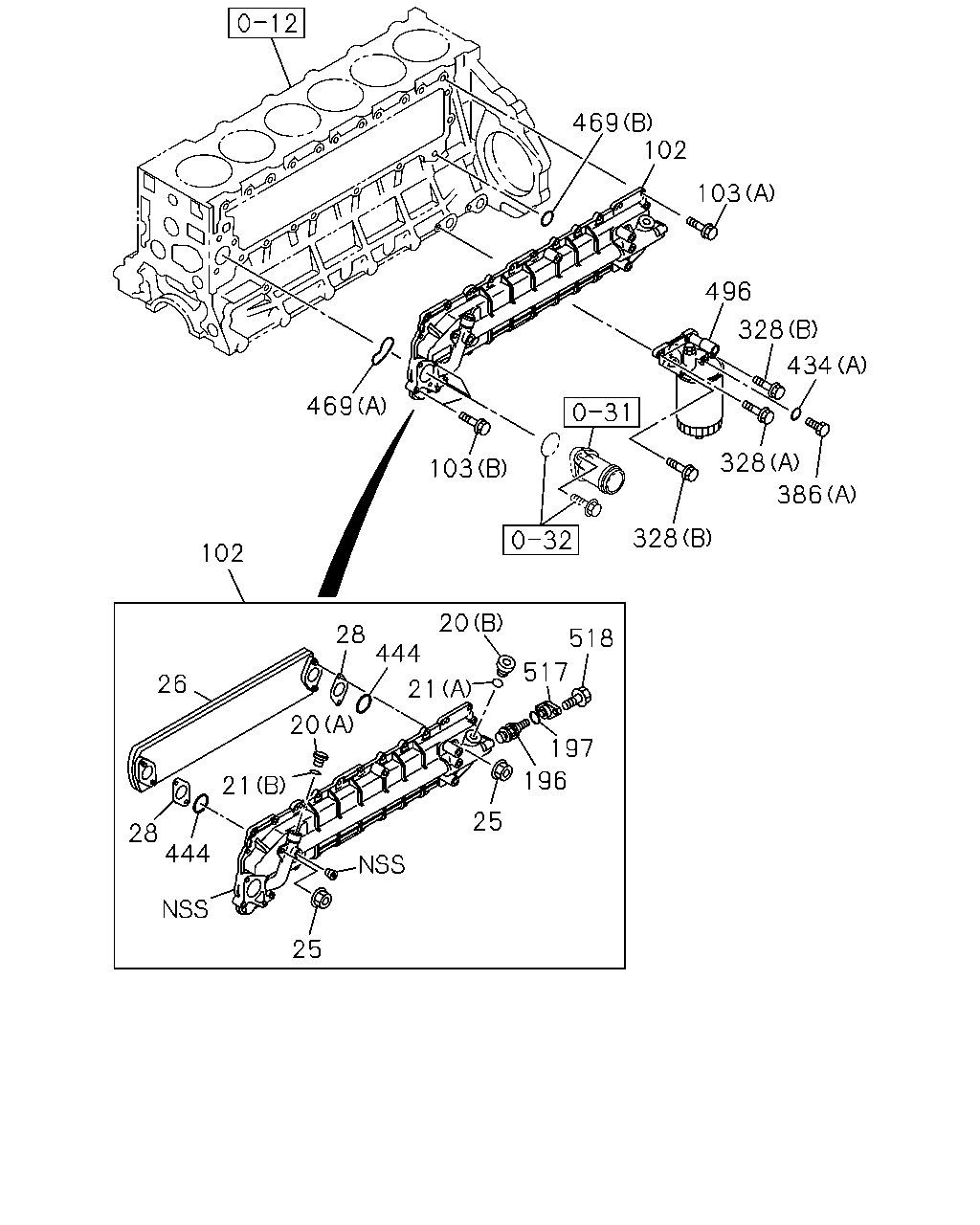

25 444 25 196 518 197 517 20 444 20 28 21 26 102 28 21 469 103 328 328 328 386 496 103 469 434 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1412-		●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1412-		●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	1412-		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	1412-		●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1412-		●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1412-		●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1412-		●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1412-	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1412-		●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1412-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1412-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1412-		●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1412-		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1412-		●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1412-		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1412-		●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1412-		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1412-		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1412-		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1412-		●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1412-		●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1412-	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1412-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1412-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1412-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1412-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1412-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1412-		●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1412-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1412-		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1412-		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	1412-		●
