Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#153330) — 90 parça

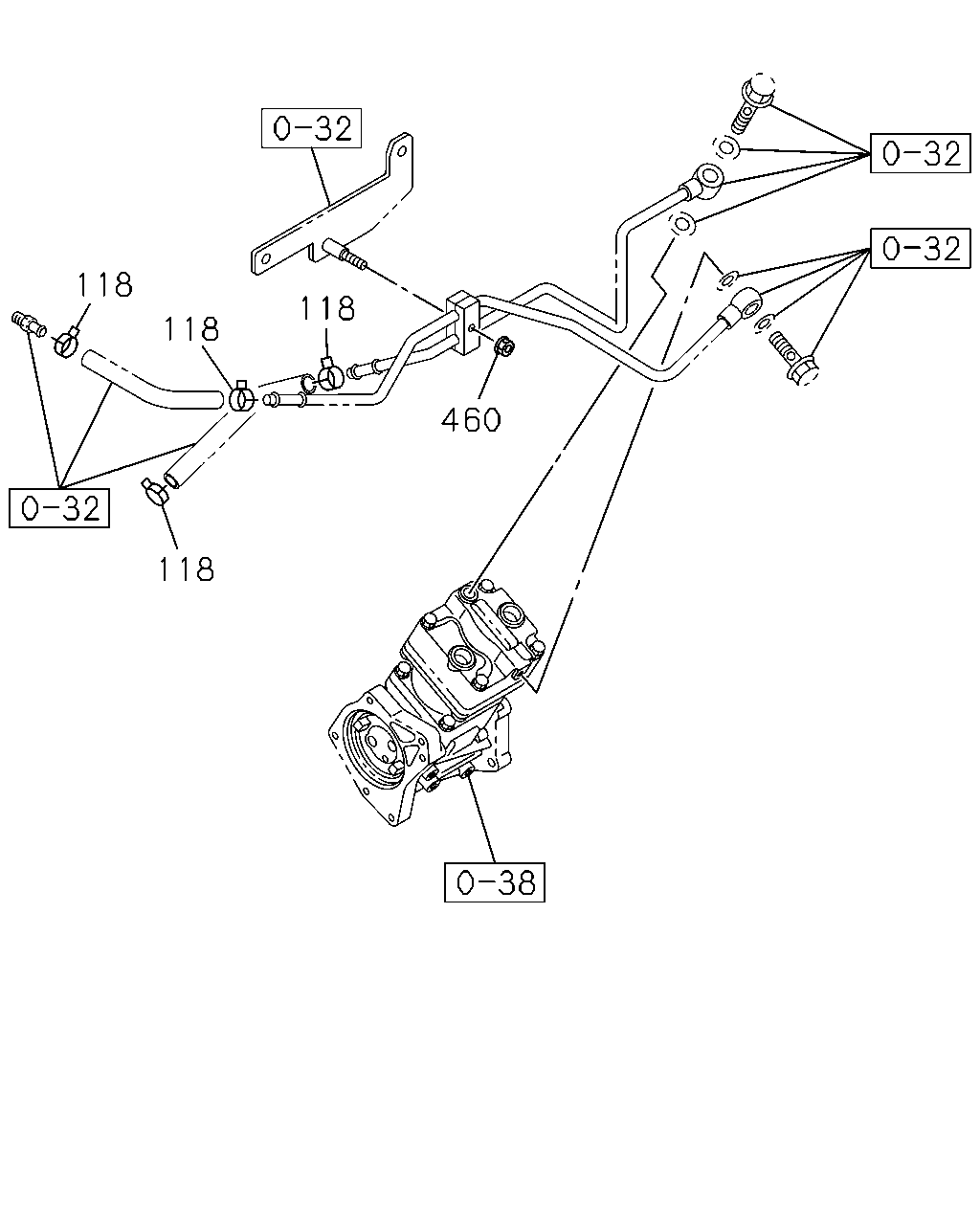

118 118 118 118 460

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	118	CLIP; WATER HOSE ID=15.5	8-94221-519-0	06	1	1412-	●
	460	NUT; PIPE M6 FLANGE	0-91180-106-0	01	1	1412-	●

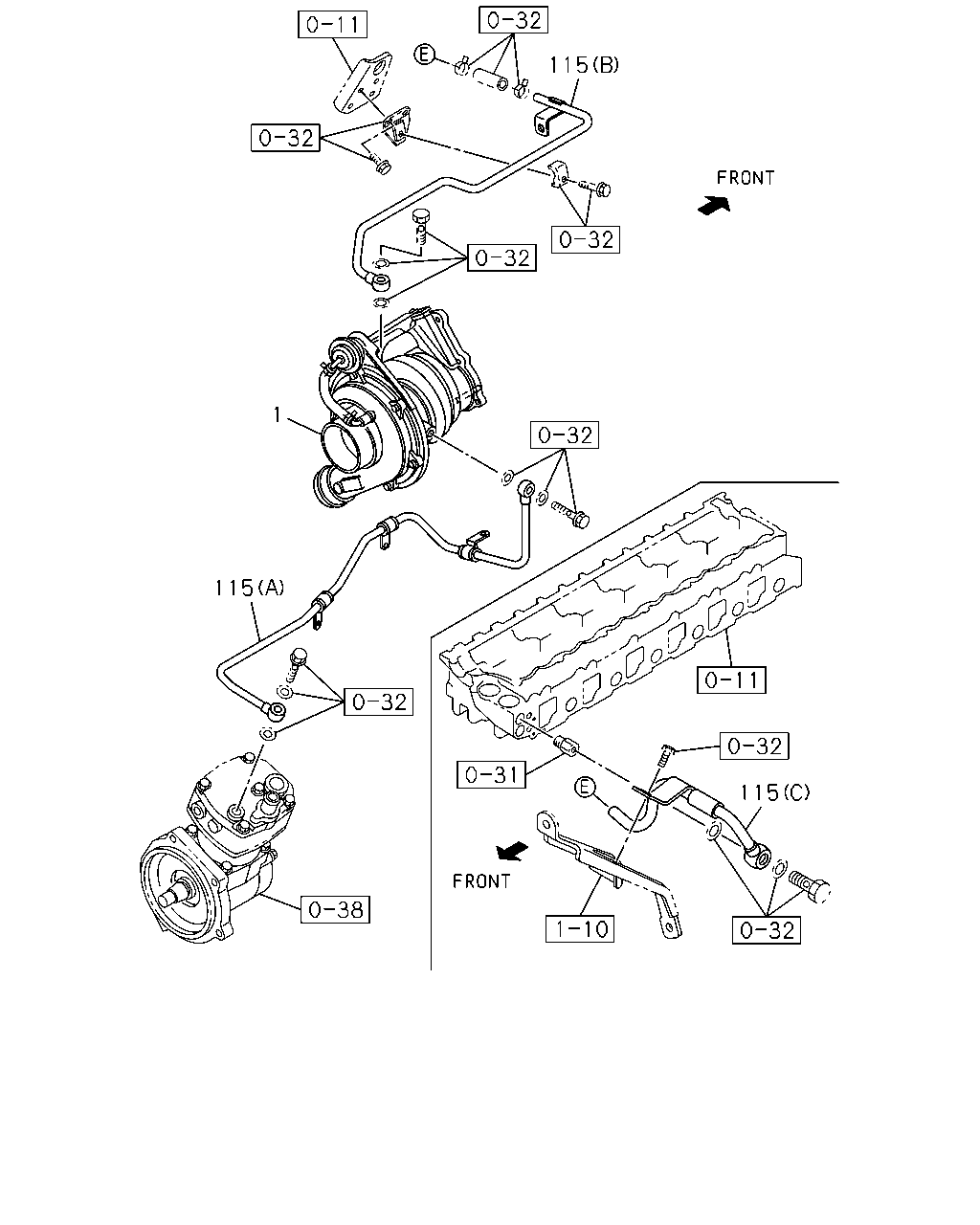

115 1 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98217-251-2	01	1	1412-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1412-		●
115	PIPE; WATER,TURBOCHARGER OUT (D)	8-98063-841-0	01	1	1412-	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	1412-		●
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	1412-		●
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97618-808-0	01	1	1412-		●
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97618-807-0	01	1	1412-		●

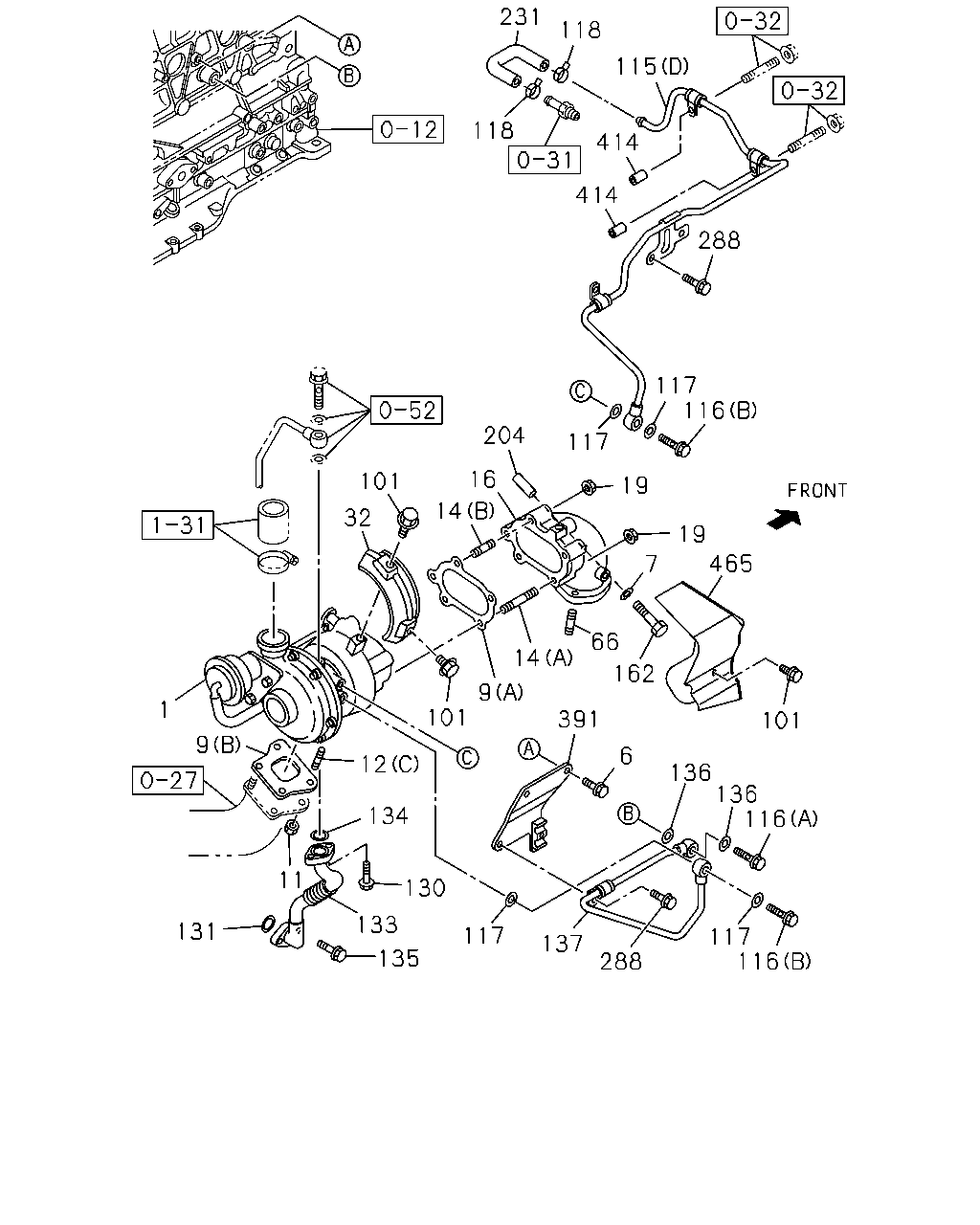

231 118 414 414 115 118 288 117 117 116 19 19 204 16 14 101 32 14 162 66 465 101 136 136 116 9 391 6 101 12 134 130 117 137 288 17 116 135 133 131 11 1 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98217-251-2	01	1	1412-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1412-		●
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	1412-	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1412-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1412-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1412-	●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1412-	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	1412-		●
12	STUD; TURBOCHARGER (C) M10X28	9-04731-028-0	02	1	1412-	●
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	1412-		●
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	1412-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1412-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1412-	●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1412-	●
16	ADAPTER; EXH PIPE	8-94395-767-0	01	1	1412-		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	1412-		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1412-	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1412-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1412-	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1412-	●
115	PIPE; WATER,TURBOCHARGER OUT (D)	8-98063-841-0	01	1	1412-	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	1412-		●
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	1412-		●
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97618-808-0	01	1	1412-		●
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97618-807-0	01	1	1412-		●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1412-	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1412-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	9-09571-412-0	04	1	1412-	●
118	CLIP; WATER HOSE ID=15.5	8-94221-519-0	06	1	1412-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1412-	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1412-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-662-0	01	1	1412-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1412-	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1412-	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1412-	●
137	PIPE; WATER,TURBOCHARGER IN	8-98063-007-0	01	1	1412-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1412-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	1412-		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1412-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1412-	●
288	BOLT; WATER PIPE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1412-	●
391	BRACKET; WATER PIPE	8-98057-168-2	01	1	1412-	●
414	SPACER M8X10	1-11369-081-0	02	1	1412-	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1412-	●

2 12 212 10 11 11 212 12 388 16 17 162 217 265 275 217 275 162 17 17 122 13 1 20 398 398 92 28 143 98 143 92 398 398 488 20 79 79 398 398 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98217-251-2	01	1	1412-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1412-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	1412-		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	1412-		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1412-	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	1412-		●
12	STUD; TURBOCHARGER (C) M10X28	9-04731-028-0	02	1	1412-	●
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	1412-		●
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	1412-		●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	1412-		●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1412-	●
16	ADAPTER; EXH PIPE	8-94395-767-0	01	1	1412-		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	1412-		●
20	PIPE; INL,TURBOCHARGER OUT (A)	8-97606-675-1	01	1	1412-		●
20	PIPE; INL,TURBOCHARGER OUT (C)	8-97618-734-0	01	1	1412-		●
20	PIPE; INL,TURBOCHARGER OUT (B)	8-98251-577-0	01	1	1412-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	8-94393-182-0	01	1	1412-		●
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	1412-		●
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	1412-		●
92	BOLT; INL PIPE (A) M8X40 FLANGE	0-28650-840-0	01	1	1412-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1412-		●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	1412-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	1412-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1412-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	1412-		●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	1412-		●
217	BOLT; BRKT M12X30	8-94394-324-0	03	1	1412-		●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	1412-		●
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	1412-		●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-248-2	01	1	1412-		●
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	1412-		●
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	1412-		●
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	1412-		●
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	1412-		●
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	1412-		●
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	1412-		●
488	HOSE; RUBBER ID=62 L=70	8-98245-240-0	01	1	1412-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
