0-22 — ENGINE MOUNTING (#153321) — 60 parça

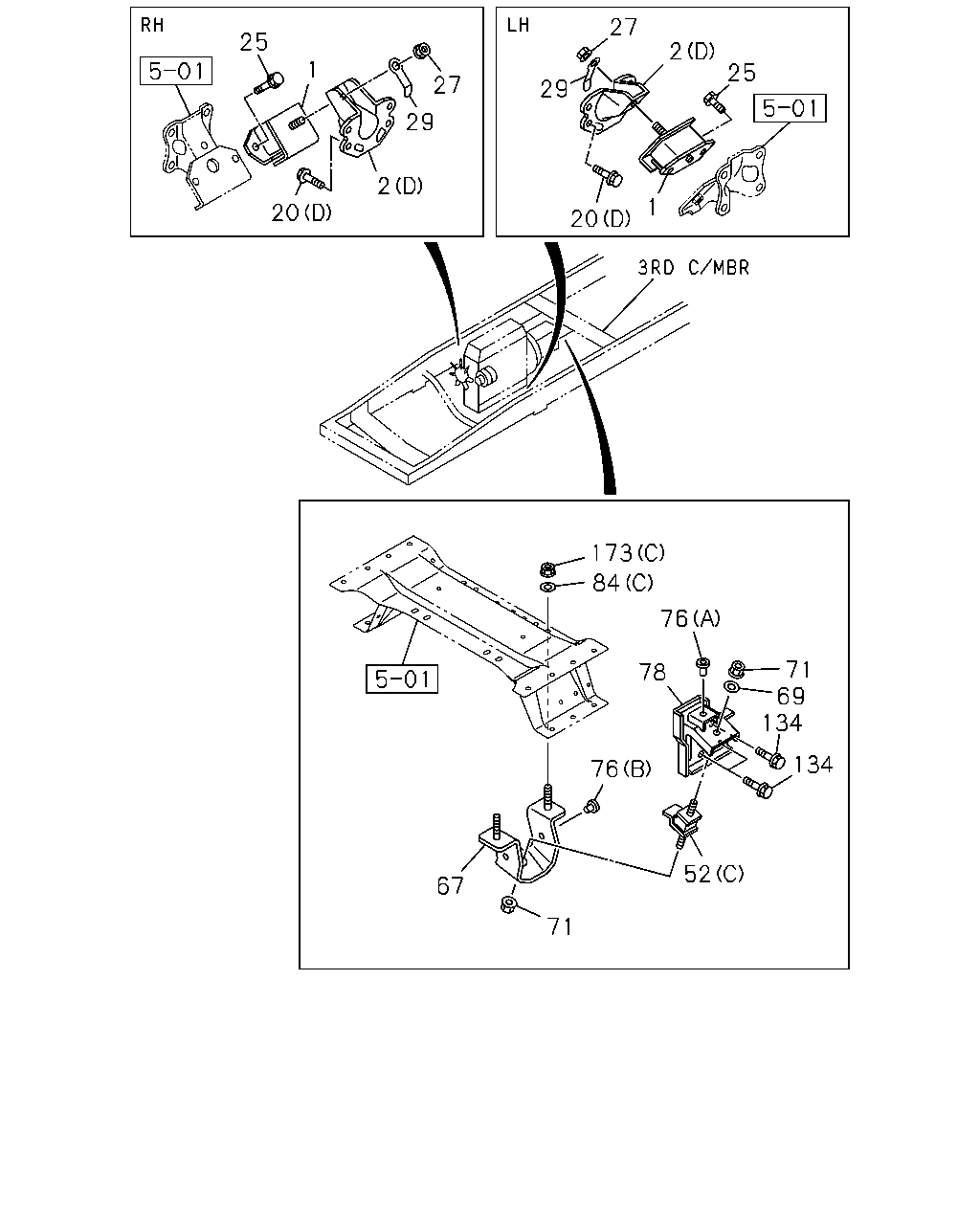

çizim 458188
71 67 52 76 134 134 71 69 78 76 84 173 20 2 29 27 1 25 29 27 2 25 1 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1412- ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1412- ●
2 FOOT; ENG
(D) 		8-97376-076-1 02 1 1412- ●
2 FOOT; ENG
MZW6P M/T(RSZ) (A) 		8-97611-988-0 01 1 1412- ●
2 FOOT; ENG
MZW6P M/T(RSZ) (A) 		8-97611-989-0 01 1 1412- ●
2 FOOT; ENG
(C) 		8-97602-589-1 02 1 1412- ●
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97611-990-0 01 1 1412- ●
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97611-991-0 01 1 1412- ●
20 BOLT; ENG FOOT
(D) M10X30 FLANGE 		0-28161-030-0 08 1 1412- ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) (B) M12X50 		0-16956-250-0 08 1 1412- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1412- ●
20 BOLT; ENG FOOT
FULLER FSO5206B OD M/T(Y4V) (C) M12X55 		8-94399-884-1 08 1 1412- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1412- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1412- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1412- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		8-97039-277-0 02 1 1412- ●
52 RUBBER; CUSHION,ENG MTG,RR
MZW6P M/T(RSZ) (A) 		8-98013-021-1 02 1 1412- ●
52 RUBBER; CUSHION,ENG MTG,RR
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98013-022-1 02 1 1412- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-98055-142-0 02 1 1412- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 1412- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91180-110-0 04 1 1412- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 1412- ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1412- ●
78 BRACKET; ENG MTG,RR 8-98180-441-1 01 1 1412- ●
78 BRACKET; ENG MTG,RR 8-98180-442-1 01 1 1412- ●
84 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=10.5 OD=32 		0-91614-810-0 04 1 1412- ●
84 WASHER; PL,ENG MTG RR TO FRAME
MZW6P M/T(RSZ) (A) ID=19 OD=36 		0-91614-618-0 02 1 1412- ●
84 WASHER; PL,ENG MTG RR TO FRAME
FULLER FSO5206B OD M/T(Y4V) (B) ID=17 		9-09164-516-0 04 1 1412- ●
134 BOLT; SUPPORT BRKT
M14X35 FLANGE 		0-28751-435-0 08 1 1412- ●
173 NUT; ENG MTG RR TO FRAME
(C) M10 FLANGE 		0-91180-210-0 04 1 1412- ●
173 NUT; ENG MTG RR TO FRAME
(A) M14 FLANGE 		0-91180-214-0 08 1 1412- ●
173 NUT; ENG MTG RR TO FRAME
FULLER FSO5206B OD M/T(Y4V) (B) M16 		0-91110-516-0 02 1 1412- ●

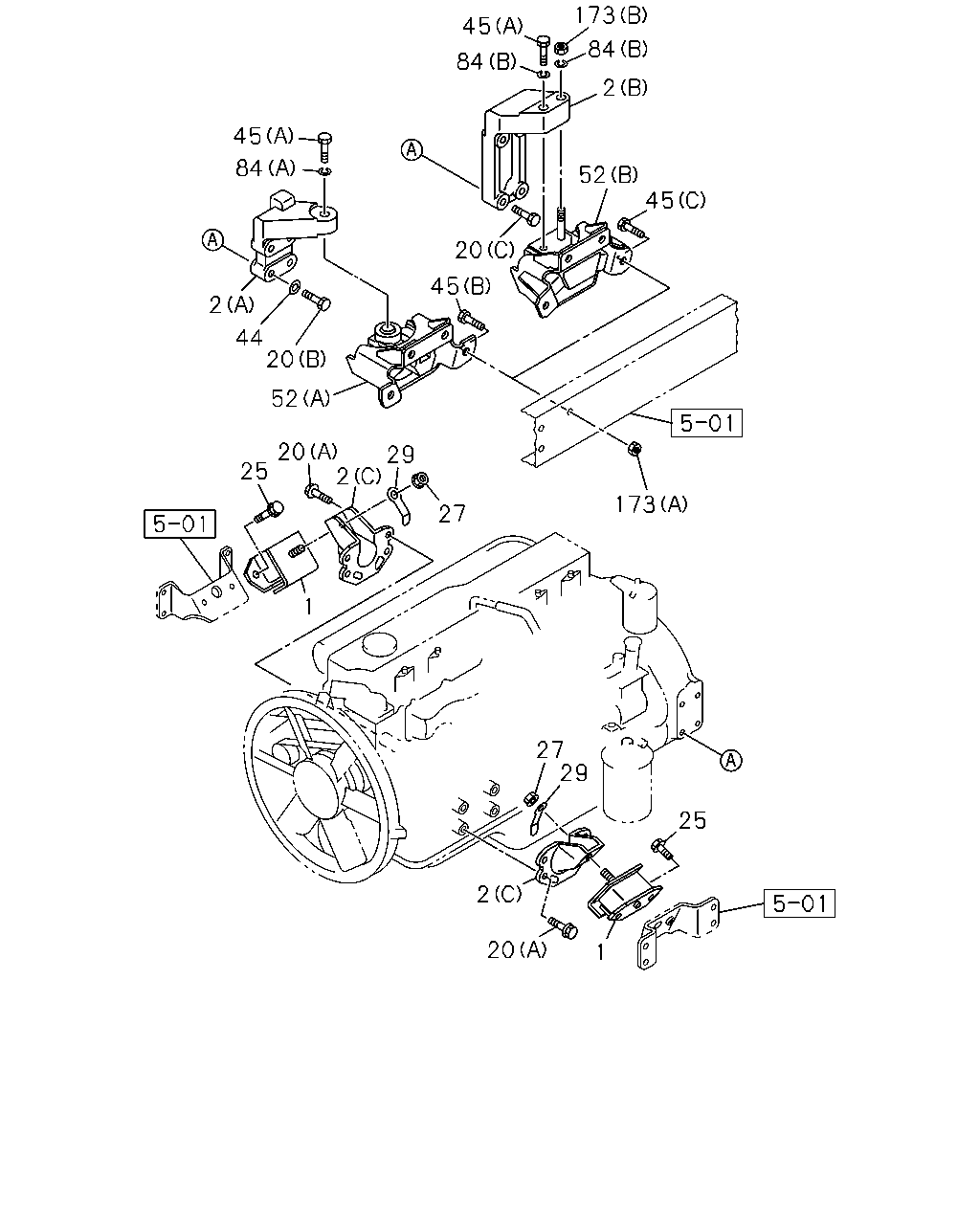

çizim 458193
45 84 173 84 2 52 45 20 45 45 84 2 44 20 52 20 25 1 2 29 27 173 25 29 27 2 20 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1412- ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1412- ●
2 FOOT; ENG
(D) 		8-97376-076-1 02 1 1412- ●
2 FOOT; ENG
MZW6P M/T(RSZ) (A) 		8-97611-988-0 01 1 1412- ●
2 FOOT; ENG
MZW6P M/T(RSZ) (A) 		8-97611-989-0 01 1 1412- ●
2 FOOT; ENG
(C) 		8-97602-589-1 02 1 1412- ●
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97611-990-0 01 1 1412- ●
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97611-991-0 01 1 1412- ●
20 BOLT; ENG FOOT
(D) M10X30 FLANGE 		0-28161-030-0 08 1 1412- ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) (B) M12X50 		0-16956-250-0 08 1 1412- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1412- ●
20 BOLT; ENG FOOT
FULLER FSO5206B OD M/T(Y4V) (C) M12X55 		8-94399-884-1 08 1 1412- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1412- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1412- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1412- ● ●
44 WASHER; LK,ENG FOOT
MZW6P M/T(RSZ) ID=12.5 		0-91614-512-0 08 1 1412- ●
45 BOLT; CUSHION RUBBER TO FRAME
(A) M14X50 		0-29261-450-0 08 1 1412- ●
45 BOLT; CUSHION RUBBER TO FRAME
MZW6P M/T(RSZ) (B) M18X65 		8-94393-260-1 02 1 1412- ●
45 BOLT; CUSHION RUBBER TO FRAME
FULLER FSO5206B OD M/T(Y4V) (C) M16X60 		0-10956-660-0 02 1 1412- ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		8-97039-277-0 02 1 1412- ●
52 RUBBER; CUSHION,ENG MTG,RR
MZW6P M/T(RSZ) (A) 		8-98013-021-1 02 1 1412- ●
52 RUBBER; CUSHION,ENG MTG,RR
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98013-022-1 02 1 1412- ●
84 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=10.5 OD=32 		0-91614-810-0 04 1 1412- ●
84 WASHER; PL,ENG MTG RR TO FRAME
MZW6P M/T(RSZ) (A) ID=19 OD=36 		0-91614-618-0 02 1 1412- ●
84 WASHER; PL,ENG MTG RR TO FRAME
FULLER FSO5206B OD M/T(Y4V) (B) ID=17 		9-09164-516-0 04 1 1412- ●
173 NUT; ENG MTG RR TO FRAME
(C) M10 FLANGE 		0-91180-210-0 04 1 1412- ●
173 NUT; ENG MTG RR TO FRAME
(A) M14 FLANGE 		0-91180-214-0 08 1 1412- ●
173 NUT; ENG MTG RR TO FRAME
FULLER FSO5206B OD M/T(Y4V) (B) M16 		0-91110-516-0 02 1 1412- ●
