◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11659 - FSR MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#153307) — 22 parça

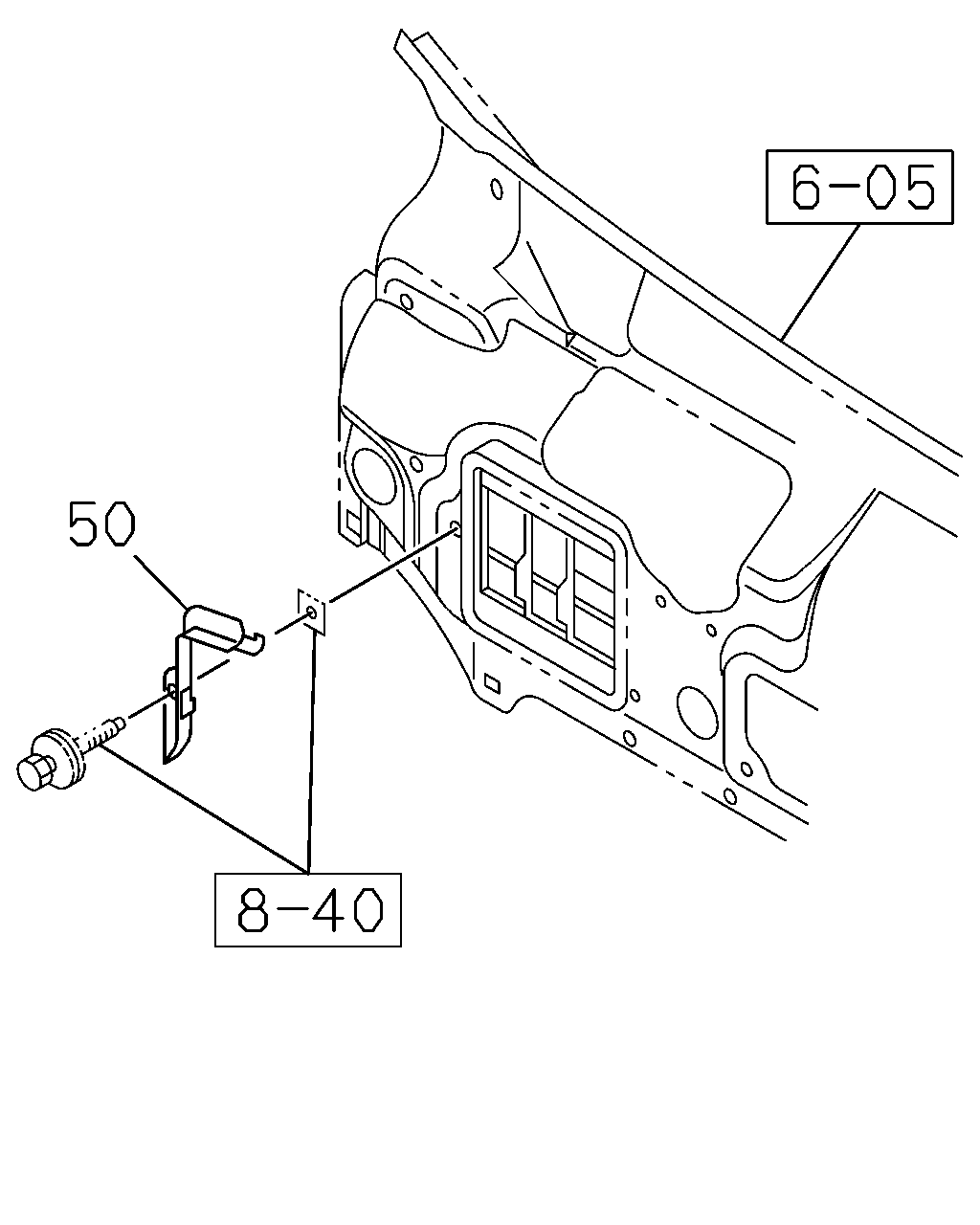

çizim 459493
50
BalonParca AdiParca NoAdetTipApplied Date
50 COVER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98071-470-5 01 1 1412-

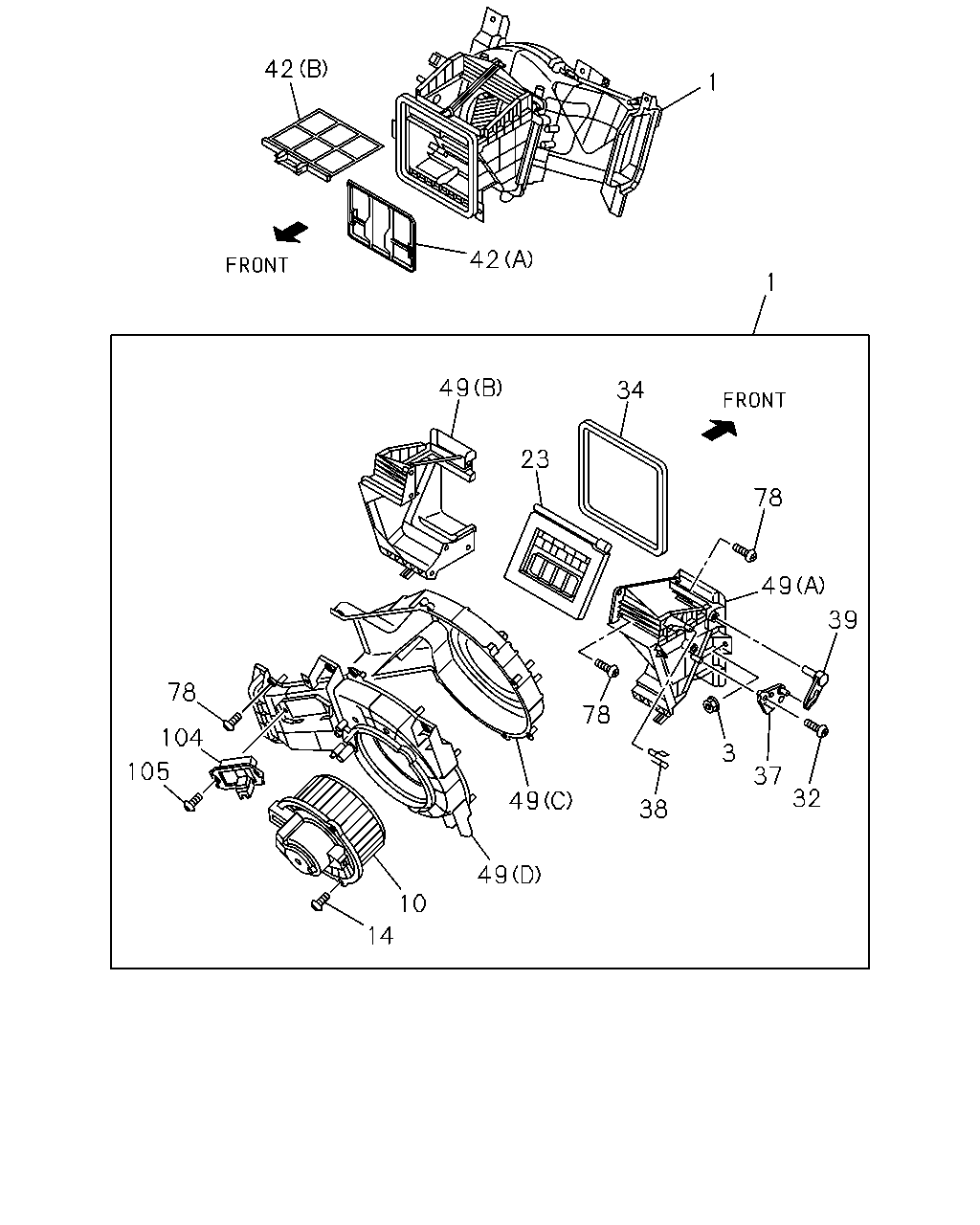

çizim 460050
42 42 1 1 34 49 23 78 49 39 3 37 32 38 78 49 49 10 14 78 104 105
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98183-598-0 01 1 1412-
1 BLOWER ASM
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98171-721-0 01 1 1412-
3 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		1-83539-354-0 02 1 1412-
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98183-926-0 01 1 1412-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 		8-98047-448-0 03 1 1412-
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-761-0 01 1 1412-
23 SHUTTER; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98171-863-0 01 1 1412-
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 01 1 1412-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98096-453-0 01 1 1412-
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-453-0 01 1 1412-
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1412-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-454-0 01 1 1412-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98025-006-1 01 1 1412-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-327-0 01 1 1412-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98047-444-0 01 1 1412-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98047-445-0 01 1 1412-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98077-415-0 01 1 1412-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98077-416-0 01 1 1412-
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 16 1 1412-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98077-418-0 01 1 1412-
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 02 1 1412-
