Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

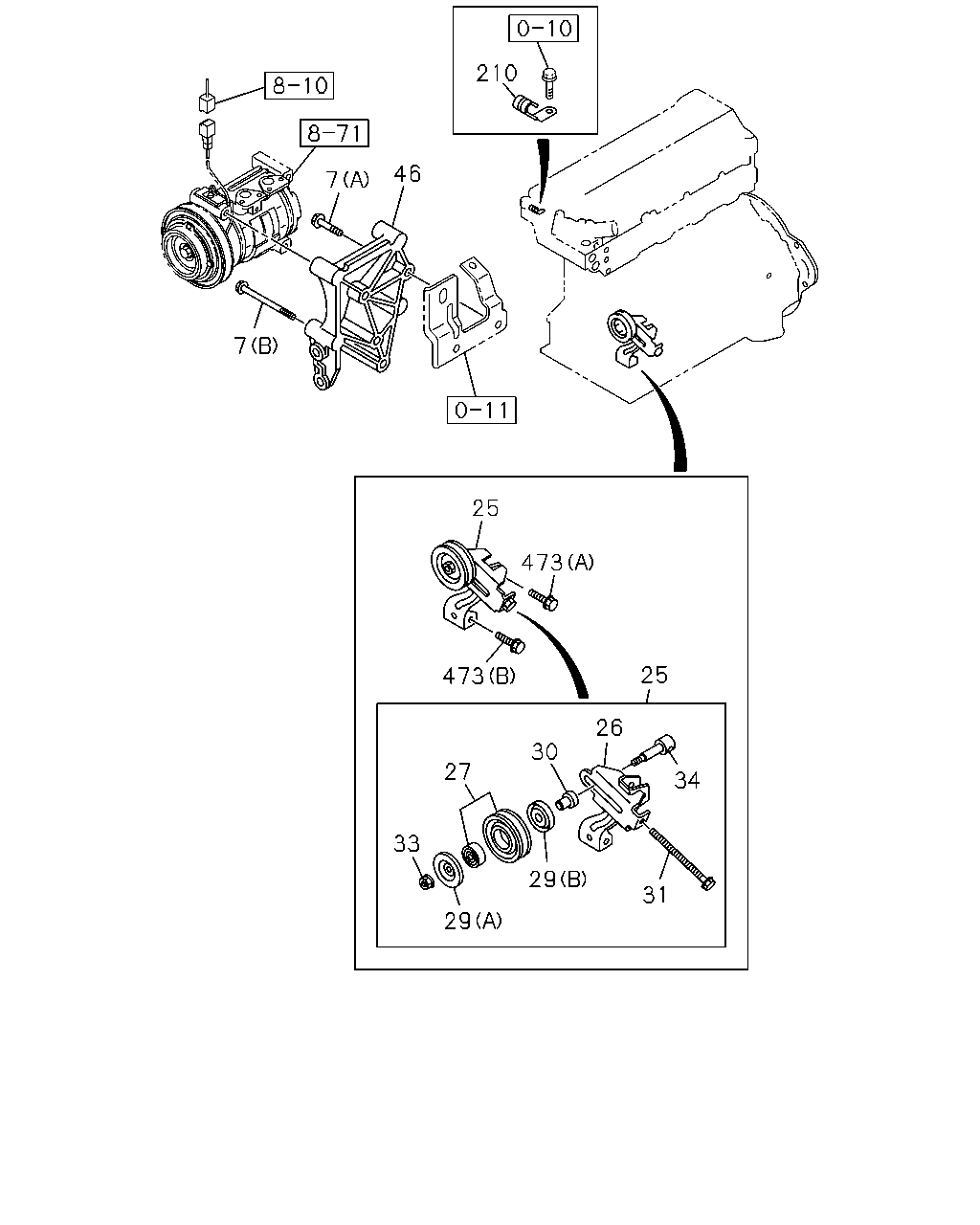

8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#153302) — 21 parça
◀
[850A] A/C CMPR FIXING AND IDLE PULLEY (15 parça)
[850A] A/C CMPR BELT (3 parça)
[850A] EVAP COVER AND DRAIN HOSE (3 parça)
▶
7
46
7
25
473
473
30
27
33
29
29
31
34
26
25
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
BOLT; BRKT
(A) M10X45 FLANGE
0-28151-045-0
02
1
1412-
7
BOLT; BRKT
(B) M10X80 FLANGE
0-28151-080-0
02
1
1412-
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE
8-97161-198-1
01
1
1412-
26
BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97161-031-1
01
1
1412-
27
PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97386-869-0
01
1
1412-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-97384-114-0
01
1
1412-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-97384-115-0
01
1
1412-
30
COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97384-117-0
01
1
1412-
31
BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97384-113-0
01
1
1412-
33
NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97384-118-0
01
1
1412-
34
SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97384-116-0
01
1
1412-
46
BRACKET; CMPR
8-98101-364-0
01
1
1412-
210
CLIP; HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1412-
473
BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X50 FLANGE
0-28050-850-0
01
1
1412-
473
BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE
8-94344-540-1
01
1
1412-
32
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE
8-97161-198-1
01
1
1412-
32
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS
1-87610-100-0
01
1
1412-
32
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1594
8-97383-577-1
01
1
1412-
71
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
71
COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
8-98017-235-1
01
1
1412-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98204-846-0
01
1
1412-
378
HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
8-98062-954-0
01
1
1412-
