◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11659 - FSR MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#153295) — 161 parça

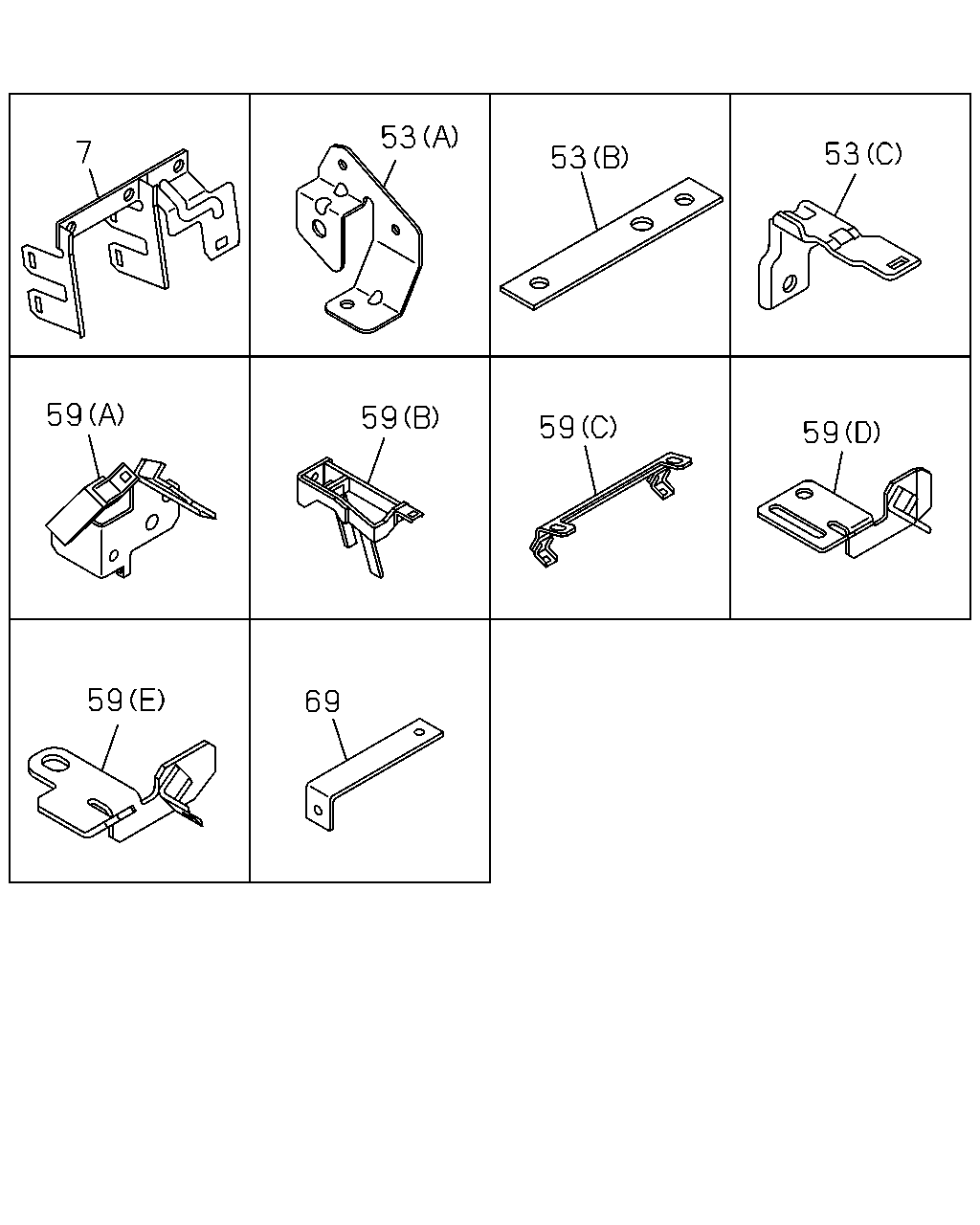

çizim 459241
7 53 53 53 59 59 59 59 69 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1412-
53 BRACKET; HARNESS
(B) L=170 		1-47479-380-0 01 1 1412-
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 1412-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1412-
59 BRACKET; FRAME HARNESS
(C) 		8-97619-533-0 01 1 1412-
59 BRACKET; FRAME HARNESS
(A) 		8-97622-828-0 01 1 1412-
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 1412-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1412-1502
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503-
69 BRACKET; CLIP
L=95 		1-82699-085-0 01 1 1412-
çizim 459586
137 137 312 335 428 428
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; HARNESS CLAMP
(A) L=62 		1-21464-170-2 01 1 1412-
137 BRACKET; HARNESS CLAMP
(B) 		8-98193-417-0 01 1 1412-
312 BRACKET; CLIP HARNESS 8-98224-098-0 01 1 1412-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1412-
428 BRACKET
(A) 		1-47475-519-0 01 1 1412-
428 BRACKET
(B) 		8-98151-455-3 01 1 1412-

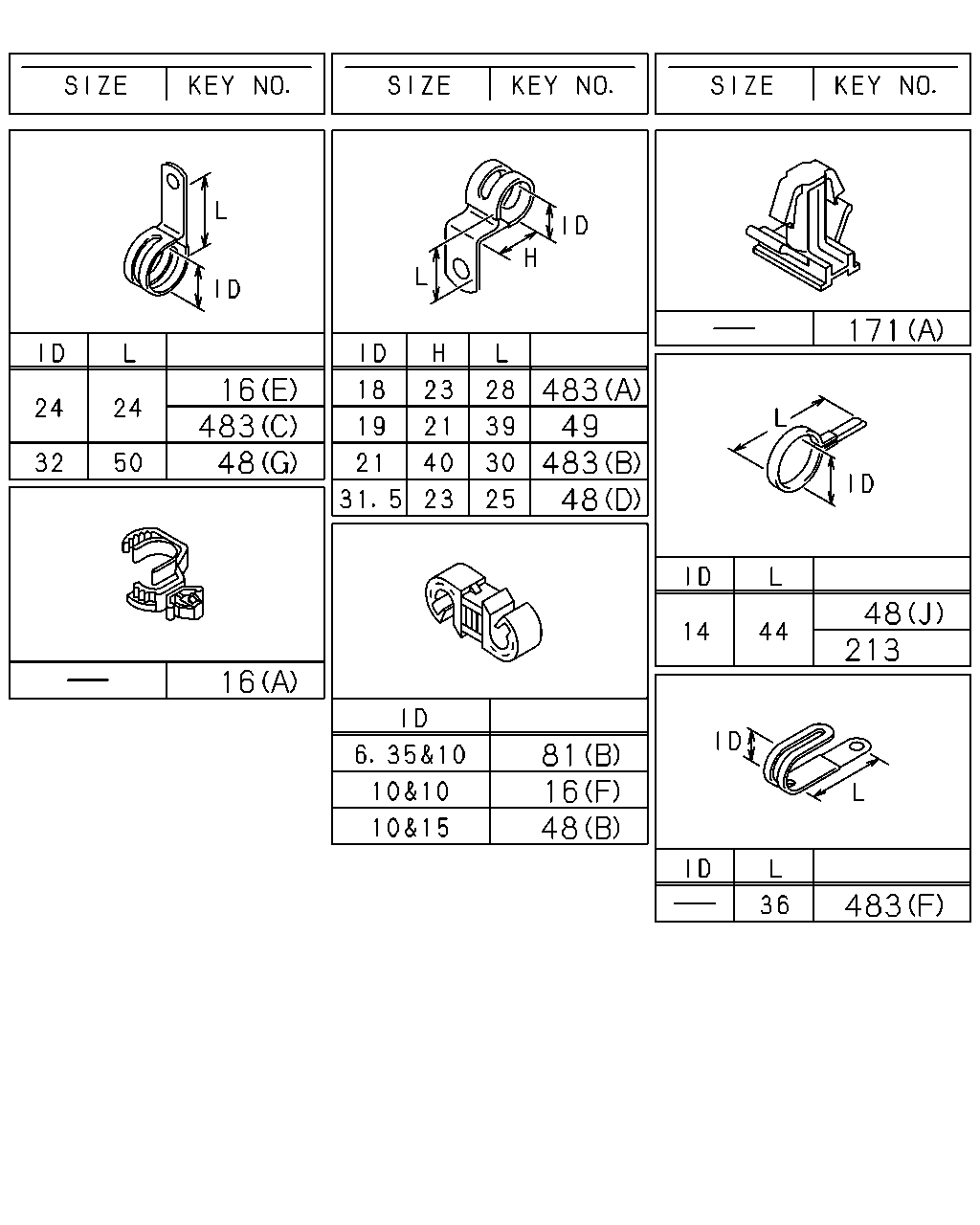

çizim 460040
16 48 483 16 483 483 49 48 81 16 48 171 48 213 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1412-
16 CLIP; HARNESS
(E) ID=24 L=24 		1-09701-001-1 02 1 1412-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1412-
16 CLIP; HARNESS
(F) ID=10 & 10 		1-09709-277-1 01 1 1412-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1412-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1412-
16 CLIP; HARNESS
(I) L=40.6 		8-97229-357-0 02 1 1412-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1412-
16 CLIP; HARNESS
(H) L=250 		1-09707-126-0 02 1 1412-
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1412-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1412-
48 CLIP; FRAME HARNESS
(H) L=600 		1-09707-107-1 01 1 1412-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1412-
48 CLIP; FRAME HARNESS
(B) ID=10 & 15 		1-09709-279-1 01 1 1412-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 02 1 1412-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 03 1 1412-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1412-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (J) ID=14 L=44 		9-09917-427-0 10 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18 		1-09709-291-0 01 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (J) ID=14 L=44 		9-09917-427-0 15 1 1412-
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1412-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1412-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1412-
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 1412-
171 CLIP; STARTER HARNESS
(B) 		8-97101-436-0 01 1 1412-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1412-
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1412-
483 CLIP; ENG HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1412-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 1412-
483 CLIP; ENG HARNESS
(D) ID=16 L=50 		1-09701-158-0 01 1 1412-
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1412-
483 CLIP; ENG HARNESS
(F) L=36 		8-94224-891-1 02 1 1412-
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1412-
çizim 460096
150 139 38 139 38 150 139 313 313 139 313 139 38 386 139 127 47 294 524 219 294 525 524 139 150 150 139 150 377 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1412-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1412-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1412-
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1412-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1412-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1412-
139 BOLT; BRKT
(D) M8X12 FLANGE 		0-28050-812-0 01 1 1412-
139 BOLT; BRKT
(G) M8X20 FLANGE 		0-28650-820-0 01 1 1412-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1412-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1412-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1412-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1412-
139 BOLT; BRKT
(E) M10X30 FLANGE 		0-28651-030-0 02 1 1412-
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE 		1-09044-072-1 01 1 1412-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1412-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 03 1 1412-
150 BOLT; CLIP
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1412-
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1412-
150 BOLT; CLIP
(D) M6X16 FLANGE 		0-28650-616-0 01 1 1412-
150 BOLT; CLIP
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1412-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1412-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1412-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1412-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1412-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1412-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1412-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1412-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 1412-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1412-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1412-
313 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1412-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1412-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1412-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1412-
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 1412-
524 NUT; HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 1412-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1412-

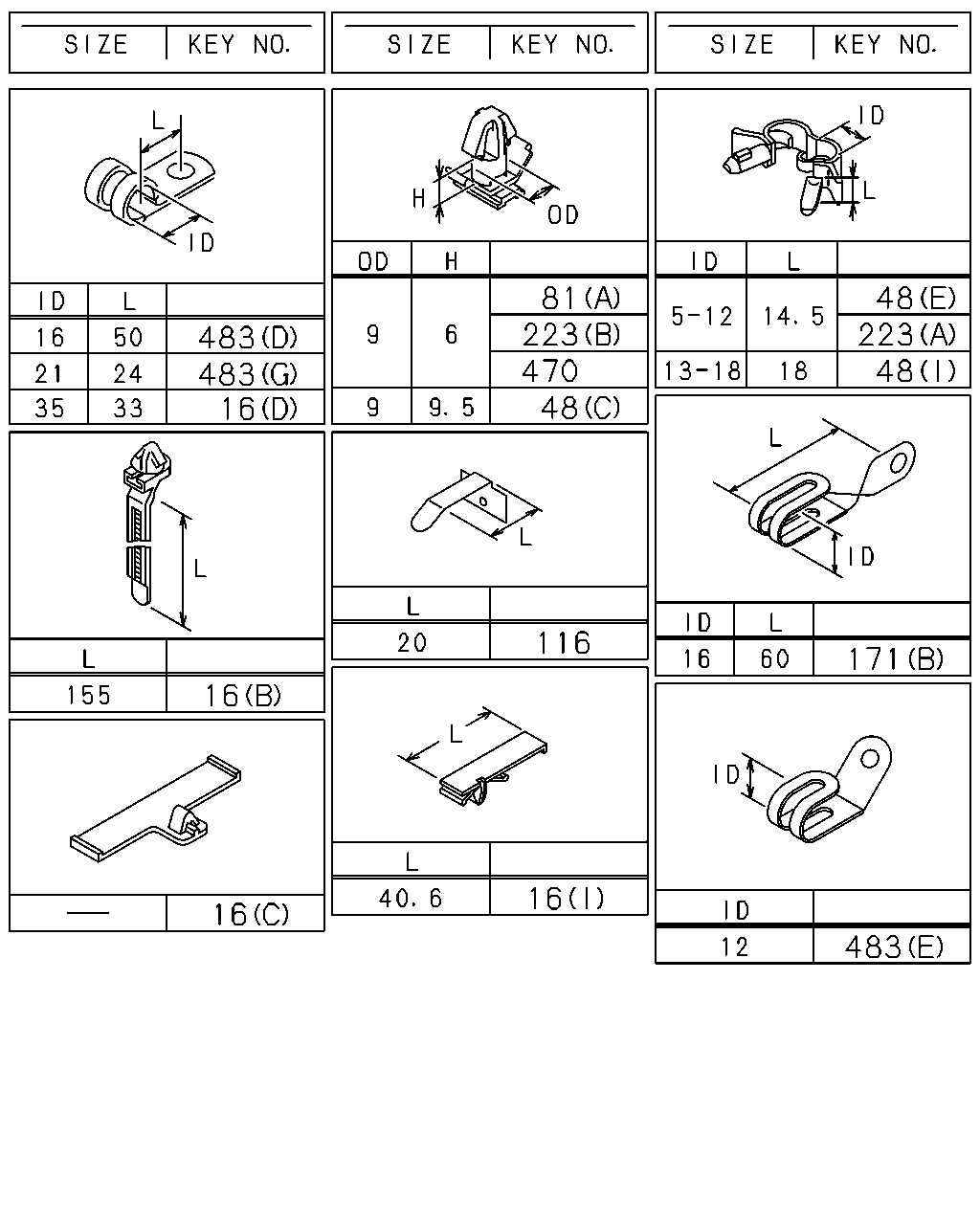

çizim 460174
483 16 483 16 16 81 48 470 223 116 16 48 48 223 171 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1412-
16 CLIP; HARNESS
(E) ID=24 L=24 		1-09701-001-1 02 1 1412-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1412-
16 CLIP; HARNESS
(F) ID=10 & 10 		1-09709-277-1 01 1 1412-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1412-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1412-
16 CLIP; HARNESS
(I) L=40.6 		8-97229-357-0 02 1 1412-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1412-
16 CLIP; HARNESS
(H) L=250 		1-09707-126-0 02 1 1412-
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1412-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1412-
48 CLIP; FRAME HARNESS
(H) L=600 		1-09707-107-1 01 1 1412-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1412-
48 CLIP; FRAME HARNESS
(B) ID=10 & 15 		1-09709-279-1 01 1 1412-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 02 1 1412-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 03 1 1412-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1412-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (J) ID=14 L=44 		9-09917-427-0 10 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18 		1-09709-291-0 01 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (J) ID=14 L=44 		9-09917-427-0 15 1 1412-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1412-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1412-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1412-
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 1412-
171 CLIP; STARTER HARNESS
(B) 		8-97101-436-0 01 1 1412-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 1412-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1412-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1412-
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1412-
483 CLIP; ENG HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1412-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 1412-
483 CLIP; ENG HARNESS
(D) ID=16 L=50 		1-09701-158-0 01 1 1412-
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1412-
483 CLIP; ENG HARNESS
(F) L=36 		8-94224-891-1 02 1 1412-
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1412-
çizim 460300
14 48 22 305 206 48 225 217 16 16 305 208 48 530 538 178 178 14 14
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 02 1 1412-
14 CLIP; BAND,HARNESS
(B) L=150 		8-97355-273-0 01 1 1412-
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 1412-
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1412-
16 CLIP; HARNESS
(E) ID=24 L=24 		1-09701-001-1 02 1 1412-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1412-
16 CLIP; HARNESS
(F) ID=10 & 10 		1-09709-277-1 01 1 1412-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1412-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1412-
16 CLIP; HARNESS
(I) L=40.6 		8-97229-357-0 02 1 1412-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1412-
16 CLIP; HARNESS
(H) L=250 		1-09707-126-0 02 1 1412-
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1412-
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1412-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1412-
48 CLIP; FRAME HARNESS
(H) L=600 		1-09707-107-1 01 1 1412-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1412-
48 CLIP; FRAME HARNESS
(B) ID=10 & 15 		1-09709-279-1 01 1 1412-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 02 1 1412-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 03 1 1412-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1412-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (J) ID=14 L=44 		9-09917-427-0 10 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=13-18 L=18 		1-09709-291-0 01 1 1412-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (J) ID=14 L=44 		9-09917-427-0 15 1 1412-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1412-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1412-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 1412-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1412-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1412-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 02 1 1412-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1412-
305 CLIP; ENG HARNESS
(B) L=300 		1-09707-001-1 01 1 1412-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1412-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1412-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
